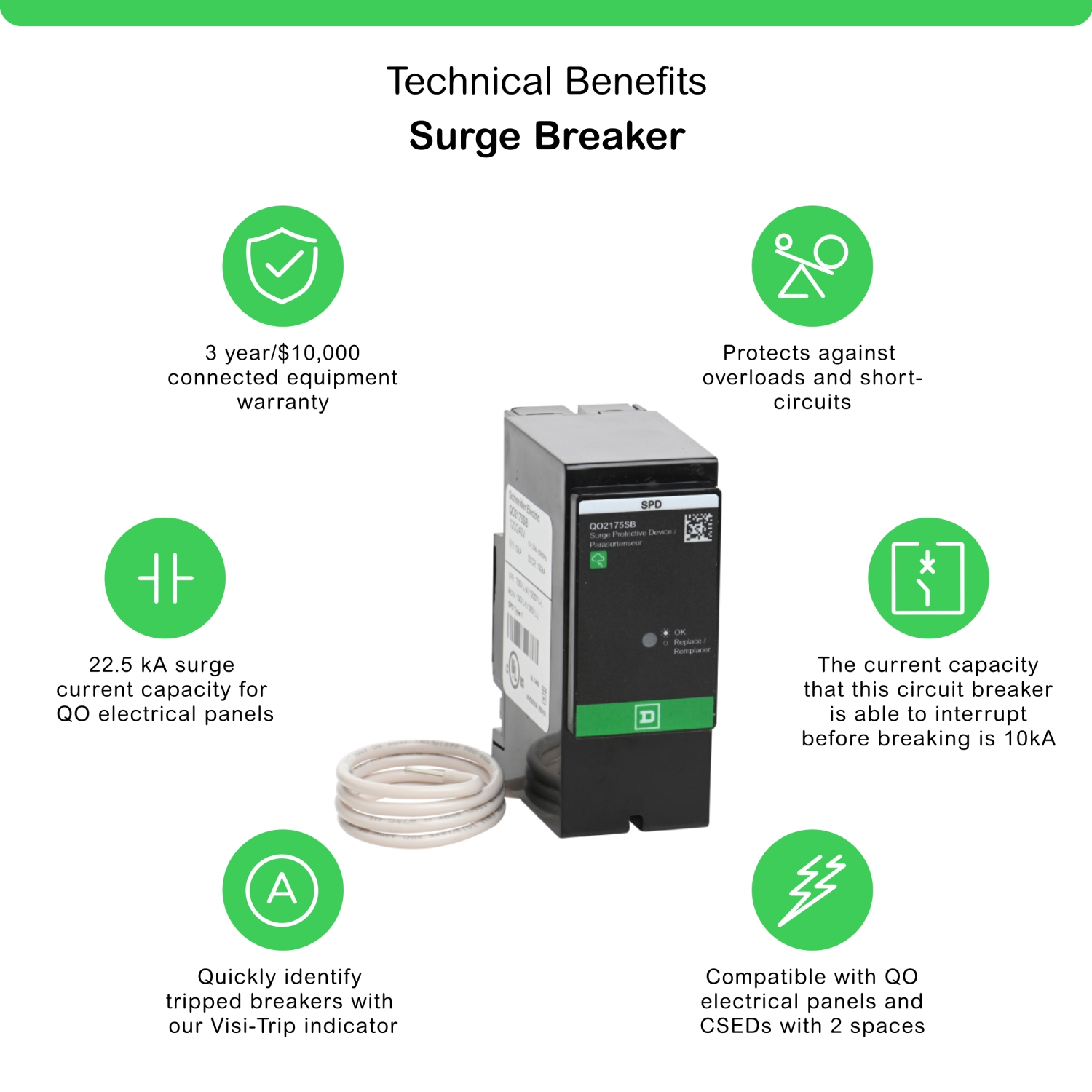

Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1

Product

Surge protection device

Range

Surge Breaker
QO

Voltage Rating

120/240 V AC

MCOV

150 V
300 V

SCCR

22 kA

Joule Rating

900 J

Surge Current

22.5 kA

Voltage Protection Rating

700 V L-N
1500 V L-L

Nominal Discharge Current

5 kA

Response Time

< 50 ns

Protection Type

Thermal fuse

Power Consumption per Phase

500 mW

Number of Phases

1 phase

Wiring Configuration

3-wire

Local Signalling

1 LED green normal operation

Product destination

Load center QO

Height

3.7 in (94.0 mm)

Width

1.5 in (38.1 mm)

Depth

2.6 in (66.04 mm)

Ambient Operating

-4…149 °F (-20…65 °C)

Enclosure Rating

NEMA 2

Standards

UL 1449
CSA C22.2

Certifications

cULus

Category

US1DE1B08461

Discount Schedule

DE1B

GTIN

785901210894

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.700 in (4.318 cm)

Package 1 Width

3.0000000000 in (7.62 cm)

Package 1 Length

5.50 in (13.97 cm)

Package 1 Weight

10.400 oz (294.835 g)

Unit Type of Package 2

CAR

Number of Units in Package 2

20

Package 2 Height

6.10 in (15.494 cm)

Package 2 Width

6.60 in (16.764 cm)

Package 2 Length

16.70 in (42.418 cm)

Package 2 Weight

13.069 lb(US) (5.928 kg)

Warranty

18 months
