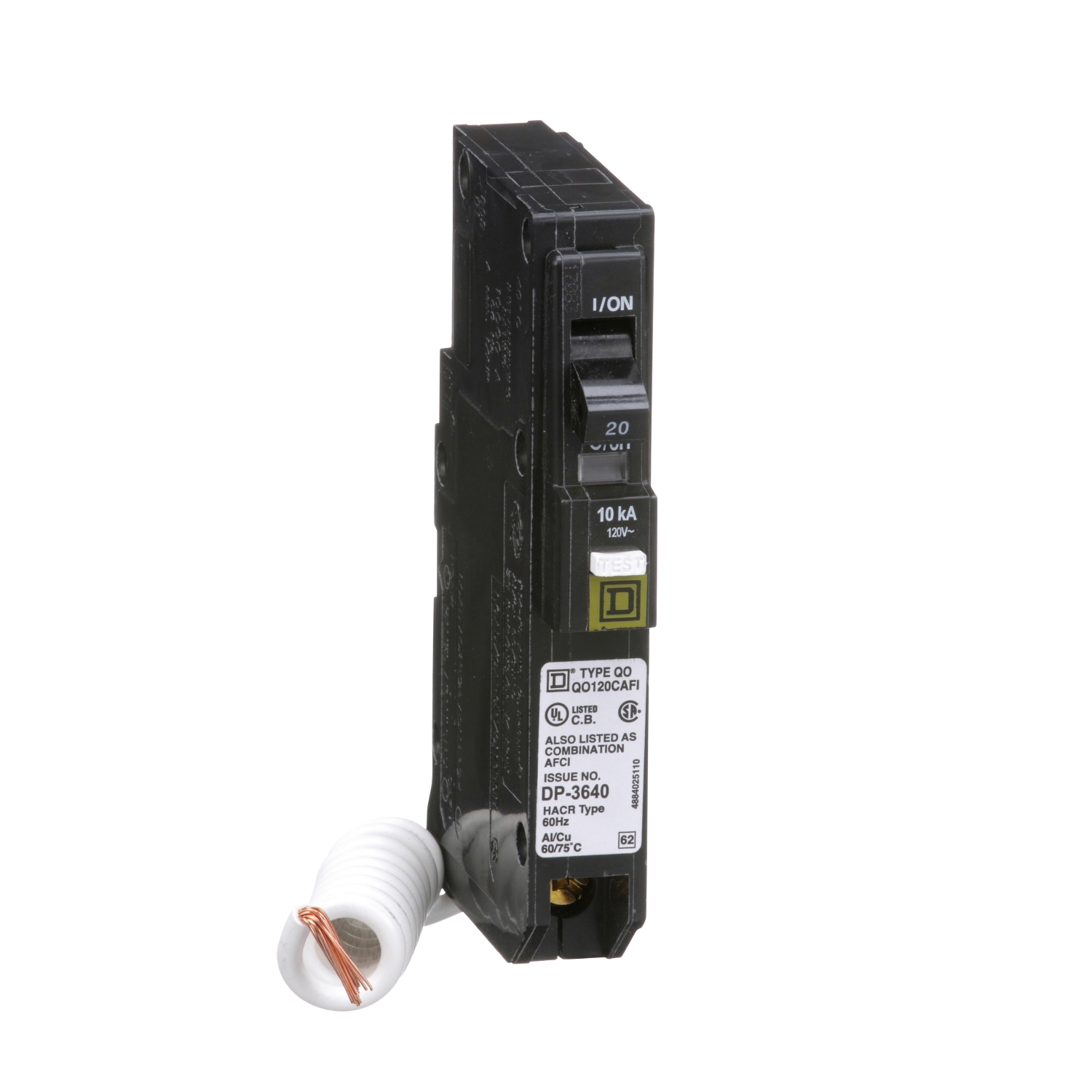

Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, pigtail [TAA]

Product

Miniature circuit-breaker

Range

QO

Current Rating

20 A

Voltage Rating

120 V AC

Mounting Type

Plug-in

Number of Poles

1P

Circuit Breaker Type

Combination ARC-fault

Ratings

HACR rated

Electrical Connection

Pressure plate

Connections Terminals

Pigtail neutral

Interrupt Rating

10 kA 120 V AC

Number of Panel Spaces

1

Wire Size

AWG 14...AWG 8 copper
AWG 12...AWG 8 aluminium

Tightening Torque

35.4 lbf.in (4 N.m)

Height

4.8 in (121 mm)

Width

0.7 in (19 mm)

Depth

2.9 in (74 mm)

Product Weight

0.500 lb(US) (0.227 kg)

Certifications

UL Listed
CSA

Ambient Rating

104 °F (40 °C)

Category

US1DE2A06303

Discount Schedule

DE2A

GTIN

785901438359

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.3 in (3.3 cm)

Package 1 Width

4.0000000000 in (10.16 cm)

Package 1 Length

5.50 in (13.97 cm)

Package 1 Weight

8.80 oz (249.48 g)

Unit Type of Package 2

CAR

Number of Units in Package 2

38

Package 2 Height

3.600 in (9.144 cm)

Package 2 Width

13.800 in (35.052 cm)

Package 2 Length

20.800 in (52.832 cm)

Package 2 Weight

21.499 lb(US) (9.752 kg)

Unit Type of Package 3

PAL

Number of Units in Package 3

2280

Package 3 Height

45.50 in (115.57 cm)

Package 3 Width

40.0000000000 in (101.6 cm)

Package 3 Length

42.0000000000 in (106.68 cm)

Package 3 Weight

1310.001 lb(US) (594.206 kg)

Warranty

18 months
