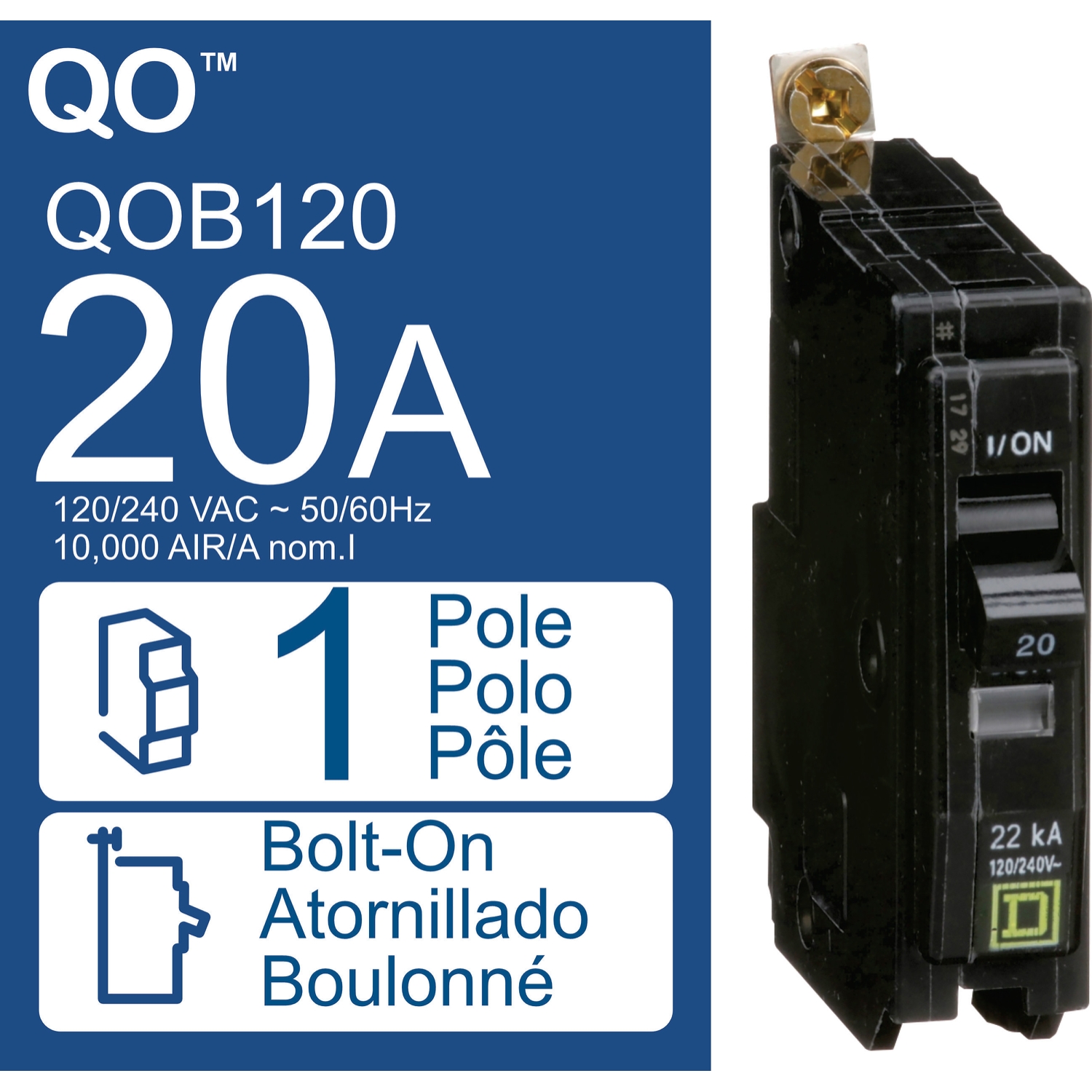

Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, bolt on

Product

Miniature circuit-breaker

Range

QO

Current Rating

20 A

Voltage Rating

120/240 V AC
120 V AC

Mounting Type

Bolt-on

Number of Poles

1P

Circuit Breaker Type

Standard

Ratings

HACR and Switching Duty rated

Electrical Connection

Pressure plate

Interrupt Rating

10 kA 120/240 V AC
10 kA 120 V AC

Number of Panel Spaces

1

Wire Size

AWG 14...AWG 8 copper or aluminium

Tightening Torque

35.4 lbf.in (4 N.m)

Height

3.0 in (76 mm)

Width

0.7 in (19 mm)

Depth

2.9 in (74 mm)

Product Weight

0.300 lb(US) (0.136 kg)

Certifications

UL Listed
CSA

Ambient Rating

104 °F (40 °C)

Category

US10DE200015

Discount Schedule

0DE2

GTIN

785901416722

Returnability

Yes

Country of origin

US

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.700 in (1.778 cm)

Package 1 Width

3.0000000000 in (7.62 cm)

Package 1 Length

3.400 in (8.636 cm)

Package 1 Weight

4.480 oz (127.006 g)

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

3.50 in (8.89 cm)

Package 2 Width

3.300 in (8.382 cm)

Package 2 Length

7.900 in (20.066 cm)

Package 2 Weight

2.851 lb(US) (1.293 kg)

Unit Type of Package 3

CAR

Number of Units in Package 3

100

Package 3 Height

8.50 in (21.59 cm)

Package 3 Width

17.10 in (43.434 cm)

Package 3 Length

8.00 in (20.32 cm)

Package 3 Weight

29.000 lb(US) (13.154 kg)

Warranty

18 months
