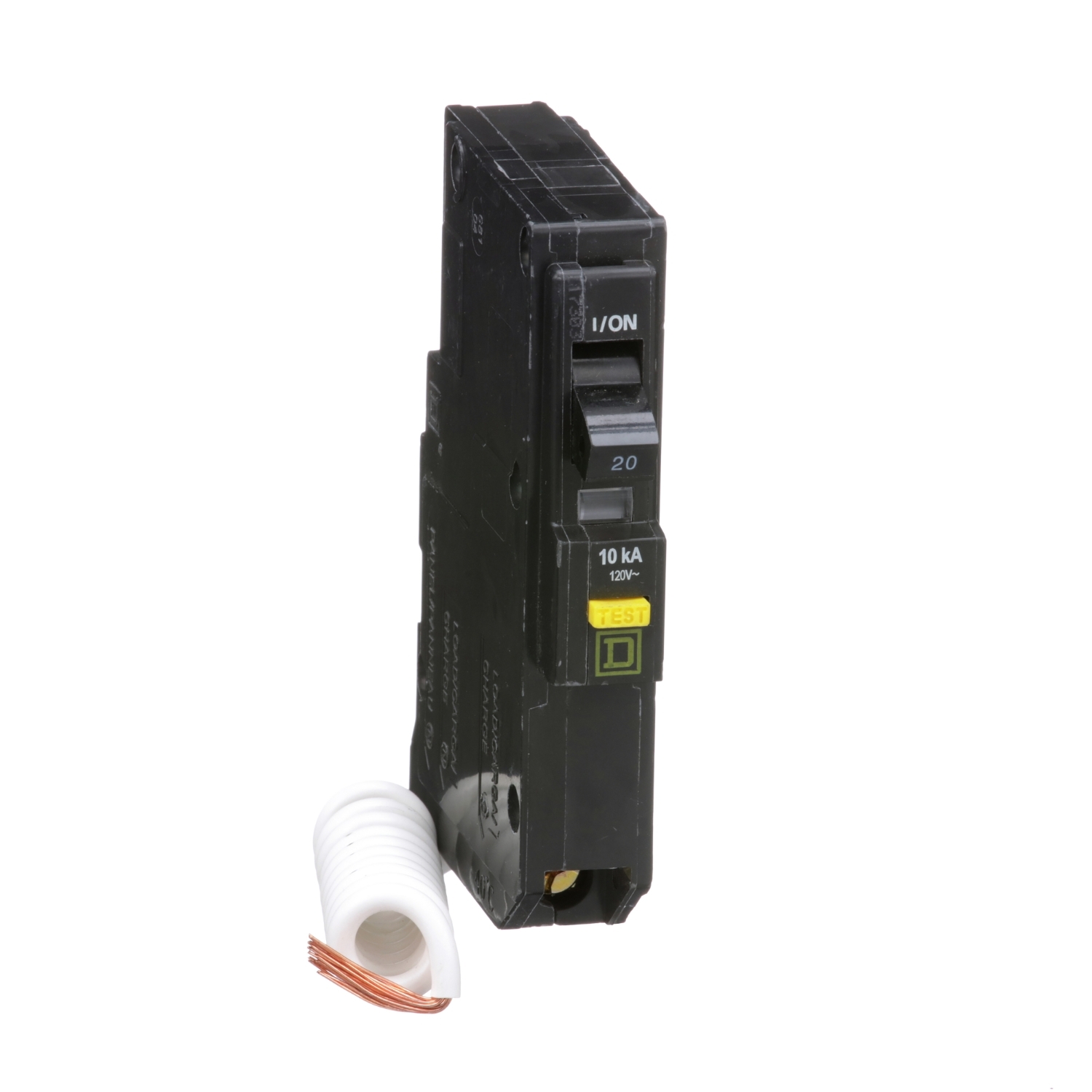

Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, 6mA grd fault A, pigtail [TAA]

Product

Miniature circuit-breaker

Range

QO

Current Rating

20 A

Voltage Rating

120 V AC

Mounting Type

Plug-in

Number of Poles

1P

Circuit Breaker Type

Ground fault protecting class A 6 mA

Ratings

Not rated

Electrical Connection

Pressure plate

Interrupt Rating

10 kA 120 V AC

Number of Panel Spaces

1

Wire Size

AWG 14...AWG 8 copper
AWG 12...AWG 8 aluminium

Tightening Torque

35.4 lbf.in (4 N.m)
40.7 lbf.in (4.6 N.m) 0.006…0.03 in² (4…20 mm²) (AWG 12...AWG 4)

Height

4.1 in (105 mm)

Width

0.7 in (19 mm)

Depth

2.9 in (74 mm)

Product Weight

0.529 lb(US) (0.240 kg)

Certifications

UL Listed
CSA

Ambient Rating

104 °F (40 °C)

Category

US1DE2A00003

Discount Schedule

DE2A

GTIN

785901255079

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.300 in (3.302 cm)

Package 1 Width

3.900 in (9.906 cm)

Package 1 Length

5.50 in (13.97 cm)

Package 1 Weight

8.480 oz (240.404 g)

Unit Type of Package 2

PAL

Number of Units in Package 2

1824

Package 2 Height

40.0000000000 in (101.6 cm)

Package 2 Width

40.0000000000 in (101.6 cm)

Package 2 Length

48.0000000000 in (121.92 cm)

Package 2 Weight

994.00 lb(US) (450.87 kg)

Warranty

18 months
