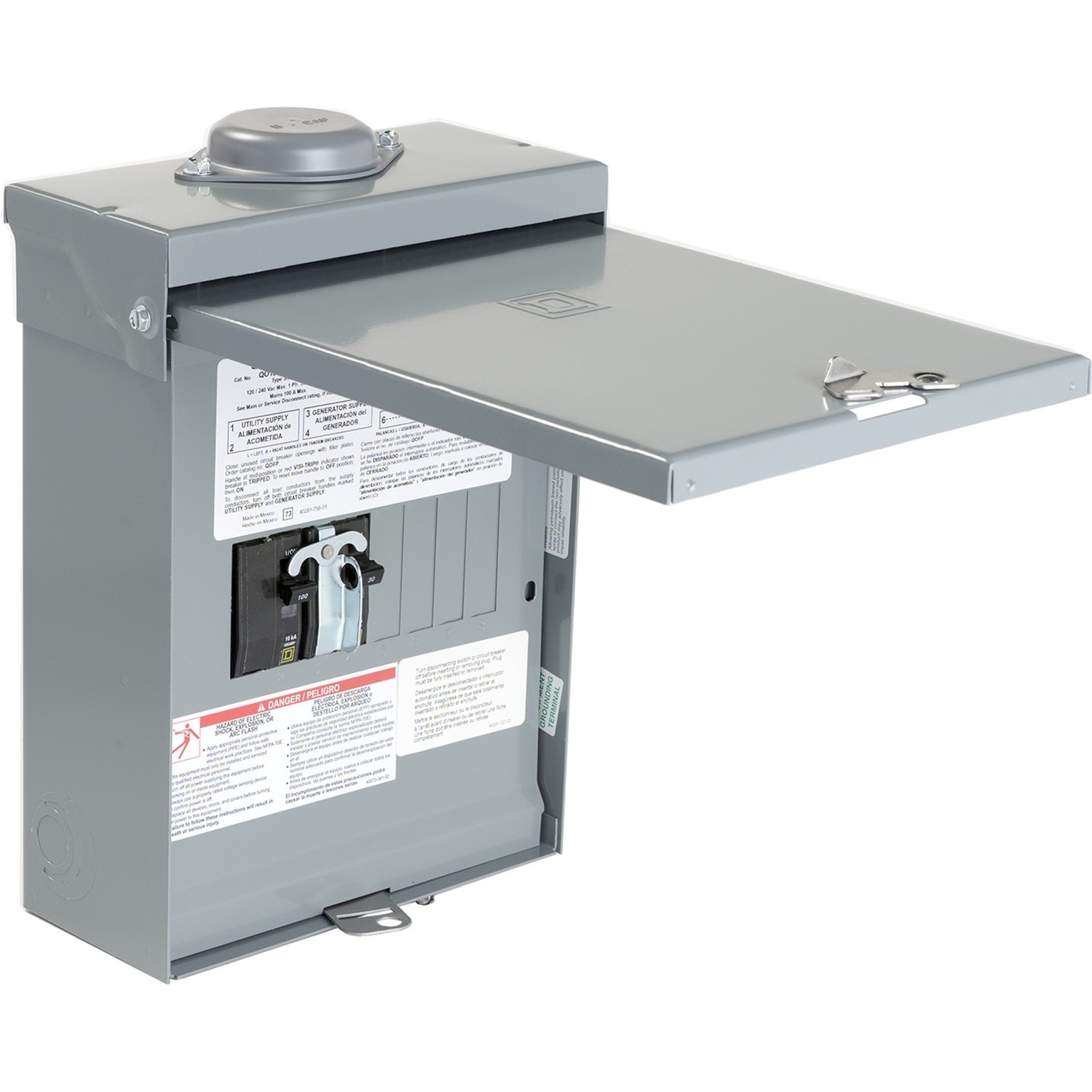

Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 30A main breaker with interlock, NEMA3R, gnd bar, UL

Marketing Trade Name

QO

Product Type

Panel

Cover Type

Surface cover

PoN Convertible Mains (lugs)

Main breaker

Rated Current

100 A

Number of Spaces

4

Max Short Circuit Current Rating

10 kA

Maximum Number of Single Pole Circuits

8

Maximum Number of Tandem Breakers

4

Number of Phases

1 phase 3-wire

Wire Size

AWG 8...AWG 2 copper

Ground Bar

Grounding bar (factory installed)

Electrical Connection

Lugs

Busbar Material

Tin plated aluminium: busbar

Enclosure Material

Welded galvannealed steel

Surface Finish

Baked enamel Gray

Box Number

17R

Height

12.6 in (321 mm)

Width

8.9 in (226 mm)

Enclosure Rating

NEMA 3R weatherproof enclosure

Ambient Air Temperature for Operation

23 °F (-5 °C)
104 °F (40 °C)

Product Certifications

UL Listed

Category

US1DE3A00101

Discount Schedule

DE3A

GTIN

785901883227

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.800 in (12.192 cm)

Package 1 Width

10.200 in (25.908 cm)

Package 1 Length

14.50 in (36.83 cm)

Package 1 Weight

11.389 lb(US) (5.166 kg)

Warranty

18 months
