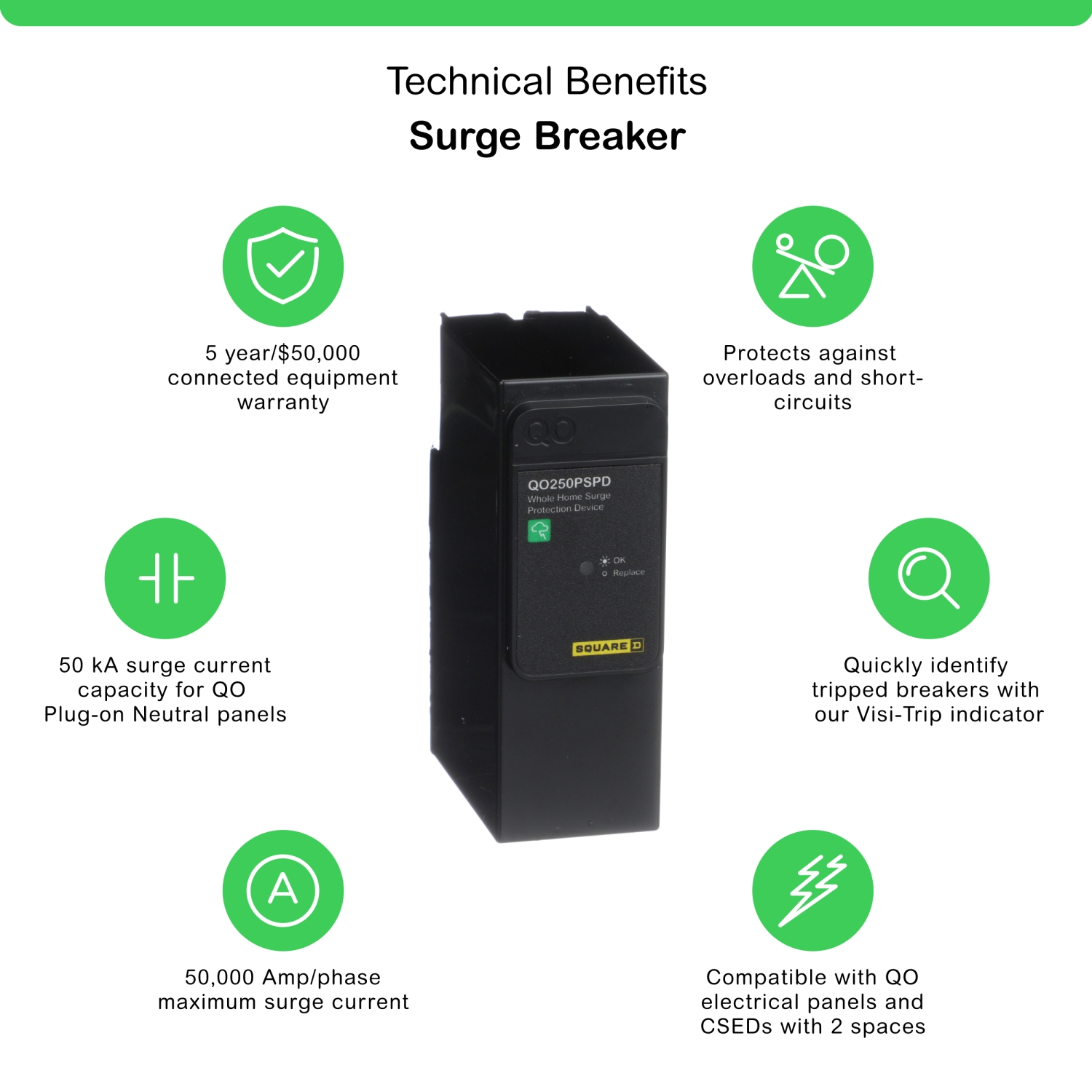

Surge protection device, QO, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1

Product

Surge protection device

Range

QO

Voltage Rating

120/240 V AC

MCOV

150 V

SCCR

22 kA

Surge Current

50 kA

Nominal Discharge Current

20 kA

Number of Phases

1 phase

Wiring Configuration

3-wire

Connection

Plug in phase and neutral

Product destination

Load center QO plug-on neutral

Height

4.0 in (101 mm)

Width

1.5 in (38 mm)

Depth

2.6 in (66 mm)

Ambient Operating

149 °F (65 °C)

Enclosure Rating

NEMA 2

Enclosure Material

Black Plastic

Standards

UL 1449:ed. 4
CSA C22.2 No 269.1

Category

US1DE1B08461

Discount Schedule

DE1B

GTIN

785901475668

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.300 in (8.382 cm)

Package 1 Width

5.0 in (12.7 cm)

Package 1 Length

7.50 in (19.05 cm)

Package 1 Weight

7.680 oz (217.724 g)

Unit Type of Package 2

CAR

Number of Units in Package 2

5

Package 2 Height

8.400 in (21.336 cm)

Package 2 Width

5.800 in (14.732 cm)

Package 2 Length

11.00 in (27.94 cm)

Package 2 Weight

2.749 lb(US) (1.247 kg)
