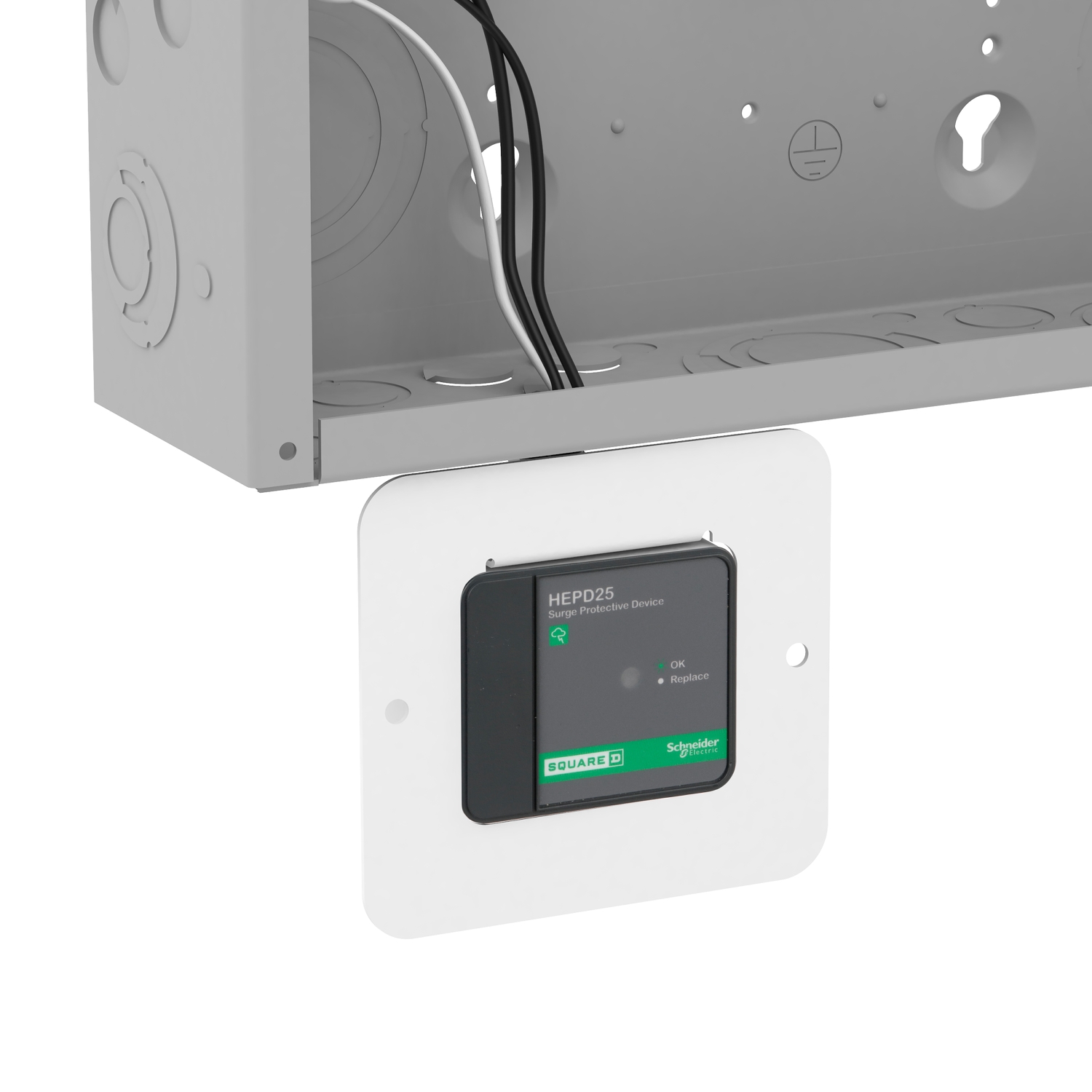

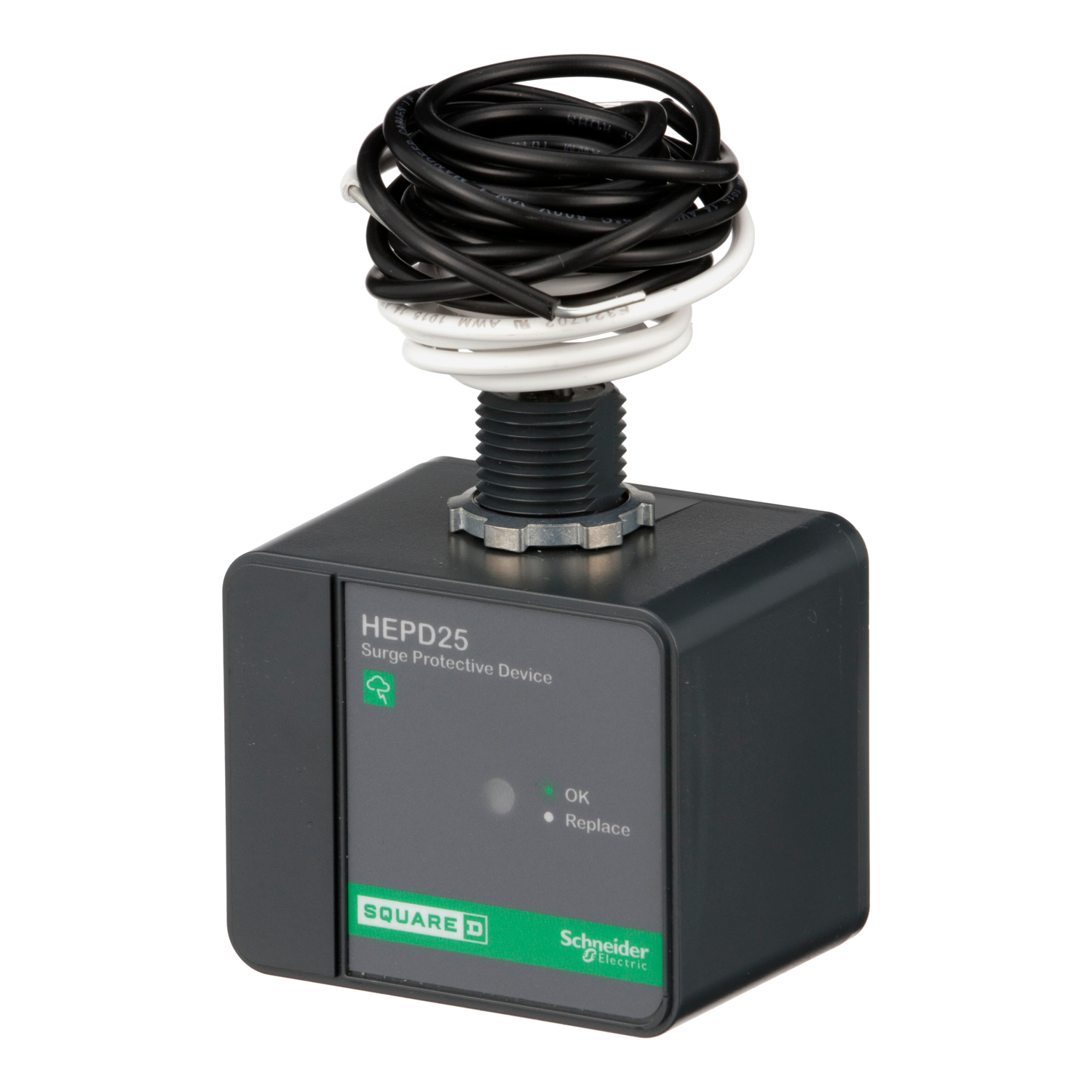

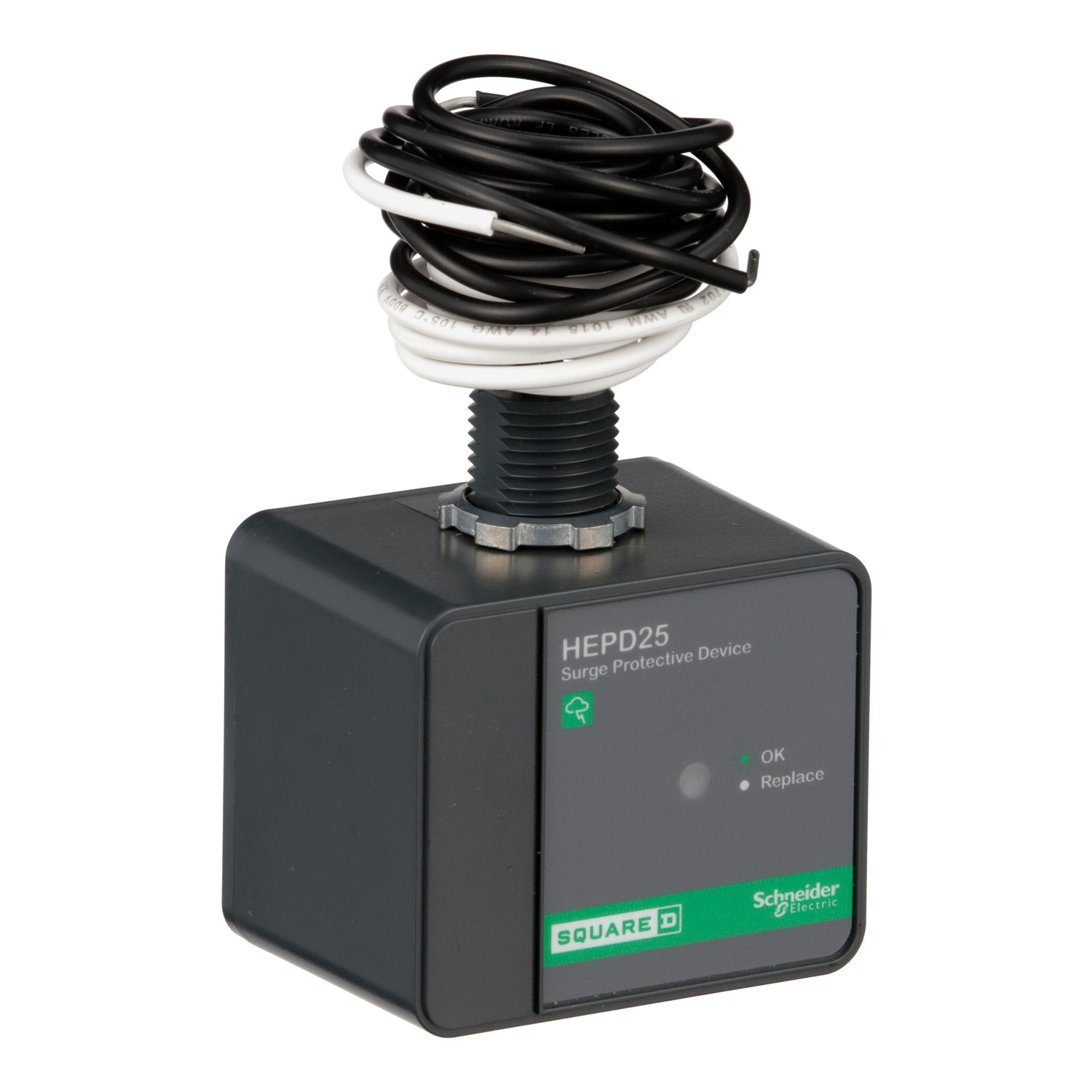

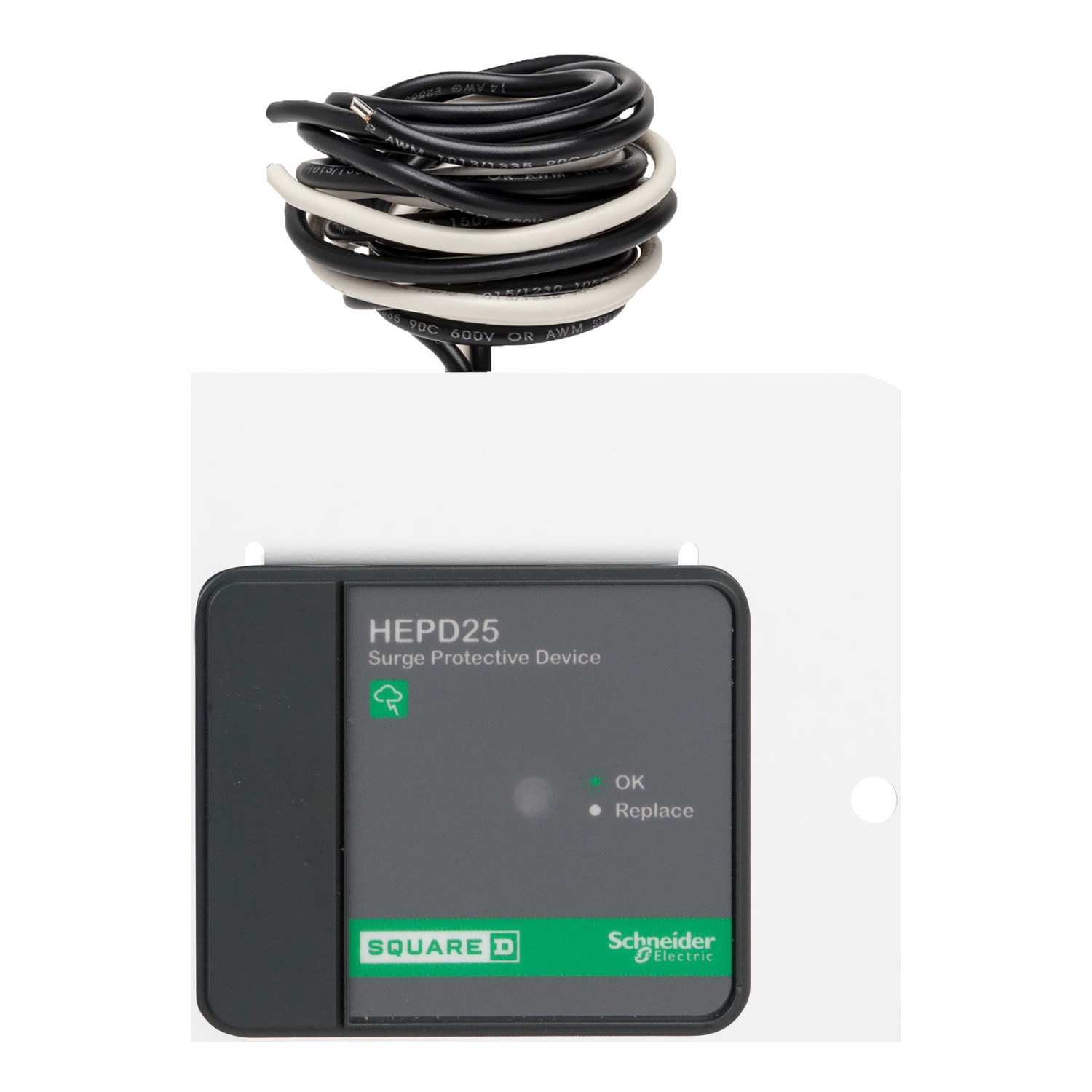

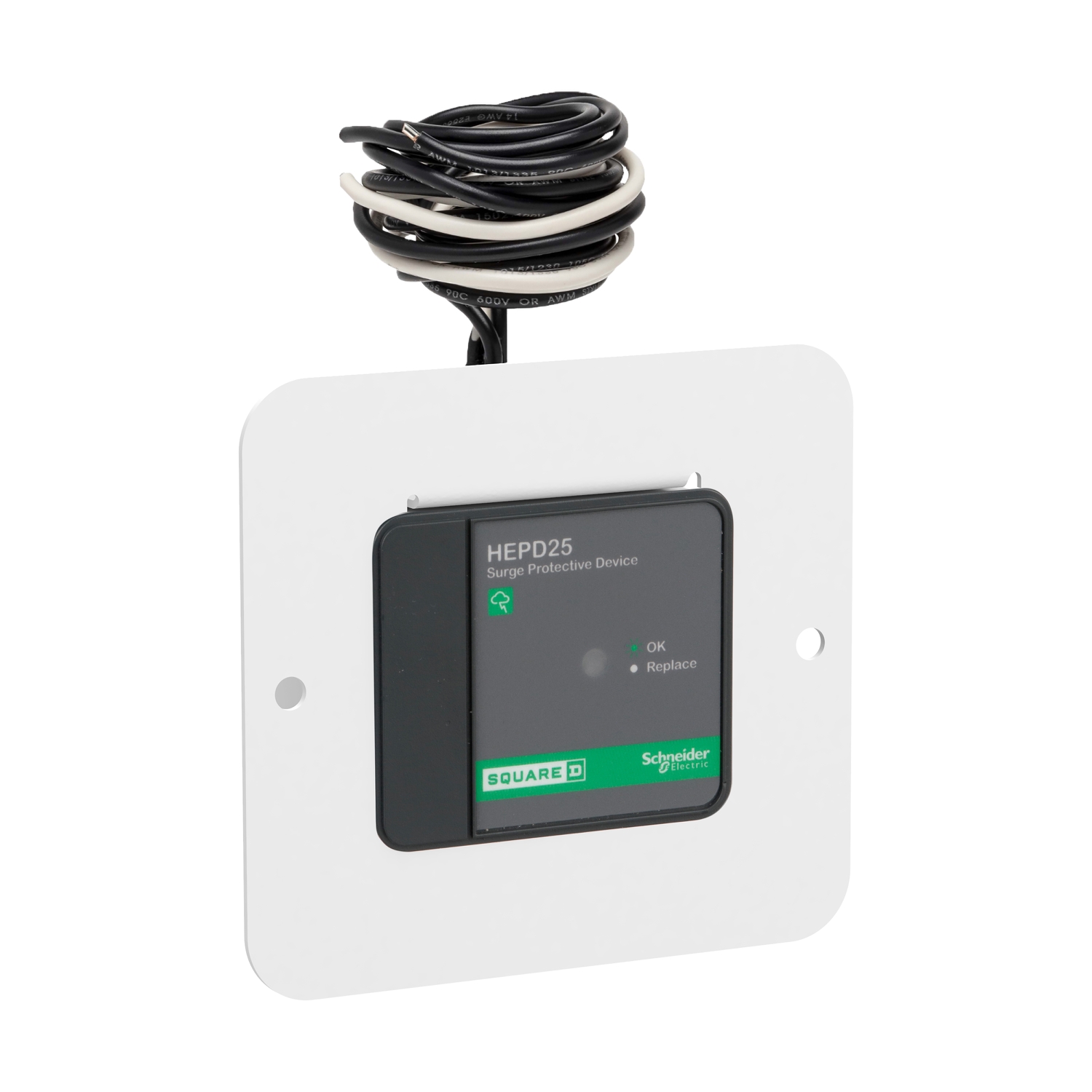

Surge protection device, HEPD, 25kA, 120/240 V, 1 phase, 3 wire, SPD type 1

Product

Surge protection device

Range

Square D

Device Short Name

HEPD

Voltage Rating

120/240 V AC

MCOV

150 V

SCCR

22 kA

Surge Current

25 kA per phase

Voltage Protection Rating

600 V L-N

Nominal Discharge Current

10 kA

Number of Phases

1 phase

Wiring Configuration

3-wire (isolated ground)

Local Signalling

1 LED green normal operation

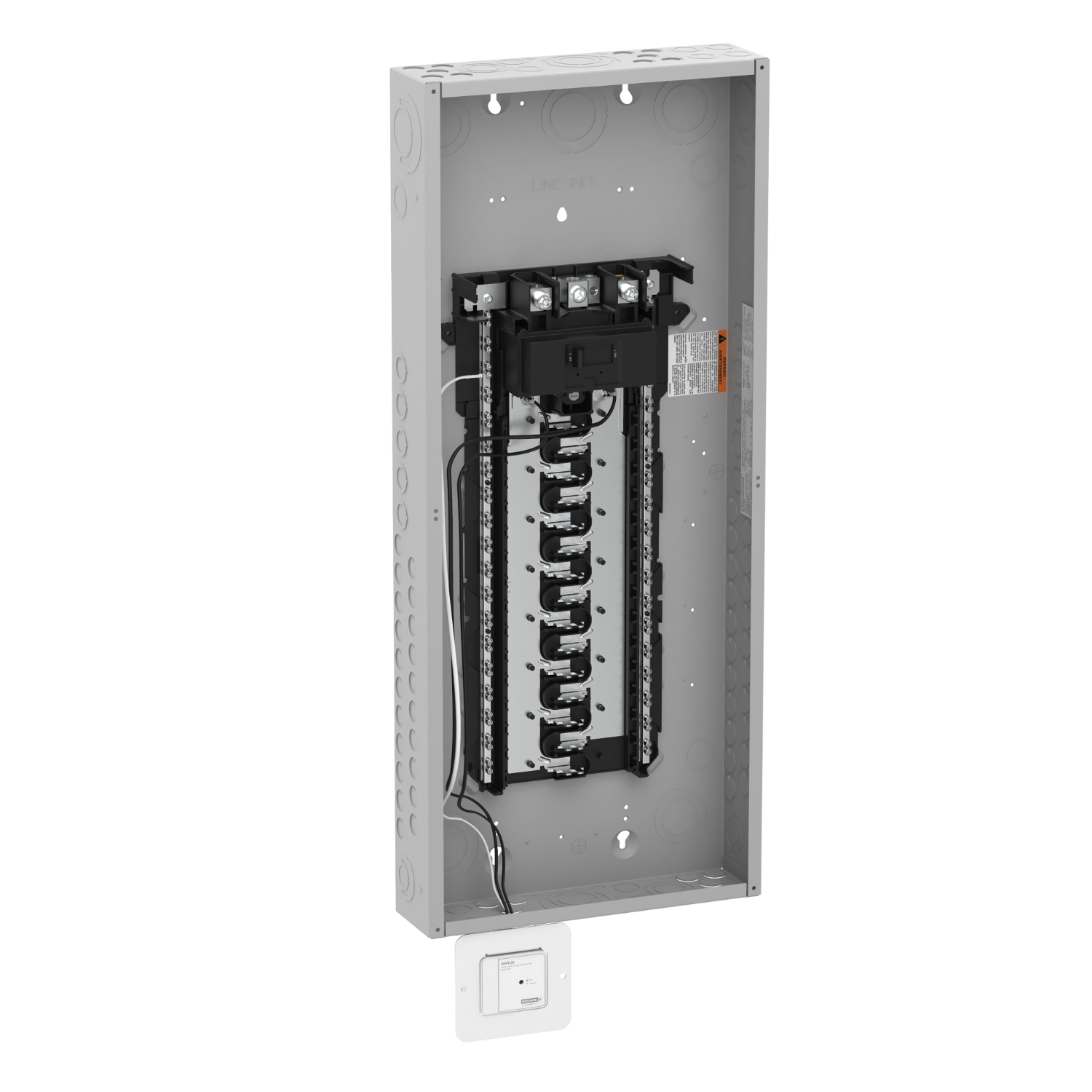

Product destination

Load center

Height

2.45 in (62.23 mm)

Width

2.89 in (73.41 mm)

Depth

2.06 in (52.32 mm)

Enclosure Rating

NEMA 4X

Category

US1DE1B08461

Discount Schedule

DE1B

GTIN

785901479611

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.07 in (20.5 cm)

Package 1 Width

3.2 in (8.2 cm)

Package 1 Length

5.8 in (14.8 cm)

Package 1 Weight

1.3 lb(US) (0.6 kg)
