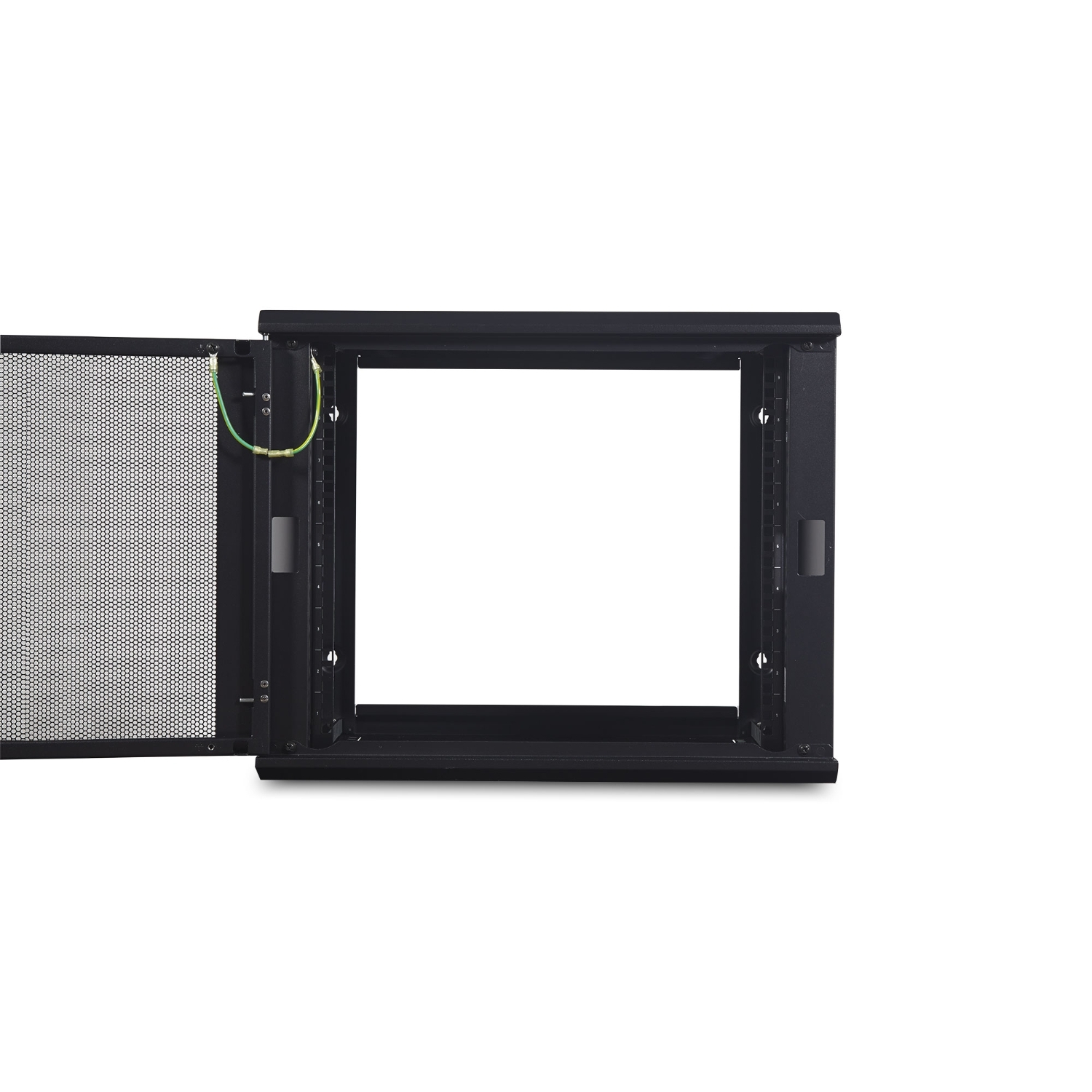

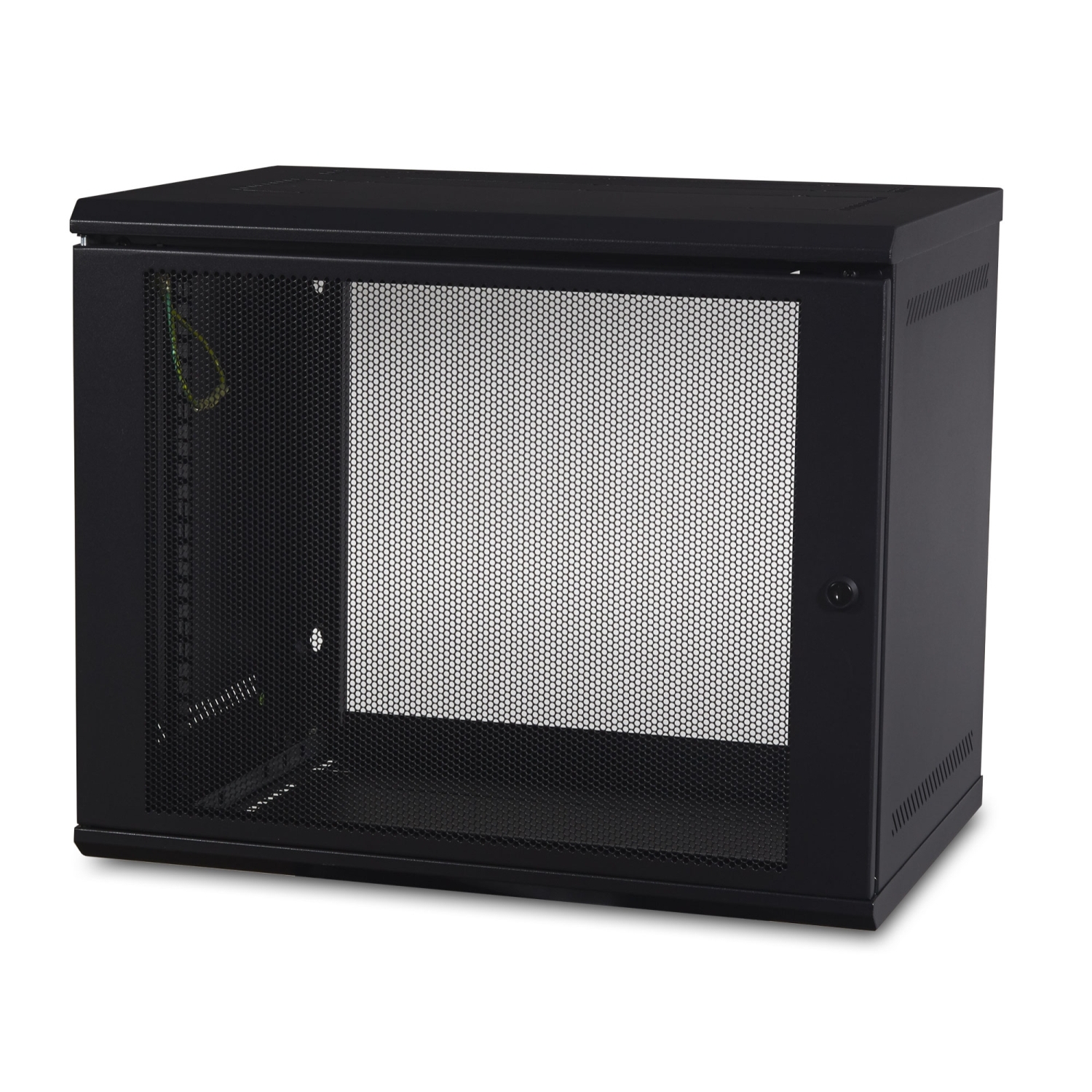

APC NetShelter 9U Wallmount Rack Cabinet Single Hinged Switch Depth Unassembled

Presentation

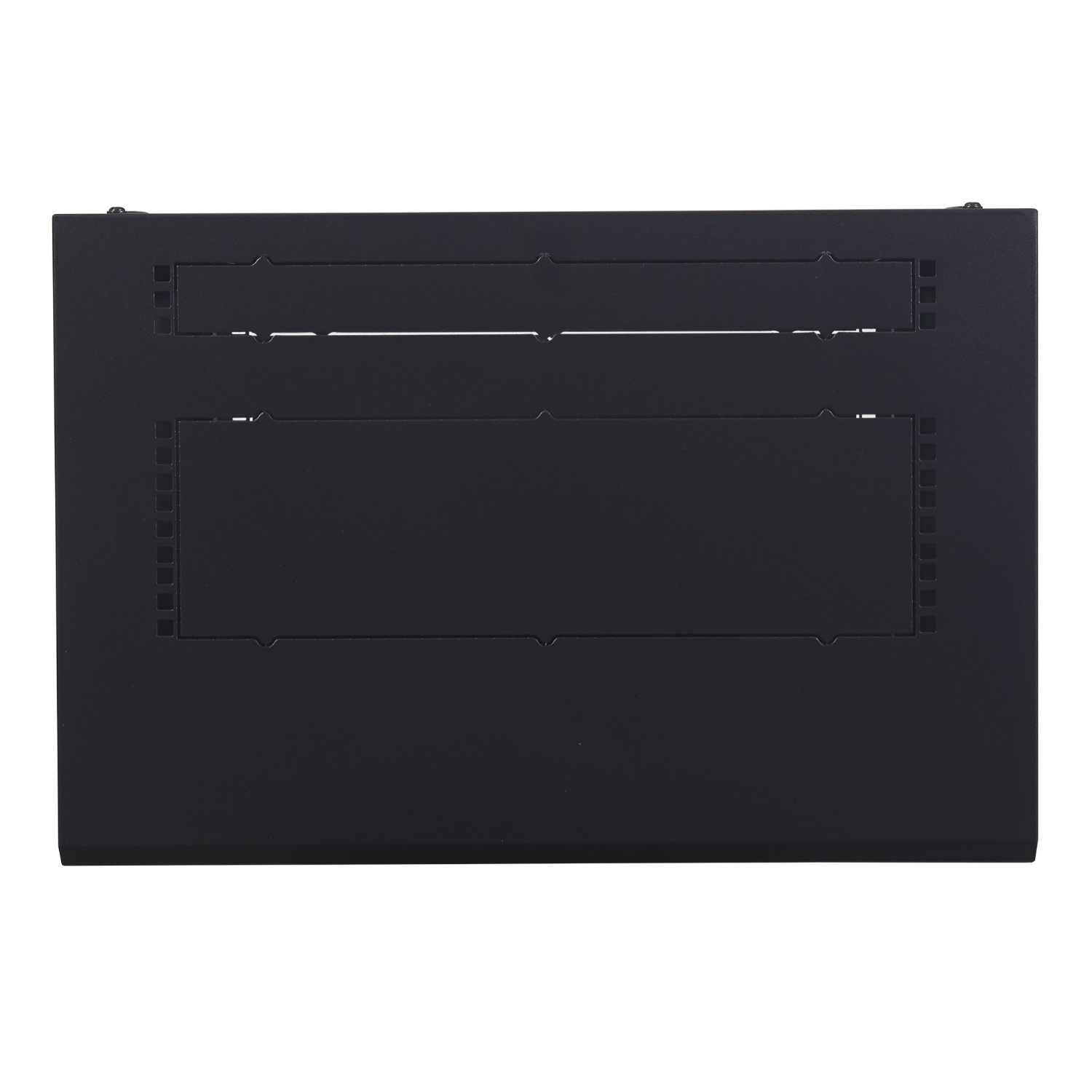

Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack is packaged unassembled for smaller storage and delivery and takes up 60% less space than the assembled. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray can be top or bottom mounted (sold separately). Top and bottom feature knockouts of 1U or 2U mounting space for accessories. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 9U Wall mount cabinet, 8.9 to 12.9 inches mounting depth, 200lb weight capacity, 19" rack width, ships unassembled, 5 year APC warranty.

Lead time

Usually in Stock

Product or Component Type

Rack enclosure

Number of rack unit

9U

Height

19.09 in (48.5 cm)

Width

23.6 in (59.9 cm)

Depth

15.7 in (40 cm)

Net Weight

28.0 lb(US) (12.7 kg)

Color

Black

Mounting Support

Wall

Mounting preference

No preference

Mounting Mode

Not rack-mountable

Maximum Mounting Depth

12.95 in (32.89 cm)

minimum mounting depth

8.90 in (22.61 cm)

rack width

19"

Permanent permissible load

200 lb(US) (90.7 kg) static

Standards

EIA-310E

Category

80230-IG SEBA TO SEUSA

Discount Schedule

BMS1

GTIN

731304317272

Returnability

No

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

11.5 in (29.3 cm)

Package 1 Width

19.09 in (48.5 cm)

Package 1 Length

27.09 in (68.8 cm)

Package 1 Weight

35.30 lb(US) (16.01 kg)

Warranty

5 year repair or replace
