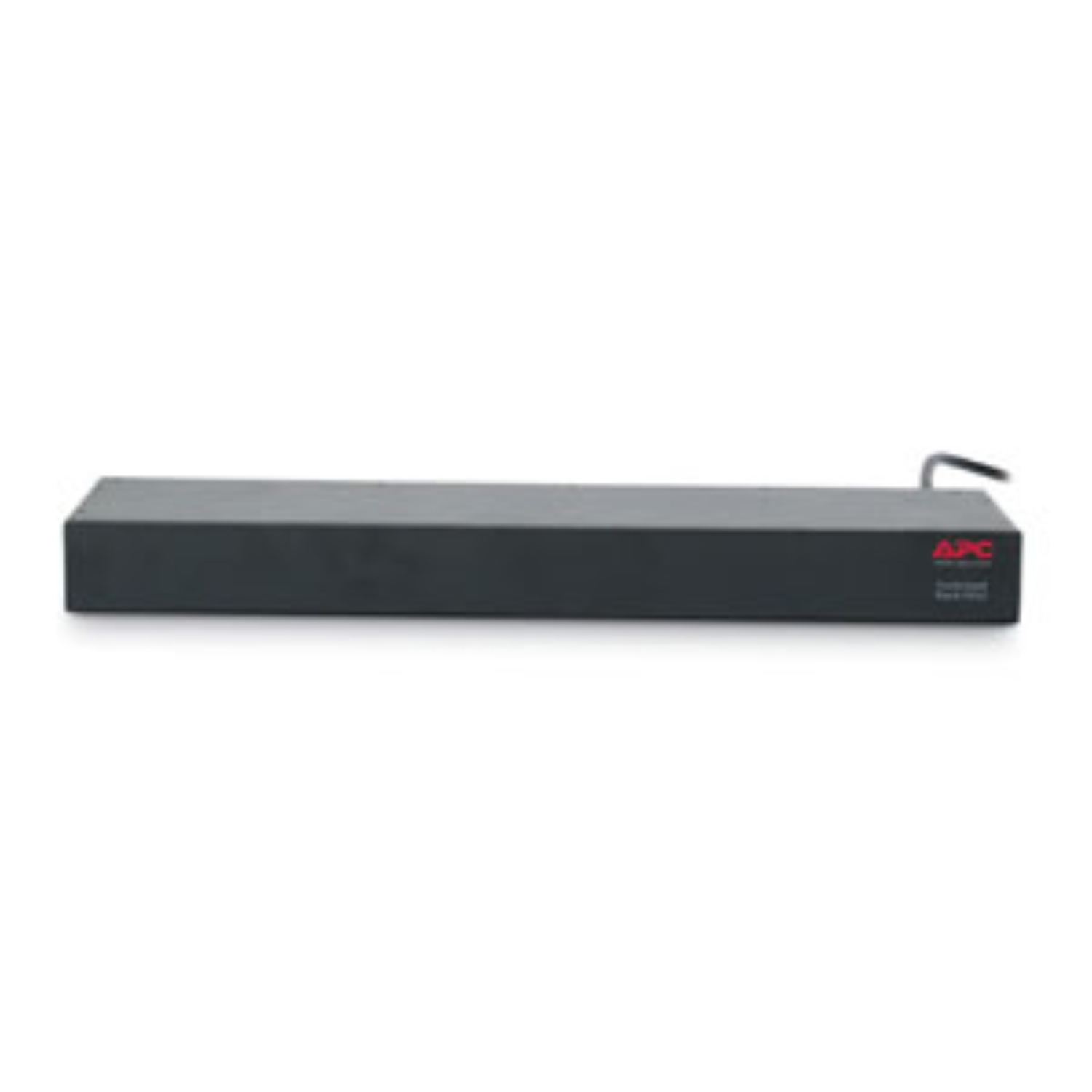

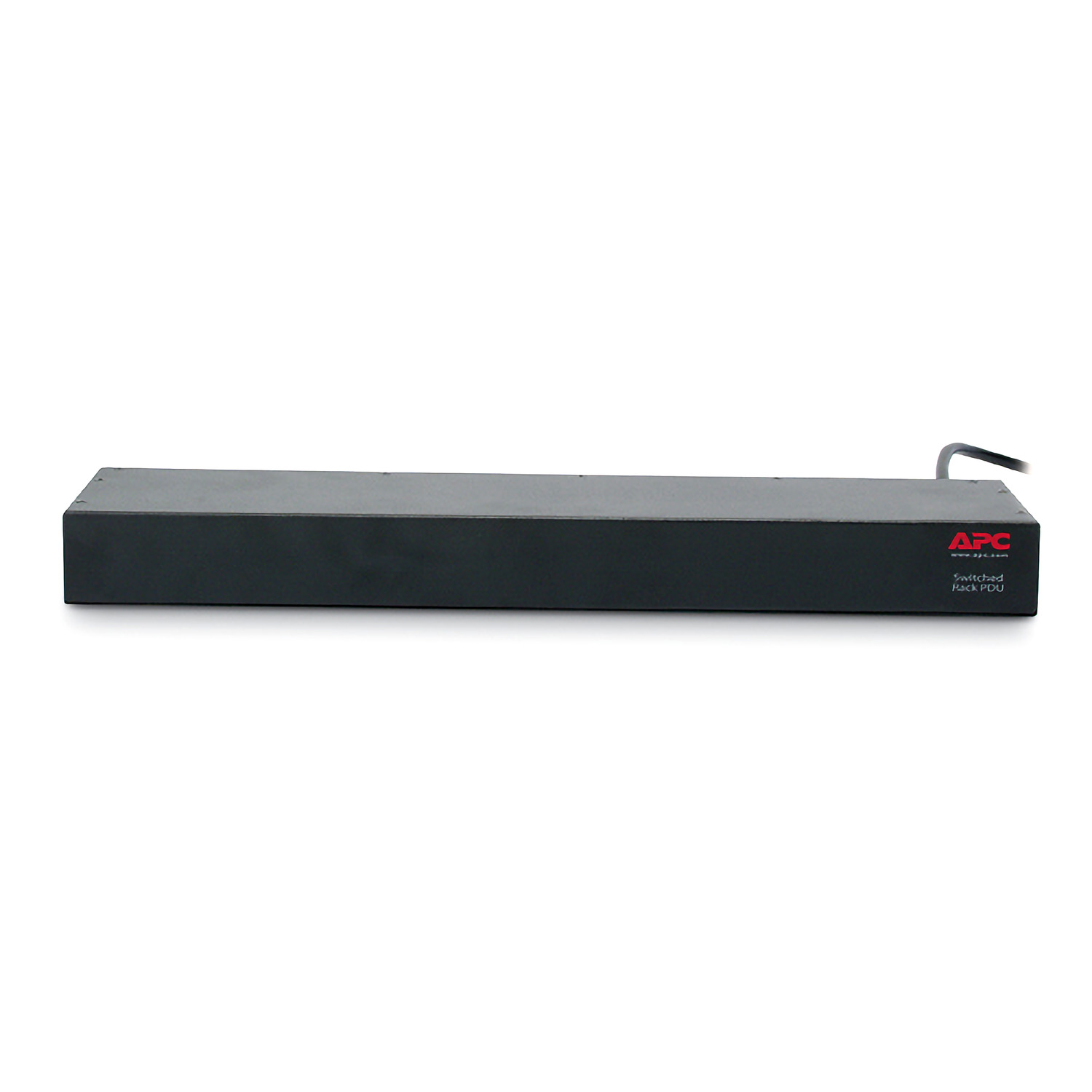

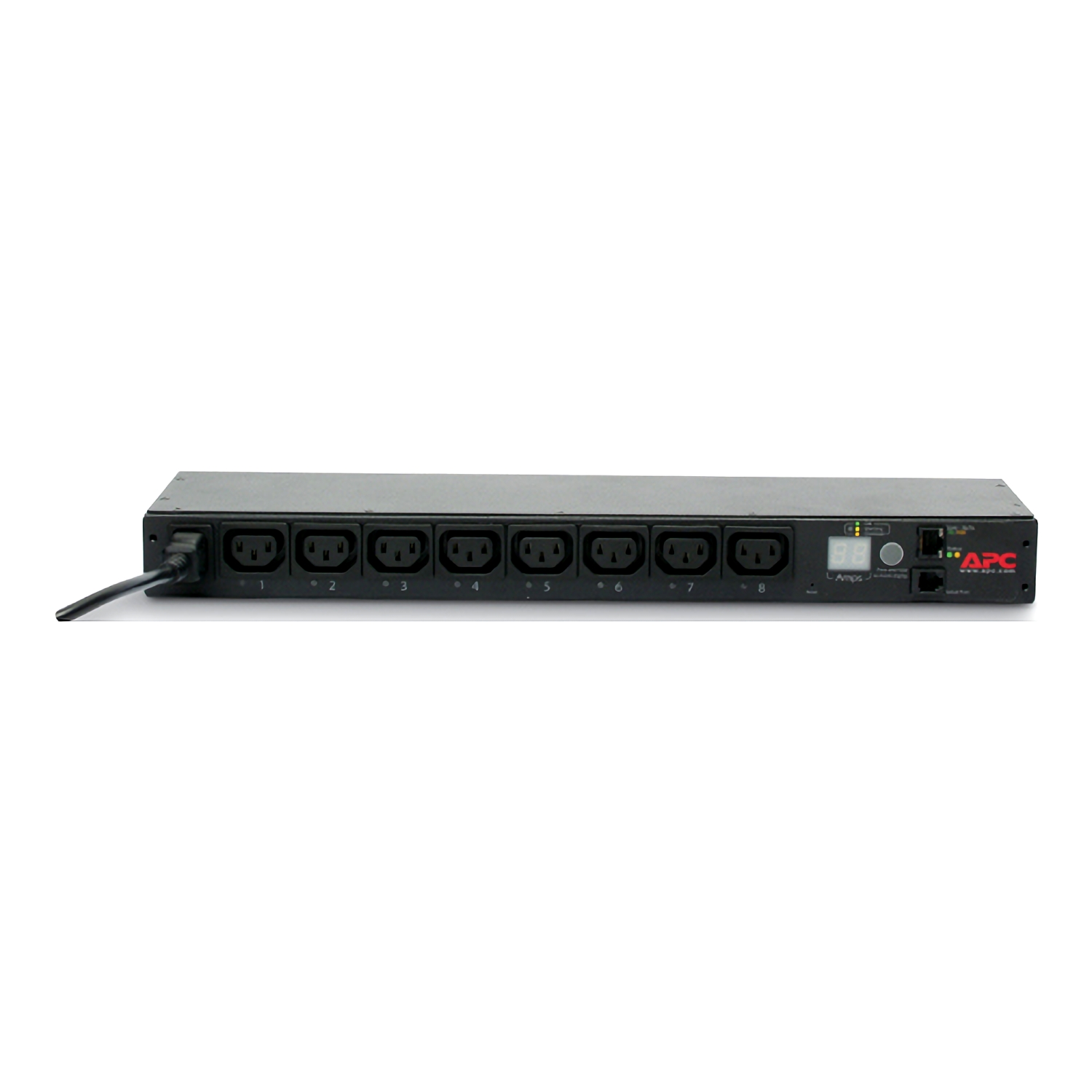

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord

Presentation

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

Lead time

Usually in Stock

Color

Black

Product or Component Type

PDU

PDU Type

Switched

Cord length

6.5 ft (2.0 m)

Number of cables

1

Provided Equipment

Installation guide
Rack Mounting brackets
User Manual

Input Voltage

200 V
208 V
230 V

Height

1.7 in (4.4 cm)

Width

17.5 in (44.5 cm)

Output Voltage

208 V
230 V

Depth

4.3 in (10.8 cm)

Net Weight

5.004 lb(US) (2.27 kg)

mounting location

Front
Rear

Mounting preference

No preference

Input Plug Type

IEC 60320 C14

Mounting Mode

Rack-mounted

Rack units

1U

Mounting position

Horizontal

Line Rated Current

12 A

Acceptable Input Voltage

200…240 V

Input current limits

15 A

Load Capacity

2300 VA

Different voltages and corresponding amperages

10 A - 230 V
12 A - 208 V

Input Frequency

50/60 Hz

Outlet type and quantity

8 IEC 60320 C13

Product Certifications

cUL Listed
CE
CSA
GOST
IRAM
UL Listed
VDE

Standards

EN 55022 Class A
EN 55024
EN 61000-3-2
EN 61000-3-3
UL 60950

Ambient Air Temperature for Operation

32…113 °F (0…45 °C)

Relative Humidity

0…95 %

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

-13…149 °F (-25…65 °C)

Storage Relative Humidity

0…95 %

Storage altitude

0…50000 ft (0…15240 m)

GTIN

731304331612

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.8 in (7 cm)

Package 1 Width

13.5 in (34.3 cm)

Package 1 Length

18.5 in (47 cm)

Package 1 Weight

7.61 lb(US) (3.45 kg)

Warranty

2 years repair or replace
