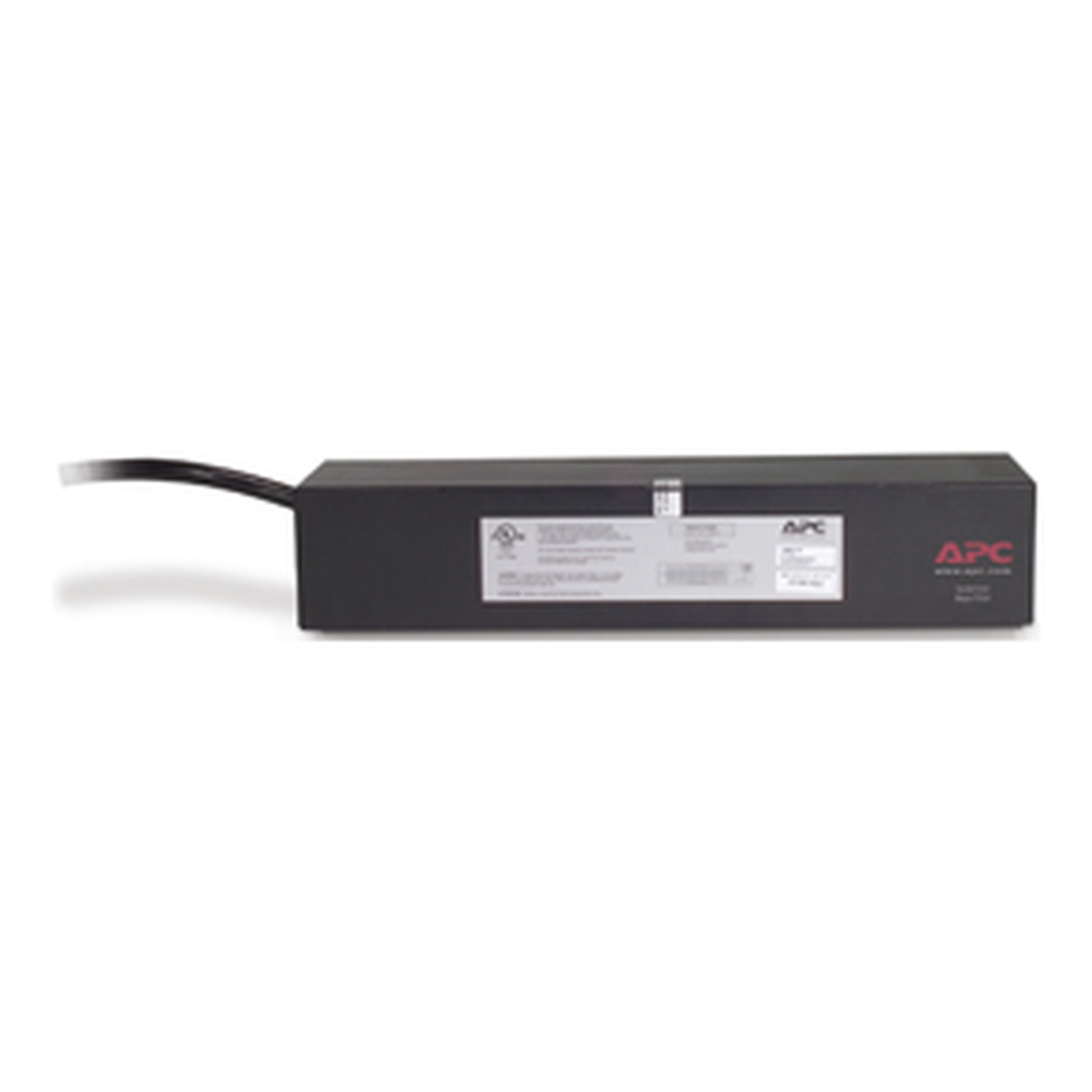

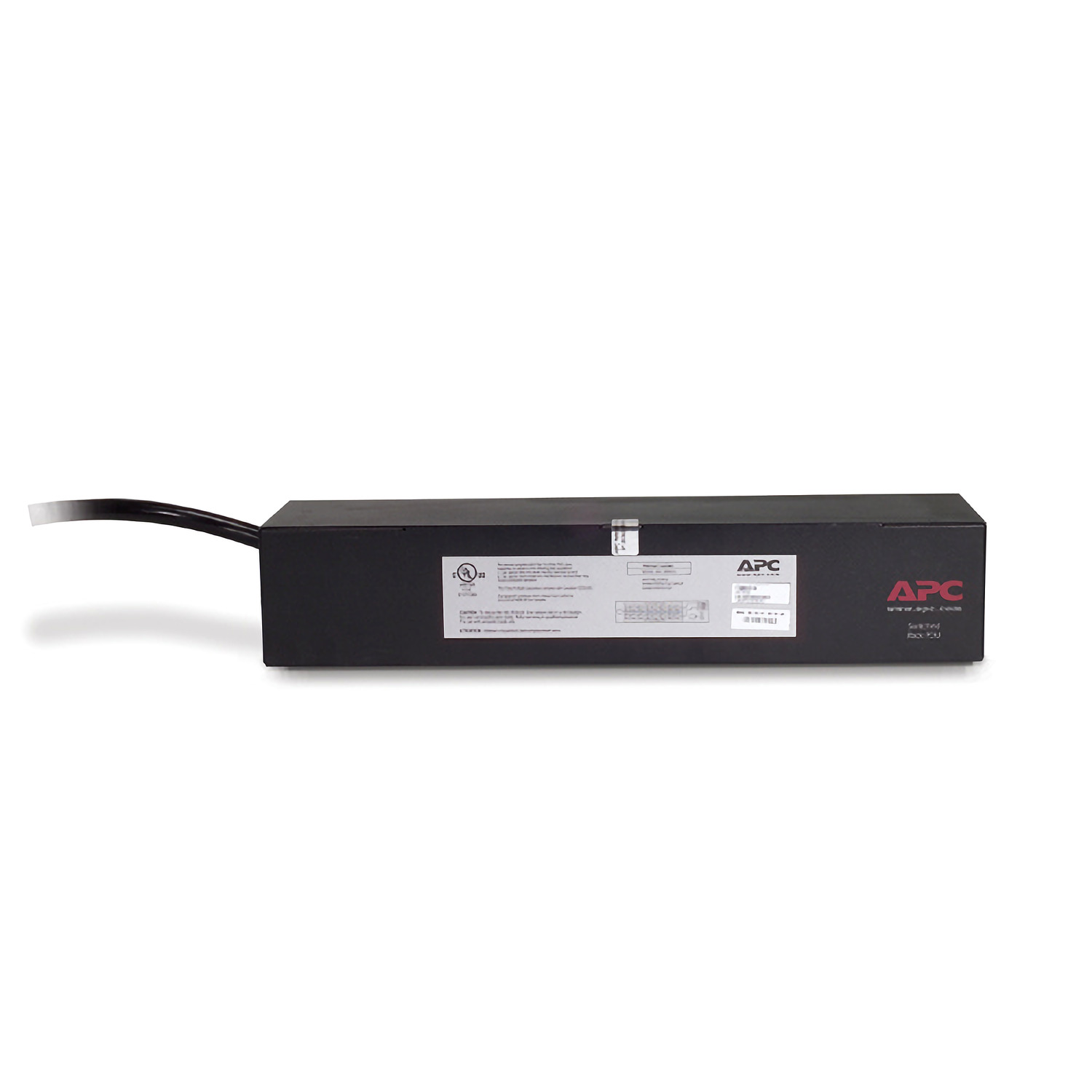

Rack PDU, Switched, 2U, 30A, 120V, (16)5-20

Lead time

Usually in Stock

Color

Black

Product or Component Type

PDU

PDU Type

Switched

Cord length

10 ft (3.05 m)

Number of cables

1

Provided Equipment

Cord retention bracket(s)
Horizontal mounting brackets
User Manual
Installation guide

Input Voltage

100 V
120 V

Height

3.5 in (8.9 cm)

Width

17.5 in (44.5 cm)

Output Voltage

120 V

Depth

4.5 in (11.4 cm)

Net Weight

9.9 lb(US) (4.5 kg)

mounting location

Front
Rear

Mounting preference

No preference

Input Plug Type

NEMA L5-30P

Mounting Mode

Rack-mounted

Rack units

2U

Mounting position

Horizontal

Line Rated Current

24 A

Acceptable Input Voltage

100…120 V

Input current limits

30 A

Load Capacity

2880 VA

Input Frequency

50/60 Hz

Outlet type and quantity

16 NEMA 5-20R

Product Certifications

cUL Listed
CSA
Industry Canada
UL Listed

Standards

FCC Part 15 class A
ICES-003
UL 60950

Ambient Air Temperature for Operation

32…113 °F (0…45 °C)

Relative Humidity

0…95 %

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

-13…149 °F (-25…65 °C)

Storage Relative Humidity

0…95 %

Storage altitude

0…50000 ft (0…15240 m)

Category

80230-IG SEBA TO SEUSA

Discount Schedule

BMS1

GTIN

731304331582

Returnability

No

Country of origin

PH

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.5 in (14 cm)

Package 1 Width

14.5 in (36.8 cm)

Package 1 Length

20.0 in (50.8 cm)

Package 1 Weight

14.44 lb(US) (6.55 kg)

Warranty

2 years repair or replace
