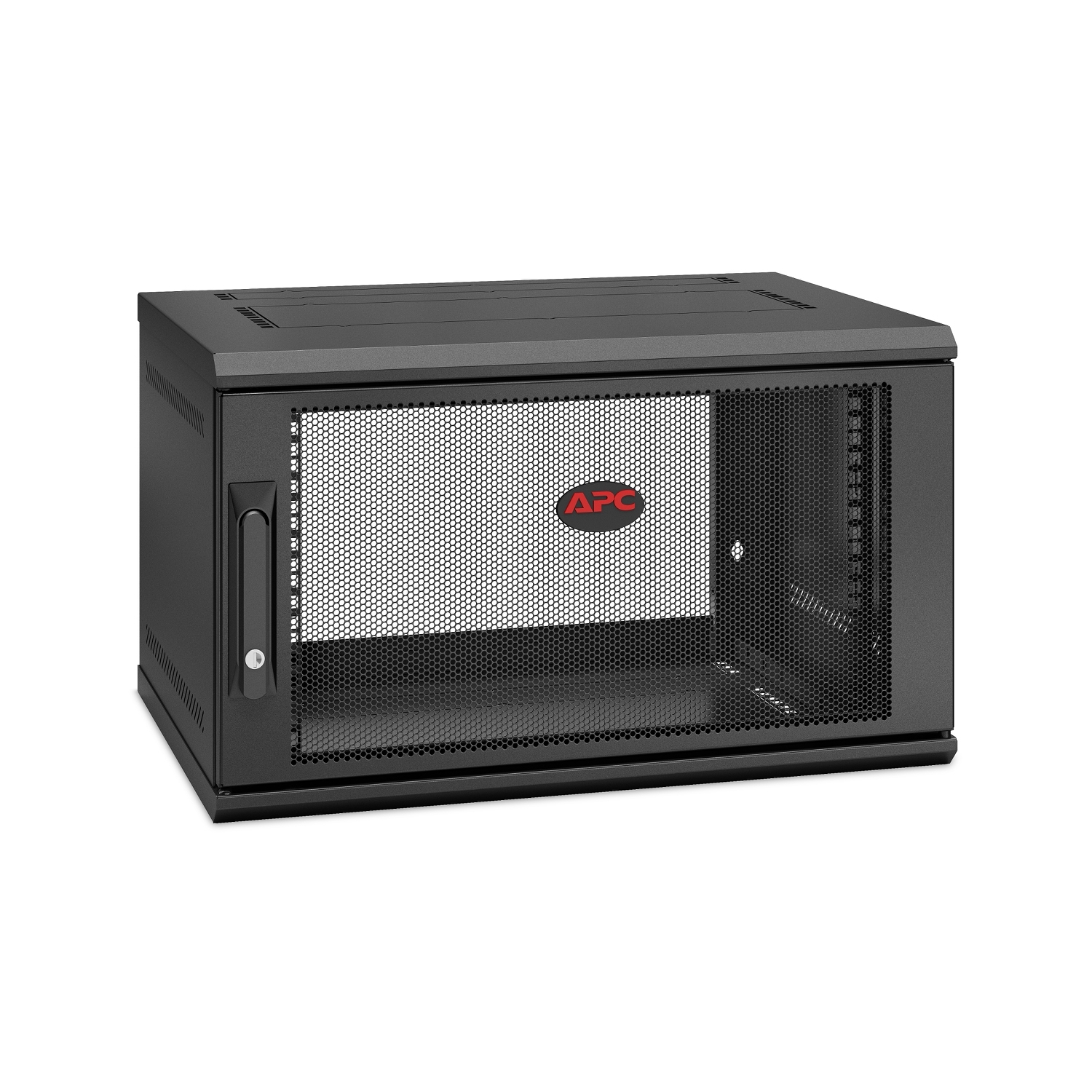

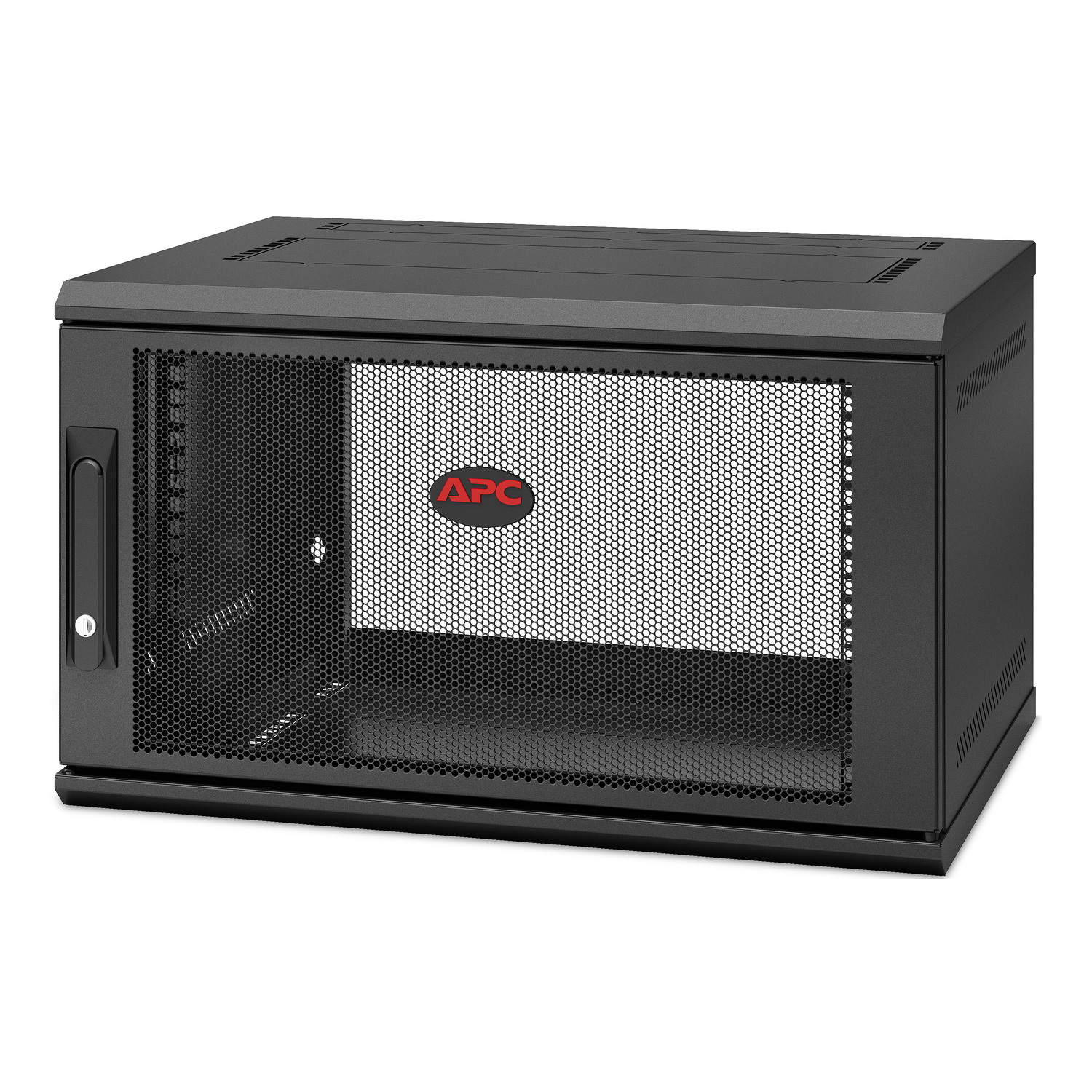

APC NetShelter 6U Wallmount Rack Enclosure Cabinet Single Hinged Switch Depth

Presentation

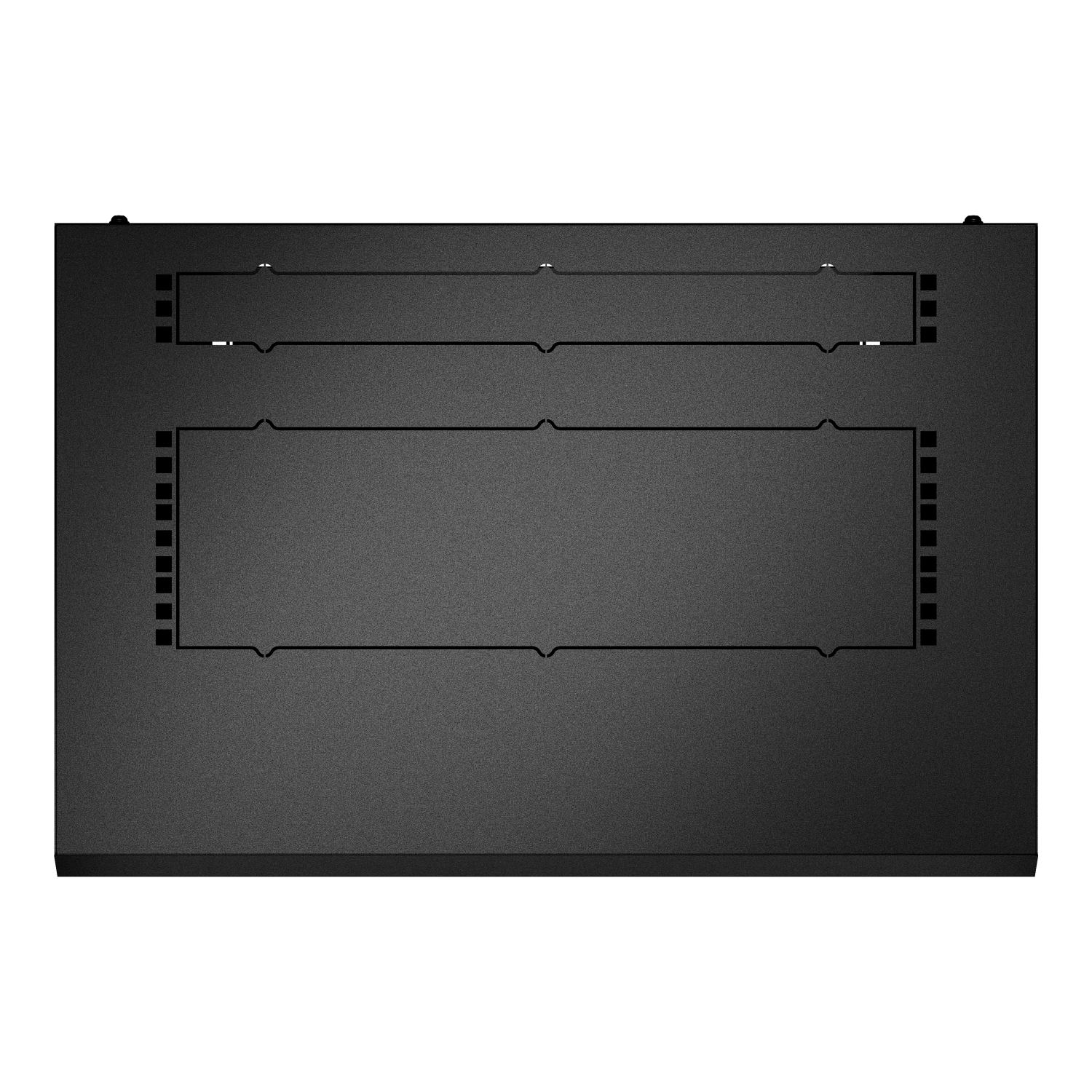

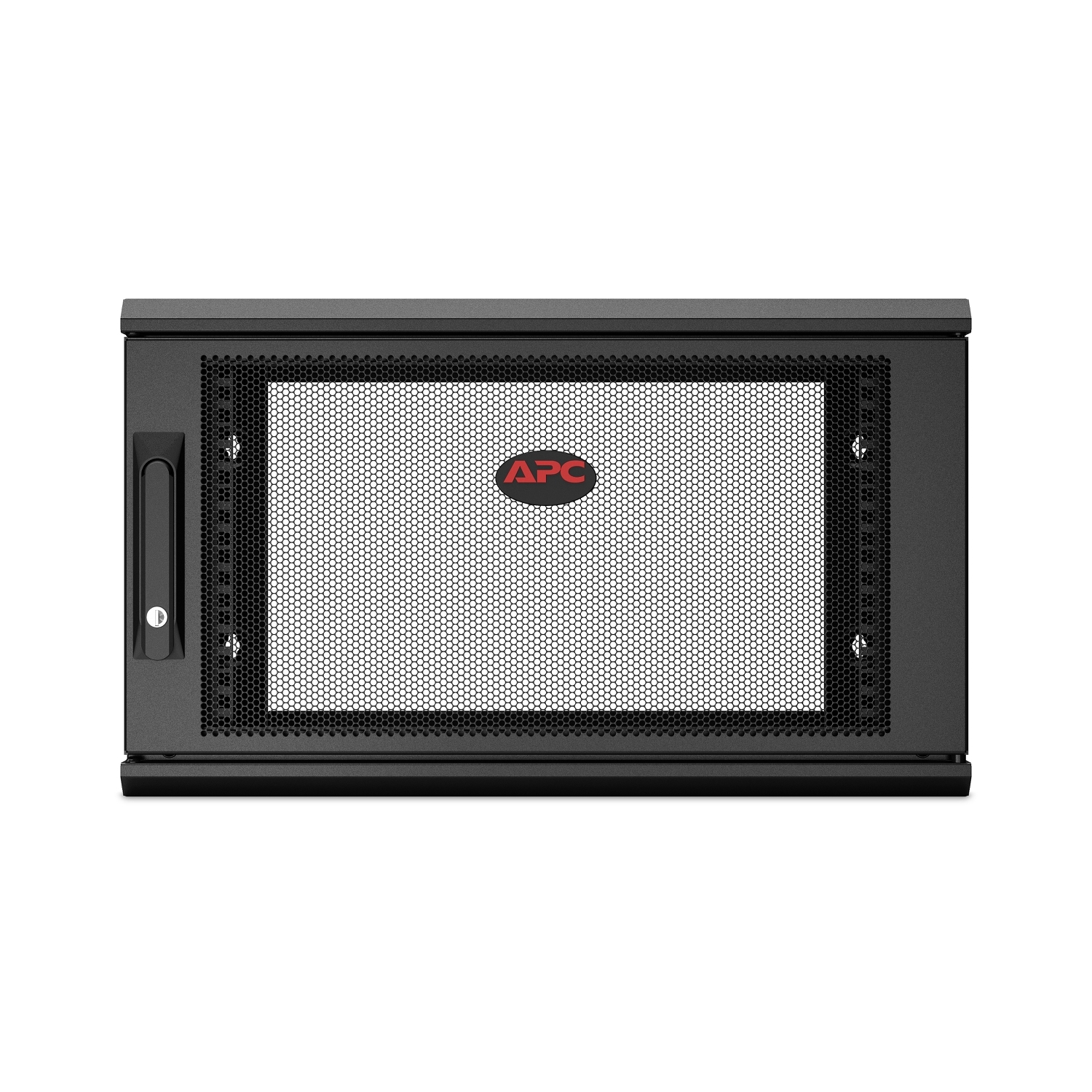

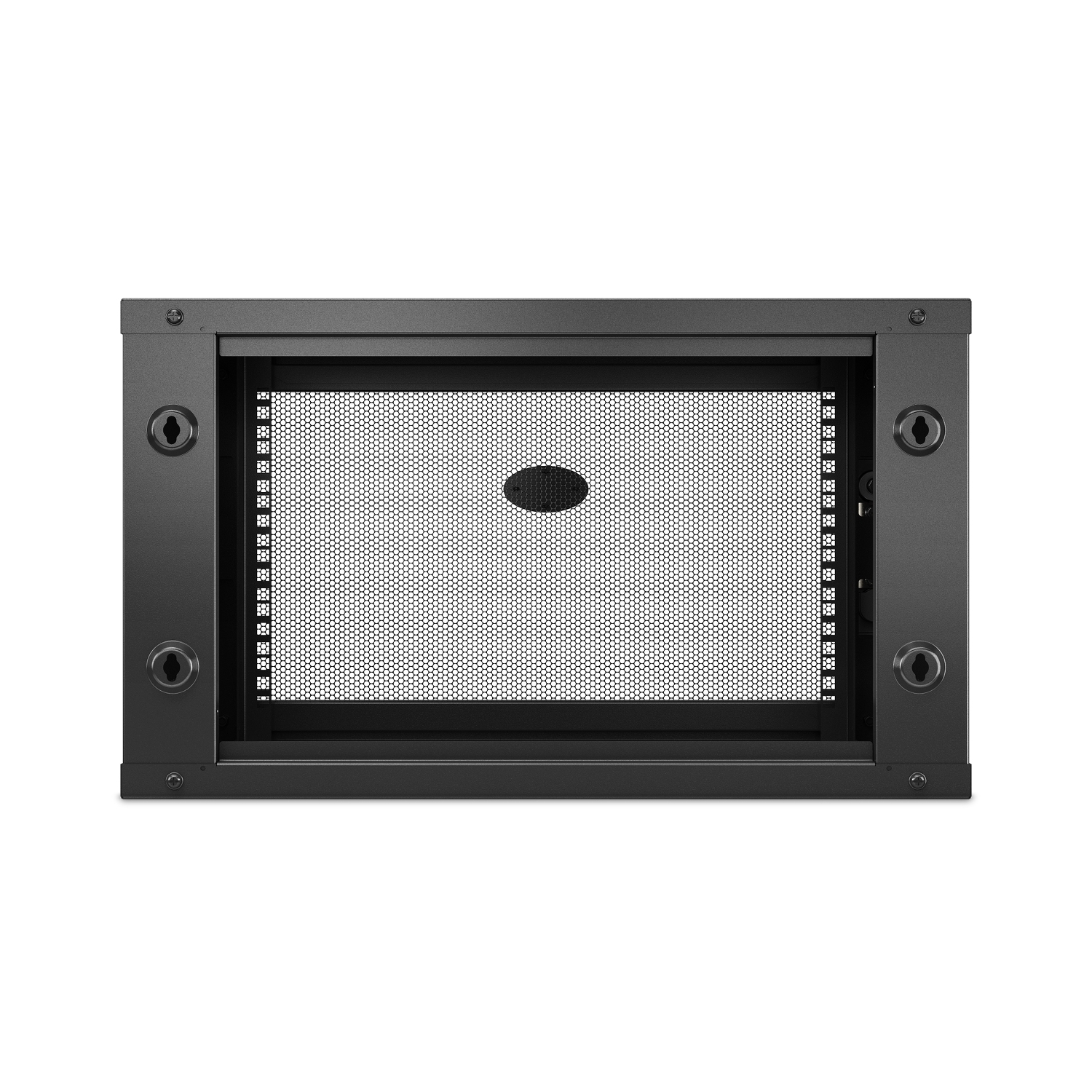

Ideal for retail, healthcare, and educational facilities, this wall mount rack offers an efficient solution for deploying server and networking equipment for edge computing applications. This rack enclosure is wall mountable, ideal for areas with limited floor space, and is designed specifically for servers and network switches, and patch panels. The cabinet's door is reversible and is compatible with APC's Netbotx security upgrade to provide remote access, video surveillance, and environmental monitoring (sold separately). Optional 120V fan tray can be top or bottom mounted (sold separately) Both the top and bottom feature knockouts of 1/2U mounting space for accessories. And several APC Smart-UPS models low-profile provide easy UPS integration and mounting Wall mount cabinet, mounting depth range of 2.87 to 12.95 inches, 200lb weight capacity, 19" rack width, ships fully assembled, ventilated with accessory integration options, 5 year APC warranty.

Lead time

Usually in Stock

Product or Component Type

Rack enclosure

Number of rack unit

6U

Height

14.0 in (35.5 cm)

Width

23.6 in (60 cm)

Depth

15.7 in (40 cm)

Net Weight

24.49 lb(US) (11.11 kg)

Color

Black

Mounting Support

Wall

Mounting preference

No preference

Mounting Mode

Not rack-mountable

Maximum Mounting Depth

12.95 in (32.89 cm)

minimum mounting depth

2.87 in (7.29 cm)

rack width

19"

Permanent permissible load

200 lb(US) (90.7 kg) static

Standards

UL 2416
EIA-310E

Category

80230-IG SEBA TO SEUSA

Discount Schedule

BMS1

GTIN

731304402671

Returnability

No

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

17.1 in (43.5 cm)

Package 1 Width

19.09 in (48.5 cm)

Package 1 Length

27.0 in (68.5 cm)

Package 1 Weight

29.89 lb(US) (13.56 kg)

Warranty

5 year repair or replace
