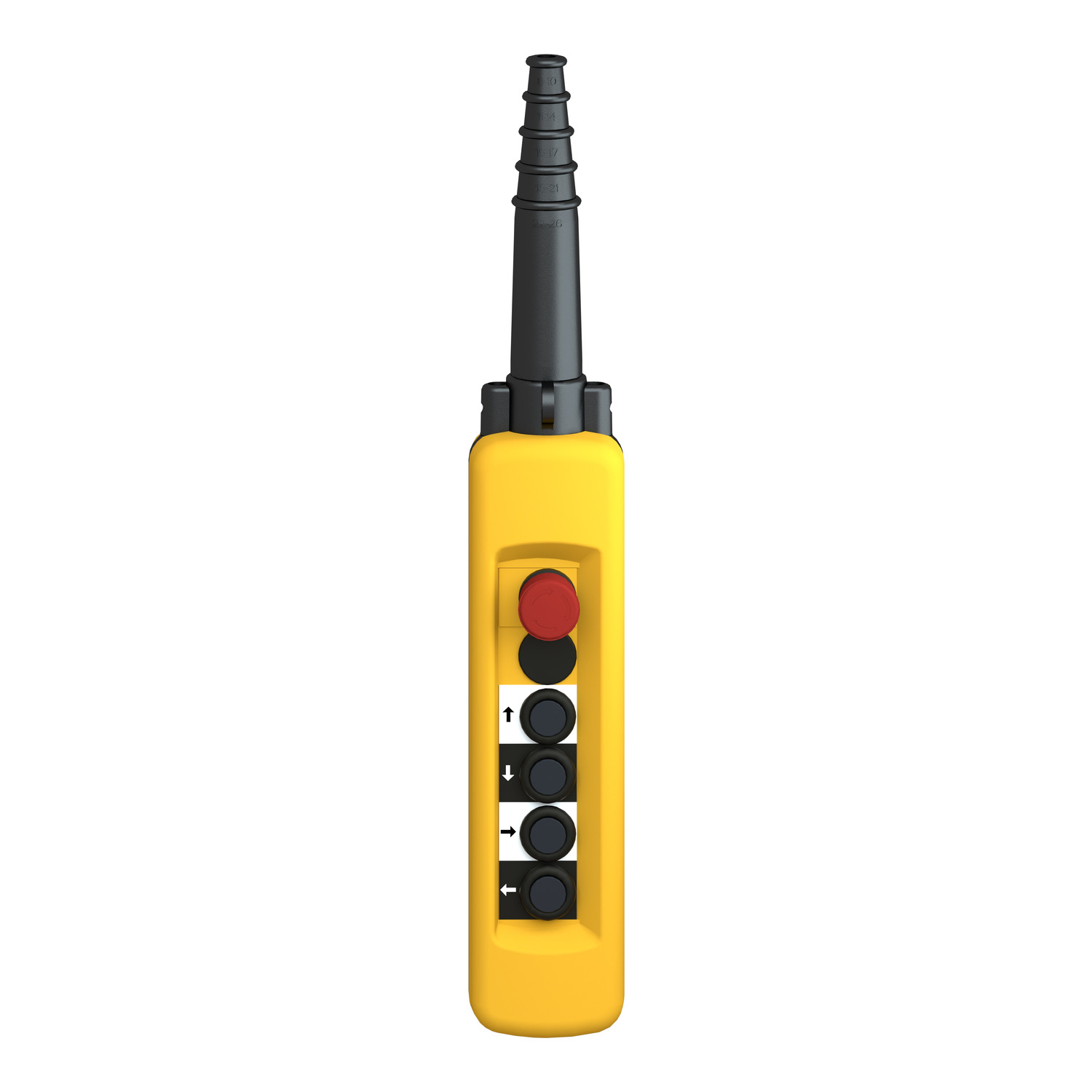

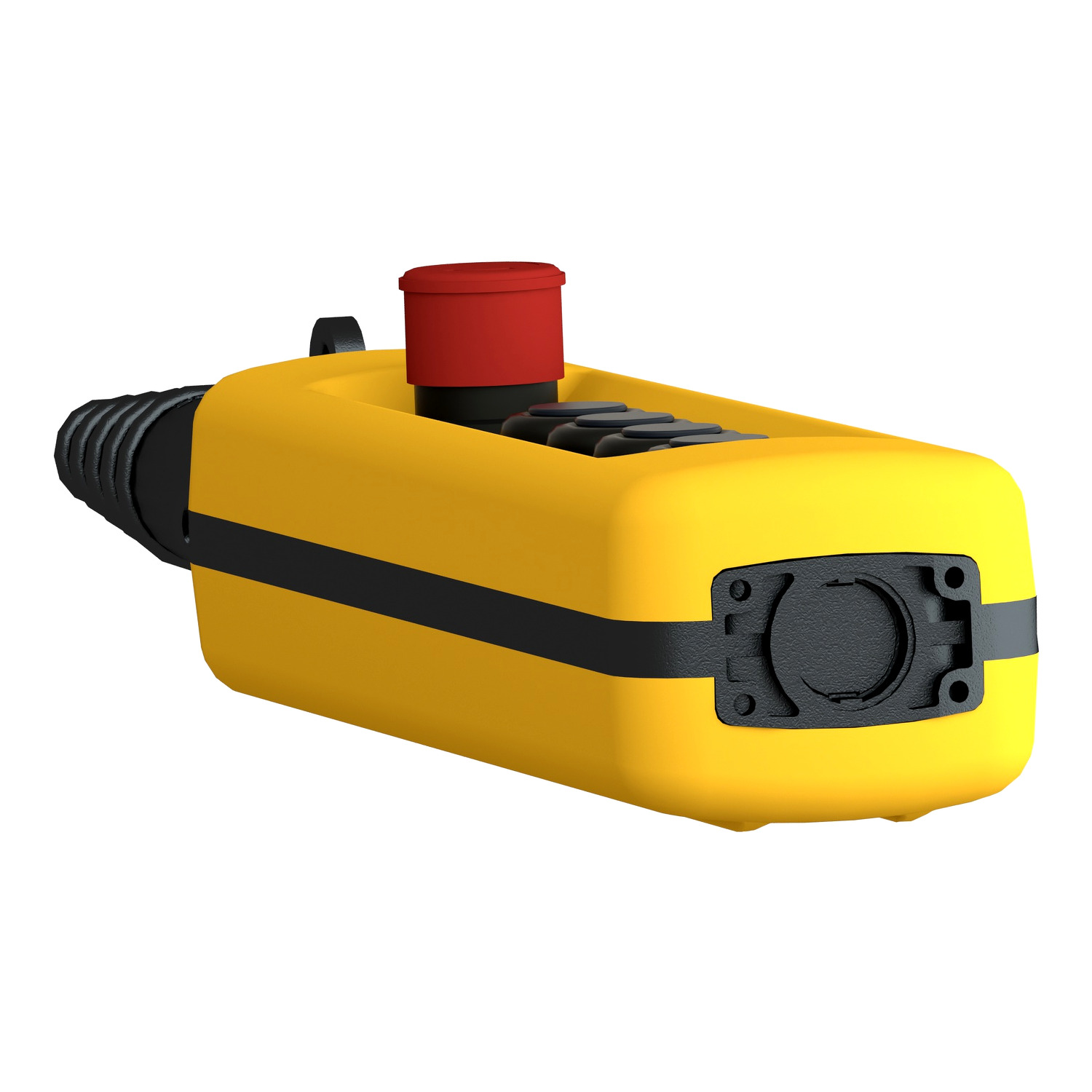

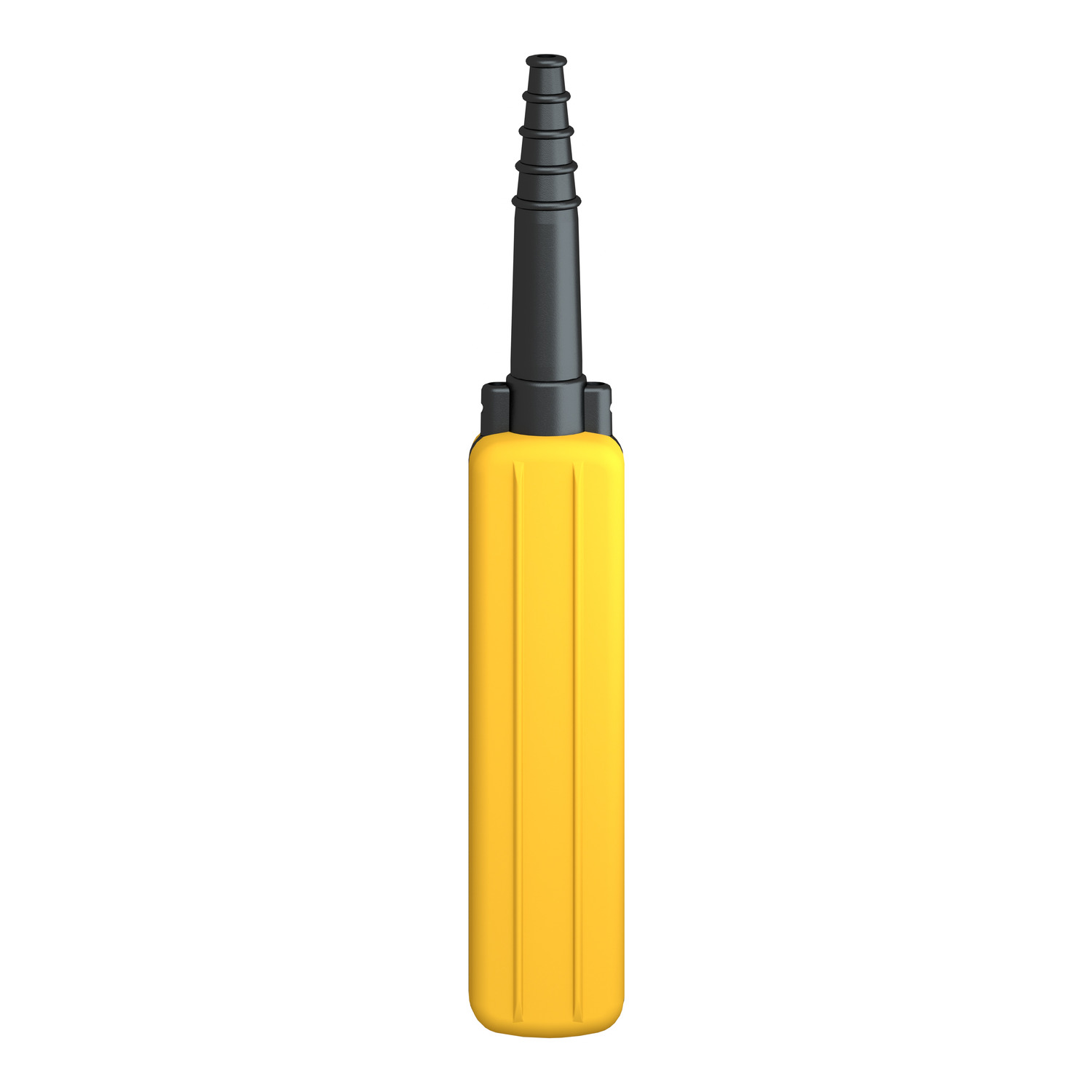

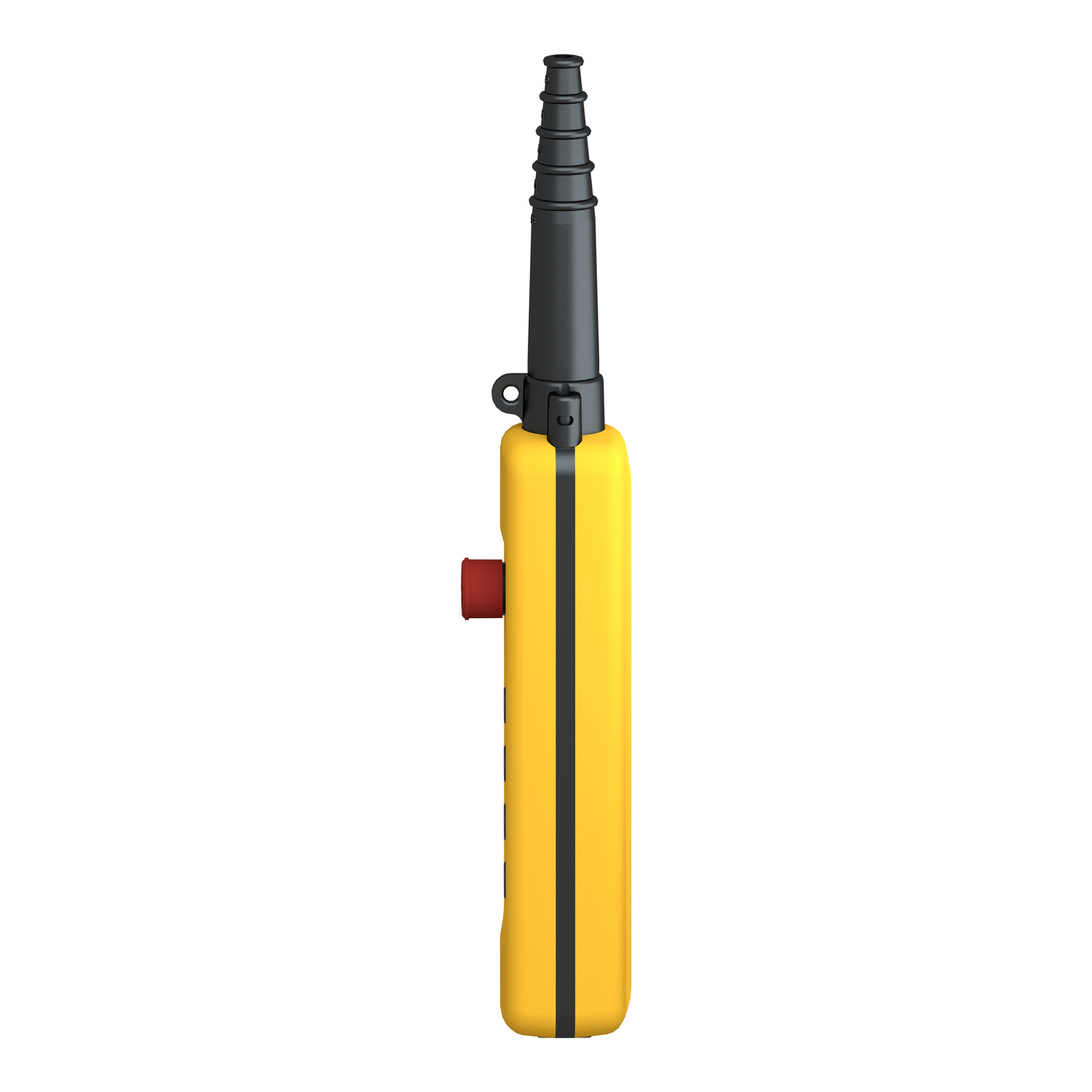

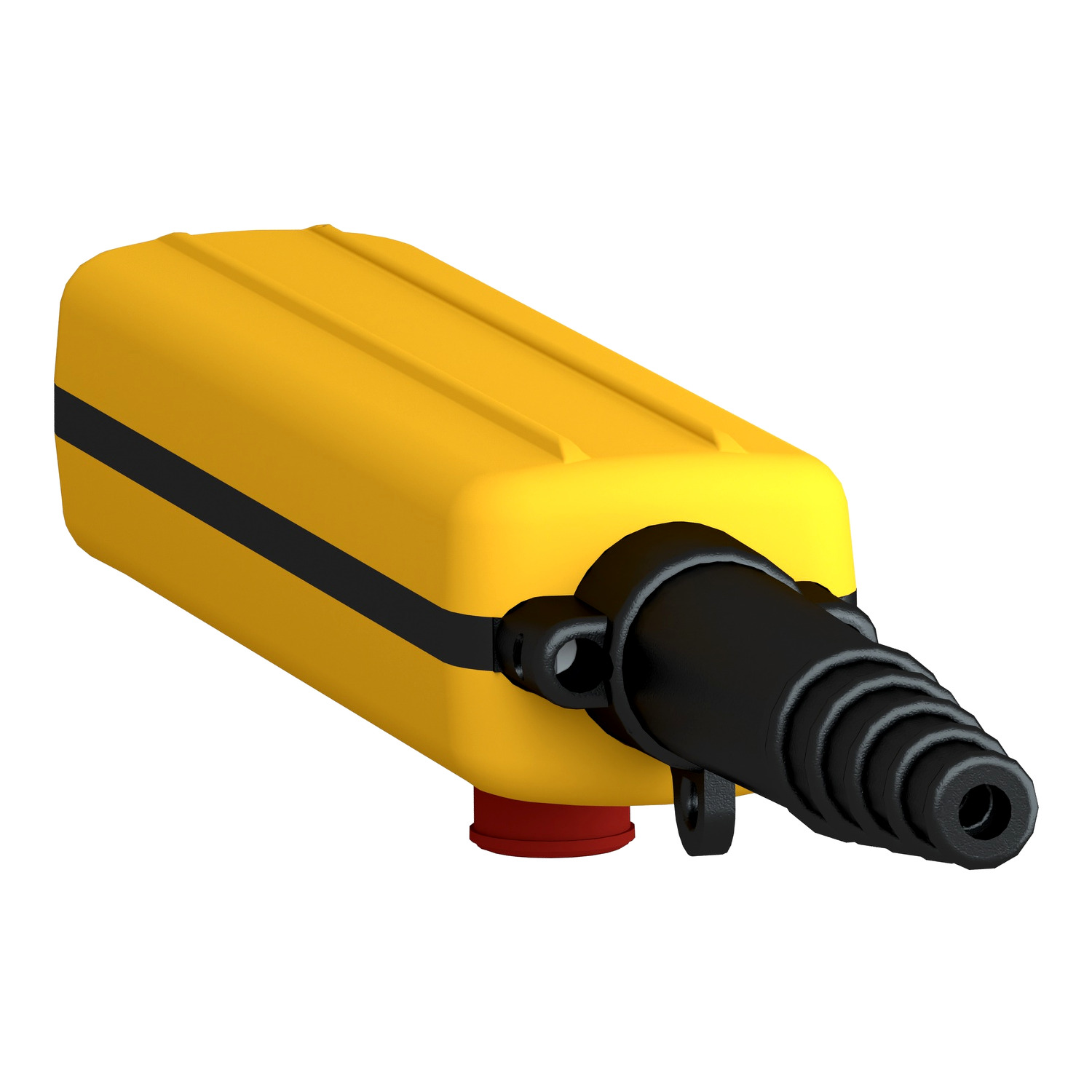

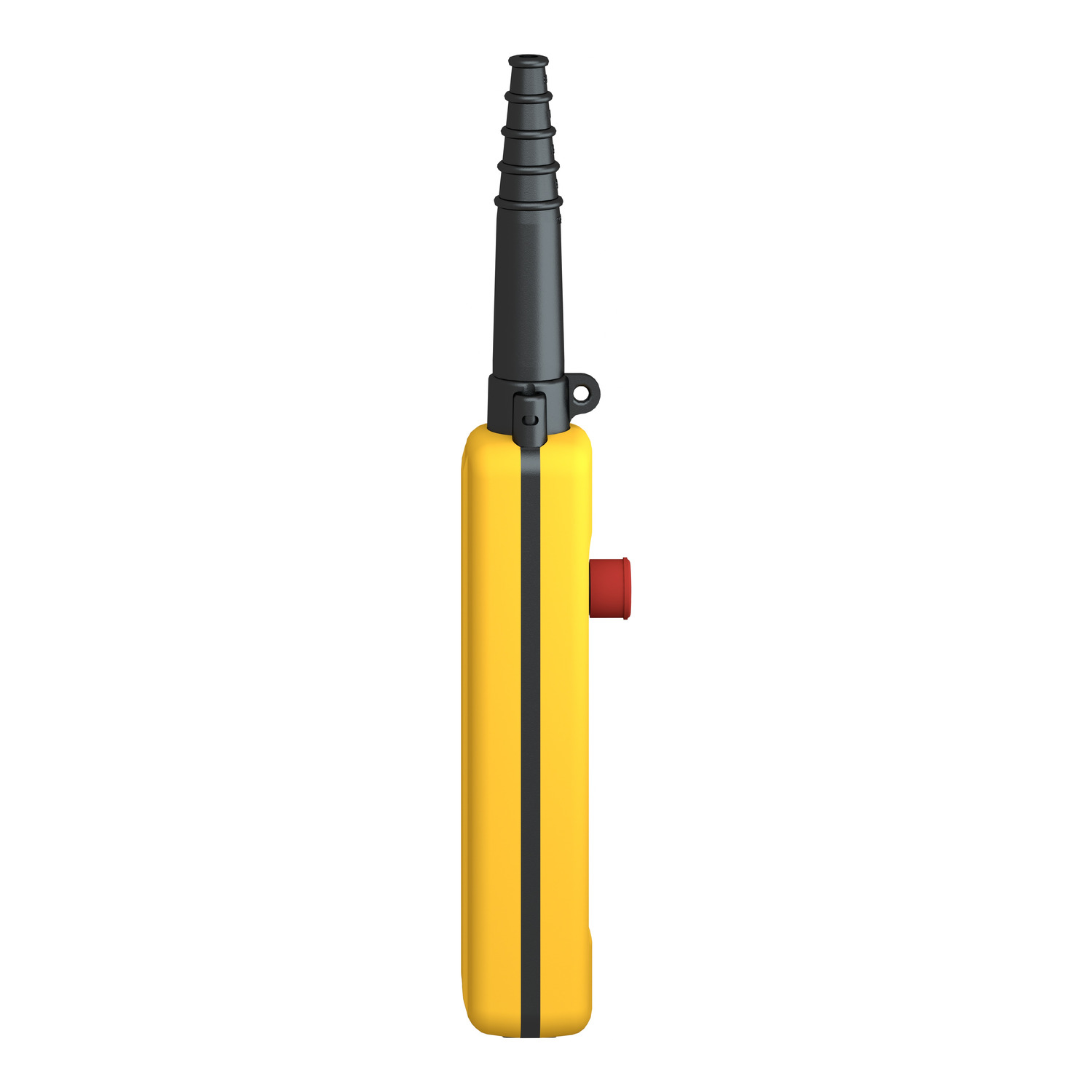

Pendant control station, Harmony XAC, plastic, yellow, 4 push buttons with 1NO, 1 emergency stop NC
SKU: XACA4713
Main
Range of Product
Harmony XAC
Product or Component Type
Pendant control station
Device short name
XACA
Complementary
Control station type
Double insulated
Enclosure Material
Polypropylene
Electrical circuit type
Control circuit
Enclosure Type
Complete ready for use
Control station application
Control of single speed hoist motor
Control station composition
4 push-buttons + 1 emergency stop
Control button type
First push-button 1 NO raise, slow
Second push-button 1 NO lower, slow
Fourth push-button 1 NO left, slow
Third push-button 1 NO right, slow
Stop push-button Ø 40 mm 1 NC latching
Product compatibility
ZB2BE101 for each direction
ZB2BE102 for emergency stop
Mechanical interlocking
With mechanical interlocking between pairs
Control station colour
Yellow
Connections - terminals
Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Standards
UL 508
CSA C22.2 No 14
EN/IEC 60947-5-1
EN/IEC 60204-32
Product Certifications
GOST
CCC
protective treatment
TH
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Vibration resistance
15 gn 10…500 Hz)IEC 60068-2-6
Shock resistance
100 gn IEC 60068-2-27
Overvoltage category
Class II IEC 61140
IP degree of protection
IP65 conforming to IEC 60529
IK degree of protection
IK08 conforming to EN 50102
Mechanical durability
1000000 cycles
Cable entry
Rubber sleeve with stepped entry 0.3…1.02 in (8…26 mm)
Contact code designation
A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A
A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
600 V 3)
[Uimp] rated impulse withstand voltage
6 kV IEC 60947-1
Contact operation
Slow-break
Maximum resistance across terminals
25 MOhm
Operating force
10 N push-button
8 N emergency stop
Short-circuit protection
10 A fuse protection cartridge gG
Rated operational power in W
40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C
48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C
65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Terminals description ISO n°1
(13-14)NO
Terminals description ISO n°2
(11-12)NC
Terminal identifier
(11-12)NC
(13-14)NO
Net Weight
1.8 lb(US) (0.8 kg)
Ordering and shipping details
Category
US1000T18407
Discount Schedule
000T
GTIN
3389110426878
Returnability
No
Country of origin
CZ
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.134 in (10.500 cm)
Package 1 Width
20.43 in (51.900 cm)
Package 1 Length
4.449 in (11.300 cm)
Package 1 Weight
28.007 oz (794.000 g)
Unit Type of Package 2
P06
Number of Units in Package 2
30
Package 2 Height
28.937 in (73.500 cm)
Package 2 Width
31.496 in (80.000 cm)
Package 2 Length
23.622 in (60.000 cm)
Package 2 Weight
81.174 lb(US) (36.820 kg)
Contractual warranty
Warranty
18 months
