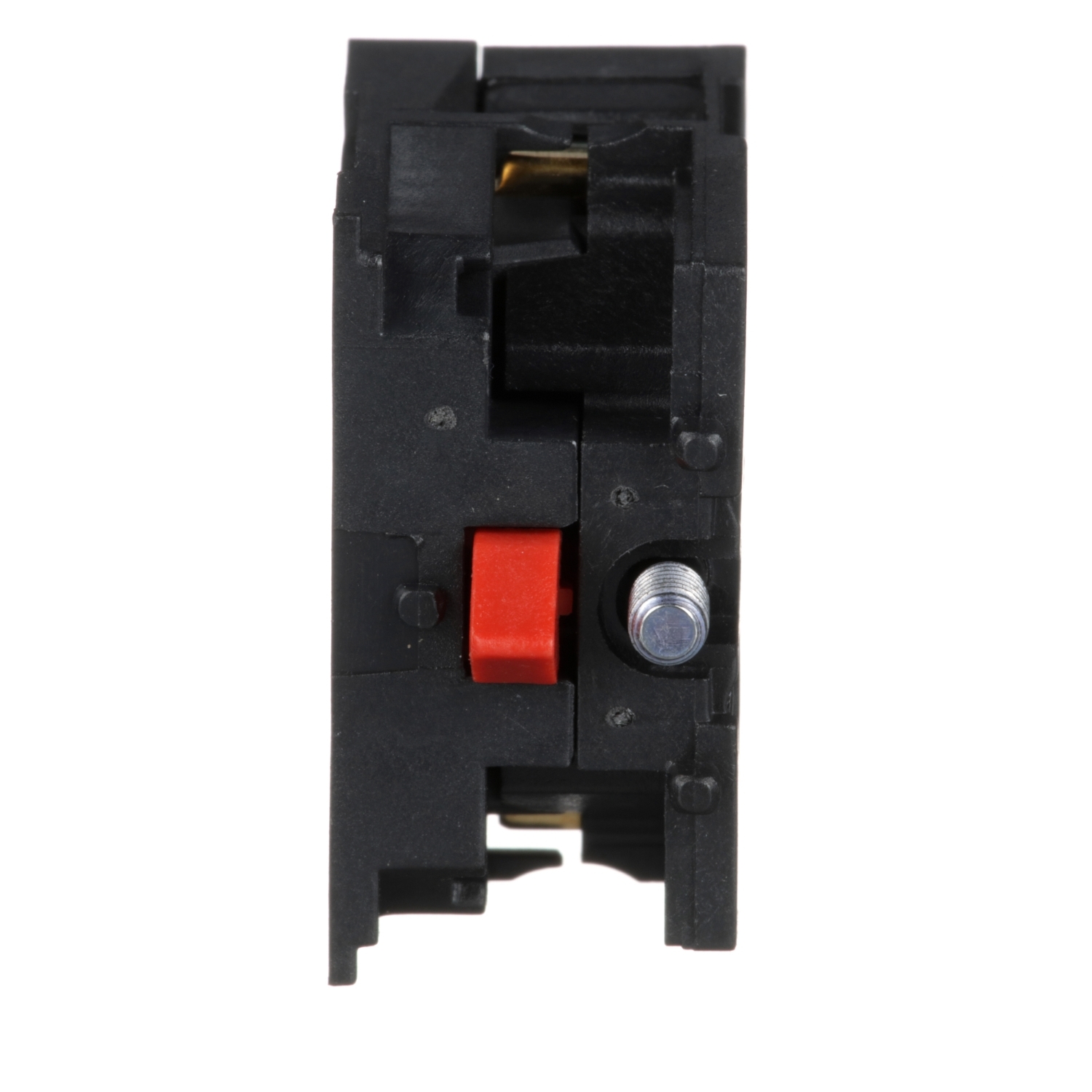

Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal

Range of Product

Harmony XAC

Product or Component Type

Contact block

Component name

ZB2

Electrical circuit type

Control circuit

Contact block application

Single speed

Contact block type

Single

Type of operator

Spring return

Product Compatibility

XACA
XB4
XB5

Contacts type and composition

1 NC

Mounting of block

Front mounting

Contact operation

Slow-break

Mechanical durability

1000000 cycles

Contact code designation

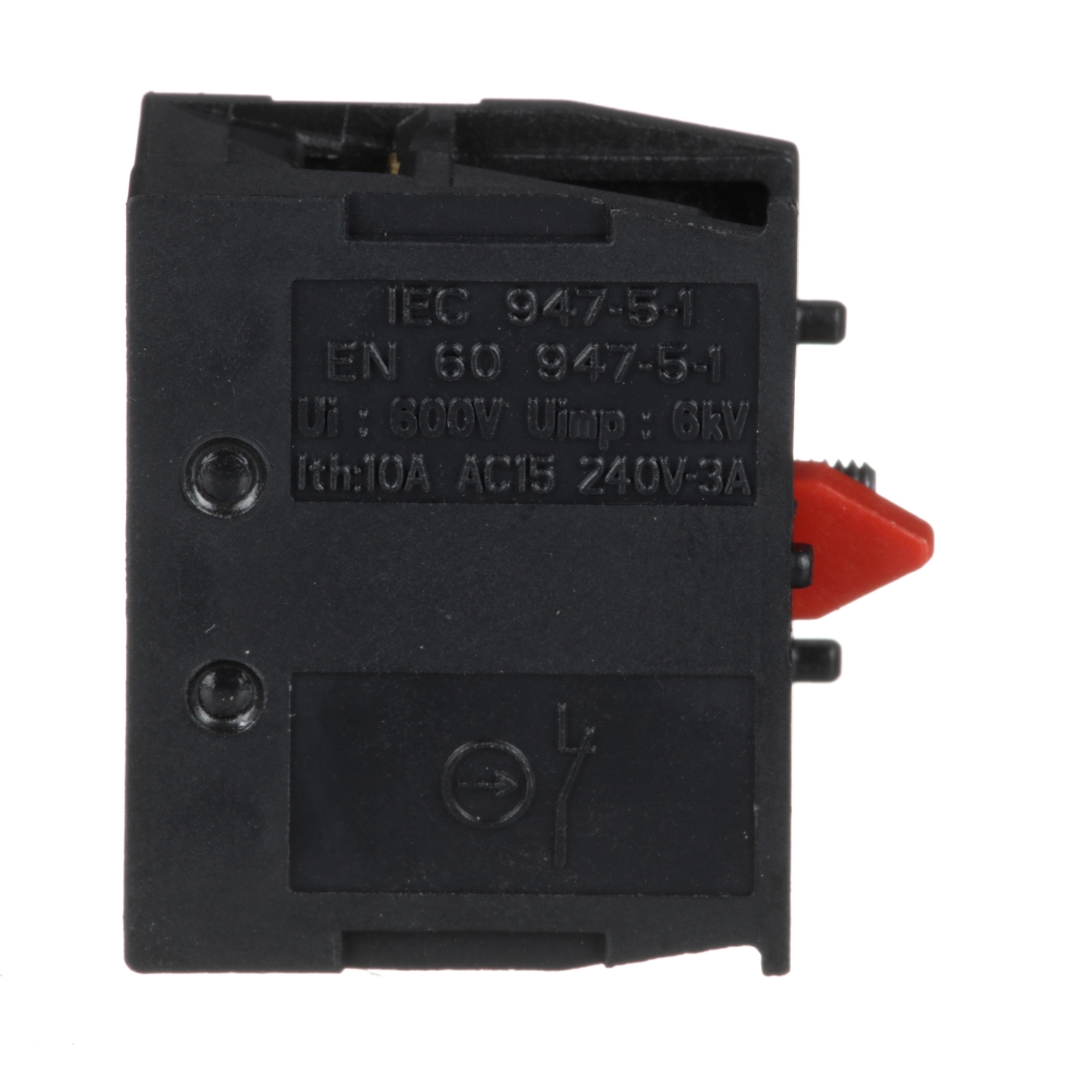

A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A
A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A
Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A
Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

600 V 3)IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV IEC 60947-1

Maximum resistance across terminals

25 MOhm

operating force

13…15 N

Short-circuit protection

10 A fuse protection cartridge gG (gl)

Rated operational power in W

40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1
48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1
65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1

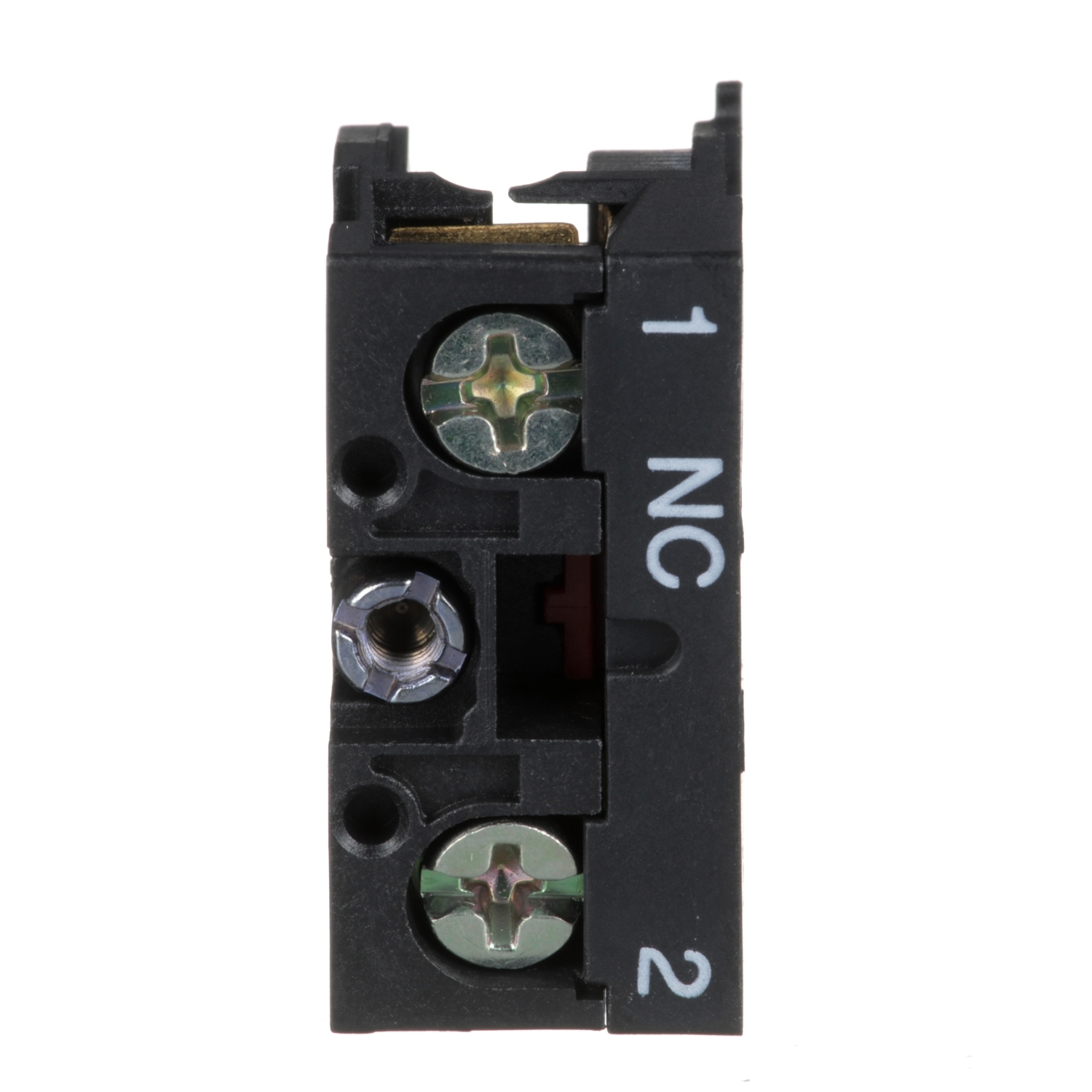

Terminals description ISO n°1

(11-12)NC

Net Weight

0.04 lb(US) (0.02 kg)

Connections - terminals

Screw clamps terminals, 1 x 2.5 mm² with or without cable end
Screw clamps terminals, 2 x 1.5 mm² with or without cable end

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Vibration resistance

15 gn 10…500 Hz)IEC 60068-2-6

Electrical shock protection class

Class II IEC 61140

Standards

EN/IEC 60204-32
EN/IEC 60947-5-1
CSA C22.2 No 14
UL 508

Category

US10CS222466

Discount Schedule

0CS2

GTIN

3389110612615

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.6 in (4 cm)

Package 1 Width

5.5 in (14 cm)

Package 1 Length

3.9 in (10 cm)

Package 1 Weight

0.5 oz (15 g)

Unit Type of Package 2

BAG

Number of Units in Package 2

10

Package 2 Height

1.6 in (4 cm)

Package 2 Width

5.5 in (14 cm)

Package 2 Length

3.9 in (10 cm)

Package 2 Weight

5.5 oz (157 g)

Unit Type of Package 3

S01

Number of Units in Package 3

200

Package 3 Height

5.9 in (15 cm)

Package 3 Width

5.9 in (15 cm)

Package 3 Length

15.7 in (40 cm)

Package 3 Weight

7.604 lb(US) (3.449 kg)

Warranty

18 months
