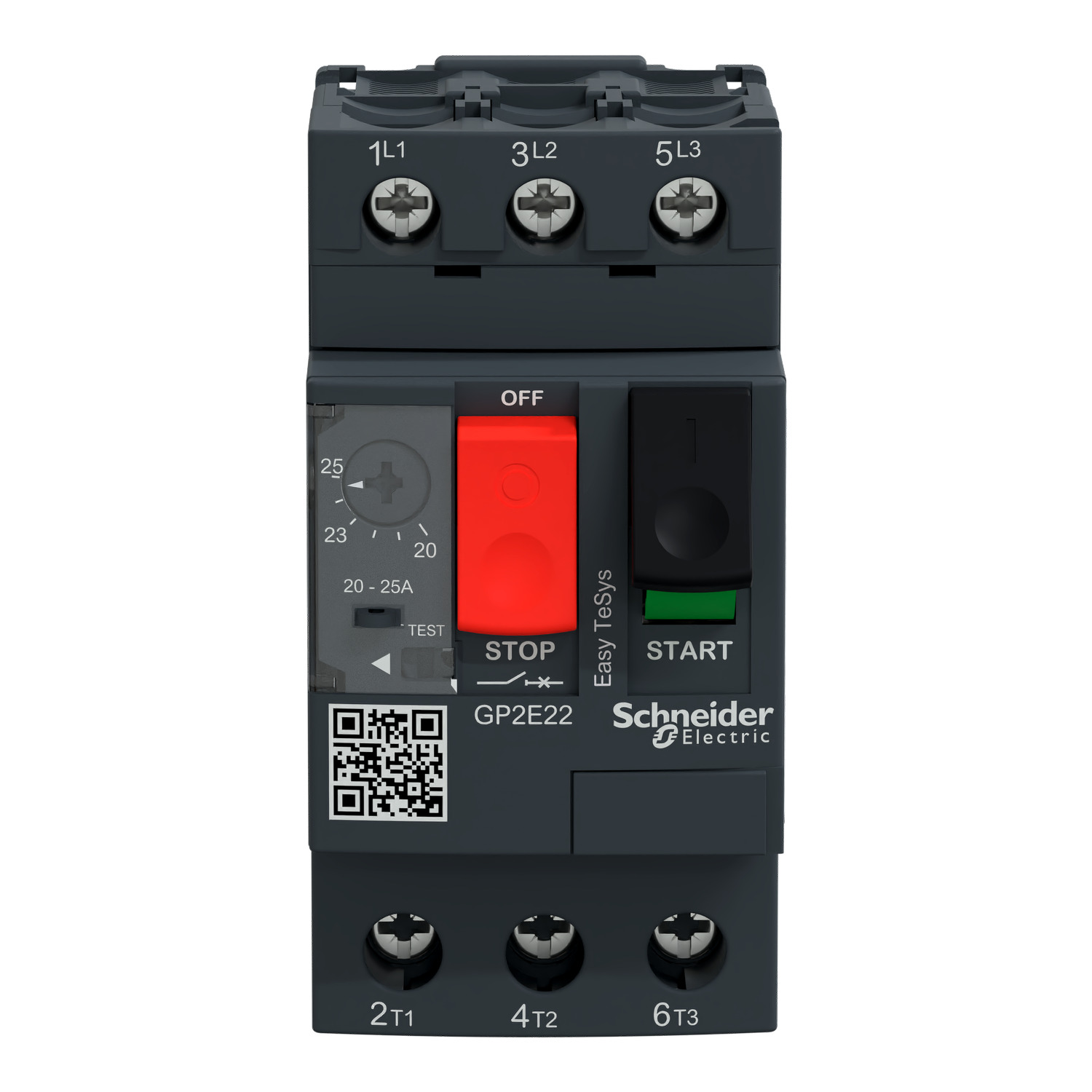

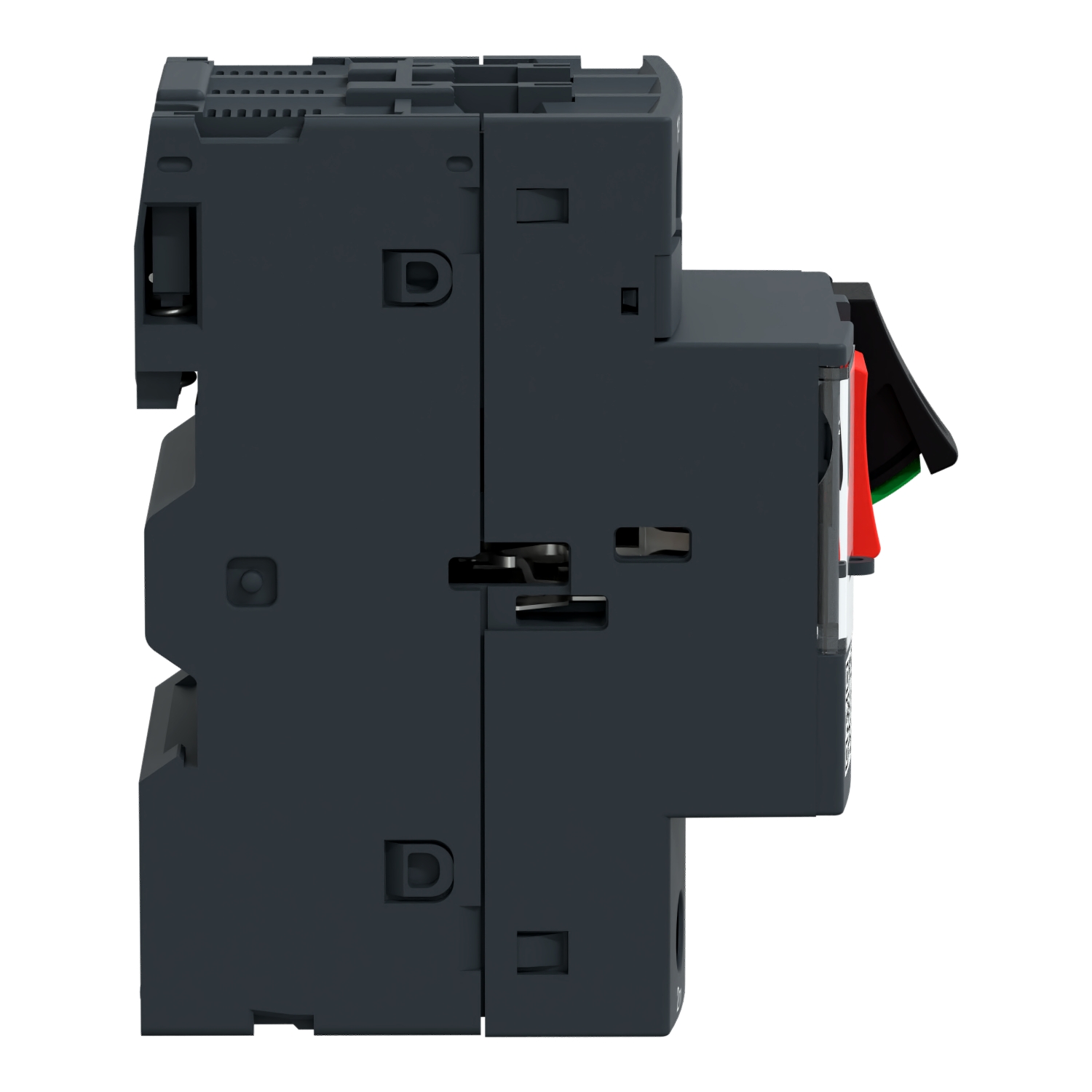

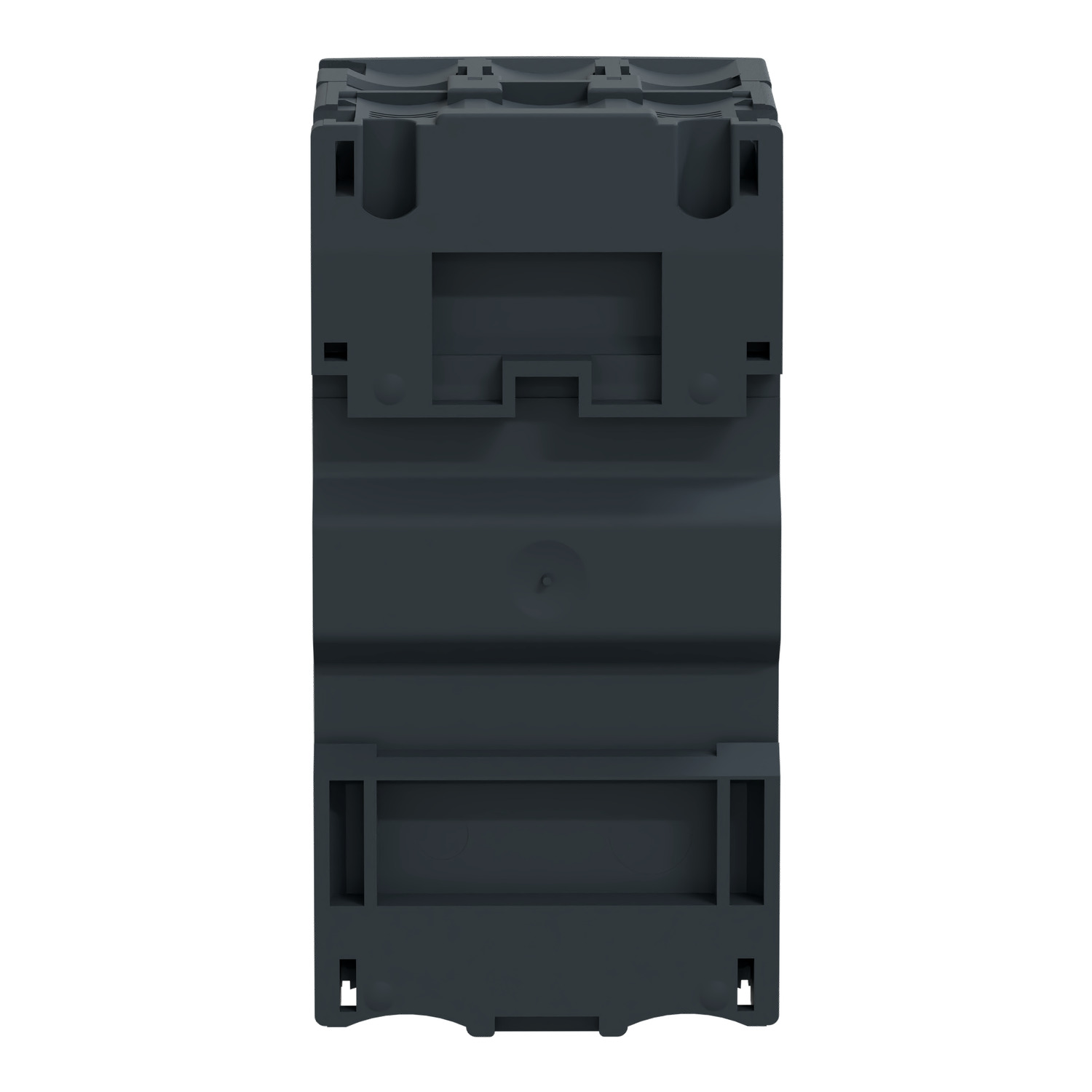

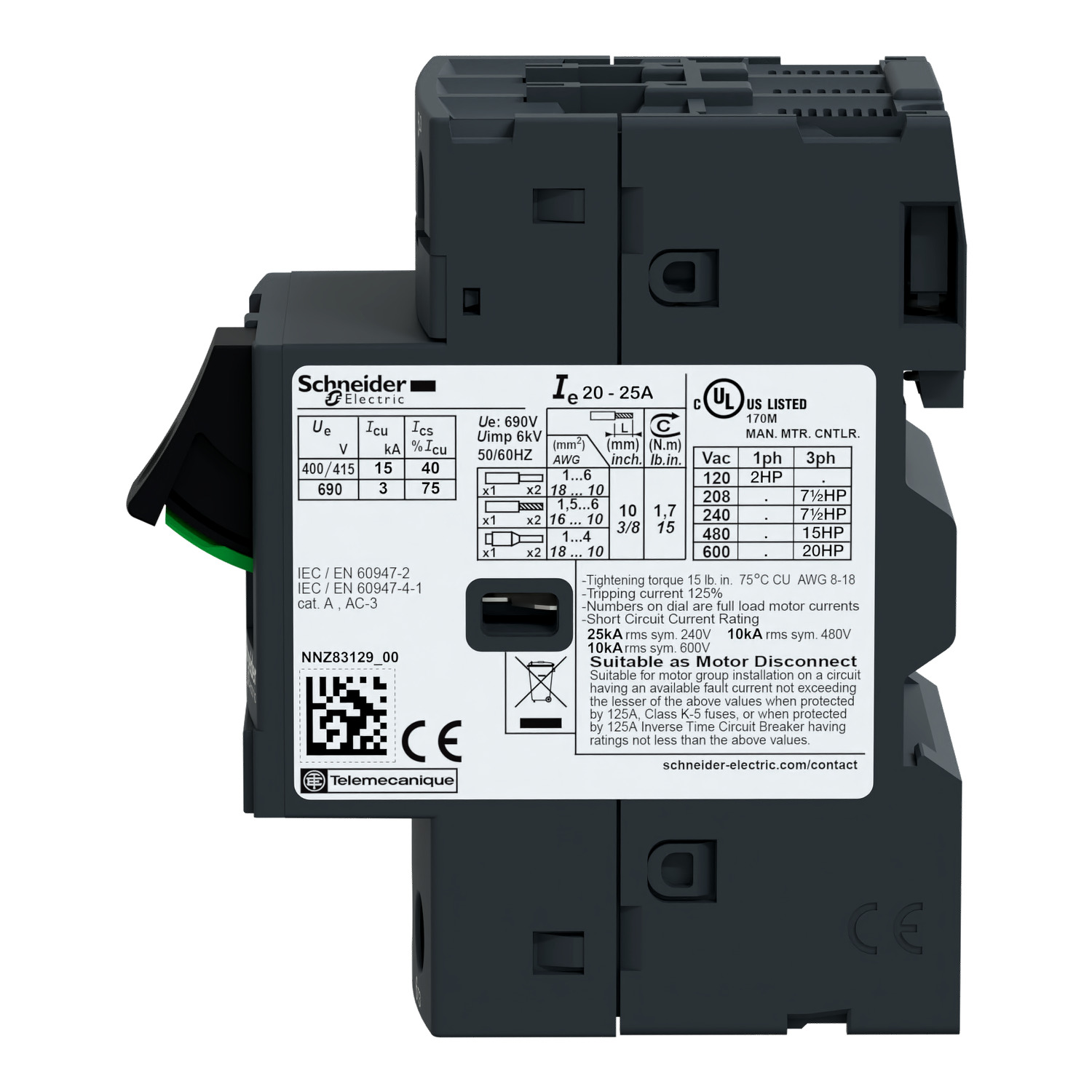

Manual motor controller,Easy TeSys GP2E,3P,20-25A,thermal magnetic trip,screw clamp terminals

Range

Easy TeSys

Product name

Easy TeSys GP2E

Product or Component Type

Motor controller

Device short name

GP2E

Device Application

Motor

Trip unit technology

Thermal-magnetic

poles description

3P

Network type

AC

Utilisation category

AC-3 IEC 60947-4-1
Category A IEC 60947-2

Network frequency

50/60 Hz IEC 60947-4-1

Fixing mode

35 mm symmetrical DIN rail clipped
Panel screwed with adaptor plate)

Operating position

Any position

Breaking capacity

50 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
6 kA Icu 440 V AC 50/60 Hz IEC 60947-2
4 kA Icu 500 V AC 50/60 Hz IEC 60947-2
3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

[Ics] rated service short-circuit breaking capacity

100 % 230/240 V AC 50/60 Hz IEC 60947-2
40 % 400/415 V AC 50/60 Hz IEC 60947-2
50 % 440 V AC 50/60 Hz IEC 60947-2
75 % 500 V AC 50/60 Hz IEC 60947-2
75 % 690 V AC 50/60 Hz IEC 60947-2

Control Type

Push-button

Line Rated Current

25 A

thermal protection adjustment range

20…25 A

Magnetic tripping current

327 A

[Ue] rated operational voltage

690 V AC 50/60 Hz IEC 60947-2

[Ui] rated insulation voltage

690 V AC 50/60 Hz IEC 60947-2

[Ith] conventional free air thermal current

25 A IEC 60947-4-1

[Uimp] rated impulse withstand voltage

6 kV IEC 60947-2

Power dissipation per pole

2.5 W

Mechanical durability

100000 cycles

Electrical durability

100000 cycles AC-3 440 V

maximum operating rate

25 cyc/h

Rated duty

Continuous IEC 60947-4-1

Connections - terminals

Screw clamp terminals 0.002…0.009 in² (1…6 mm²) - solid
Screw clamp terminals 0.002…0.009 in² (1.5…6 mm²) - flexible without cable end
Screw clamp terminals 0.002…0.006 in² (1…4 mm²) - flexible with cable end
Screw clamp terminals AWG 18...AWG 8)

Tightening torque

15.05 lbf.in (1.7 N.m) screw clamp terminals

Suitability for isolation

Yes IEC 60947-1

Phase failure sensitivity

Yes IEC 60947-4-1

Height

3.5 in (89 mm)

Width

1.8 in (45 mm)

Depth

3.09 in (78.5 mm)

Net Weight

0.57 lb(US) (0.26 kg)

Standards

EN/IEC 60947-2
EN/IEC 60947-4-1
UL 60947-4-1
CUL

Product Certifications

cUL

Protective treatment

TH

IP degree of protection

IP20 IEC 60529

IK degree of protection

IK04

Ambient air temperature for operation

-4…140 °F (-20…60 °C)

Ambient Air Temperature for Storage

-40…176 °F (-40…80 °C)

Fire resistance

1760 °F (960 °C) IEC 60695-2-1

Operating altitude

6561.68 ft (2000 m)

Category

US10I1322364

Discount Schedule

0I13

GTIN

3606481063472

Returnability

Yes

Country of origin

TH

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.3 in (8.5 cm)

Package 1 Width

1.8 in (4.6 cm)

Package 1 Length

3.64 in (9.25 cm)

Package 1 Weight

0.675 lb(US) (0.306 kg)

Unit Type of Package 2

S02

Number of Units in Package 2

24

Package 2 Height

5.9 in (15 cm)

Package 2 Width

11.8 in (30 cm)

Package 2 Length

15.7 in (40 cm)

Package 2 Weight

16.191 lb(US) (7.344 kg)

Unit Type of Package 3

P12

Number of Units in Package 3

768

Package 3 Height

27.6 in (70 cm)

Package 3 Width

31.5 in (80 cm)

Package 3 Length

47.2 in (120 cm)

Package 3 Weight

518.104 lb(US) (235.008 kg)
