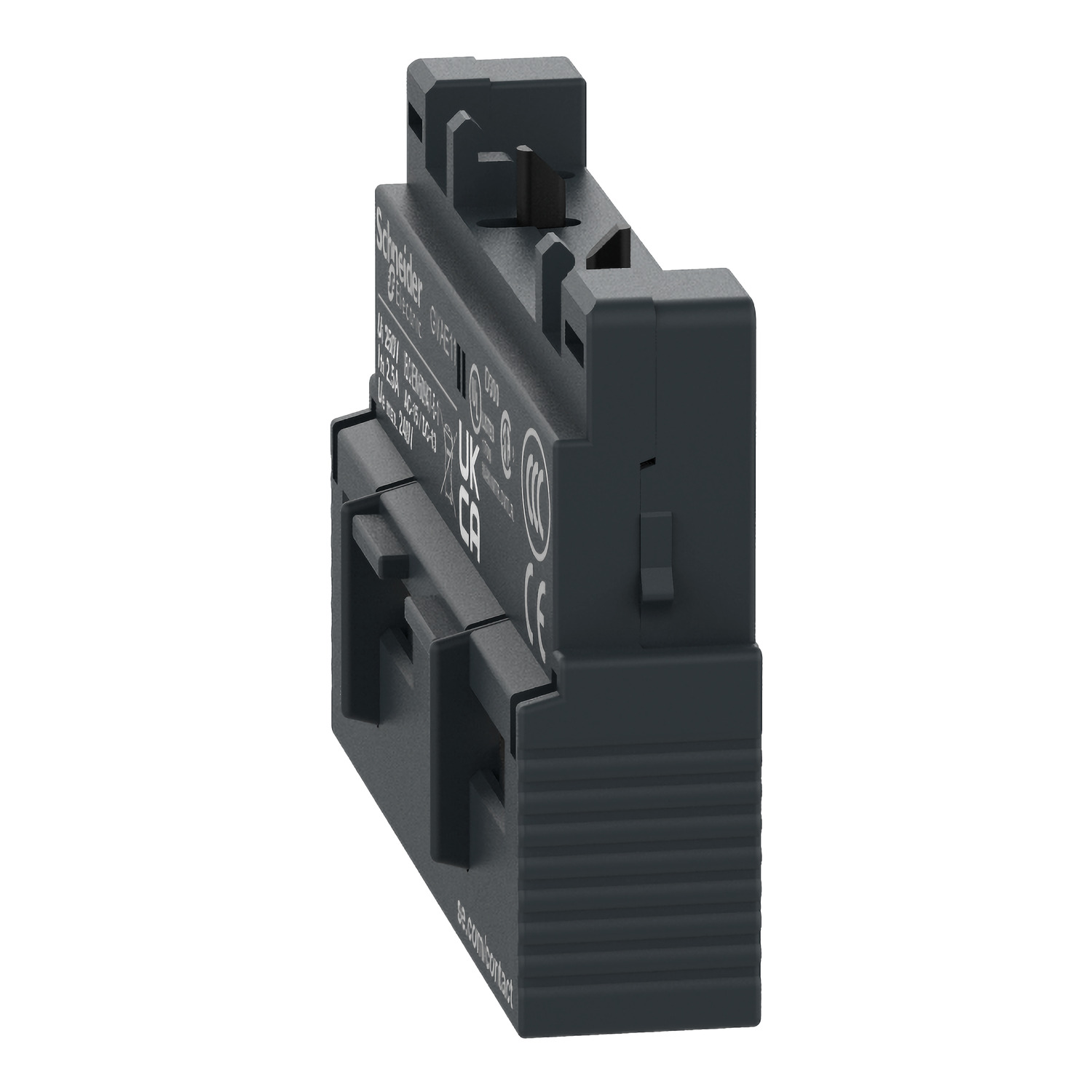

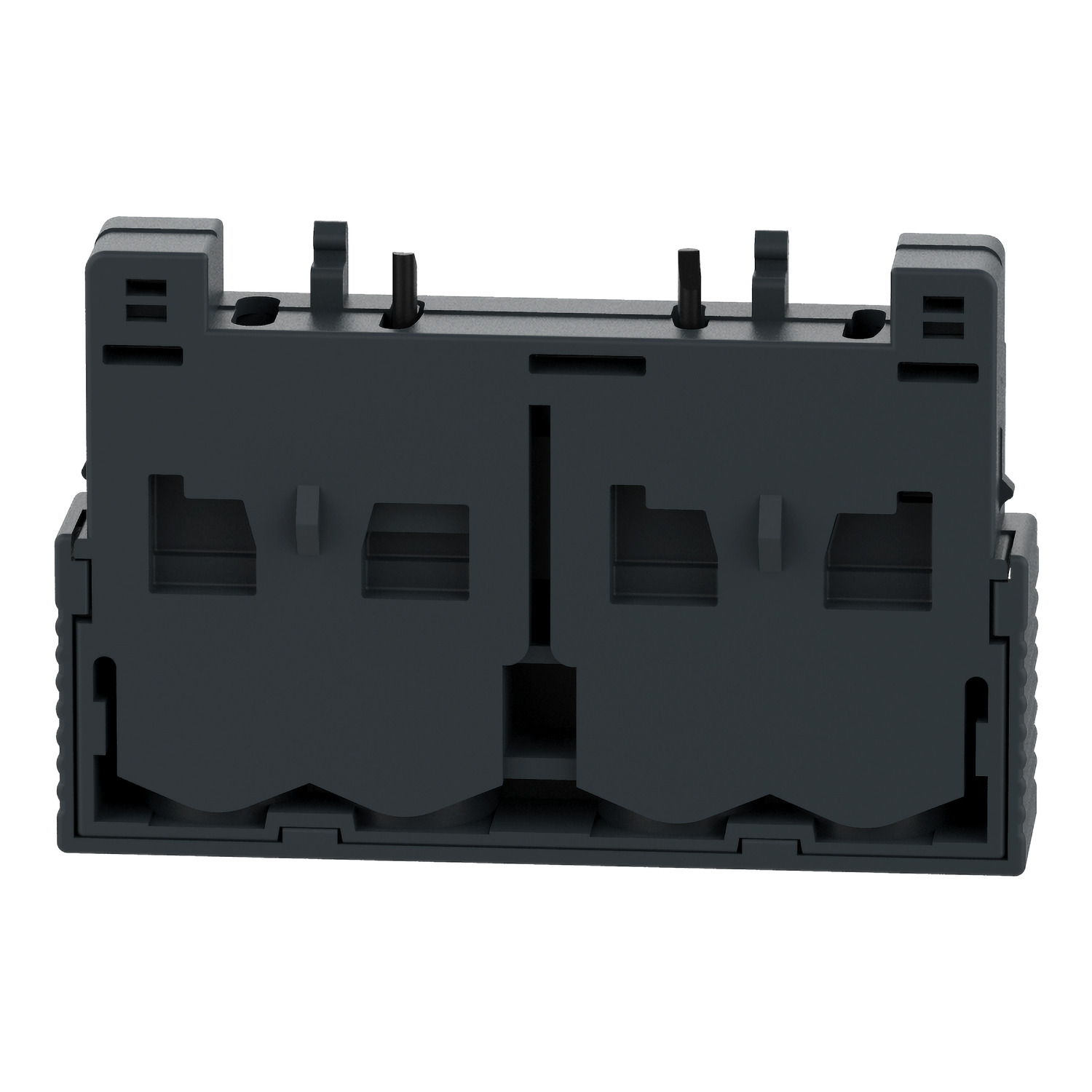

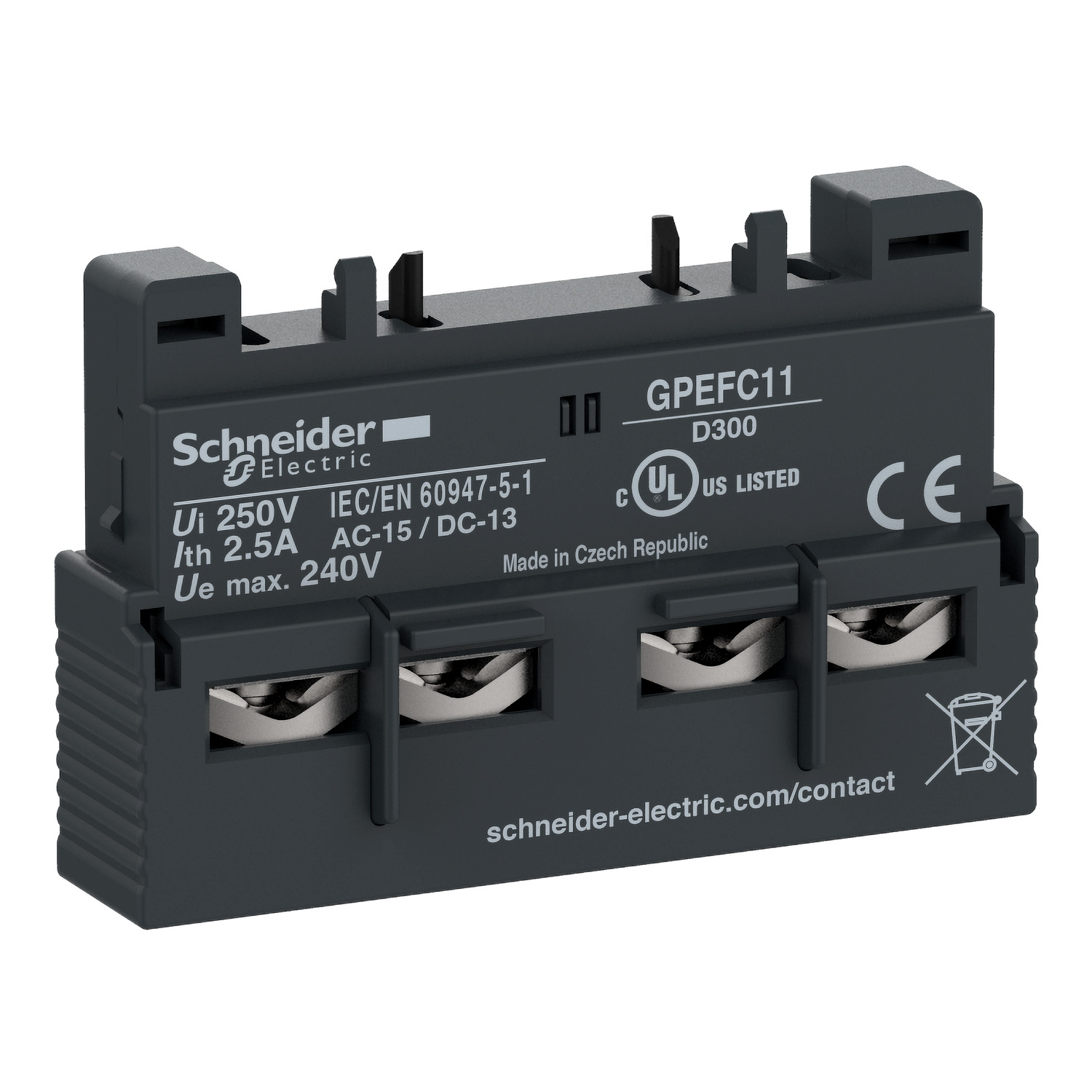

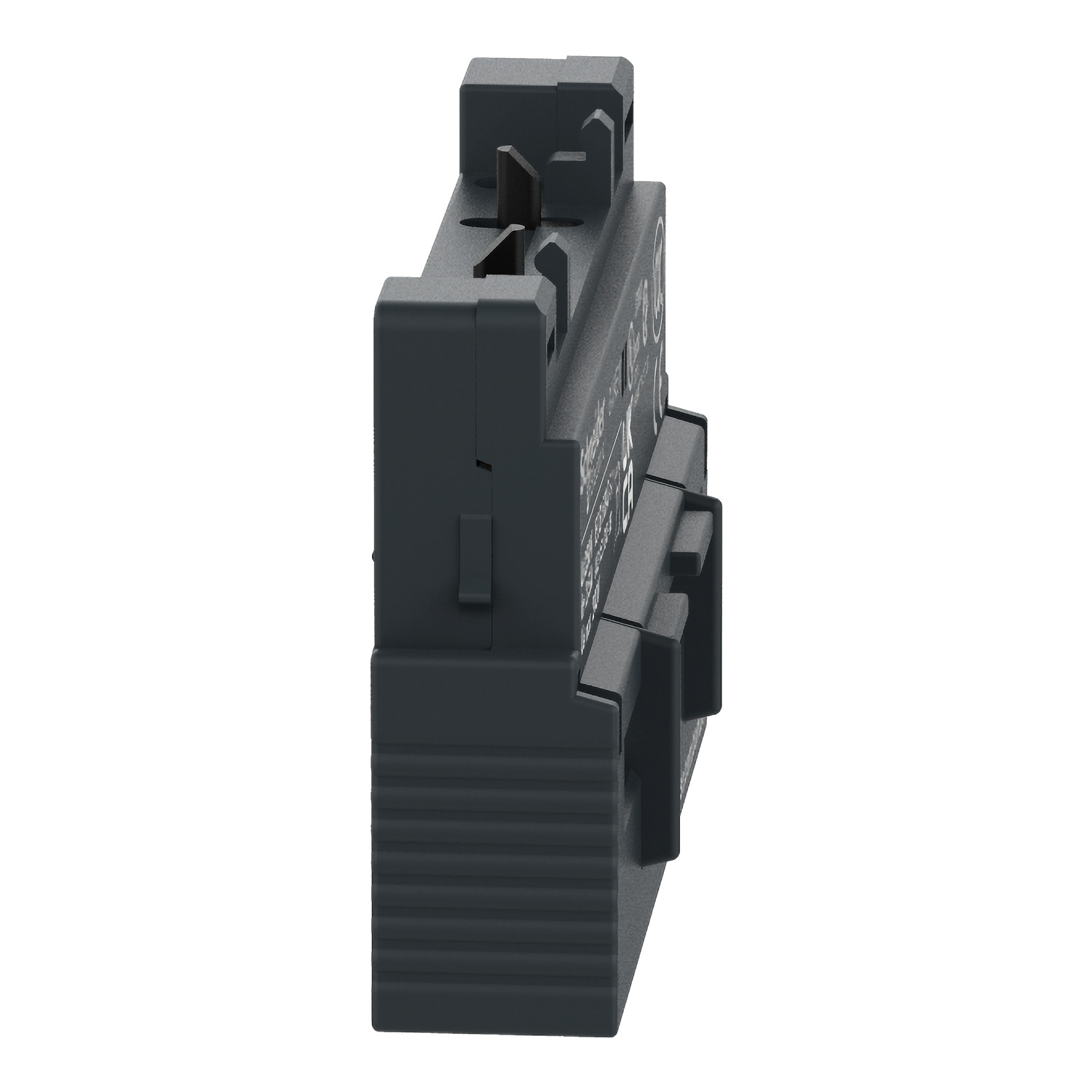

Auxiliary contact block,Easy TeSys GP2E,1NO+1NC

Range

Easy TeSys

Device short name

GPEFC

Product or Component Type

Auxiliary contact block

mounting location

Front side

Pole contact composition

1 NO + 1 NC

Connections - terminals

Screw clamp terminals1 0.002…0.004 in² (1…2.5 mm²) - solid
Screw clamp terminals2 0.002…0.004 in² (1…2.5 mm²) - solid
Screw clamp terminals1 0.001…0.004 in² (0.75…2.5 mm²) - flexible without cable end
Screw clamp terminals2 0.001…0.004 in² (0.75…2.5 mm²) - flexible without cable end
Screw clamp terminals1 0.001…0.002 in² (0.75…1.5 mm²) - flexible with cable end

Quantity per Set

Set of 10

[Ui] rated insulation voltage

300 V UL 60947-4-1
300 V cUL
250 V IEC 60947-1

[Ue] rated operational voltage

24...240 V AC
24...60 V DC

[Ith] conventional free air thermal current

2.5 A

Mechanical durability

100000 cycles

Minimum switching current

5 mA

Minimum switching voltage

17 V

Protection type

GG fuse 10 A
GB2CB06 circuit breaker 10 A

Rated operational power in VA

120 VA 110…120 V AC-15 100000 cycles
120 VA 230…240 V AC-15 100000 cycles
48 VA 24 V AC-15 100000 cycles
60 VA 48 V AC-15 100000 cycles

Rated operational power in W

15 W 48 V DC-13 100000 cycles
24 W 24 V DC-13 100000 cycles
9 W 60 V DC-13 100000 cycles

Tightening torque

12.4 lbf.in (1.4 N.m) screw clamp terminals

Height

0.4 in (11 mm)

Width

1.8 in (45 mm)

Depth

1.1 in (29 mm)

Net Weight

0.04 lb(US) (0.02 kg)

Environmental characteristic

Normal environment

Category

US10I1322364

Discount Schedule

0I13

GTIN

3606481063496

Returnability

Yes

Country of origin

US

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.50 in (1.27 cm)

Package 1 Width

1.3 in (3.3 cm)

Package 1 Length

1.80 in (4.57 cm)

Package 1 Weight

0.04 lb(US) (0.02 kg)

Unit Type of Package 2

S02

Number of Units in Package 2

220

Package 2 Height

5.9 in (15 cm)

Package 2 Width

11.8 in (30 cm)

Package 2 Length

15.7 in (40 cm)

Package 2 Weight

10.752 lb(US) (4.877 kg)
