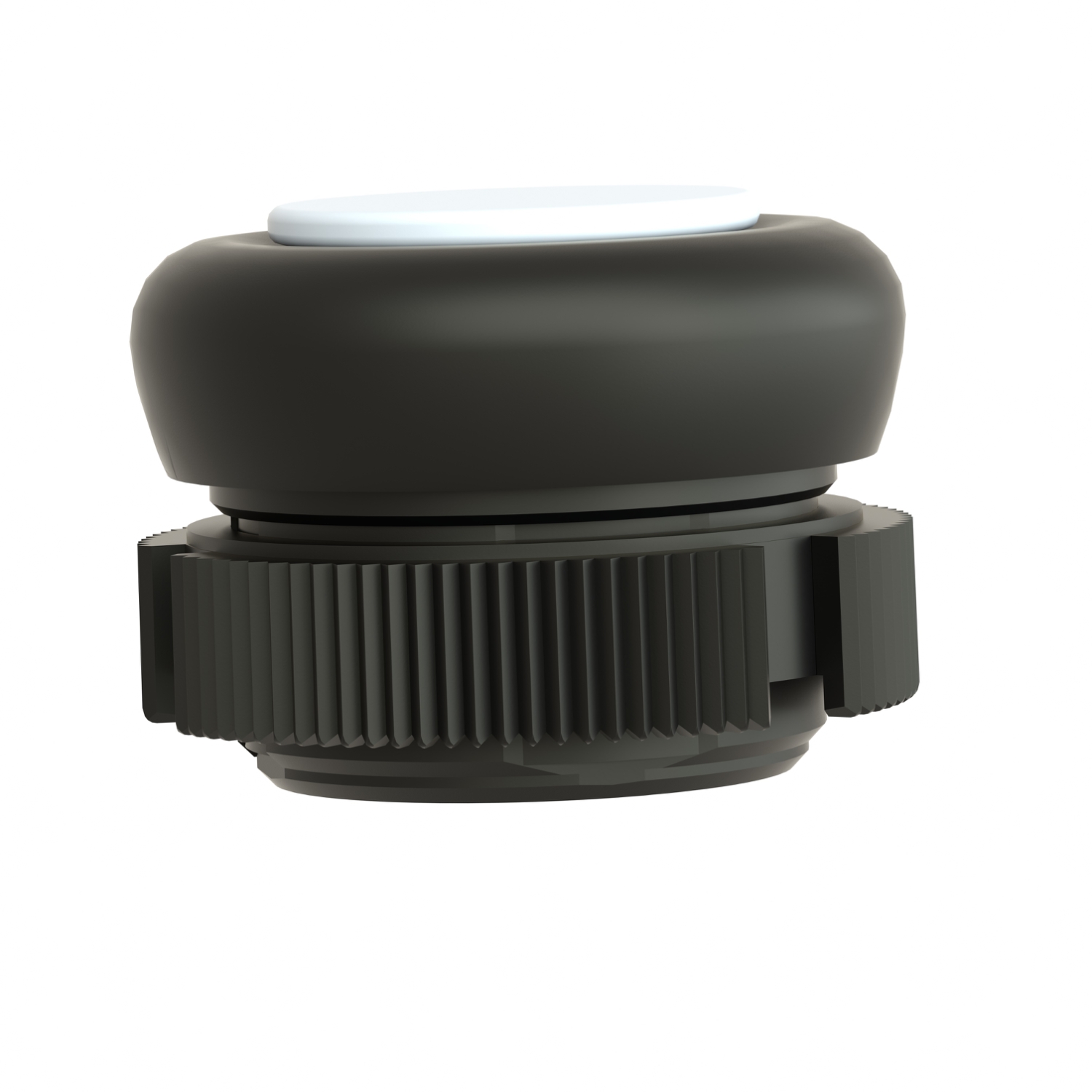

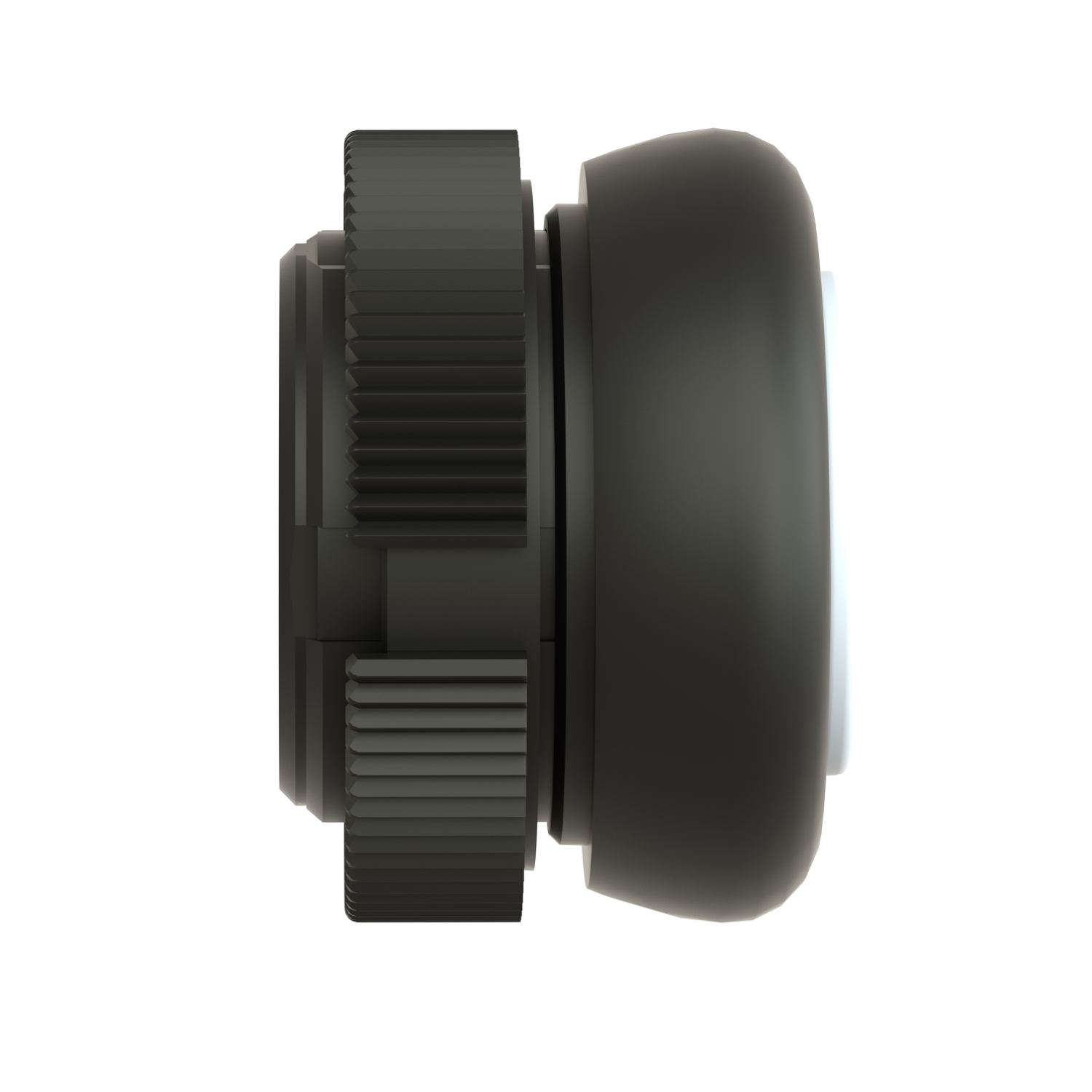

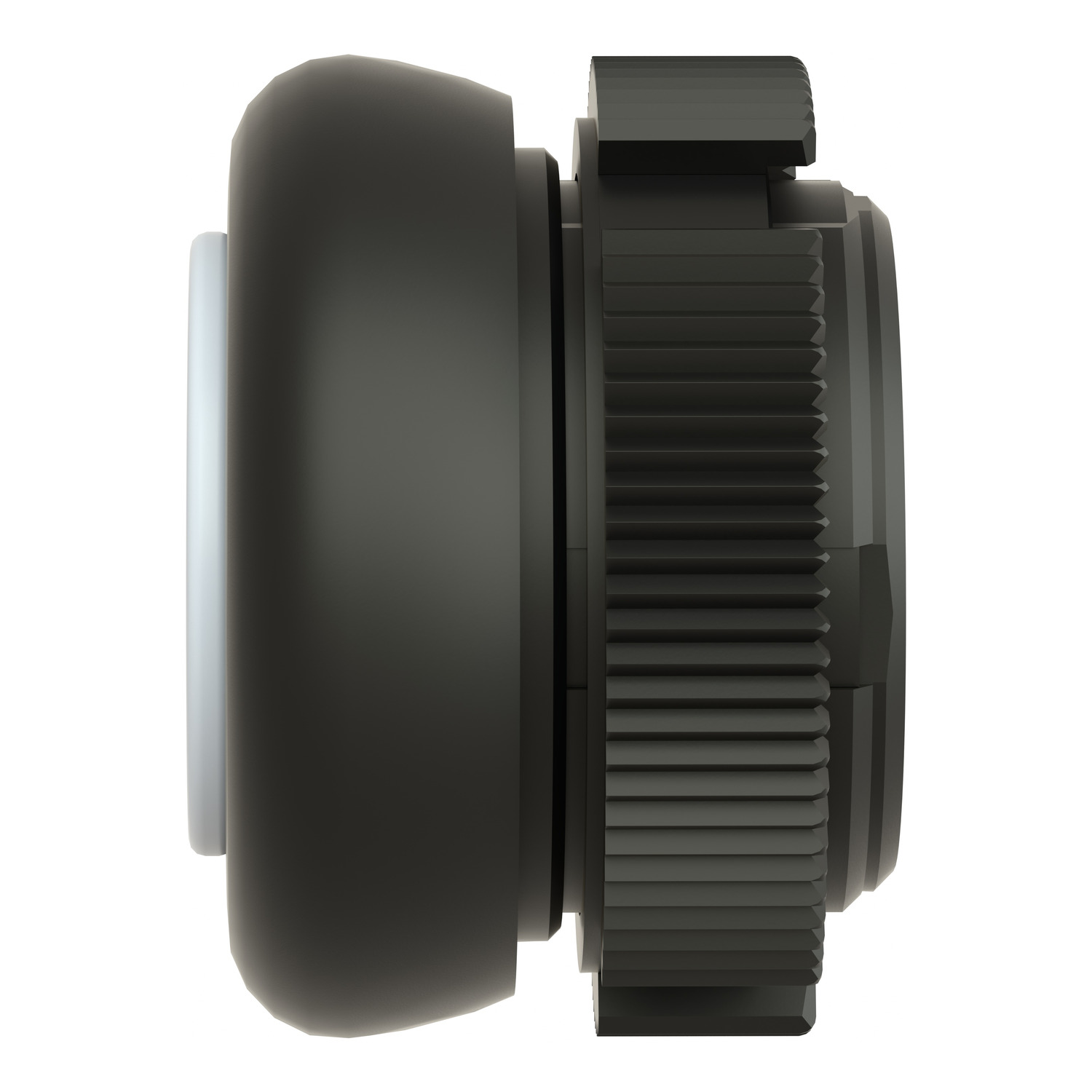

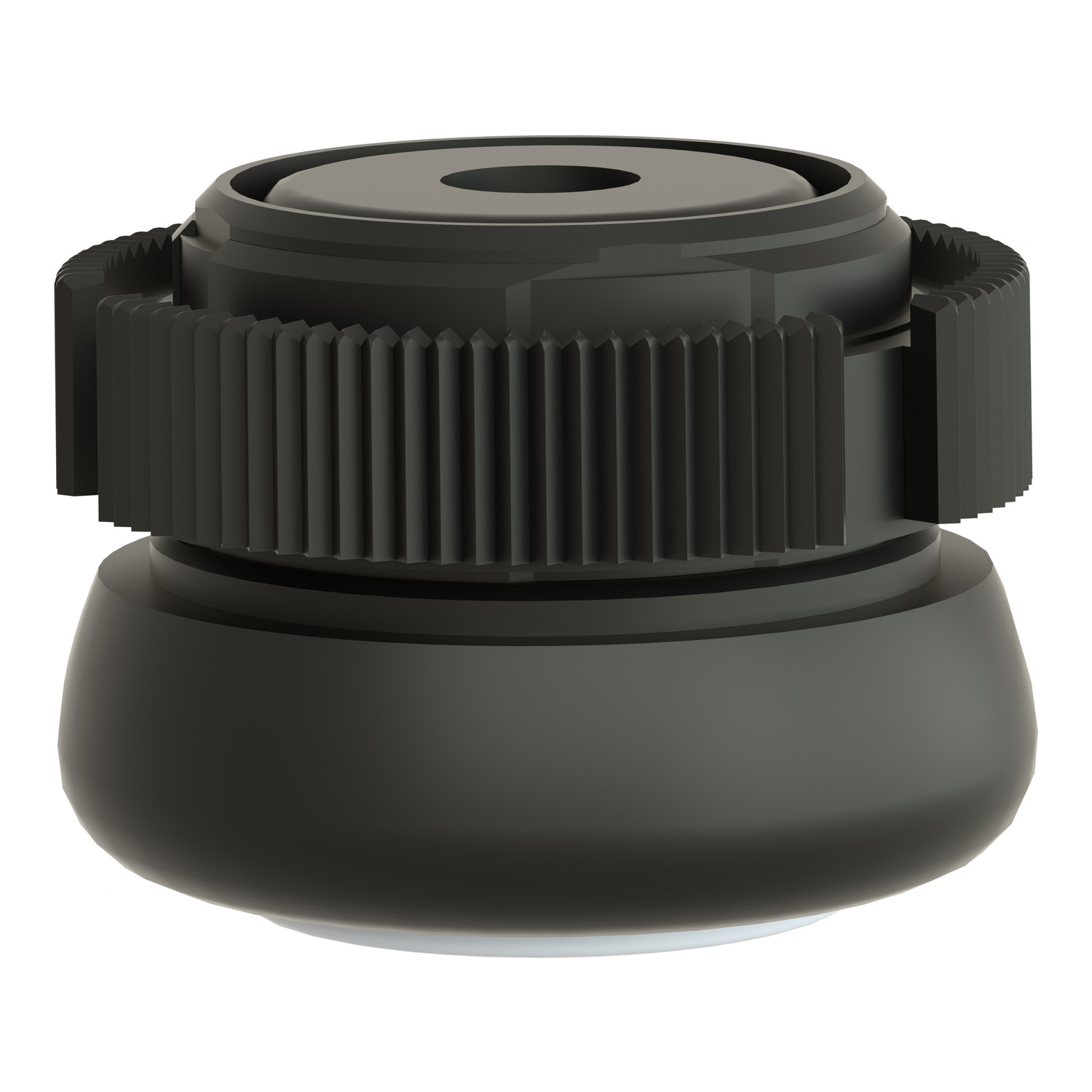

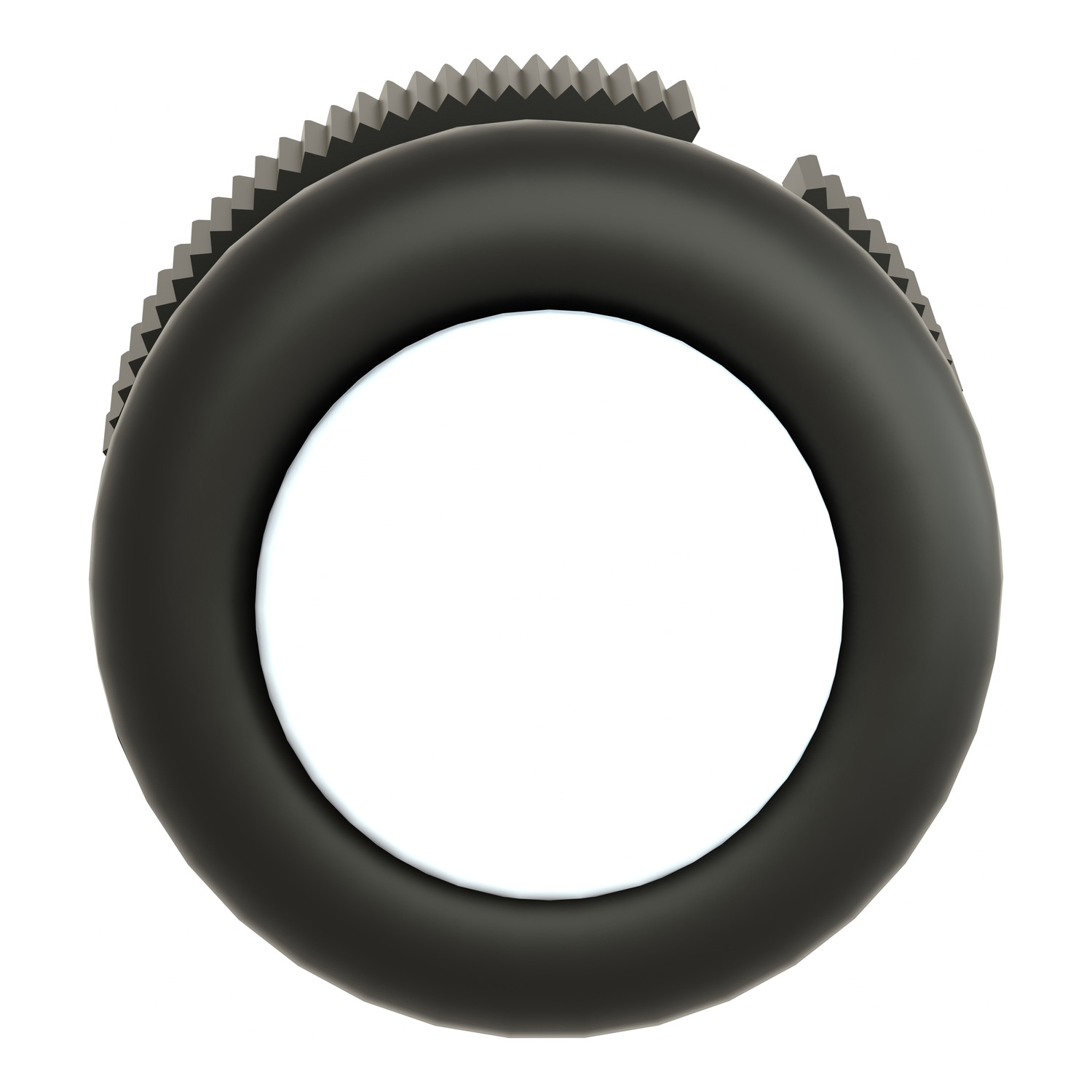

Head for push button, Harmony XAC, plastic, white, booted, spring return

Range of Product

Harmony XAC

Product or Component Type

Head for push-button

Component name

XACA

marking

Unmarked

Operator additional information

Booted

Cap/operator or lens colour

White

Product Compatibility

XACA..

mounting location

Front of enclosure

Sale per indivisible quantity

10

Standards

CSA C22.2 No 14
IEC 60947-5-1
IEC 60204-32
UL 508

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Vibration resistance

15 gn 10…500 Hz)IEC 60068-2-6

Shock resistance

100 gn IEC 60068-2-27

Overvoltage category

Class II IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Net Weight

0.02 lb(US) (0.01 kg)

Category

US10CS222473

Discount Schedule

0CS2

GTIN

3389110645132

Returnability

Yes

Country of origin

CZ

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.2 in (3.0 cm)

Package 1 Width

4.3 in (11.0 cm)

Package 1 Length

3.9 in (10.0 cm)

Package 1 Weight

0.3 oz (9.0 g)

Unit Type of Package 2

BAG

Number of Units in Package 2

10

Package 2 Height

1.2 in (3.0 cm)

Package 2 Width

4.3 in (11.0 cm)

Package 2 Length

3.9 in (10.0 cm)

Package 2 Weight

3.4 oz (95.0 g)

Unit Type of Package 3

S03

Number of Units in Package 3

700

Package 3 Height

11.8 in (30.0 cm)

Package 3 Width

11.8 in (30.0 cm)

Package 3 Length

15.7 in (40.0 cm)

Package 3 Weight

15.67 lb(US) (7.11 kg)

Warranty

18 months
