About Product

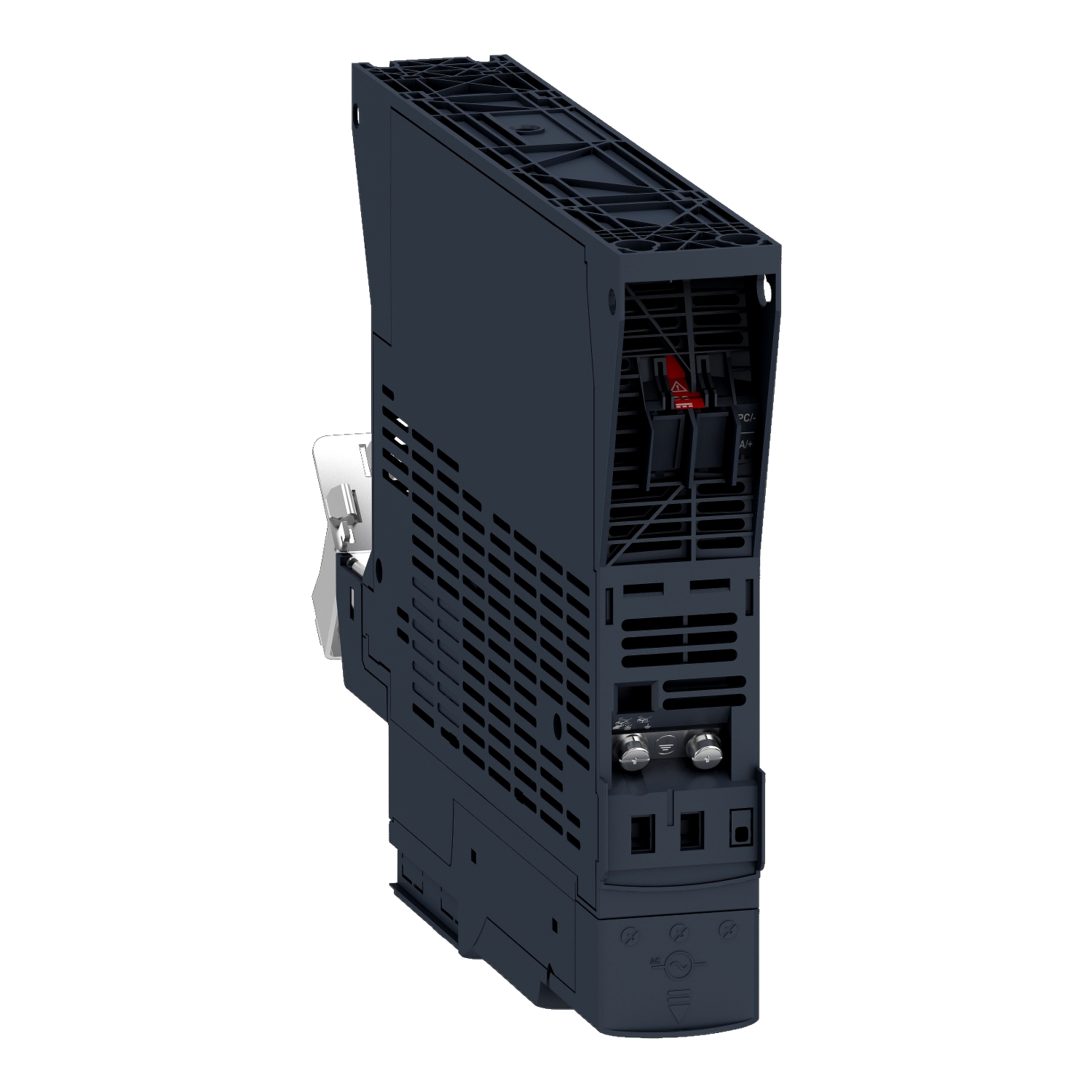

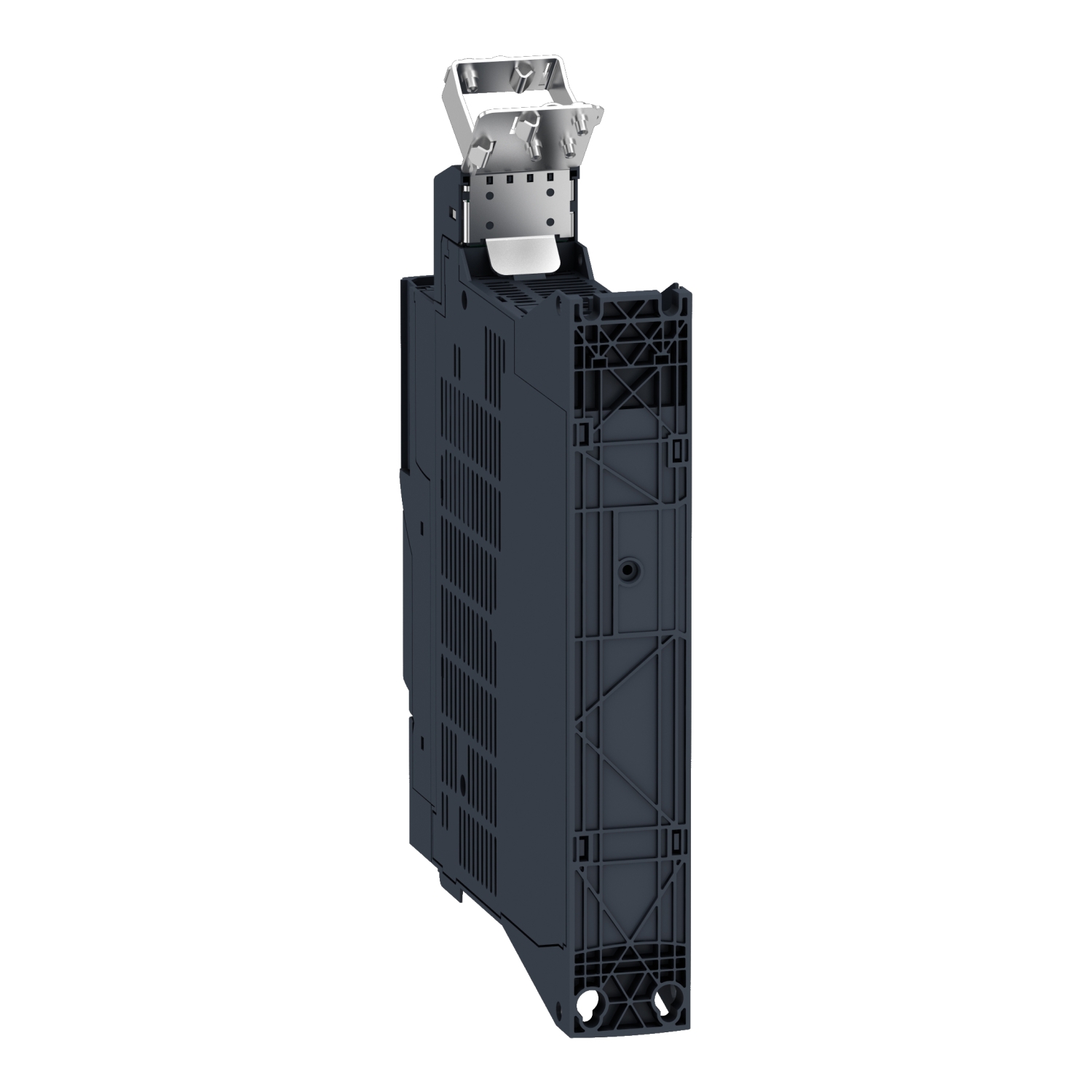

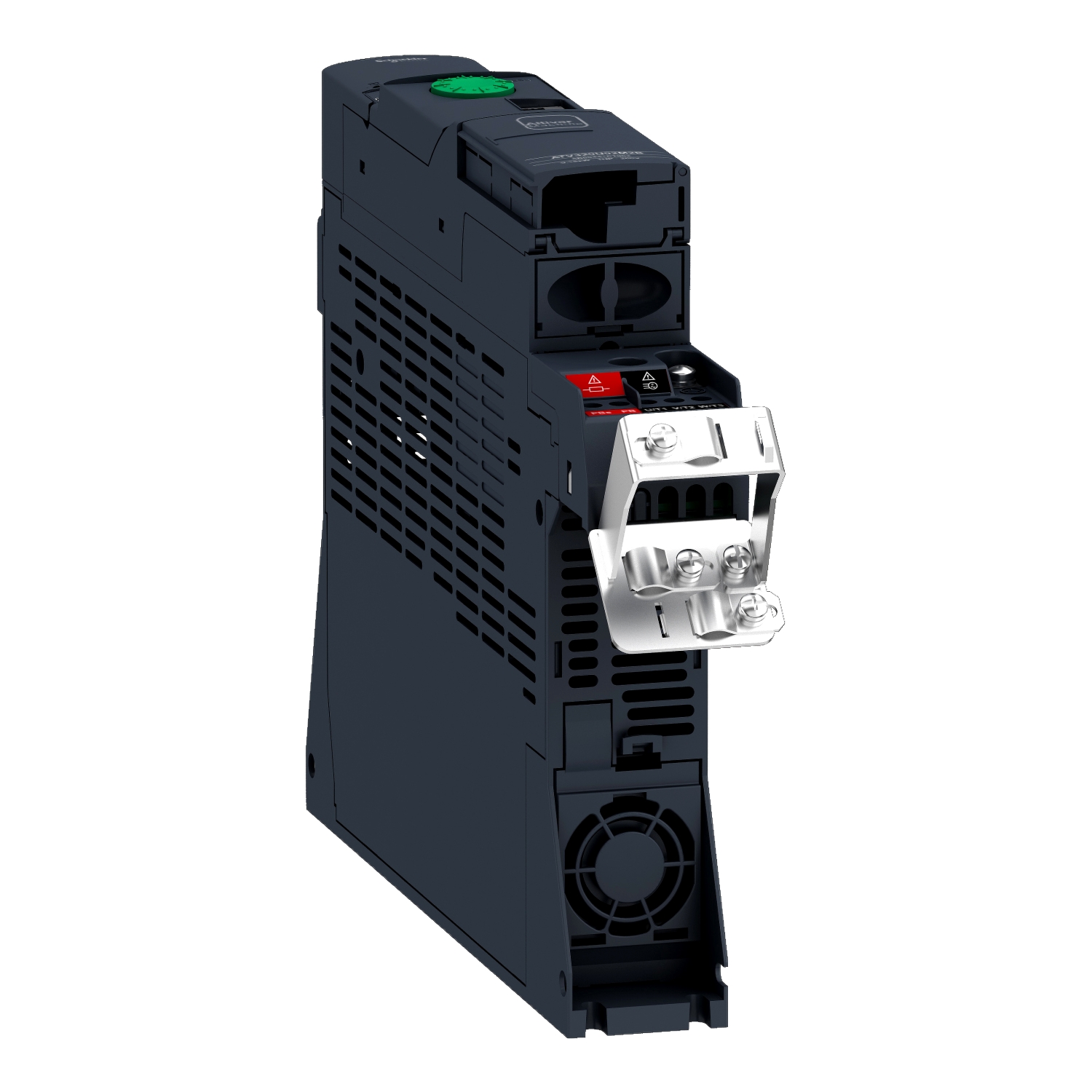

This Altivar 320 variable speed drive can feed single-phase synchronous and asynchronous motors. Its book form factor allows for a simple and compact installation in your automation cabinets. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).

Main

Range of Product

Altivar Machine ATV320

Product or Component Type

Variable speed drive

Product Specific Application

Complex machines

variant

Standard version
Standard version

Format of the drive

Book

Mounting Mode

Cabinet mount

Communication Port Protocol

Modbus serial
CANopen

Option card

communication module, CANopen
communication module, EtherCAT
communication module, Profibus DP V1
communication module, PROFINET
communication module, Ethernet Powerlink
communication module, EtherNet/IP
communication module, DeviceNet

[Us] rated supply voltage

200...240 V - 15...10 %

nominal output current

4.8 A

Motor power kW

0.75 kW heavy duty

EMC filter

Class C2 EMC filter integrated

IP degree of protection

IP20

Complementary

Discrete input number

Discrete input type

STO safe torque off, 24 V DC1.5 kOhm
DI1...DI6 logic inputs, 24 V DC 30 V)
DI5 programmable as pulse input 0…30 kHz, 24 V DC 30 V)

Discrete input logic

Positive logic (source)
Negative logic (sink)

Discrete output number

Discrete output type

Open collector DQ+ 0…1 kHz 30 V DC 100 mA
Open collector DQ- 0…1 kHz 30 V DC 100 mA

Analogue input number

Analogue input type

AI1 voltage 0...10 V DC 30 kOhm 10 bits
AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits
AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits

Analogue output number

Analogue output type

Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits
Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits

Relay output type

Configurable relay logic R1A 1 NO 100000 cycles
Configurable relay logic R1B 1 NC 100000 cycles
Configurable relay logic R1C
Configurable relay logic R2A 1 NO 100000 cycles
Configurable relay logic R2C

Maximum switching current

Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC
Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC
Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC
Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC

Minimum switching current

Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

Method of access

Slave CANopen

4 quadrant operation possible

True

Asynchronous motor control profile

Voltage/frequency ratio, 5 points
Flux vector control without sensor, standard
Voltage/frequency ratio - Energy Saving, quadratic U/f
Flux vector control without sensor - Energy Saving
Voltage/frequency ratio, 2 points

Synchronous motor control profile

Vector control without sensor

Transient overtorque

170…200 % of nominal motor torque

Maximum output frequency

0.599 kHz

Acceleration and deceleration ramps

Linear
U
S
CUS
Ramp switching
Acceleration/deceleration ramp adaptation
Acceleration/deceleration automatic stop with DC injection

Motor slip compensation

Automatic whatever the load
Adjustable 0...300 %
Not available in voltage/frequency ratio (2 or 5 points)

Switching frequency

2...16 kHz adjustable
4...16 kHz with derating factor

Nominal switching frequency

4 kHz

Braking to standstill

By DC injection

Brake chopper integrated

True

Line current

10.1 A 200 V heavy duty)
8.5 A 240 V heavy duty)

Maximum Input Current per Phase

10.1 A

Maximum output voltage

240 V

Apparent power

2.0 kVA 240 V heavy duty)

Network Frequency

50-60 Hz

Relative symmetric network frequency tolerance

5 %

Prospective line Isc

1 kA

Base load current at high overload

17.0 A

Power dissipation in W

Fan 46.0 W 200 V 4 kHz

With safety function Safely Limited Speed (SLS)

True

With safety function Safe brake management (SBC/SBT)

False

With safety function Safe Operating Stop (SOS)

False

With safety function Safe Position (SP)

False

With safety function Safe programmable logic

False

With safety function Safe Speed Monitor (SSM)

False

With safety function Safe Stop 1 (SS1)

True

With sft fct Safe Stop 2 (SS2)

False

With safety function Safe torque off (STO)

True

With safety function Safely Limited Position (SLP)

False

With safety function Safe Direction (SDI)

False

Protection type

Input phase breaks drive
Overcurrent between output phases and earth drive
Overheating protection drive
Short-circuit between motor phases drive
Thermal protection drive

Width

1.8 in (45.0 mm)

Height

12.8 in (325.0 mm)

Depth

9.6 in (245.0 mm)

Net Weight

5.3 lb(US) (2.4 kg)

Environment

Operating position

Vertical +/- 10 degree

Product Certifications

CE
ATEX
NOM
GOST
EAC
RCM
KC

marking

CE
ATEX
UL
CSA
EAC
RCM

Standards

IEC 61800-5-1

Electromagnetic compatibility

Electrostatic discharge immunity test level 3 IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5
Conducted radio-frequency immunity test level 3 IEC 61000-4-6
Voltage dips and interruptions immunity test IEC 61000-4-11

Environmental class (during operation)

Class 3C3 according to IEC 60721-3-3
Class 3S2 according to IEC 60721-3-3

Maximum acceleration under shock impact (during operation)

150 m/s² at 11 ms

Maximum acceleration under vibrational stress (during operation)

10 m/s² at 13...200 Hz

Maximum deflection under vibratory load (during operation)

1.5 mm at 2...13 Hz

Permitted relative humidity (during operation)

Class 3K5 according to EN 60721-3

Volume of cooling air

2985.2 Gal/hr(US) (11.3 m3/h)
