Range

9002AW

Product

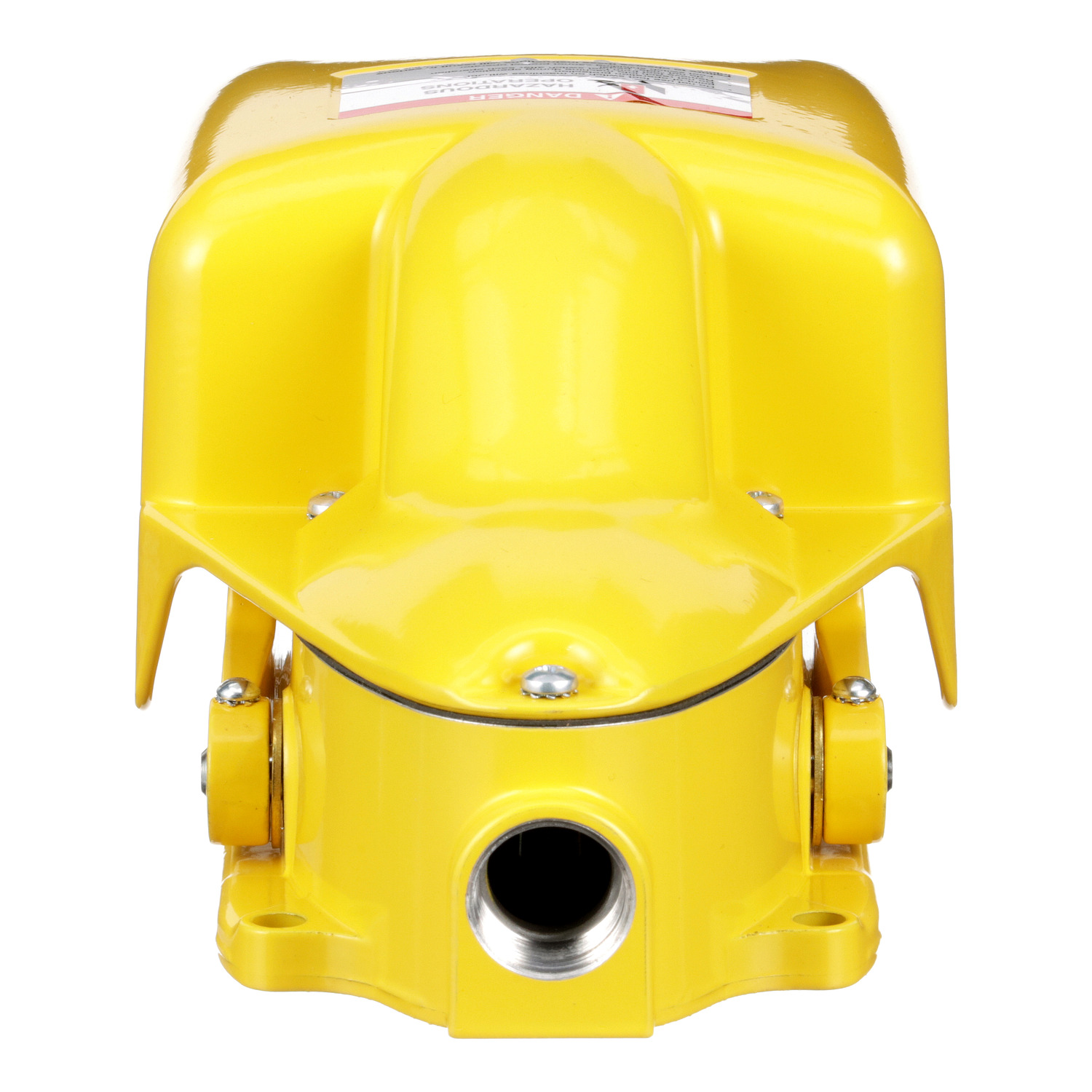

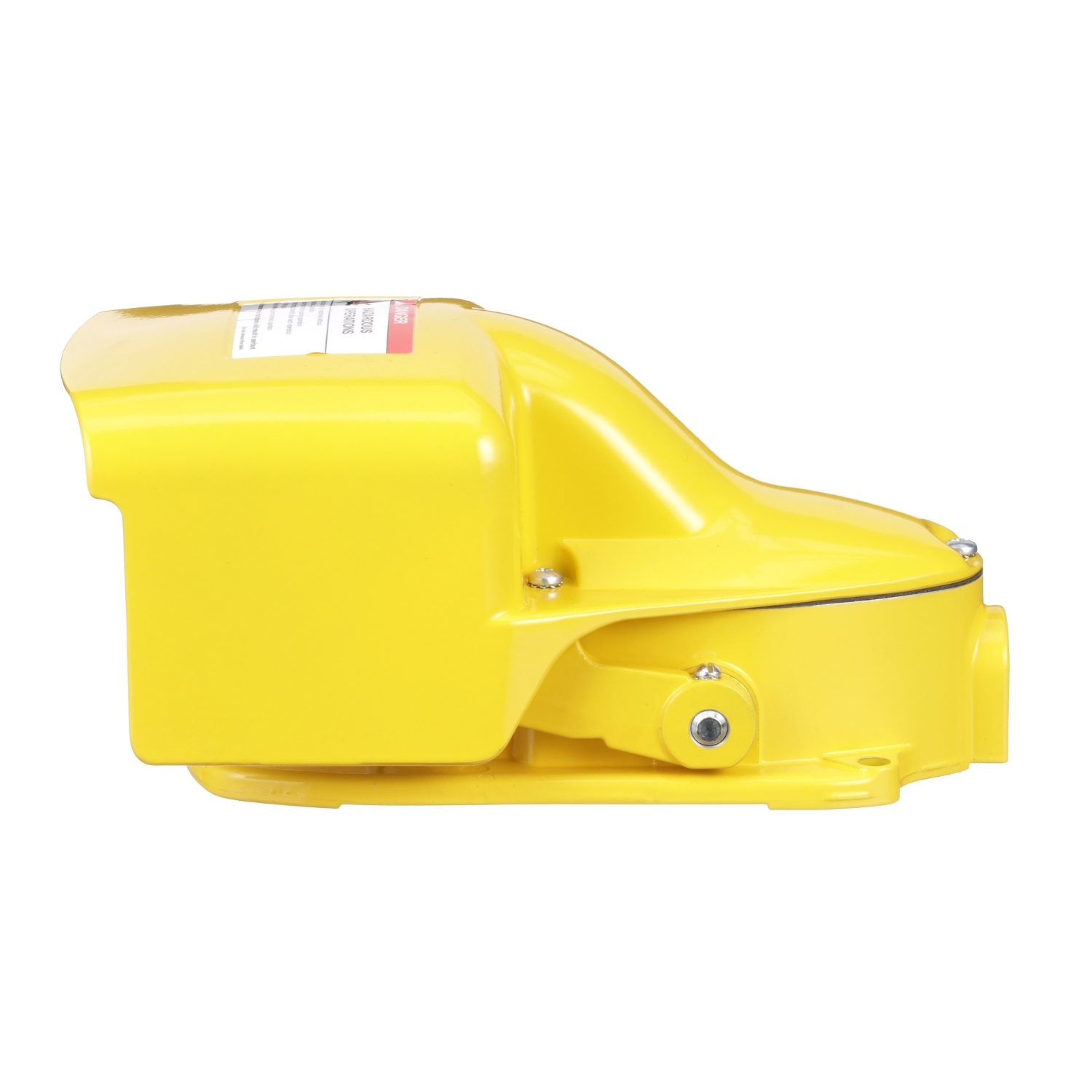

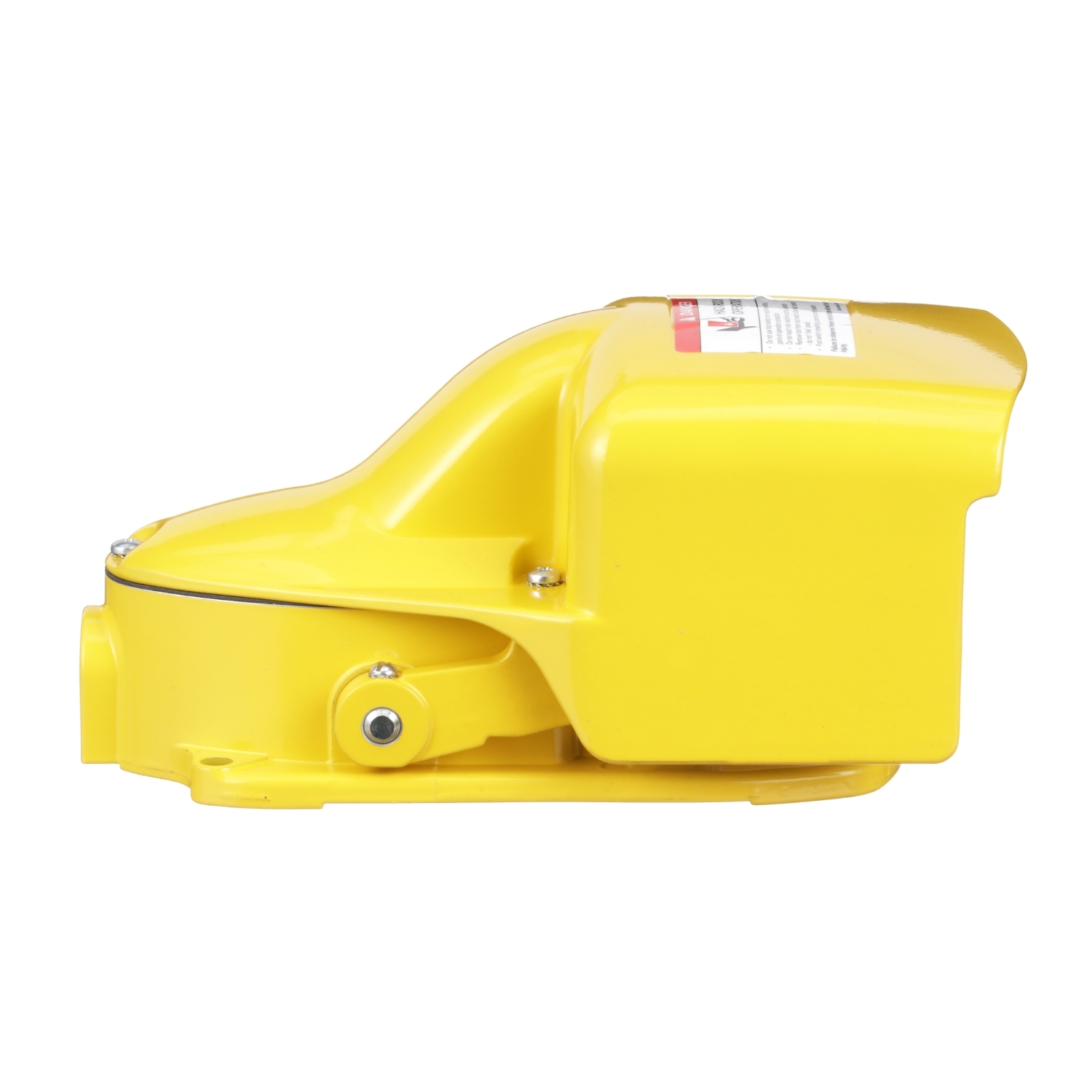

Foot switch

Contact Operation

1 step

Certifications

UL Listed
CSA

Cable Entry

0.75 inch NPT conduit entrance

Contact Arrangement

SPDT

Enclosure Rating

NEMA 2/4/13

Voltage Rating

600 V AC/DC

Protection

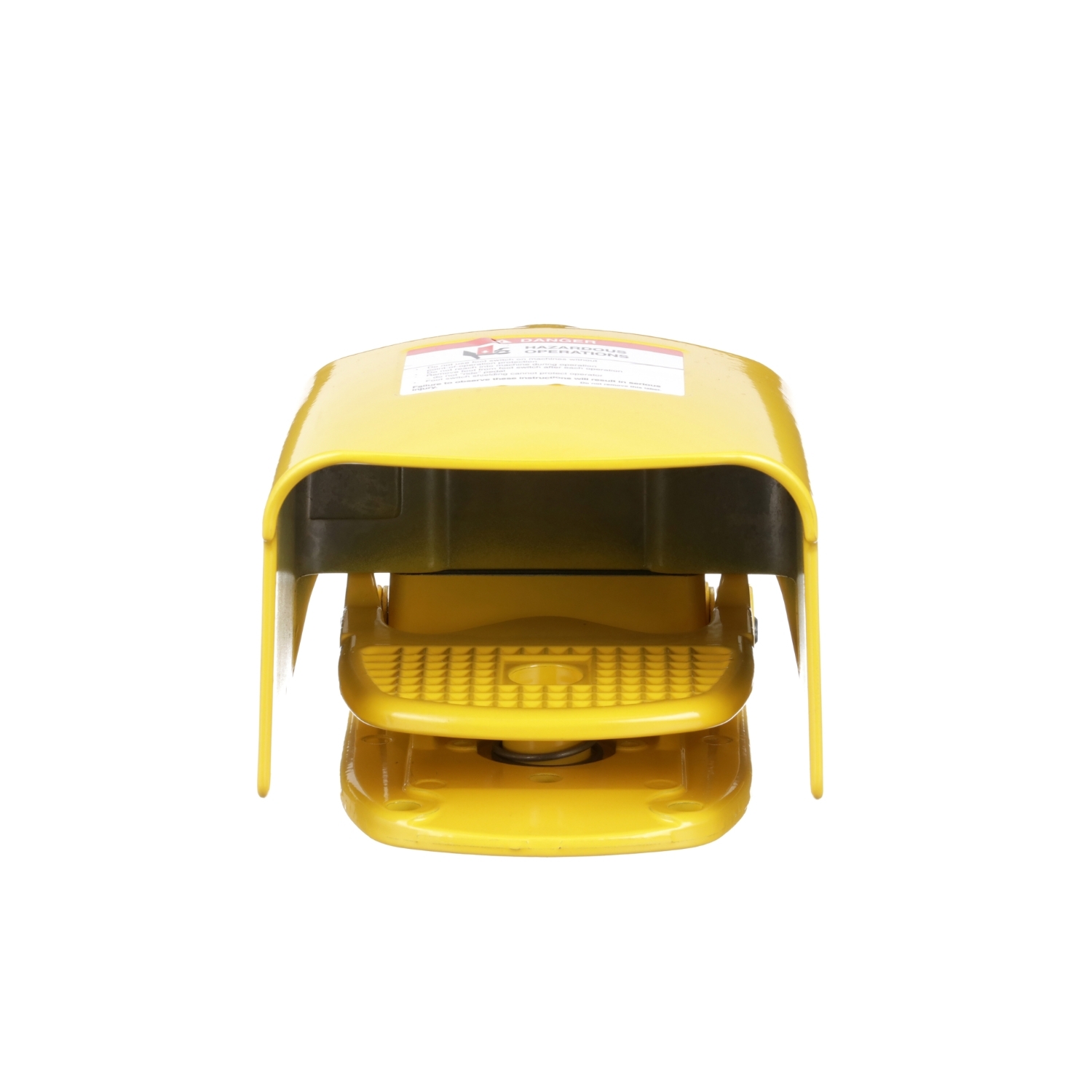

Pedal shield
Side shield

Operator Action

Spring return

Rated Breaking Capacity

15 A 120 V AC inductive control circuit UL 508
10 A 240 V AC inductive control circuit UL 508
6 A 480 V AC inductive control circuit UL 508
5 A 600 V AC inductive control circuit UL 508
15 A 120 V AC resistive control circuit UL 508
0.5 A 125 V DC resistive control circuit UL 508

Height

4.8 in (123 mm)

Width

5.4 in (137 mm)

Depth

9.02 in (229 mm)

Category

US10CS121441

Discount Schedule

0CS1

GTIN

785901815921

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.800 in (14.732 cm)

Package 1 Width

5.600 in (14.224 cm)

Package 1 Length

12.00 in (30.48 cm)

Package 1 Weight

4.641 lb(US) (2.105 kg)

Unit Type of Package 2

PAL

Number of Units in Package 2

72

Package 2 Height

40.0 in (101.6 cm)

Package 2 Width

40.0 in (101.6 cm)

Package 2 Length

48.00 in (121.92 cm)

Package 2 Weight

334.999 lb(US) (151.953 kg)

Warranty

18 months
