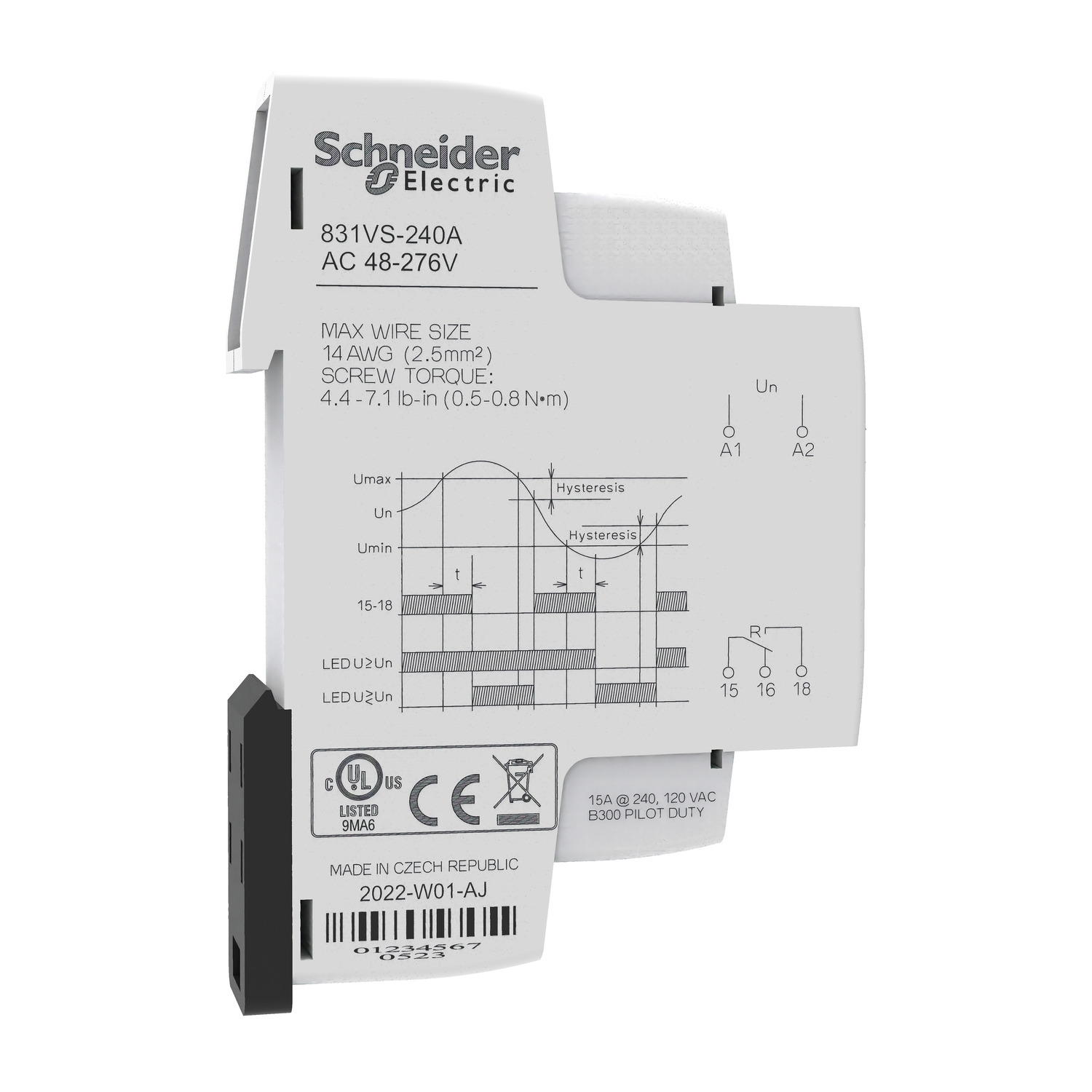

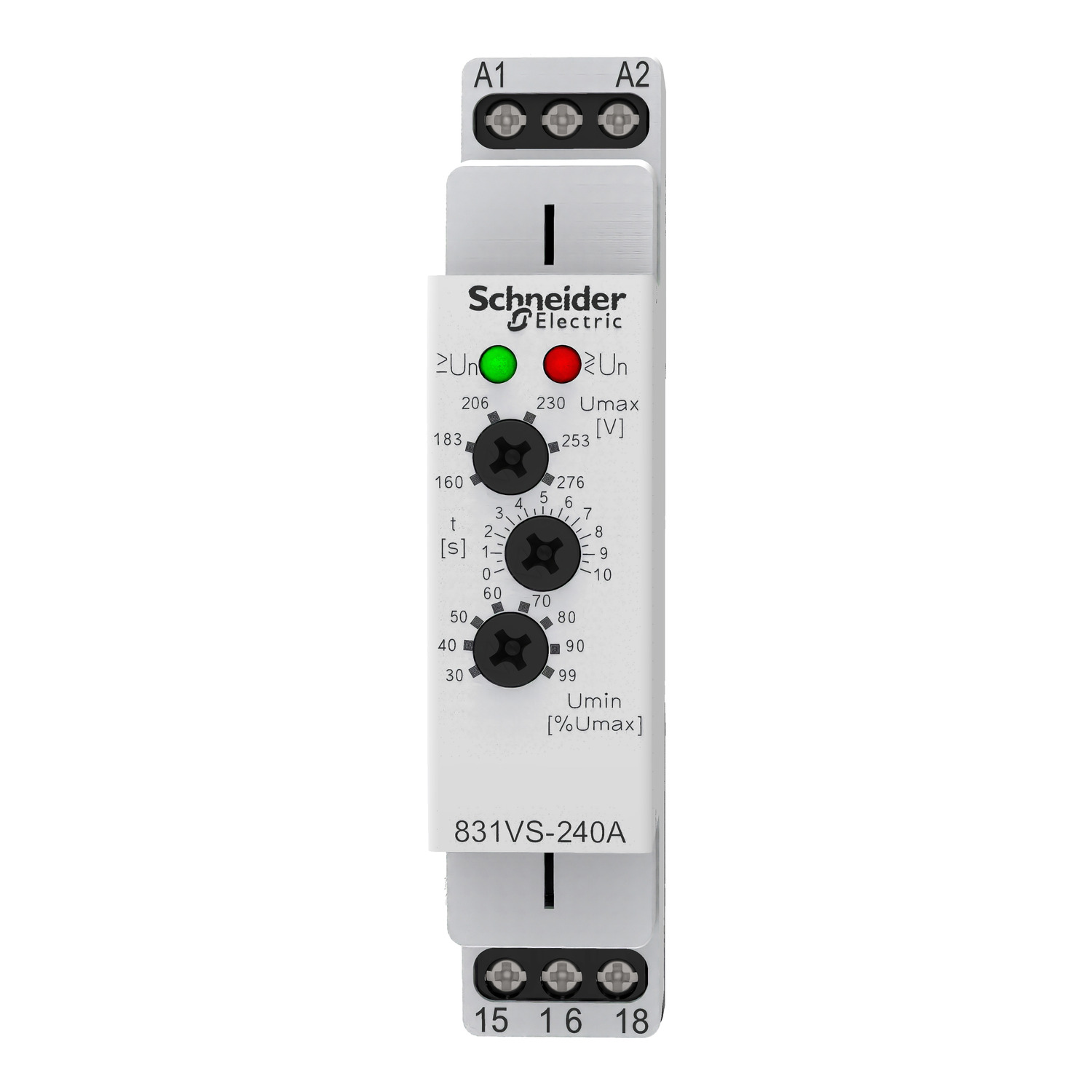

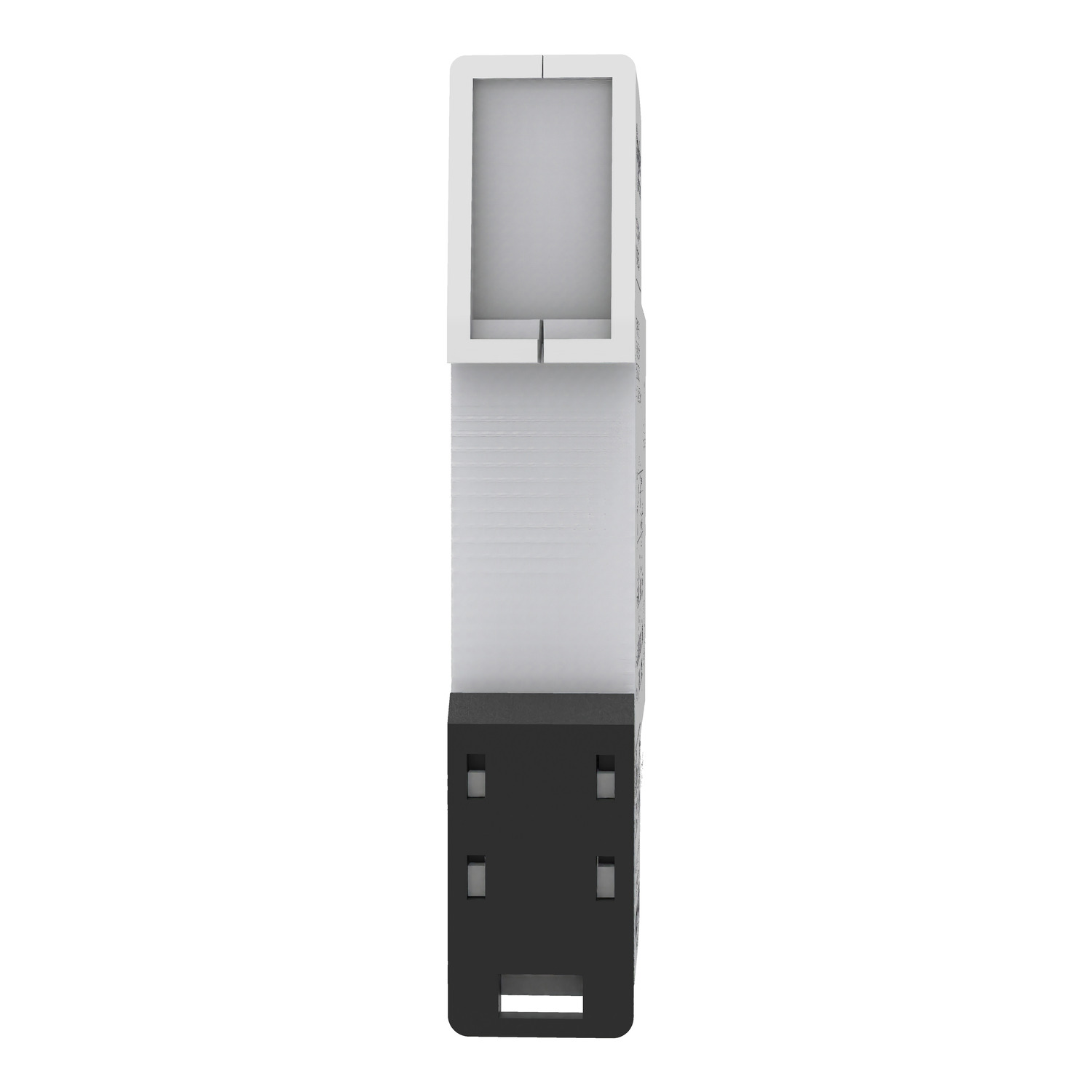

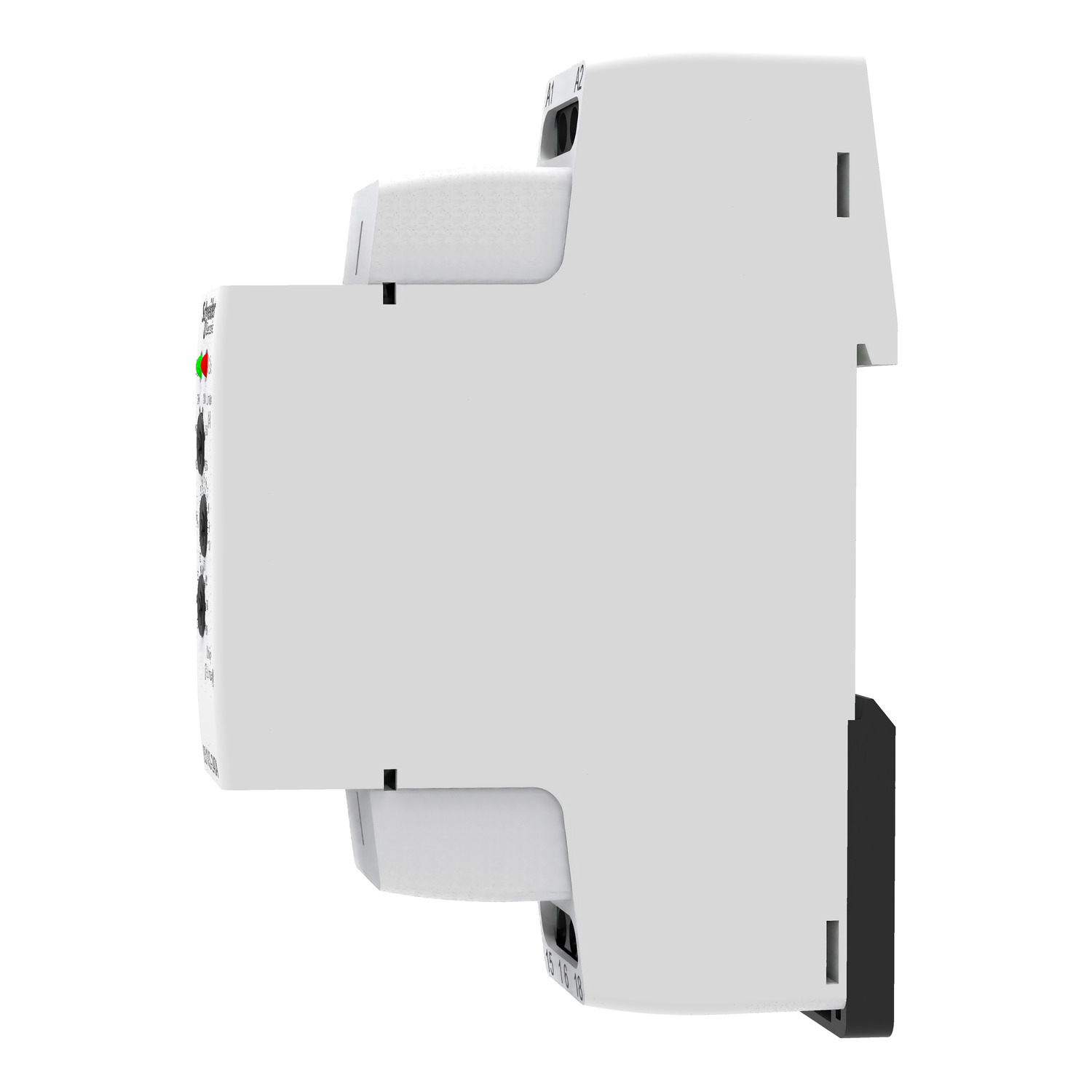

Voltage sensor relay, Legacy, SPDT, 15A, 240 VAC, 0 to 10s, 1 time scale, 48-276 VAC, DIN mounting

Product Range

Legacy

Sensory Type

Voltage sensor

Product or Component Type

Relay

Switch Function

SPDT

Contacts Material

AgNi

Time Delay Type

Adjustable

Rated Supply Voltage

160...276 V AC 50...60 Hz

Time Delay Range

0...10 s

Control Type

With adjustment knob front

Voltage Range

48...276 V

Nominal Output Current

15 A

Local Signalling

1 LED red
1 LED green

Repeat Accuracy

+/- 1 %

Hysteresis

2…6 % adjustable from fault to OK state overvoltage or undervoltage detection

Tripping Threshold

160...276 V
30...99 % of Us

Temperature Drift

< 0.1 %/°C

Power Consumption in VA

1.2 VA 240 V

Rated Operational Current

15 A at 240 V AC-1

Breaking Capacity

4000 VA AC-1

Minimum Switching Current

100 mA 5 V

Maximum Switching Voltage

250 V

Tightening Torque

7.08 lbf.in (0.8 N.m)

AWG Gauge

AWG 14

Electrical Durability

30000 cycles

Mechanical Durability

15000000 cycles

Mounting Support

35 mm DIN rail conforming to IEC 60715

Overvoltage category

III IEC 60664-1

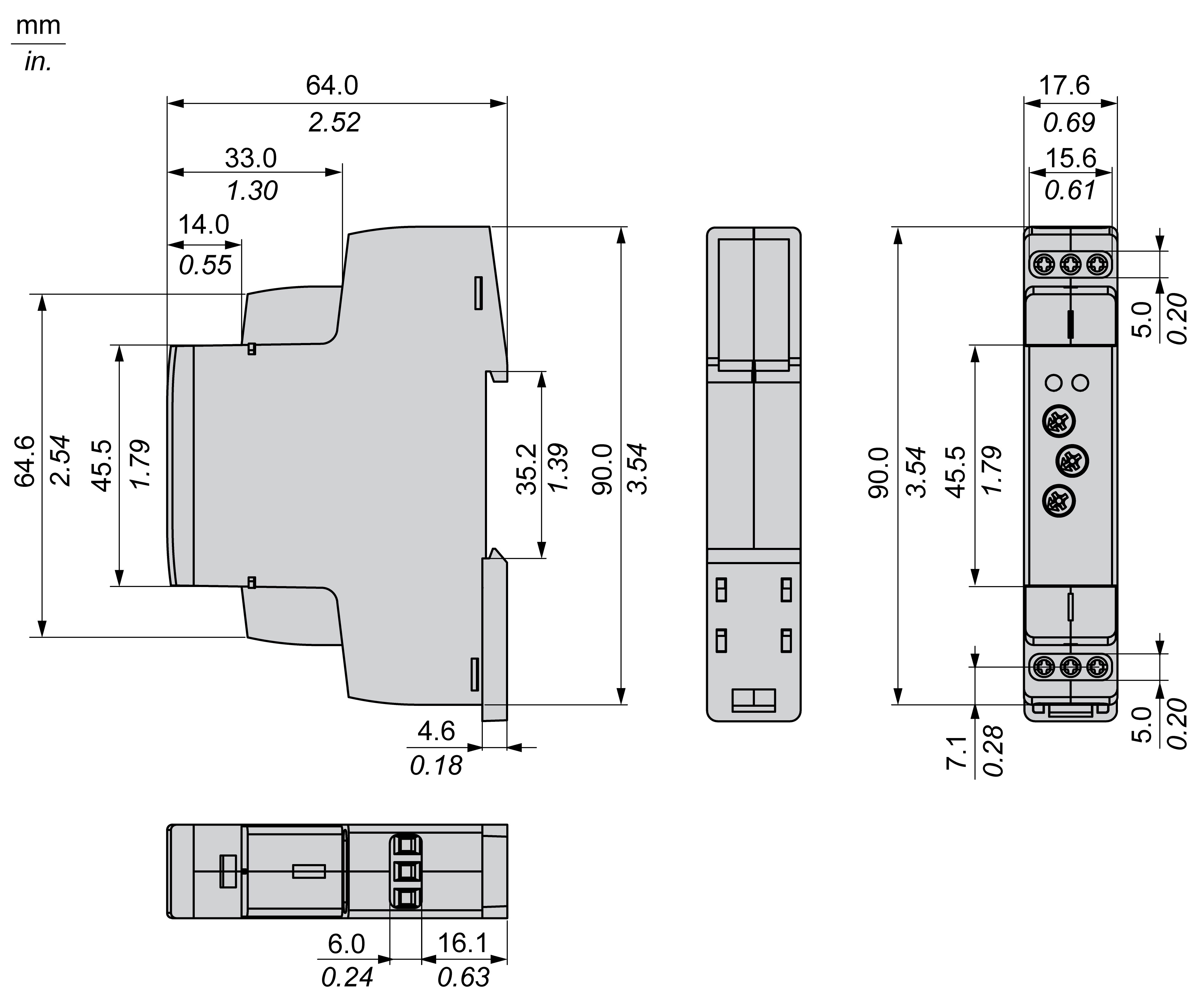

Height

3.5 in (90 mm)

Width

0.7 in (17.6 mm)

Depth

2.5 in (64 mm)

Product Weight

2.6 oz (73 g)

Dielectric Strength

4000 V between input and output

Standards

IEC 61010-1
EN 60255-26
EN 60255-27

Product Certifications

CE
UL
WEEE
RoHS

Ambient Air Temperature for Storage

-22…158 °F (-30…70 °C)

Ambient Air Temperature for Operation

-4…131 °F (-20…55 °C)

IP Degree of Protection

IP20 IEC 60529 terminals)
IP40 IEC 60529 front panel)

Category

US10CP221127

Discount Schedule

0CP2

GTIN

3606480282058

Returnability

Yes

Country of origin

FR

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.90 in (2.29 cm)

Package 1 Width

3.7 in (9.4 cm)

Package 1 Length

2.80 in (7.11 cm)

Package 1 Weight

0.15 lb(US) (0.07 kg)

Unit Type of Package 2

CAR

Number of Units in Package 2

10

Package 2 Height

3.0 in (7.5 cm)

Package 2 Width

3.9 in (10 cm)

Package 2 Length

8.7 in (22.2 cm)

Package 2 Weight

1.5 lb(US) (0.7 kg)
