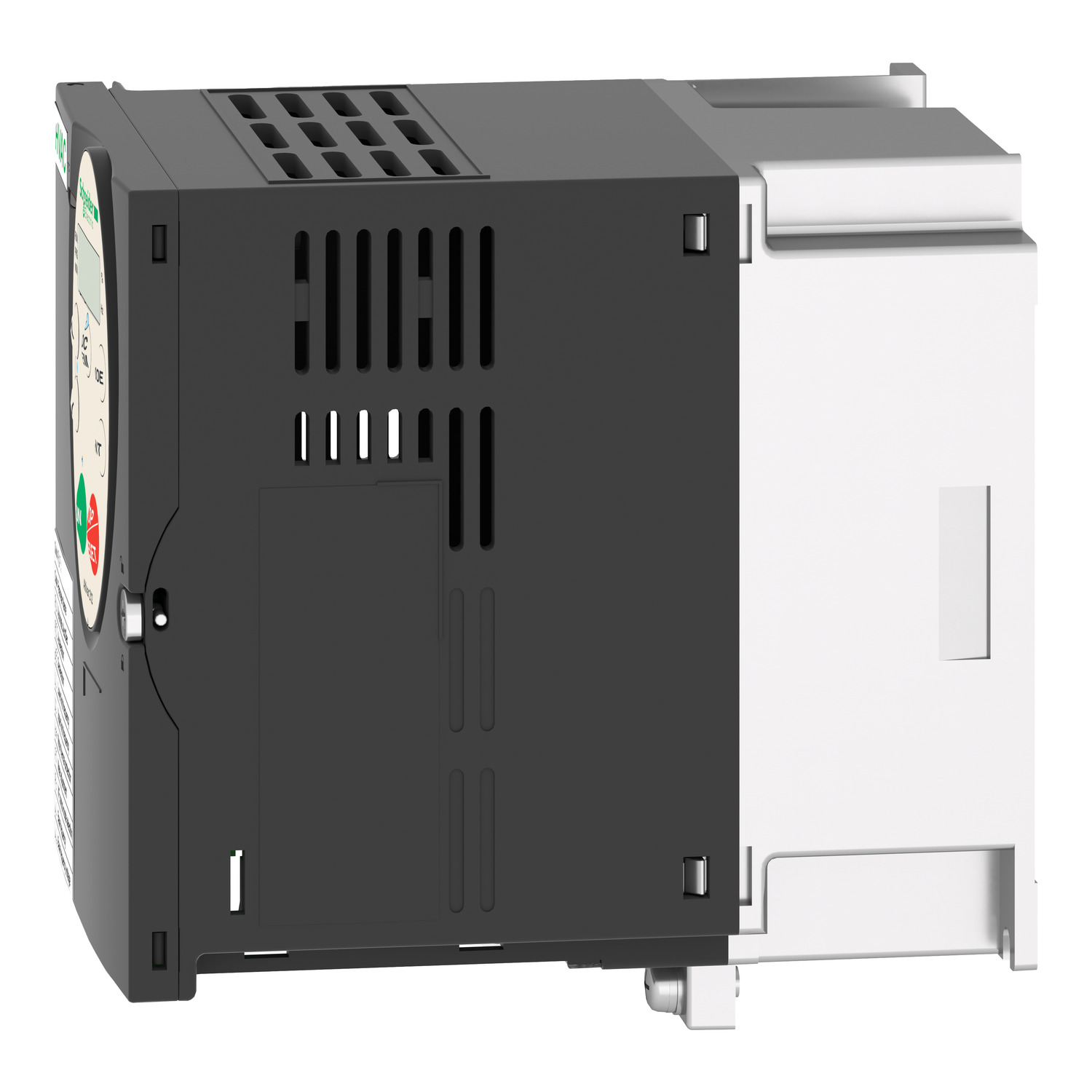

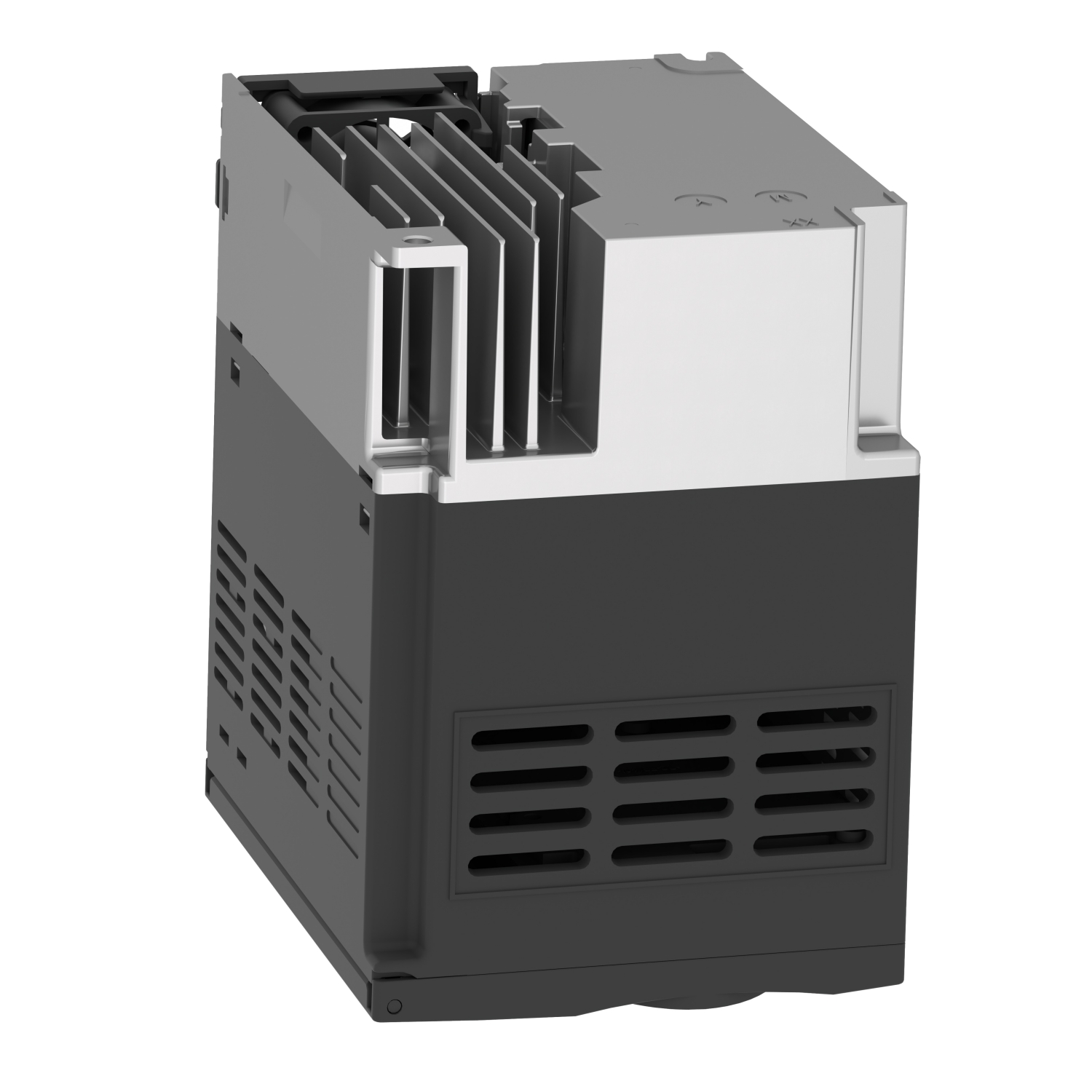

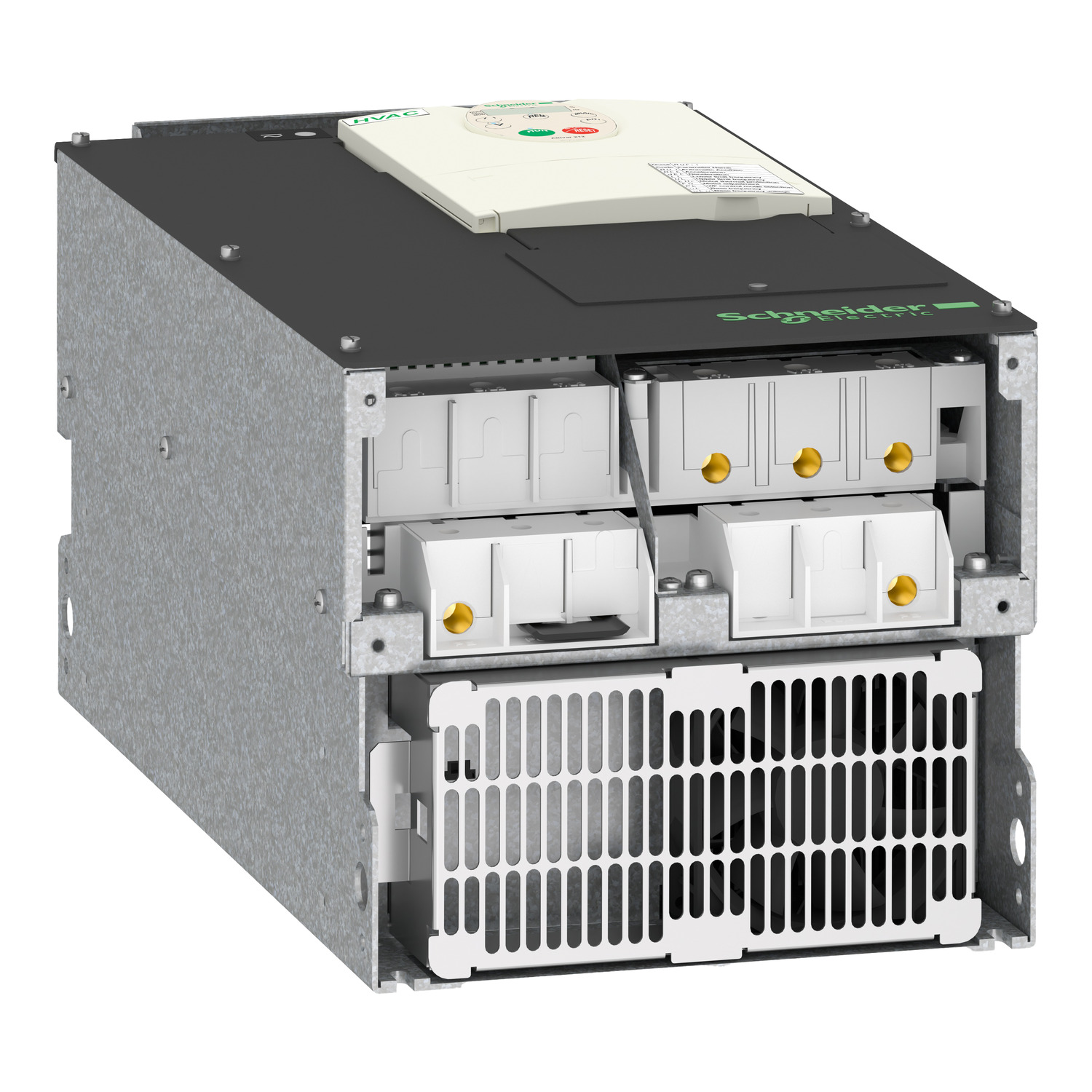

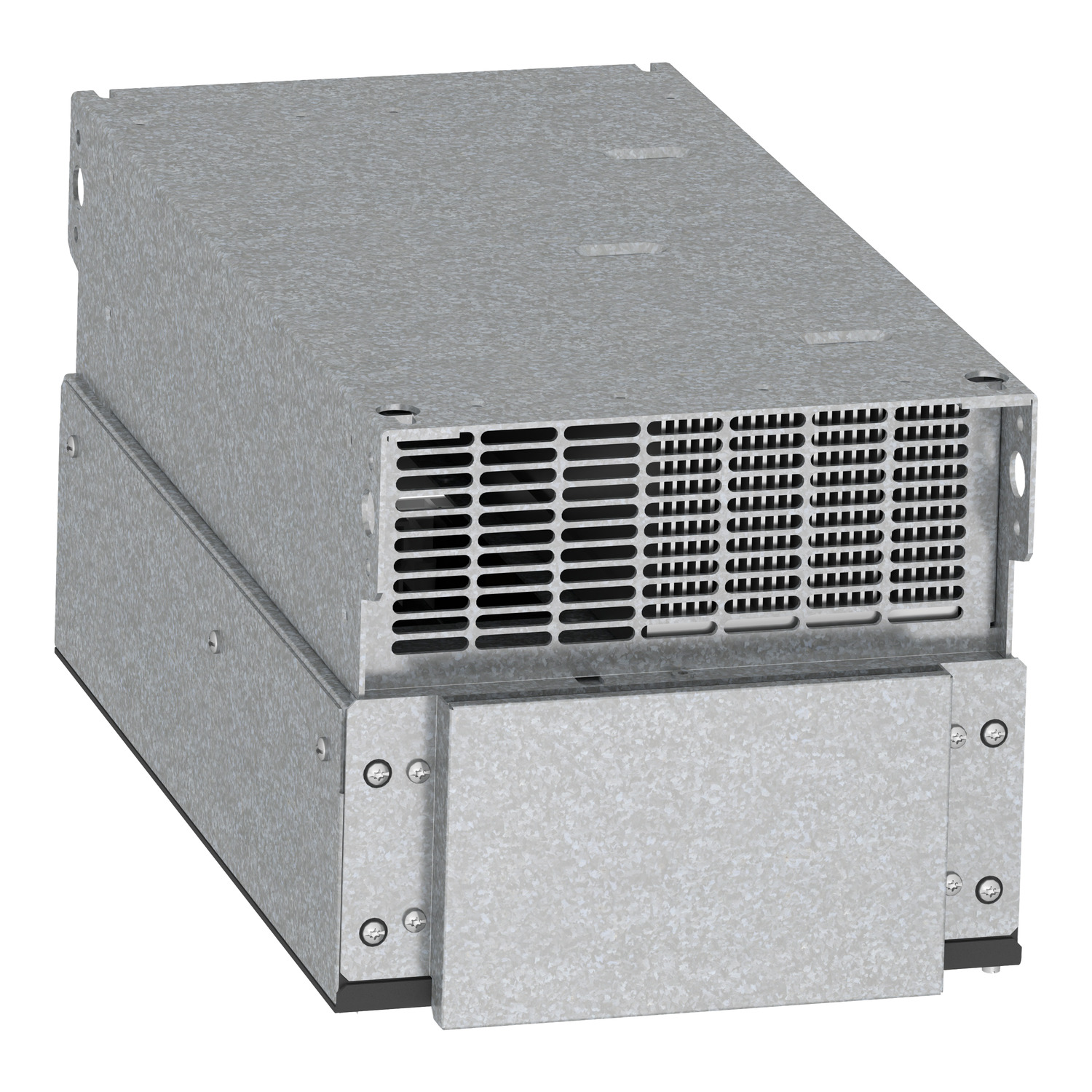

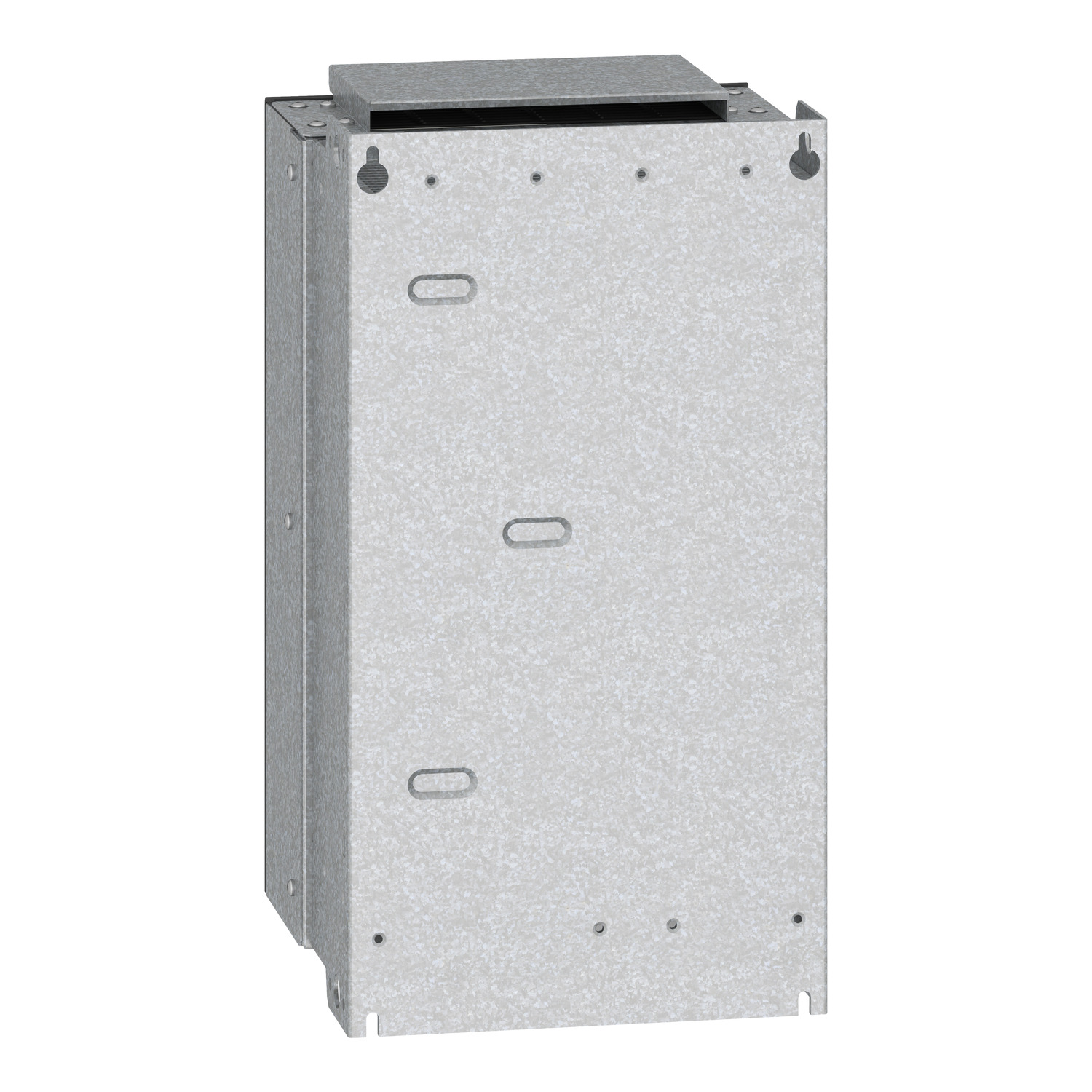

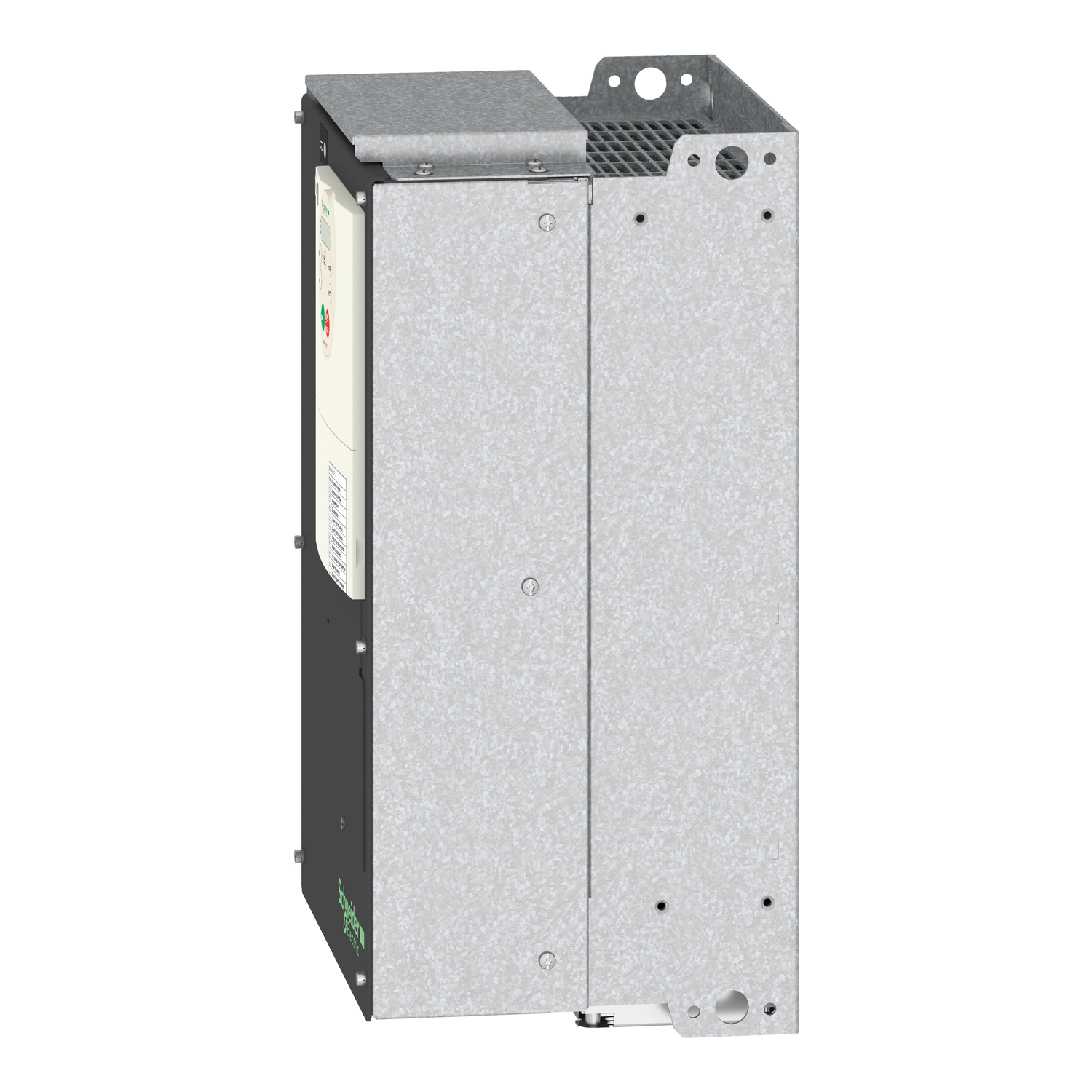

variable speed drive, Altivar 212, 30kW, 40hp, 480V, 3 phases, with EMC, IP21

Device short name

ATV212

product destination

Asynchronous motors

Phase

3 phase

Motor power kW

30 kW

Maximum Horse Power Rating

40 hp

Supply voltage limits

323…528 V

Supply frequency

50...60 Hz - 5...5 %

Line current

44.7 A 480 V
56.7 A 380 V

Range of Product

Altivar 212

Product or Component Type

Variable speed drive

Product Specific Application

Pumps and fans in HVAC

Communication Port Protocol

APOGEE FLN
Modbus
BACnet
METASYS N2
LonWorks

[Us] rated supply voltage

380...480 V - 15...10 %

EMC filter

Class C2 EMC filter integrated

IP degree of protection

IP21

Apparent power

44.6 kVA 380 V

Continuous output current

58.5 A 380 V
58.5 A 460 V

Maximum transient current

64.4 A 60 s

Speed drive output frequency

0.5…200 Hz

Speed range

1…10

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Local signalling

for DC bus energized 1 LED (red)

output voltage

<= power supply voltage

Isolation

Electrical between power and control

Type of cable

Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR
Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC
With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC

Electrical connection

VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 0.004 in² (2.5 mm²) / AWG 14
L1/R, L2/S, L3/T terminal 0.08 in² (50 mm²) / AWG 1/0

Tightening torque

5.3 lbf.in (0.6 N.m) VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
212.4 lbf.in (24 N.m), 212 lb.in L1/R, L2/S, L3/T)

Supply

Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection
Internal supply 24 V DC 21…27 V), <200 A overload and short-circuit protection

Sampling duration

2 ms +/- 0.5 ms F discrete
2 ms +/- 0.5 ms R discrete
2 ms +/- 0.5 ms RES discrete
3.5 ms +/- 0.5 ms VIA analog
22 ms +/- 0.5 ms VIB analog

Response time

FM 2 ms +/- 0.5 ms analog
FLA, FLC 7 ms +/- 0.5 ms discrete
FLB, FLC 7 ms +/- 0.5 ms discrete
RY, RC 7 ms +/- 0.5 ms discrete

Accuracy

+/- 0.6 % VIA) for a temperature variation 60 °C
+/- 0.6 % VIB) for a temperature variation 60 °C
+/- 1 % FM) for a temperature variation 60 °C

Linearity error

VIA +/- 0.15 % of maximum value input
VIB +/- 0.15 % of maximum value input
FM +/- 0.2 % output

Analogue output type

FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits
FM switch-configurable current 0...20 mA 970 Ohm 10 bits

Discrete output type

Configurable relay logic FLA, FLC) NO - 100000 cycles
Configurable relay logic FLB, FLC) NC - 100000 cycles
Configurable relay logic RY, RC) NO - 100000 cycles

Minimum switching current

3 mA 24 V DC configurable relay logic

Maximum switching current

5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R)
5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R)
2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R)
2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)

Discrete input type

F programmable 24 V DC level 1 PLC 4700 Ohm
R programmable 24 V DC level 1 PLC 4700 Ohm
RES programmable 24 V DC level 1 PLC 4700 Ohm

Discrete input logic

Positive logic (source) F, R, RES), <= 5 V, >= 11 V
Negative logic (sink) F, R, RES), >= 16 V, <= 10 V

Dielectric strength

3535 V DC between earth and power terminals
5092 V DC between control and power terminals

Insulation resistance

>= 1 mOhm 500 V DC for 1 minute

Frequency resolution

Display unit 0.1 Hz
Analog input 0.024/50 Hz

communication service

Read device identification (43)
Monitoring inhibitable
Time out setting from 0.1 to 100 s
Read holding registers (03) 2 words maximum
Write single register (06)
Write multiple registers (16) 2 words maximum

Option card

Communication card LonWorks

Power dissipation in W

847 W

Air flow

76611.3 Gal/hr(US) (290 m3/h)

Functionality

Mid

Specific application

HVAC

Variable speed drive application selection

Building - HVAC compressor for scroll
Building - HVAC fan
Building - HVAC pump

Motor power range AC-3

30…50 kW 380…440 V 3 phase
30…50 kW 480…500 V 3 phase

Motor starter type

Variable speed drive

Discrete output number

2

Analogue input number

2

Analogue input type

VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits
VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits
VIB configurable PTC probe 0...6 probes 1500 Ohm
VIA switch-configurable current 0...20 mA 250 Ohm 10 bits

Analogue output number

1

Physical interface

2-wire RS 485

Connector Type

1 open style
1 RJ45

Transmission Rate

9600 bps or 19200 bps

Transmission frame

RTU

Number of addresses

1…247

Data format

8 bits, 1 stop, odd even or no configurable parity

Type of polarization

No impedance

Asynchronous motor control profile

Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)
Flux vector control without sensor, standard
Voltage/frequency ratio, 5 points
Voltage/frequency ratio - Energy Saving, quadratic U/f
Voltage/frequency ratio, 2 points

Torque accuracy

+/- 15 %

Transient overtorque

120 % of nominal motor torque +/- 10 % 60 s

Acceleration and deceleration ramps

Linear adjustable separately from 0.01 to 3200 s
Automatic based on the load

Motor slip compensation

Not available in voltage/frequency ratio motor control
Automatic whatever the load
Adjustable

Switching frequency

6...16 kHz adjustable
8...16 kHz with derating factor

Nominal switching frequency

8 kHz

Braking to standstill

By DC injection

Network Frequency

47.5...63 Hz

Prospective line Isc

22 kA

Protection type

Overheating protection drive
Thermal power stage drive
Short-circuit between motor phases drive
Input phase breaks drive
Overcurrent between output phases and earth drive
Overvoltages on the DC bus drive
Break on the control circuit drive
Against exceeding limit speed drive
Line supply overvoltage and undervoltage drive
Line supply undervoltage drive
Against input phase loss drive
Thermal protection motor
Motor phase break motor
With PTC probes motor

Width

9.4 in (240 mm)

Height

16.5 in (420 mm)

Depth

8.4 in (214 mm)

Product Weight

58.2 lb(US) (26.4 kg)

Pollution degree

3 IEC 61800-5-1

IP degree of protection

IP20 on upper part without blanking plate on cover IEC 61800-5-1
IP20 on upper part without blanking plate on cover IEC 60529
IP21 IEC 61800-5-1
IP21 IEC 60529
IP41 on upper part IEC 61800-5-1
IP41 on upper part IEC 60529

Vibration resistance

1.5 mm 3…13 Hz)IEC 60068-2-6
1 gn 13…200 Hz)EN/IEC 60068-2-8

Shock resistance

15 gn 11 ms IEC 60068-2-27

Environmental characteristic

Classes 3C1 IEC 60721-3-3
Classes 3S2 IEC 60721-3-3

Noise level

59.9 dB 86/188/EEC

Operating altitude

3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m
<= 3280.84 ft (1000 m) without derating

Relative humidity

5…95 % without condensation IEC 60068-2-3
5…95 % without dripping water IEC 60068-2-3

Ambient air temperature for operation

14…104 °F (-10…40 °C) without derating)
104…122 °F (40…50 °C) with derating factor)

Operating position

Vertical +/- 10 degree

Product Certifications

NOM 117
C-tick
UL
CSA

marking

CE

Standards

IEC 61800-3 environments 2 category C1
IEC 61800-3 category C2
IEC 61800-5-1
IEC 61800-3 environments 1 category C1
IEC 61800-3
IEC 61800-3 environments 2 category C2
IEC 61800-5-1
IEC 61800-3 environments 1 category C3
IEC 61800-3 environments 2 category C3
EN 55011 class A group 1
IEC 61800-3 environments 1 category C2
IEC 61800-3 environments 1 category C2
IEC 61800-3 environments 2 category C2
IEC 61800-3 environments 2 category C1
IEC 61800-3
IEC 61800-3 category C2
IEC 61800-3 environments 1 category C3
IEC 61800-3 environments 1 category C1
EN 61800-3 category C3
IEC 61800-3 category C3
UL Type 1
IEC 61800-3 environments 2 category C3

Assembly style

With heat sink

Electromagnetic compatibility

Electrostatic discharge immunity test level 3 IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5
Conducted radio-frequency immunity test level 3 IEC 61000-4-6
Voltage dips and interruptions immunity test IEC 61000-4-11

Regulation loop

Adjustable PI regulator

Ambient Air Temperature for Storage

-13…158 °F (-25…70 °C)

Category

US1CP4D22158

Discount Schedule

CP4D

GTIN

3606480322556

Returnability

Yes

Country of origin

CN

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

15.7 in (40 cm)

Package 1 Width

15.7 in (40 cm)

Package 1 Length

20.9 in (53 cm)

Package 1 Weight

47.4 lb(US) (21.5 kg)

Warranty

18 months
