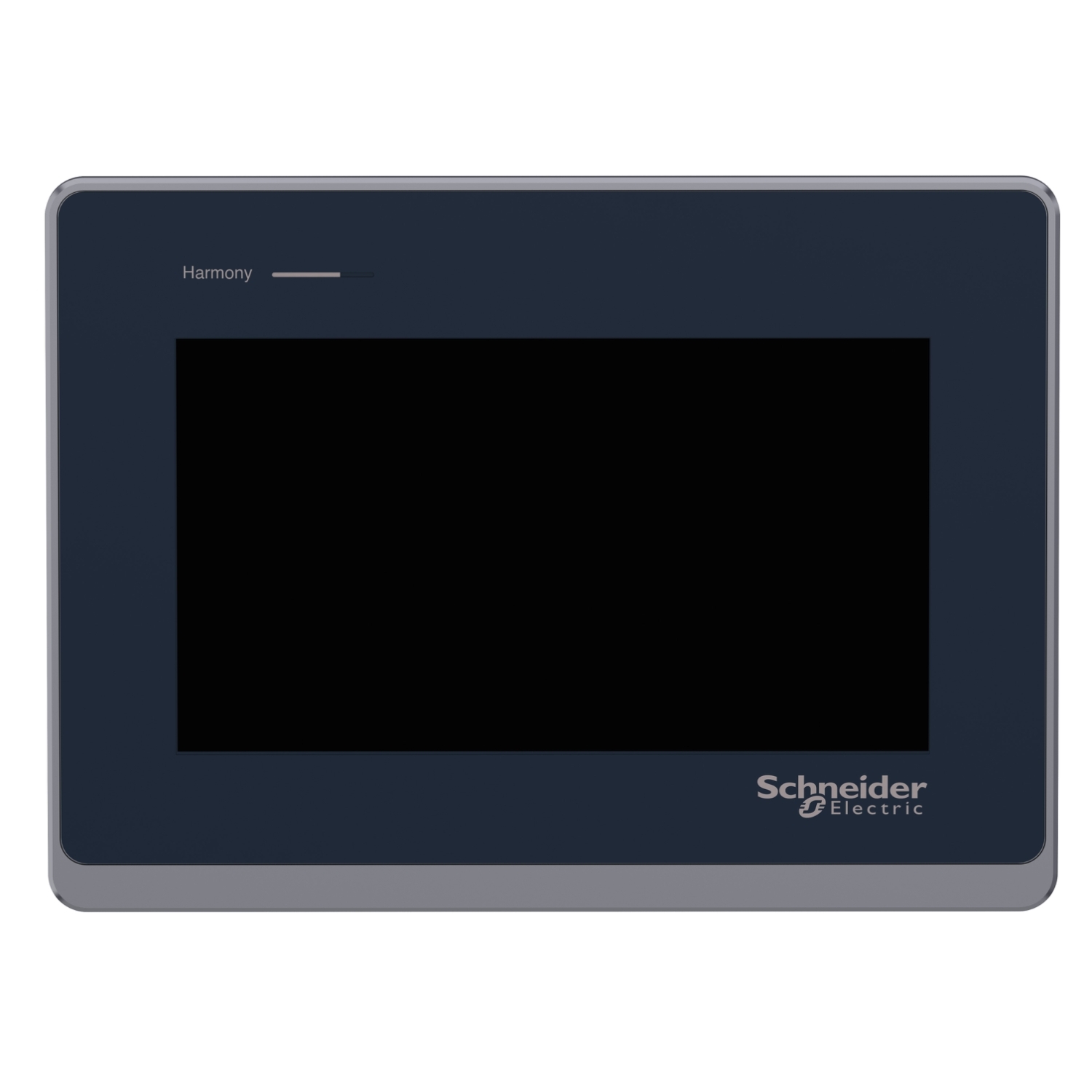

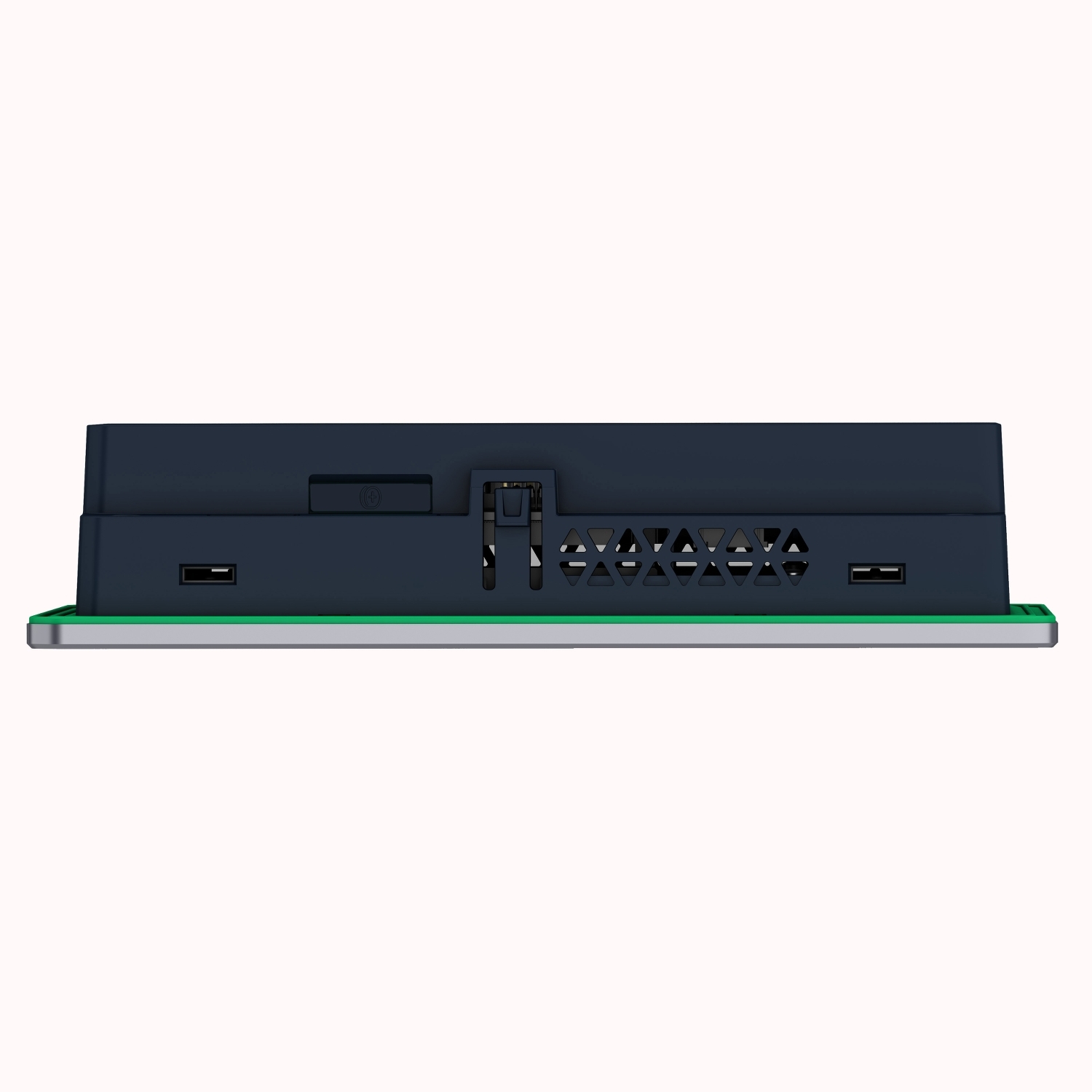

touch panel screen, Harmony ST6 , 7inch wide display, 2Ethernet, USB host and device, 24V DC

Range of Product

Harmony ST6

Product or Component Type

Touch panel screen

Software Designation

Web interface for operator

Processor name

ARM Cortex-A8

Display size

7 inch

Display Type

Colour TFT LCD

Display colour

16 million colours

display resolution

800 x 480 pixels WVGA

Touch panel

Single touch analogue resistive

Backlight lifespan

50000 hours white

Brightness

16 levels

character font

ASCII
ASCII (European characters)
Katakana

[Us] rated supply voltage

24 V DC +/- 20 %)

Inrush current

30 A

Local signalling

Status LED green, steady offline
Status LED green, steady operating
Status LED green, flashing operating
Status LED green, faded stand-by
Status LED orange, flashing software starting up
Status LED red, steady power supply (ON)
Status LED red, flashing operating
Status LED red, off power supply (OFF)

power consumption in W

9 W

Processor frequency

800 MHz

Port Ethernet

10/100BASE

Memory description

512 MB device memory
512 MB user data memory
128 kB backup memory

Integrated connection type

1 USB 2.0 type Aback
1 Ethernet - female RJ45bottom

Supply

External supply

Realtime clock

Built-in 0...50 °C
Built-in 10...90 % RH

Fixing mode

By 4 screws 1.6...5 mm thick panel UL 61010-2-201
By 4 screws IEC 61131-2
By 4 screws IEC 61000-6-2

Enclosure Material

PC

Front material

Aluminium

marking

CE

Cut-out dimensions

190 x 135 mm panel cut dimension

Height

6.02 in (153 mm)

Width

8.2 in (208 mm)

Depth

1.8 in (45 mm)

Net Weight

1.8 lb(US) (0.8 kg)

Immunity to microbreaks

5 ms

Standards

IEC 61000-6-4
IEC 61000-6-2
IEC 61131-2
UL 61010-2-201
CSA C22.2 No 61010-2-201

Product Certifications

CSA
CE
UKCA

Directives

2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility

Ambient Air Temperature for Operation

32…122 °F (0…50 °C)

Ambient Air Temperature for Storage

-4…140 °F (-20…60 °C)

Relative humidity

10…90 % non-condensing

Operating altitude

6561.68 ft (2000 m)

IP degree of protection

IP20 IEC 61131-2 rear panel)
IP65 IEC 61131-2 front panel)

NEMA degree of protection

NEMA 4 front panel (indoor use)
NEMA 13 front panel (in enclosure)

Shock resistance

147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2

Vibration resistance

+/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2
9.8 m/s² 9…150 Hz)

Electromagnetic compatibility

Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3
Electrostatic discharge immunity test - test level: 8 kV (air discharge)
