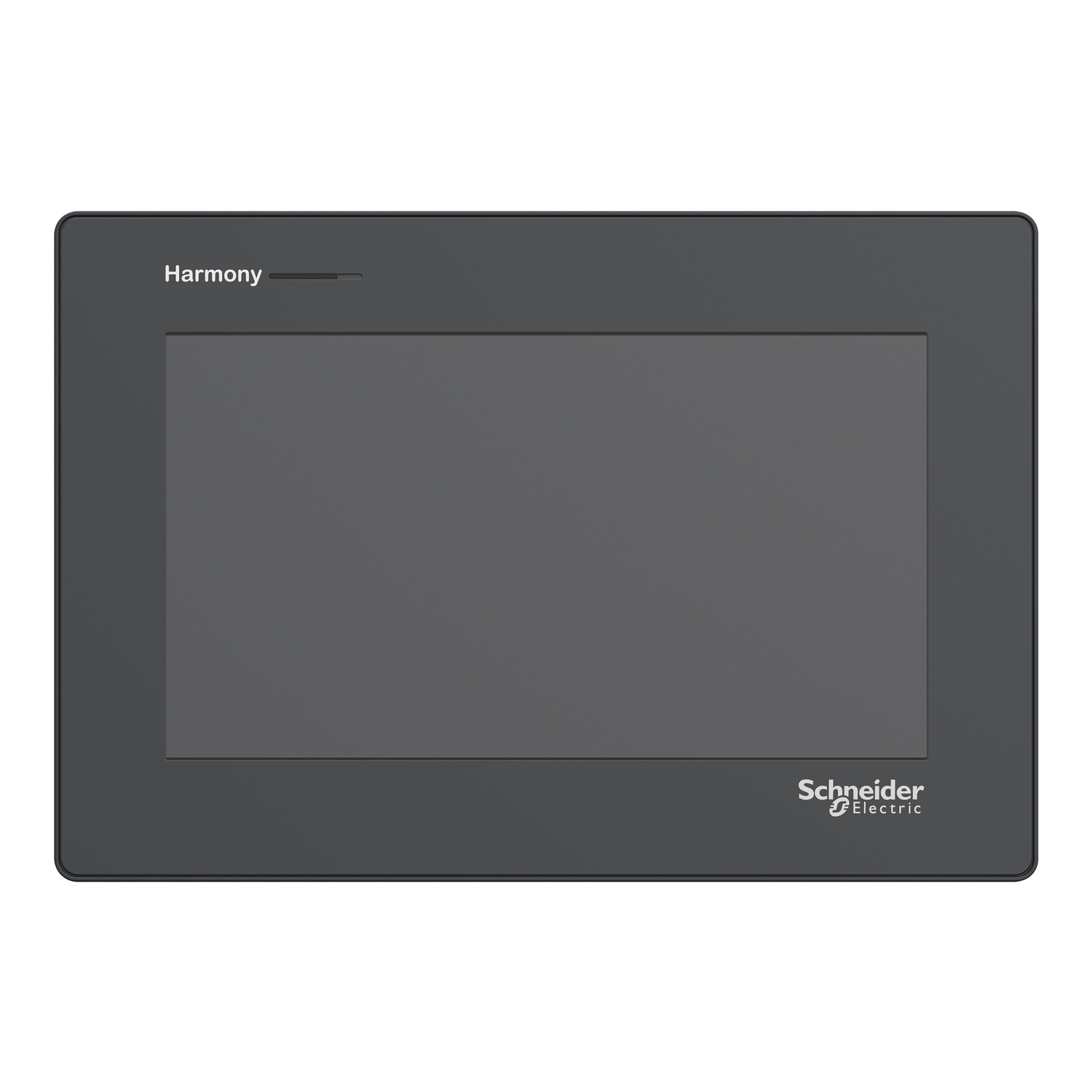

touch panel display, Harmony ST6, 7inch wide display, 1COM, 2Ethernet, USB host&device, 24V DC

Range of Product

Harmony ST6

Product or Component Type

Touch panel screen

Processor name

ARM Cortex-A8

Display size

7 inch

Display Type

Colour TFT LCD

Display colour

16 million colours

display resolution

800 x 480 pixels WVGA

Touch panel

Single touch analogue resistive

Backlight lifespan

20000 hours white

Brightness

16 levels

character font

ASCII
ASCII (European characters)
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Katakana
Korean
Taiwanese (traditional Chinese)

[Us] rated supply voltage

24 V DC +/- 20 %)

Inrush current

30 A

Local signalling

Status LED green, steady offline
Status LED green, steady operating
Status LED green, flashing operating
Status LED green, faded stand-by
Status LED orange, flashing software starting up
Status LED red, steady power supply (ON)
Status LED red, flashing operating
Status LED red, off power supply (OFF)

power consumption in W

10.4 W

Number of pages

200 application pages

Software package

EcoStruxure Operator Terminal Expert

Processor frequency

800 MHz

Port Ethernet

10/100BASE

Memory description

1 GB device memory
128 MB user data memory
512 KB backup memory

Integrated connection type

1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps)bottom
1 USB 2.0 type Aback
1 USB 2.0 type micro Bback
2 Ethernet - female RJ45bottom

Supply

External supply

Realtime clock

Built-in 0...50 °C
Built-in 10...90 % RH

Downloadable protocols

Modbus
Uni-TE
Third party protocols

Product brand

Schneider Electric Modicon
Mitsubishi Melsec
Omron Sysmac
Rockwell Automation Allen-Bradley
Siemens Simatic

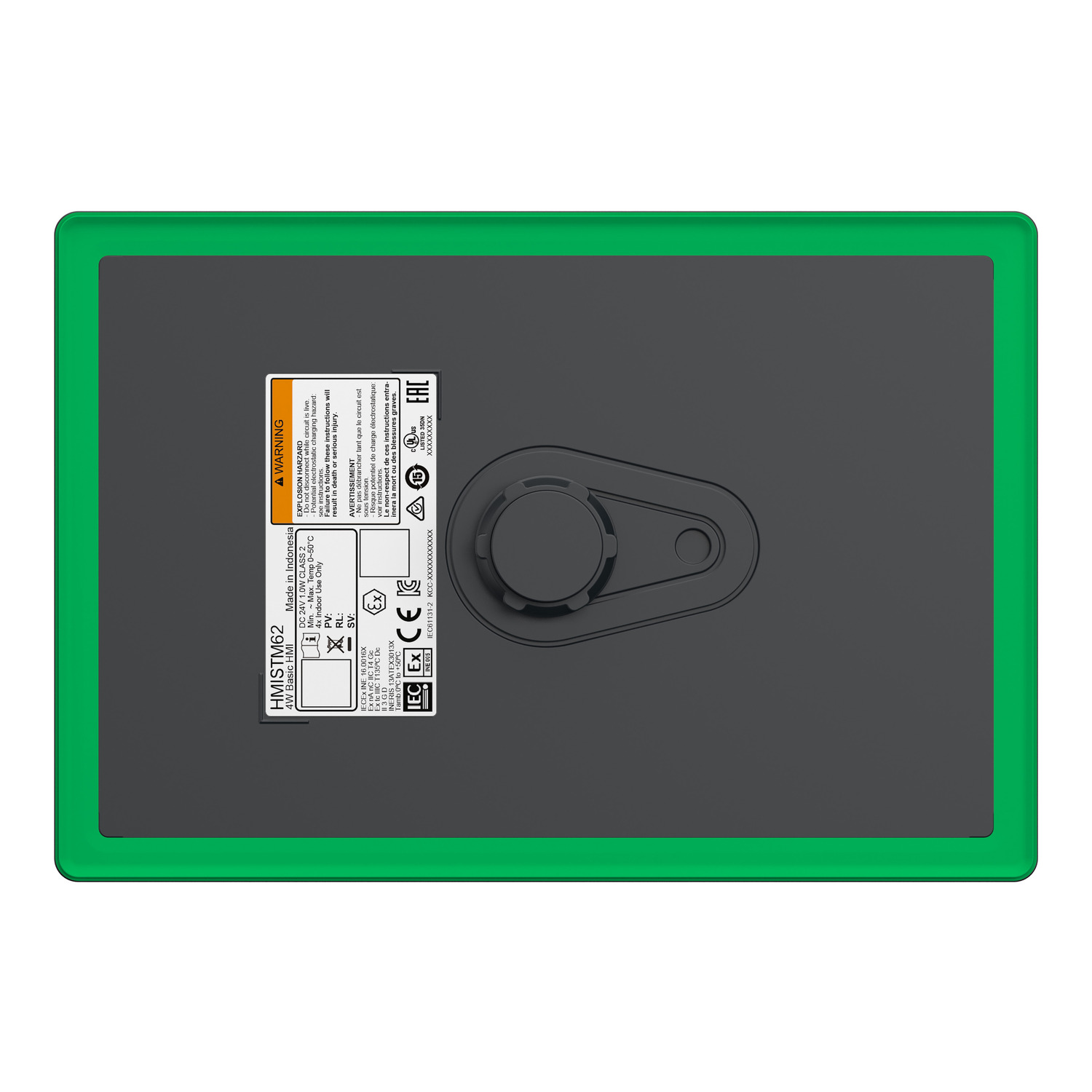

Fixing mode

Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201
Ø 22 mm hole IEC 61131-2
Ø 22 mm hole IEC 61000-6-2

Enclosure Material

PC

Front material

Plastic

marking

CE

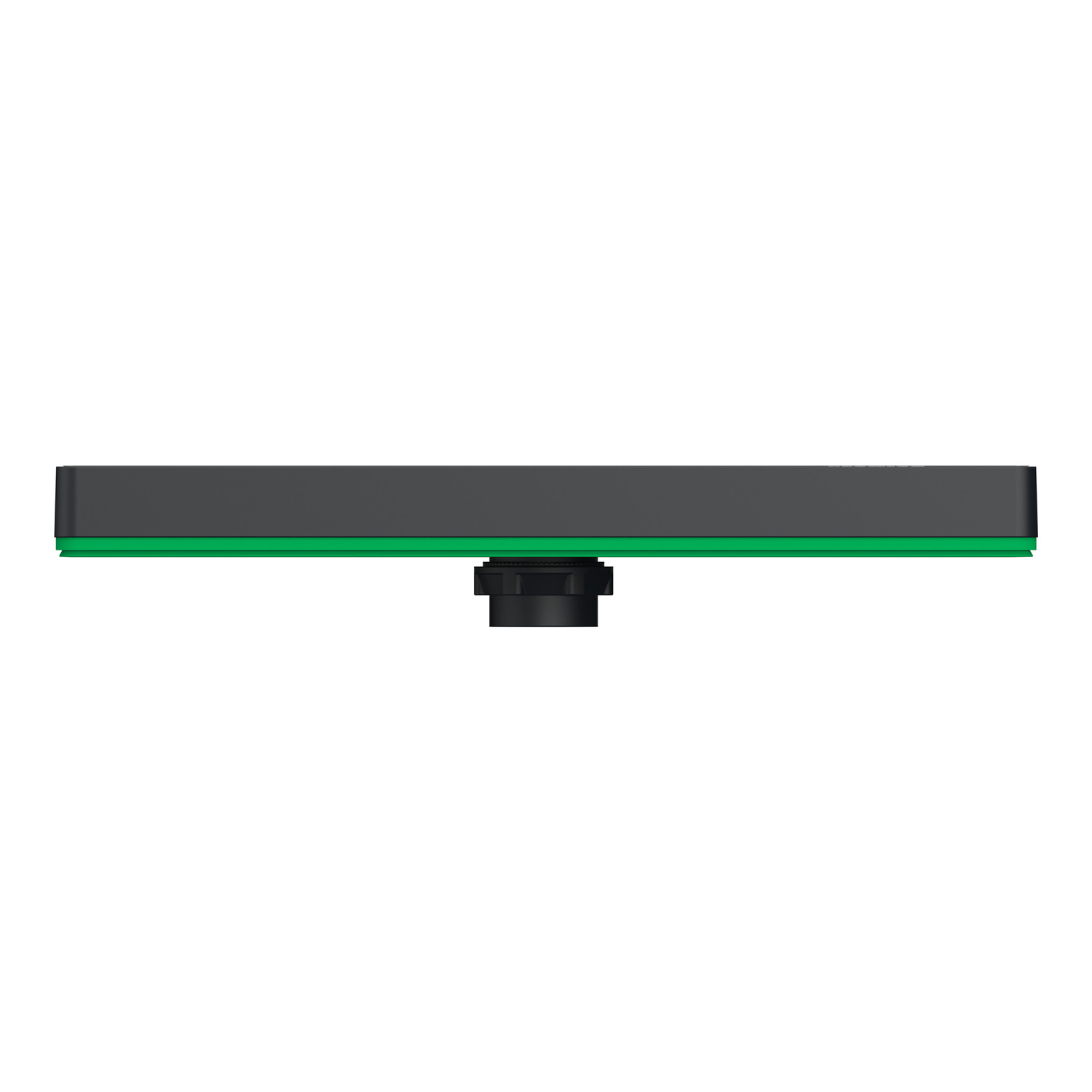

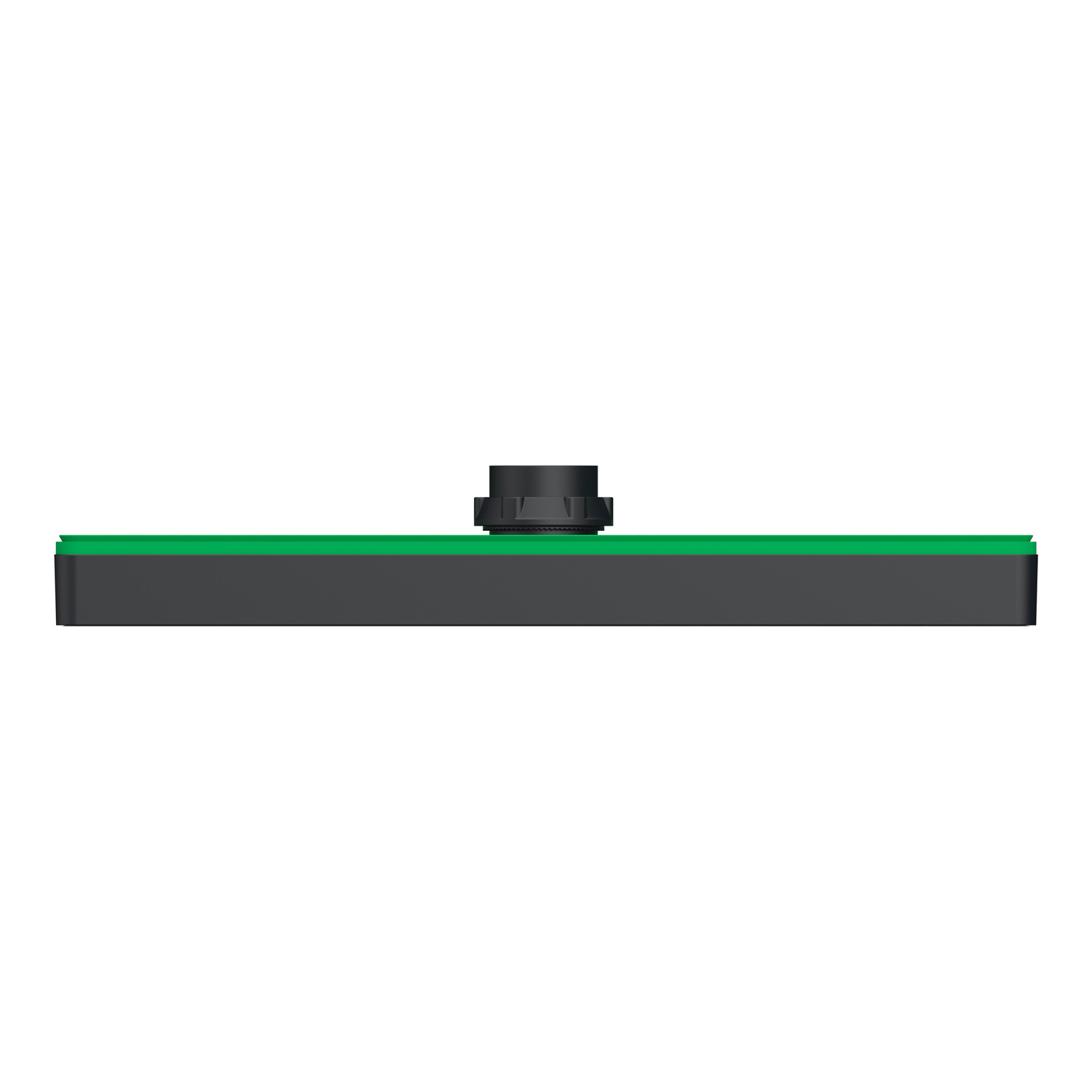

Cut-out dimensions

Ø 22.5 mm

Height

5.4 in (137.2 mm)

Width

7.9 in (201.2 mm)

Depth

2.3 in (57.7 mm)

Net Weight

1.68 lb(US) (0.76 kg)

Immunity to microbreaks

2 ms

Standards

IEC 61000-6-4
IEC 61000-6-2
IEC 61131-2
UL 61010-2-201
CSA C22.2 No 61010-2-201
CSA C22.2 No 213

Product Certifications

CE
UKCA
cULus
RCM
KC
cULus Class 1 Division 2
DNV
ABS
RINA
BV

Directives

2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility

Ambient Air Temperature for Operation

32…122 °F (0…50 °C)

Ambient Air Temperature for Storage

-4…140 °F (-20…60 °C)

Relative humidity

10…90 % non-condensing

Operating altitude

6561.68 ft (2000 m)

IP degree of protection

IP20 IEC 61131-2 rear panel)
IP65 IEC 61131-2 front panel)

NEMA degree of protection

NEMA 4 front panel (indoor use)
NEMA 13 front panel (in enclosure)

Shock resistance

147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2

Vibration resistance

+/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2
9.8 m/s² 9…150 Hz)

Electromagnetic compatibility

Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3
Electrostatic discharge immunity test - test level: 8 kV (air discharge)

Category

US10MC222565

Discount Schedule

0MC2

GTIN

3606481856418

Returnability

Yes

Country of origin

US

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.5 in (9 cm)

Package 1 Width

7.008 in (17.8 cm)

Package 1 Length

10.6 in (27 cm)

Package 1 Weight

34.3 oz (973 g)

Unit Type of Package 2

S03

Number of Units in Package 2

6

Package 2 Height

11.8 in (30 cm)

Package 2 Width

11.8 in (30 cm)

Package 2 Length

15.7 in (40 cm)

Package 2 Weight

13.843 lb(US) (6.279 kg)

Unit Type of Package 3

P06

Number of Units in Package 3

48

Package 3 Height

28.9 in (73.5 cm)

Package 3 Width

23.6 in (60 cm)

Package 3 Length

31.5 in (80 cm)

Package 3 Weight

137.198 lb(US) (62.232 kg)
