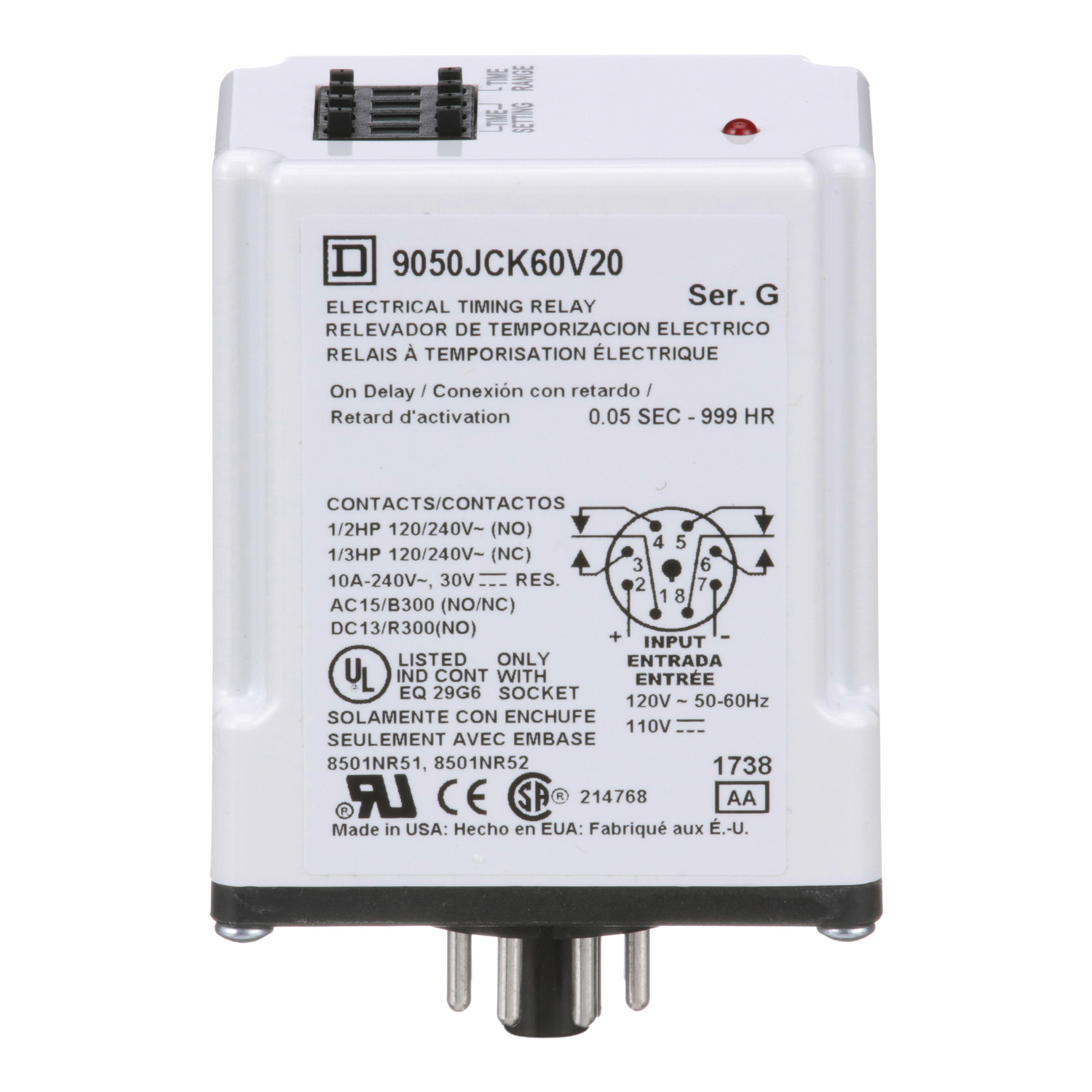

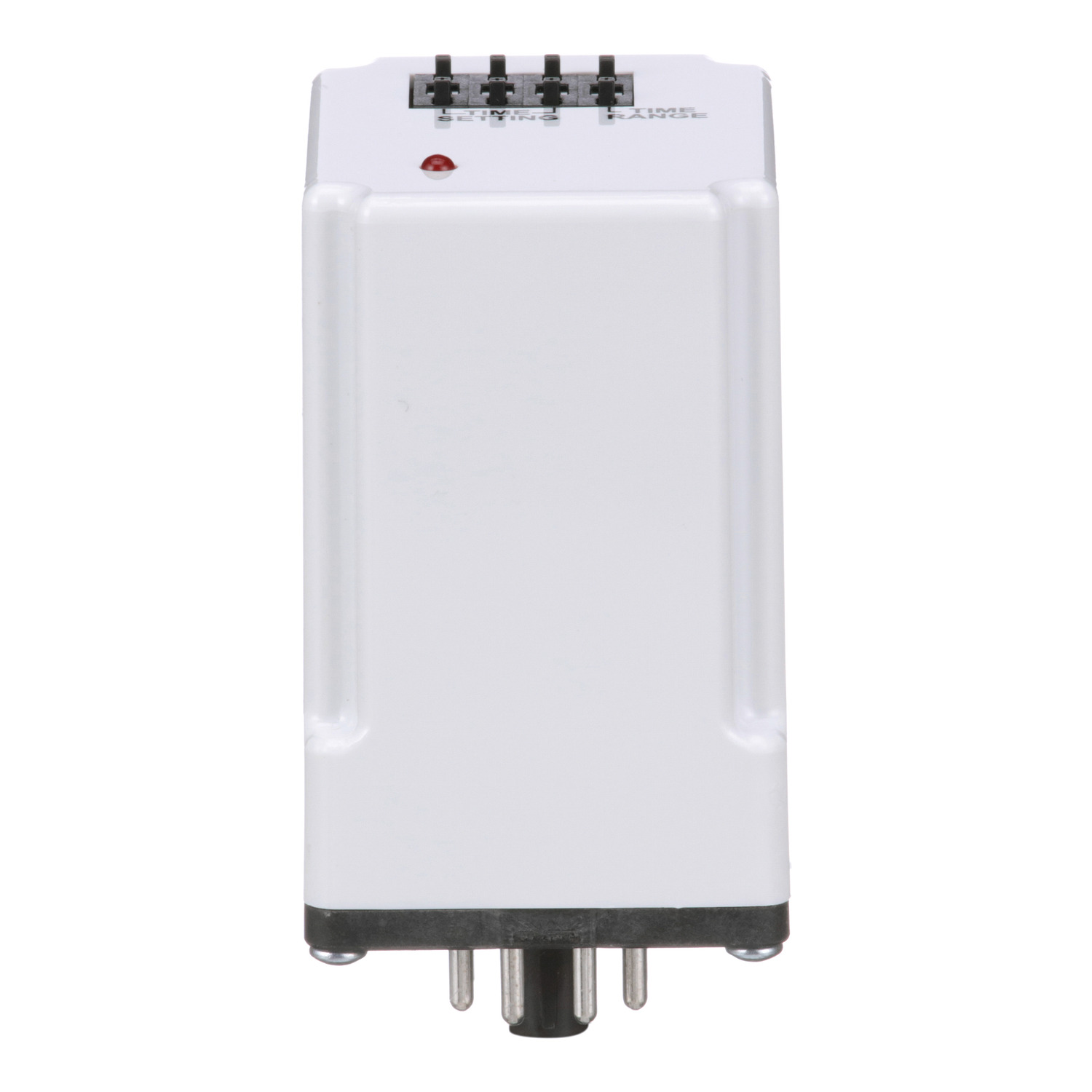

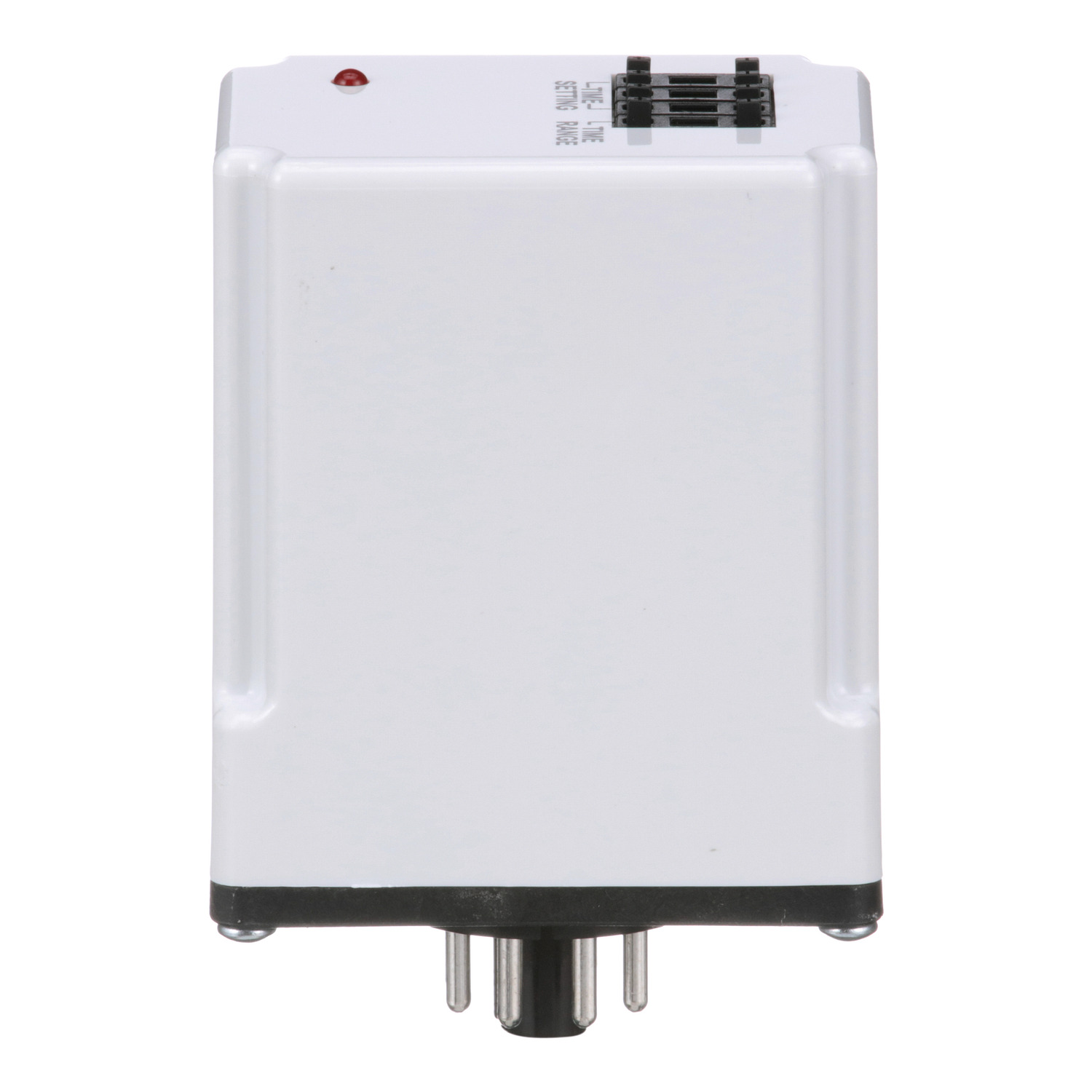

Timing Relay, Type JCK, plug In, on delay, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 120 VAC/110 VDC

product range

9050JCK

product type

Timer

timing mode

On-delay

timing range

0.1...99.9 s
1...999 s
0.1...99.9 min
0.05...9.99 s
0.1...99.9 h
1...999 h

supply voltage

120 V AC

power consumption

3 VA

current rating

10 A

switch function

DPDT

contact composition

2 NO + 2 NC

contact material

Silver nickel

maximum switching voltage

240 V AC

mounting type

Socket

number of pins

8

shape of pins

Tubular

for use with

8501NR51
8501NR52

certifications

CE
UL Recognized
UL Listed

ambient temperature range - operational

-18…150 °F (-28…66 °C)

Height

2.4 in (60 mm)

Width

1.7 in (44 mm)

Depth

3.6 in (91 mm)

Category

US10CP221652

Discount Schedule

0CP2

GTIN

785901053866

Returnability

Yes

Country of origin

US

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.900 in (4.826 cm)

Package 1 Width

2.600 in (6.604 cm)

Package 1 Length

4.400 in (11.176 cm)

Package 1 Weight

4.800 oz (136.078 g)

Unit Type of Package 2

CAR

Number of Units in Package 2

20

Package 2 Height

4.50 in (11.43 cm)

Package 2 Width

10.0 in (25.4 cm)

Package 2 Length

11.00 in (27.94 cm)

Package 2 Weight

5.501 lb(US) (2.495 kg)

Unit Type of Package 3

PAL

Number of Units in Package 3

600

Package 3 Height

40.0 in (101.6 cm)

Package 3 Width

40.0 in (101.6 cm)

Package 3 Length

48.00 in (121.92 cm)

Package 3 Weight

165.0007 lb(US) (74.843 kg)

Warranty

18 months
