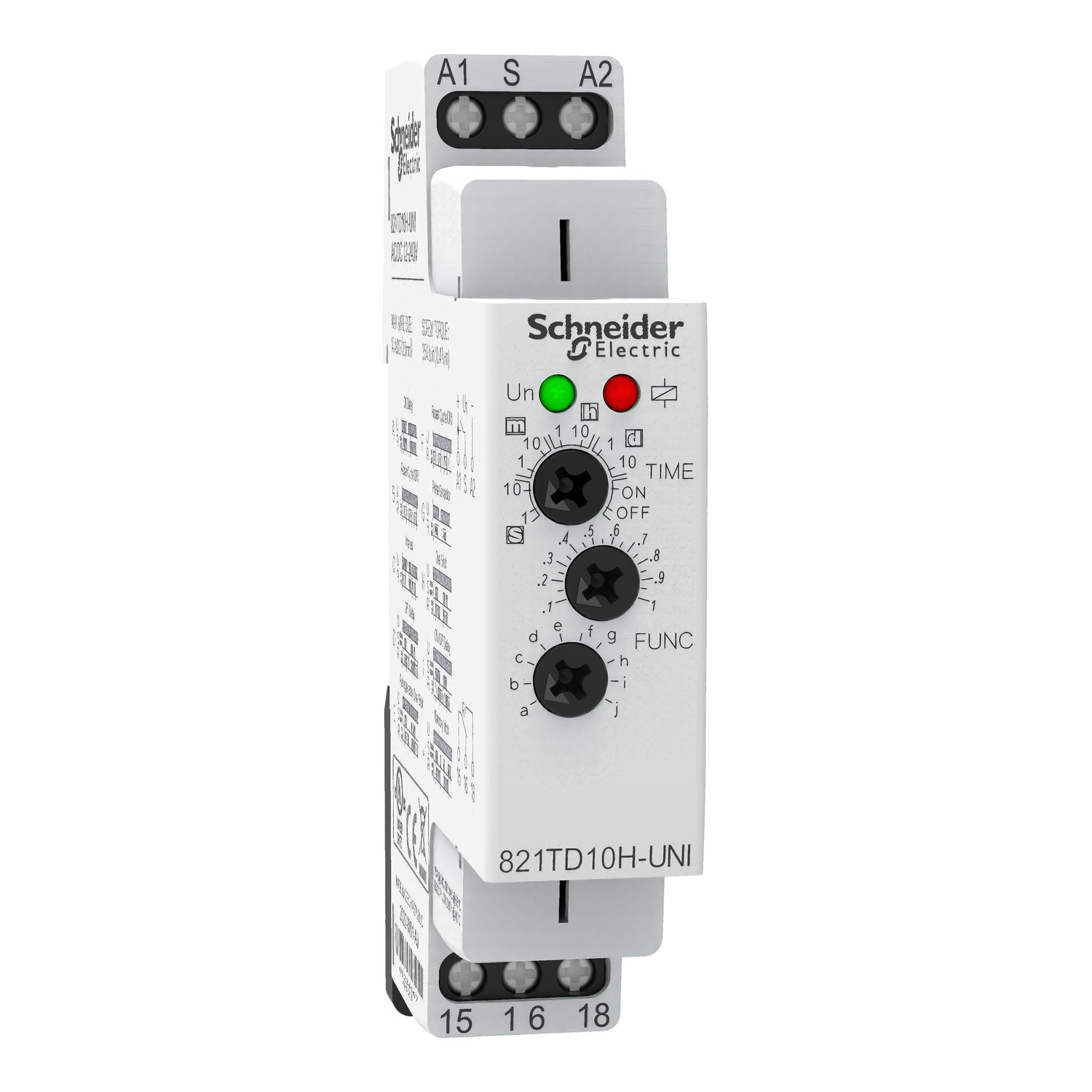

time delay relay, Legacy, SPDT, 100 ms to 10 days, DIN mounting support, 15A, 12...240V AC DC

Product Range

Legacy

Product or Component Type

Time delay relay

Switch Function

SPDT

Contacts Material

AgNi

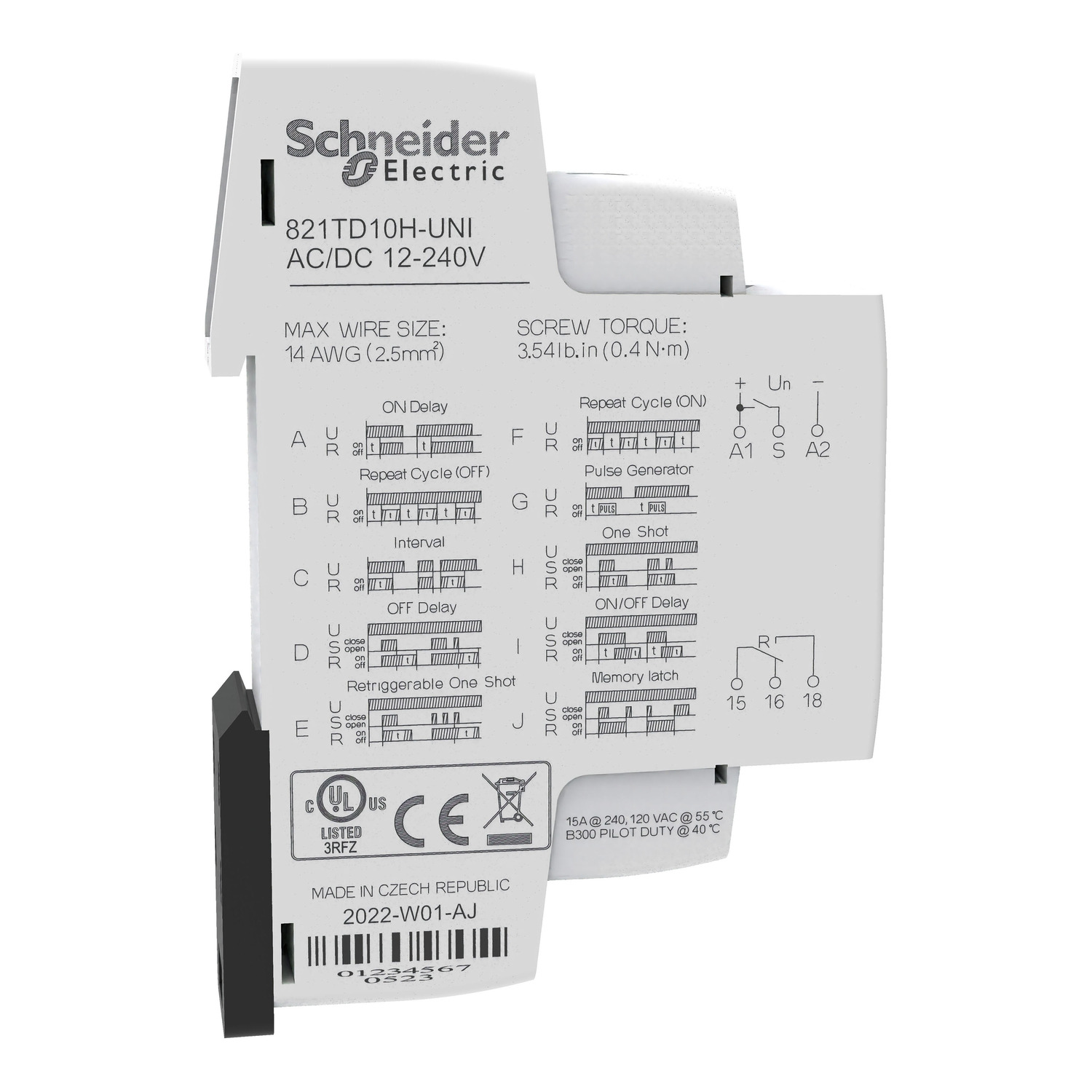

Time Delay Type

Multifunction

Rated Supply Voltage

12...240 V AC/DC 50...60 Hz

Time Delay Range

100 ms...1 s
1...10 s
0.1...1 min
1...10 min
0.1...1 h
1...10 h
72 min...12 h
1...10 d

Control Type

With adjustment knob front

Voltage Range

0.85...1.15 Un

Nominal Output Current

15 A

Local Signalling

1 LED red
1 LED green

Repeat Accuracy

+/- 0.2 %

Temperature Drift

0.01 %/°C

Control signal pulse width

25 ms

Reset Time

150 ms maximum

Power Consumption in VA

2 VA 240 V

Power Consumption in W

1.5 W 24 V

Rated Operational Current

15 A at 240 V AC-1

Breaking Capacity

4000 VA AC-1

Minimum Switching Current

100 mA 5 V

Maximum Switching Voltage

240 V

Tightening Torque

3.5 lbf.in (0.4 N.m)

AWG Gauge

AWG 14

Electrical Durability

30000 cycles

Mechanical Durability

15000000 cycles

Release value of input voltage

10 V

Mounting Support

35 mm DIN rail conforming to IEC 60715

[Uimp] rated impulse withstand voltage

4 kV 1.2/50 µs IEC 60664-1

Electromagnetic compatibility

Electrostatic discharge 4 kV level 2 conforming to IEC 61000-4-2
Electrostatic discharge 8 kV level 2 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test 10 V/m level 3 conforming to IEC 61000-4-3
Surge immunity test 2 kV level 3 conforming to IEC 61000-4-5
Surge immunity test 1 kV level 3 conforming to IEC 61000-4-5
Fast transient bursts 2 kV level 3 conforming to IEC 61000-4-4
Conducted RF disturbances 10 V, 0.15...80 MHz level 3 conforming to IEC 61000-4-6
Immunity to microbreaks and voltage drops 30 %, 500 ms conforming to IEC 61000-4-11
Immunity to microbreaks and voltage drops 100 %, 20 ms conforming to IEC 61000-4-11

Overvoltage category

III IEC 60664-1

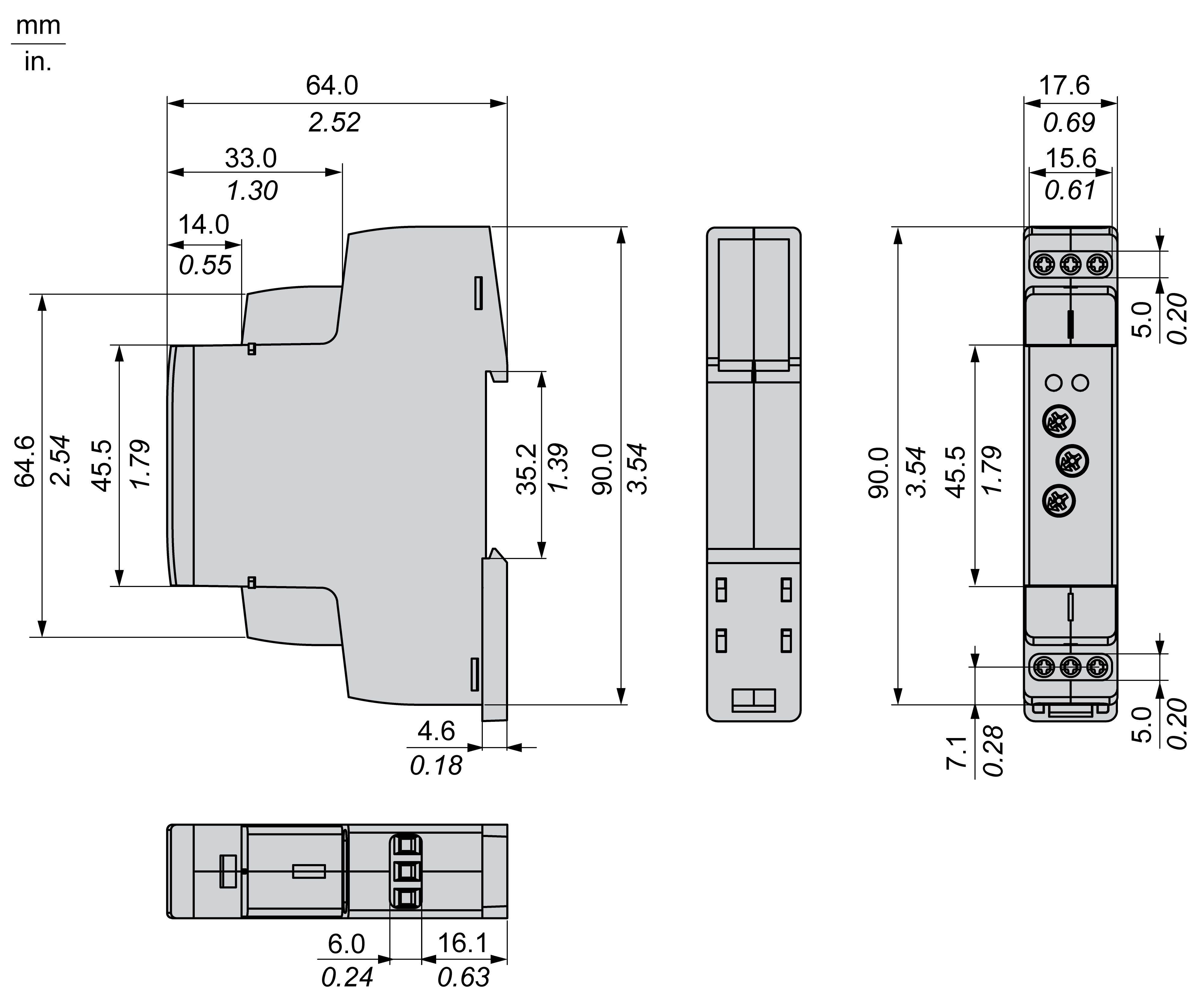

Height

3.5 in (90 mm)

Width

0.7 in (17.6 mm)

Depth

2.5 in (64 mm)

Product Weight

2.3 oz (65 g)

Dielectric Strength

4000 V between input and output
1000 V between open contacts

Standards

IEC 61812-1

Product Certifications

UL
CE
WEEE
RoHS

Ambient Air Temperature for Storage

-22…158 °F (-30…70 °C)

Ambient Air Temperature for Operation

-4…131 °F (-20…55 °C)

IP Degree of Protection

IP20 IEC 60529 terminals)
IP40 IEC 60529 front panel)

Relative humidity

95 %

Category

US10CP221127

Discount Schedule

0CP2

GTIN

3606480282027

Returnability

Yes

Country of origin

CZ

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.6 in (6.5 cm)

Package 1 Width

0.69 in (1.76 cm)

Package 1 Length

3.5 in (9.0 cm)

Package 1 Weight

1.9 oz (55.0 g)

Unit Type of Package 2

CAR

Number of Units in Package 2

10

Package 2 Height

3.0 in (7.5 cm)

Package 2 Width

3.9 in (10.0 cm)

Package 2 Length

8.7 in (22.2 cm)

Package 2 Weight

1.5 lb(US) (0.7 kg)
