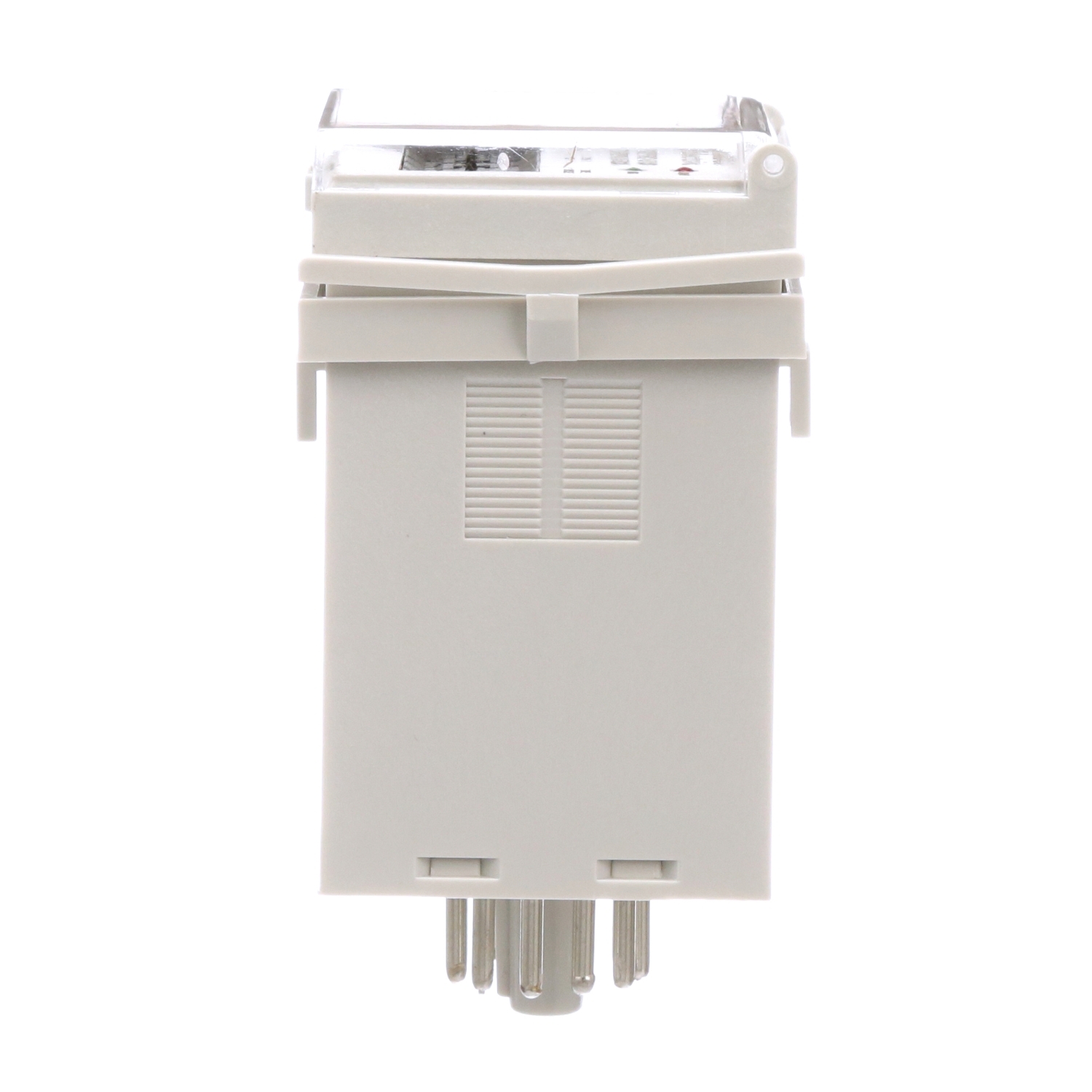

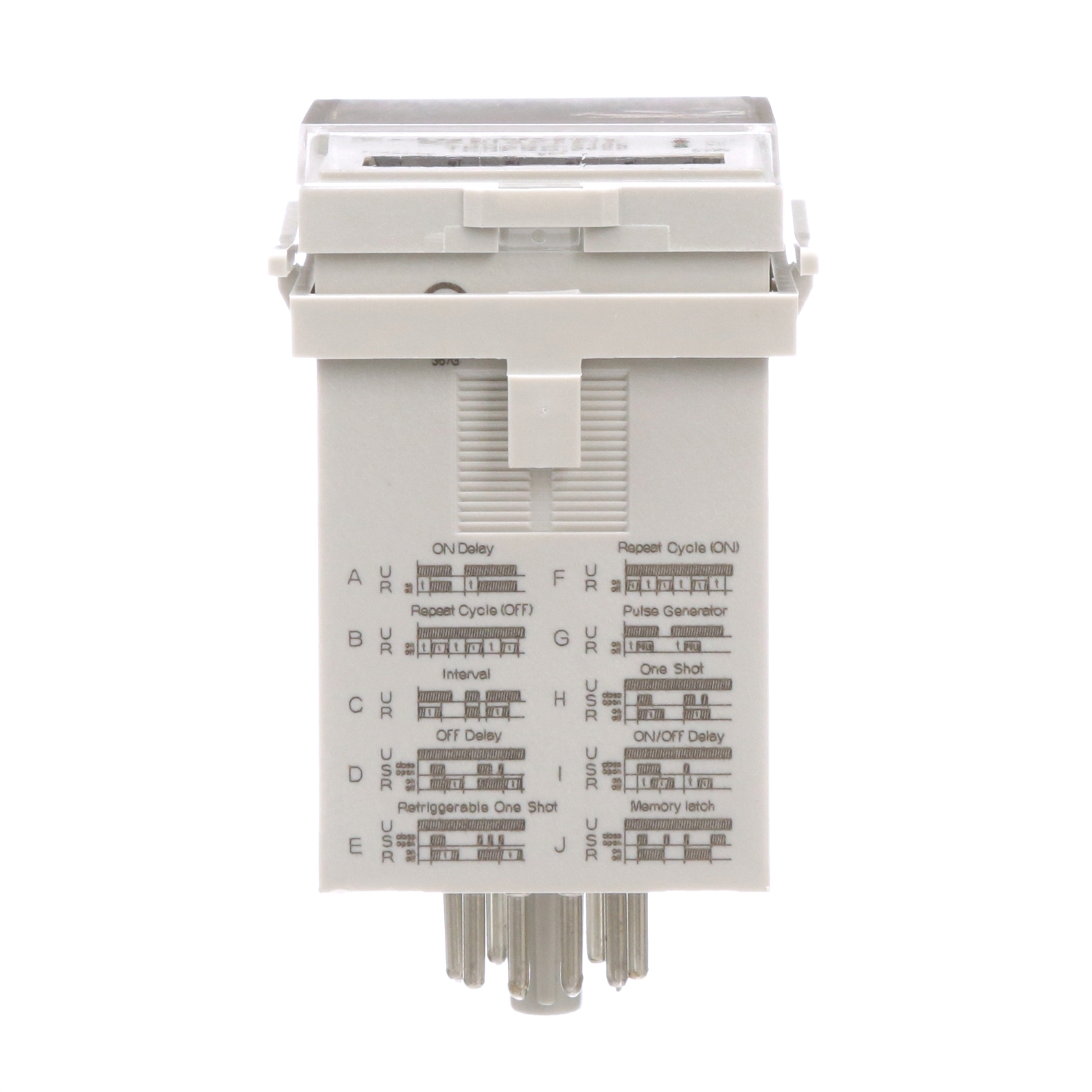

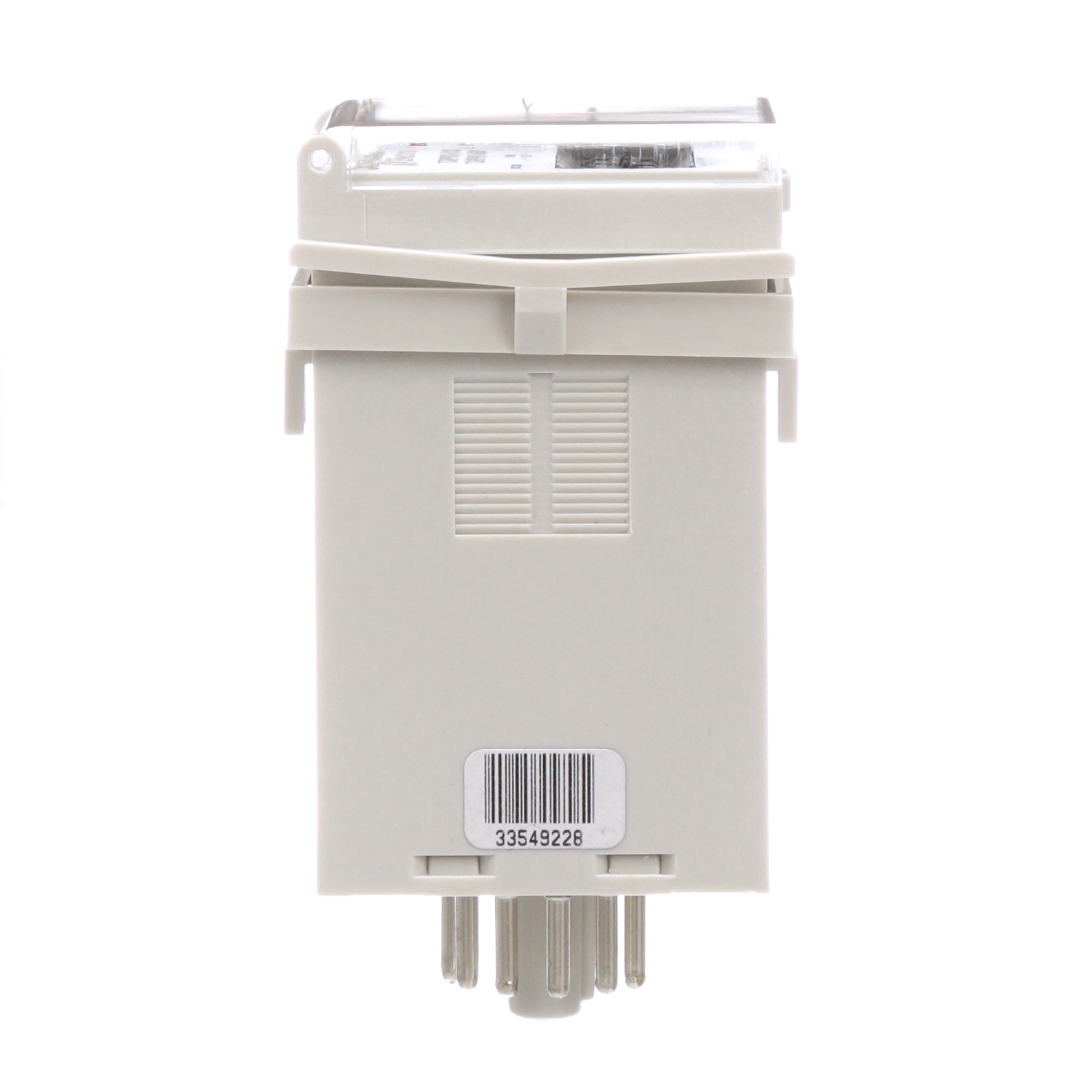

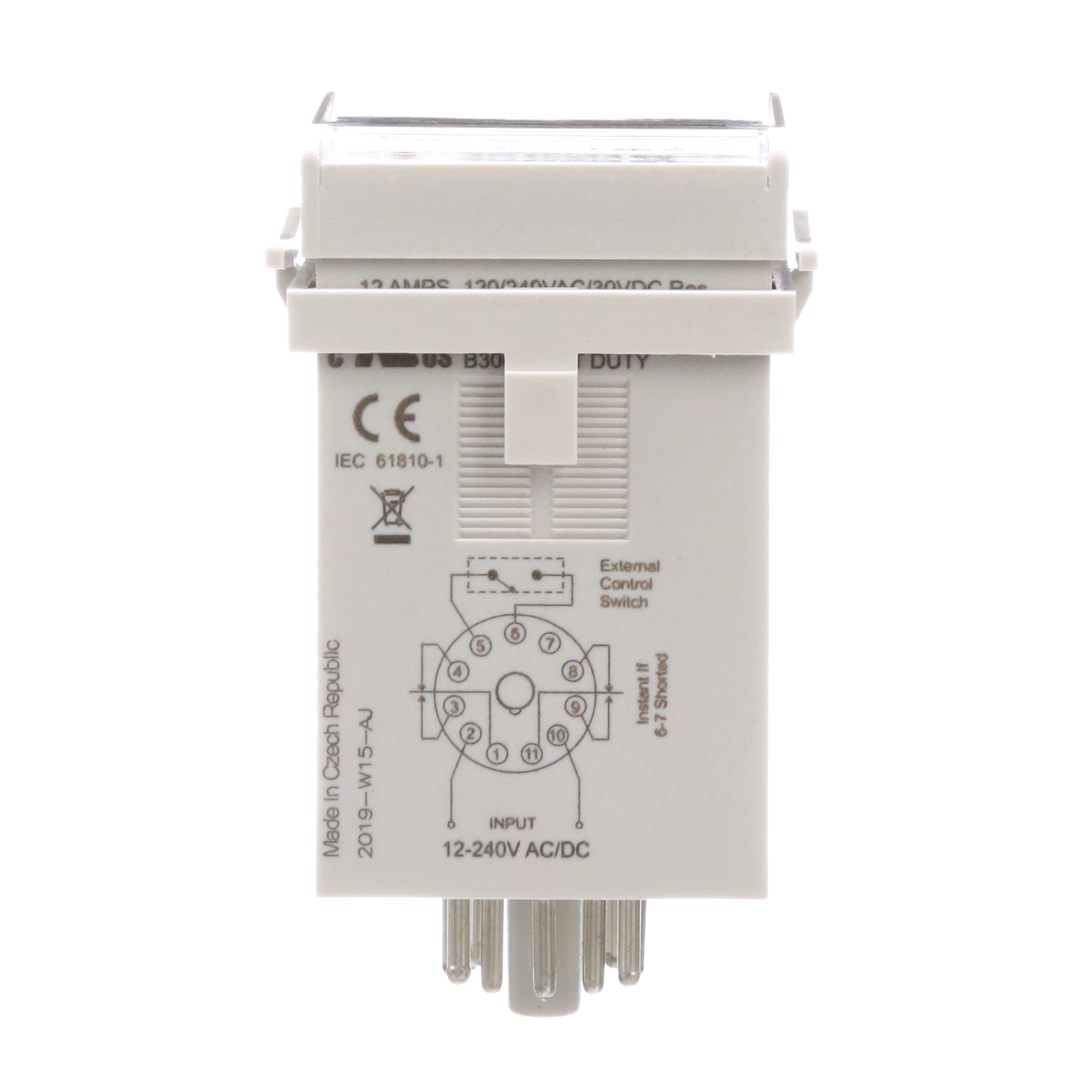

Time delay relay, Harmony SE Relays, DPDT, 100ms to 9990hours, 7 time scales, 10 functions, socket compatible, 12A, 12...240V AC/DC

Product Range

Legacy

Product or Component Type

Time delay relay

Switch Function

DPDT

Contacts Material

Silver alloy contacts

Time Delay Type

Multifunction

Setting-up

Thumbwheel

Rated Supply Voltage

12...240 V AC/DC 50...60 Hz

Time Delay Range

100 ms...9990 hr in steps of 0.1 s
100 ms...9990 hr in steps of 1 second
100 ms...9990 hr in steps of 0.1 min
100 ms...9990 hr in steps of 1 min
100 ms...9990 hr in steps of 0.1 h
100 ms...9990 hr in steps of 1 h
100 ms...9990 hr in steps of 10 h

Operating Time

25 ms

Brake Release Time

25 ms

Control Type

Dial front

Voltage Range

0.85...1.15 Un
0.85...1.15 Un
0.85...1.15 Un
0.85...1.15 Un
0.85...1.15 Un
0.85...1.15 Un
0.85...1.15 Un
0.85...1.15 Un
0.85...1.15 Un
0.85...1.15 Un
0.85...1.15 Un
0.85...1.15 Un
0.85...1.15 Un

Nominal Output Current

12 A

Local Signalling

1 LED red, blinking timing in progress
1 LED per input green

Repeat Accuracy

+/- 0.1 % of the measuring range

Reset Time

150 ms maximum

Power Consumption in VA

2.5 VA 12...240 V

Power Consumption in W

2 W 12...240 V

Rated Operational Current

12 A at 120 V AC (on resistive load)
12 A at 240 V AC (on resistive load)
12 A at 30 V DC (on resistive load)

Motor Power HP

1 hp 240 V AC
0.5 hp 120 V AC

Electrical Durability

100000 cycles

Mechanical Durability

10000000 cycles

Mounting Support

Socket

Height

2.83 in (71.95 mm)

Width

1.9 in (48 mm)

Depth

1.9 in (47.8 mm)

Product Weight

4.2 oz (120 g)

Dielectric Strength

2500 V between input and output

Standards

IEC 61810-1

Product Certifications

UL

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Ambient Air Temperature for Operation

14…131 °F (-10…55 °C)

IP Degree of Protection

IP40 IEC 60529 enclosure)

Category

US10CP221127

Discount Schedule

0CP2

GTIN

3606480283062

Returnability

No

Country of origin

CZ

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.9 in (4.8 cm)

Package 1 Width

1.9 in (4.8 cm)

Package 1 Length

3.326 in (8.448 cm)

Package 1 Weight

4.7 oz (133.0 g)

Unit Type of Package 2

CAR

Number of Units in Package 2

100

Package 2 Height

12.6 in (32.0 cm)

Package 2 Width

9.06 in (23.0 cm)

Package 2 Length

23.6 in (60.0 cm)

Package 2 Weight

32.4 lb(US) (14.7 kg)
