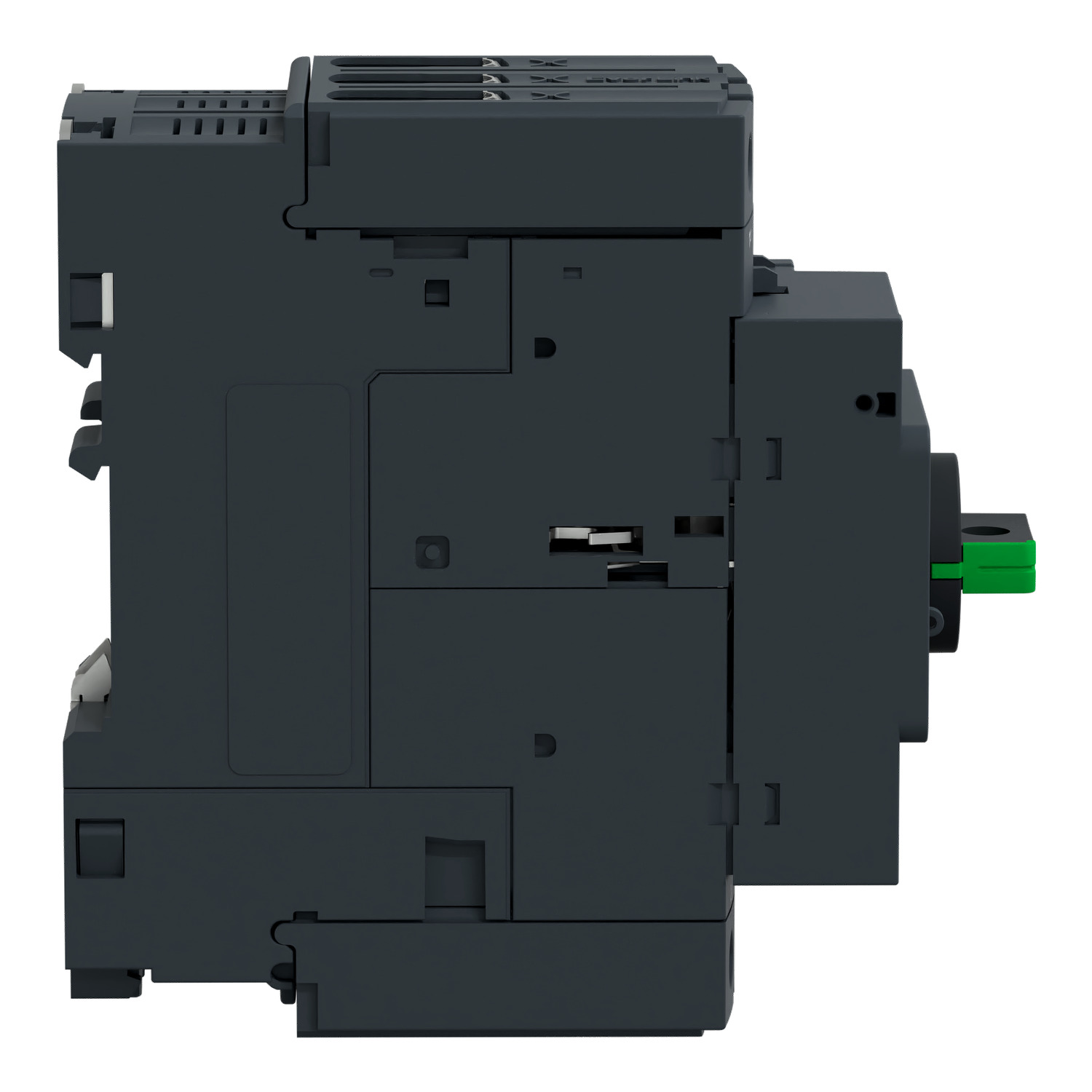

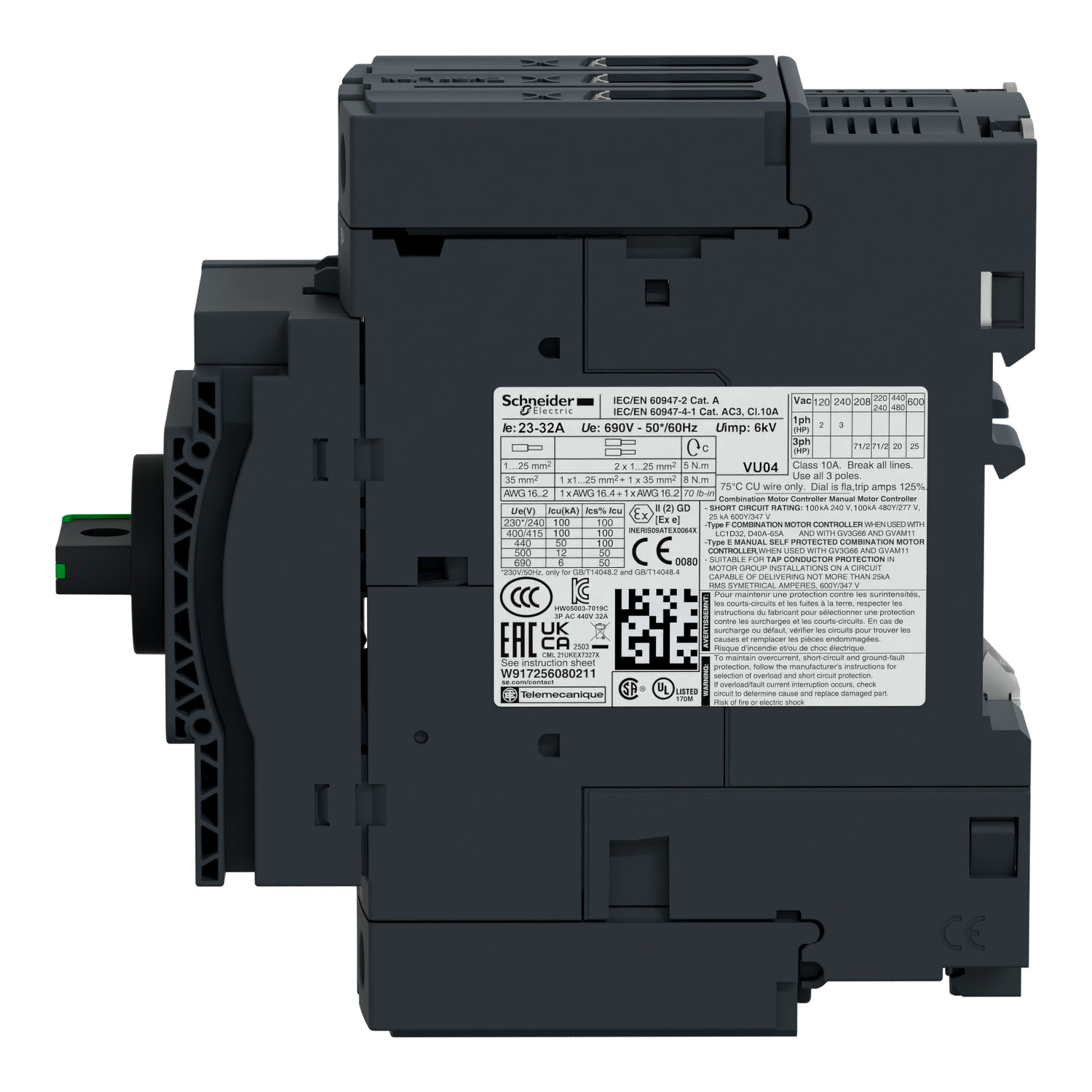

TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, rotary knob, 48 to 65 A, EverLink BTR

Range

TeSys Deca

Product name

TeSys GV3
TeSys Deca

Product or Component Type

Motor circuit breaker

Device short name

GV3P

Device Application

Motor protection

Trip unit technology

Thermal-magnetic

poles description

3P

Network type

AC

Utilisation category

AC-3 IEC 60947-4-1

Network frequency

50/60 Hz IEC 60947-4-1

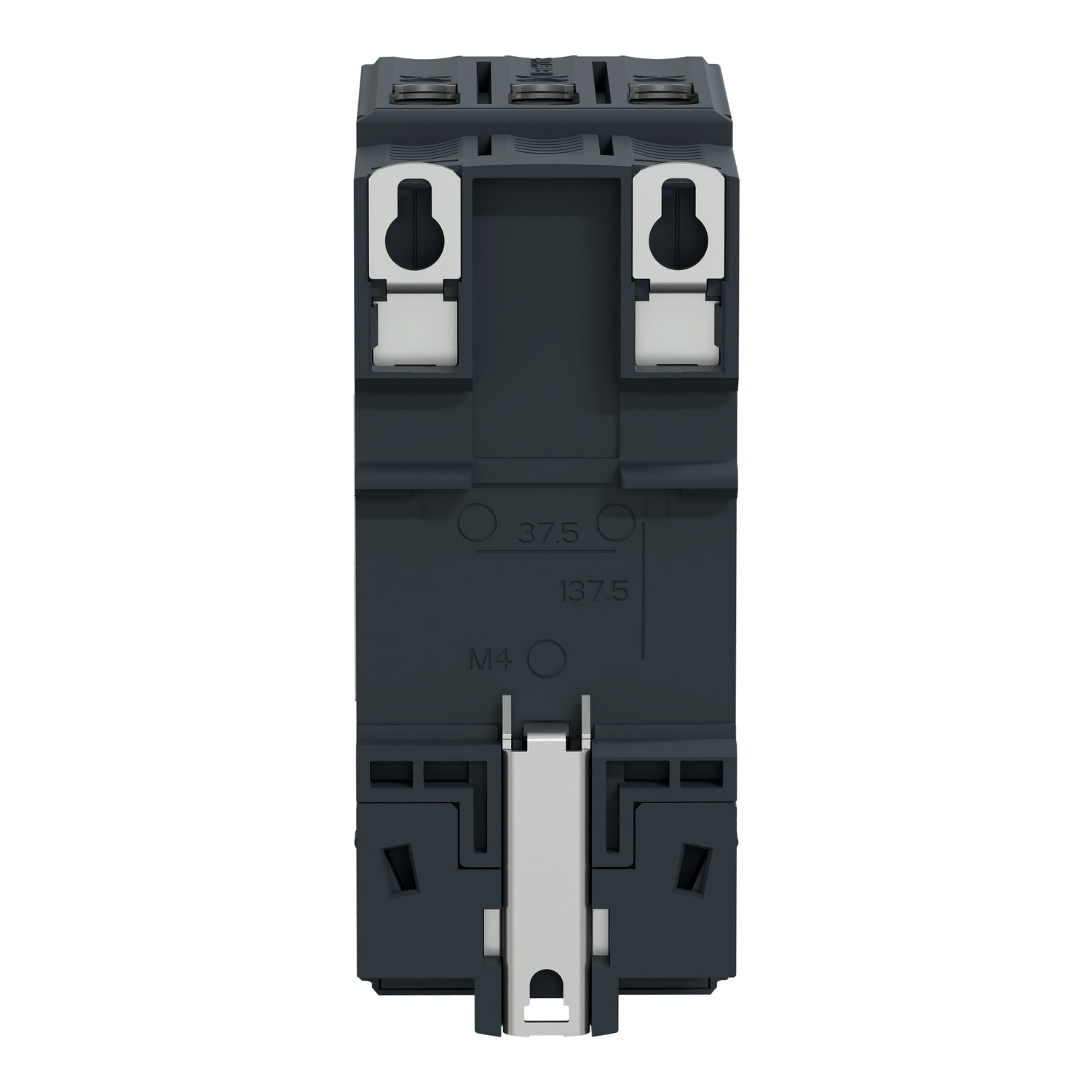

Fixing mode

35 mm symmetrical DIN rail clipped
Panel screwed with 3 x M4 screws)

Motor power kW

30 kW 400/415 V AC 50/60 Hz
45 kW 500 V AC 50/60 Hz
55 kW 690 V AC 50/60 Hz

Breaking capacity

100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
50 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
50 kA Icu 440 V AC 50/60 Hz IEC 60947-2
12 kA Icu 500 V AC 50/60 Hz IEC 60947-2
6 kA Icu 690 V AC 50/60 Hz IEC 60947-2

[Ics] rated service short-circuit breaking capacity

100 % 230/240 V AC 50/60 Hz IEC 60947-2
100 % 400/415 V AC 50/60 Hz IEC 60947-2
100 % 440 V AC 50/60 Hz IEC 60947-2
50 % 500 V AC 50/60 Hz IEC 60947-2
50 % 690 V AC 50/60 Hz IEC 60947-2

Control Type

Rotary handle

Line Rated Current

65 A

Thermal protection adjustment range

48…65 A IEC 60947-4-1

Magnetic tripping current

910 A

[Ith] conventional free air thermal current

65 A IEC 60947-4-1

[Ue] rated operational voltage

690 V AC 50/60 Hz IEC 60947-2

[Ui] rated insulation voltage

690 V AC 50/60 Hz IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV IEC 60947-2

Phase failure sensitivity

Yes IEC 60947-4-1

Suitability for isolation

Yes IEC 60947-1

Power dissipation per pole

8 W

Mechanical durability

50000 cycles

Electrical durability

50000 cycles AC-3 415 V In

Rated duty

Continuous IEC 60947-4-1

Tightening torque

44.3 lbf.in (5 N.m) screw clamp terminal

Width

2.2 in (55 mm)

Height

5.2 in (132 mm)

Depth

5.4 in (136 mm)

Net Weight

2.12 lb(US) (0.96 kg)

color

Dark grey

Standards

EN/IEC 60947-2
EN/IEC 60947-4-1
UL 60947-4-1
CSA C22.2 No 60947-4-1

Product Certifications

CCC
UL
CSA
EAC
ATEX
LROS (Lloyds register of shipping)
BV
ABS
DNV-GL
UKCA

IK degree of protection

IK09 enclosure

IP degree of protection

IP20 IEC 60529

Climatic withstand

IACS E10

Ambient Air Temperature for Storage

-40…176 °F (-40…80 °C)

Fire resistance

1760 °F (960 °C) IEC 60695-2-11

Ambient air temperature for operation

-4…140 °F (-20…60 °C)

Mechanical robustness

Shocks 15 Gn for 11 ms contactor open
Shocks 30 Gn for 11 ms contactor closed
Vibrations 4 Gn, 5...300 Hz

Operating altitude

9842.52 ft (3000 m)

Category

US10I1122366

Discount Schedule

0I11

GTIN

3389119405416

Returnability

Yes

Country of origin

FR

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.299 in (16.000 cm)

Package 1 Width

2.559 in (6.500 cm)

Package 1 Length

5.748 in (14.600 cm)

Package 1 Weight

2.240 lb(US) (1.016 kg)

Unit Type of Package 2

P06

Number of Units in Package 2

120

Package 2 Height

29.528 in (75.000 cm)

Package 2 Width

23.622 in (60.000 cm)

Package 2 Length

31.496 in (80.000 cm)

Package 2 Weight

297.448 lb(US) (134.920 kg)

Warranty

18 months
