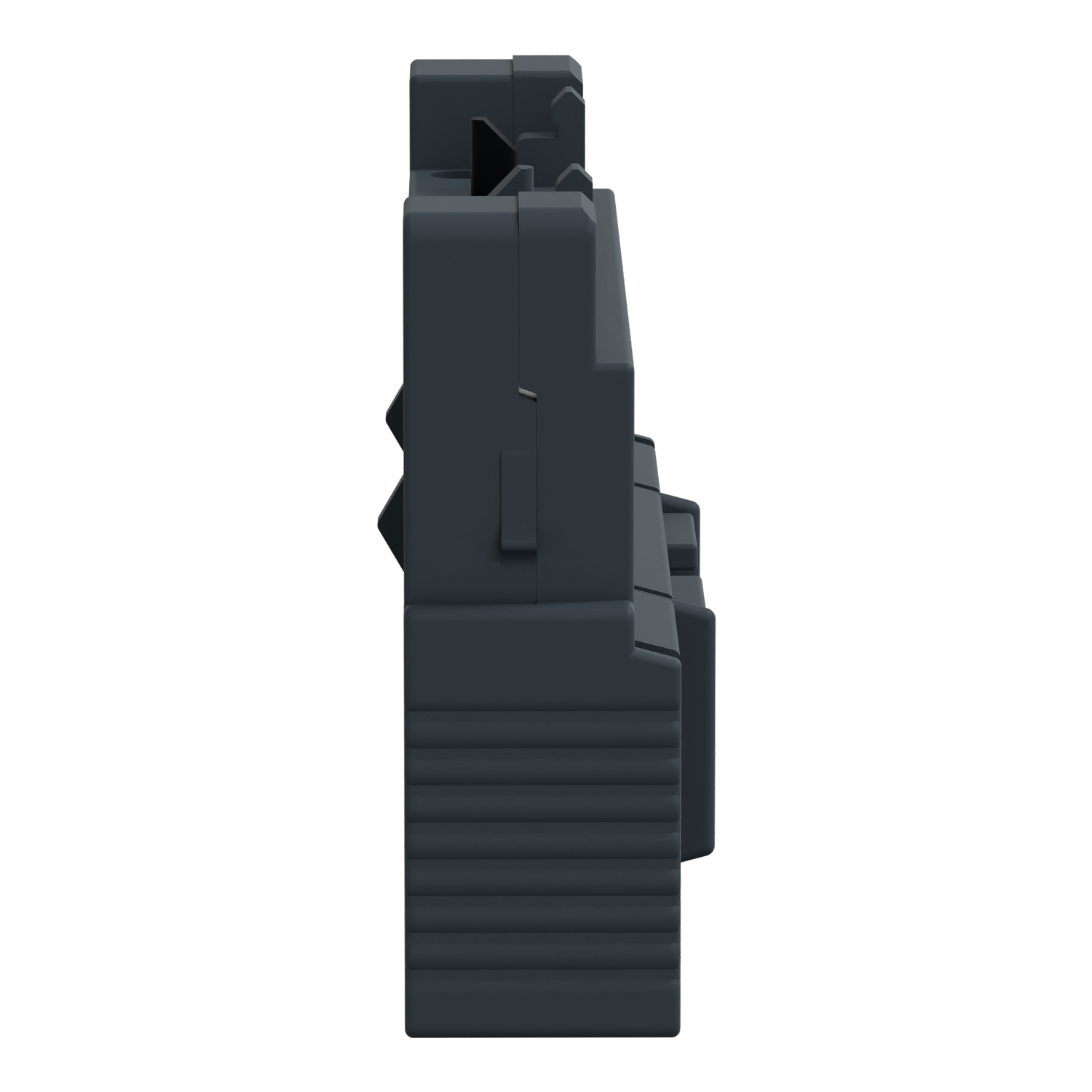

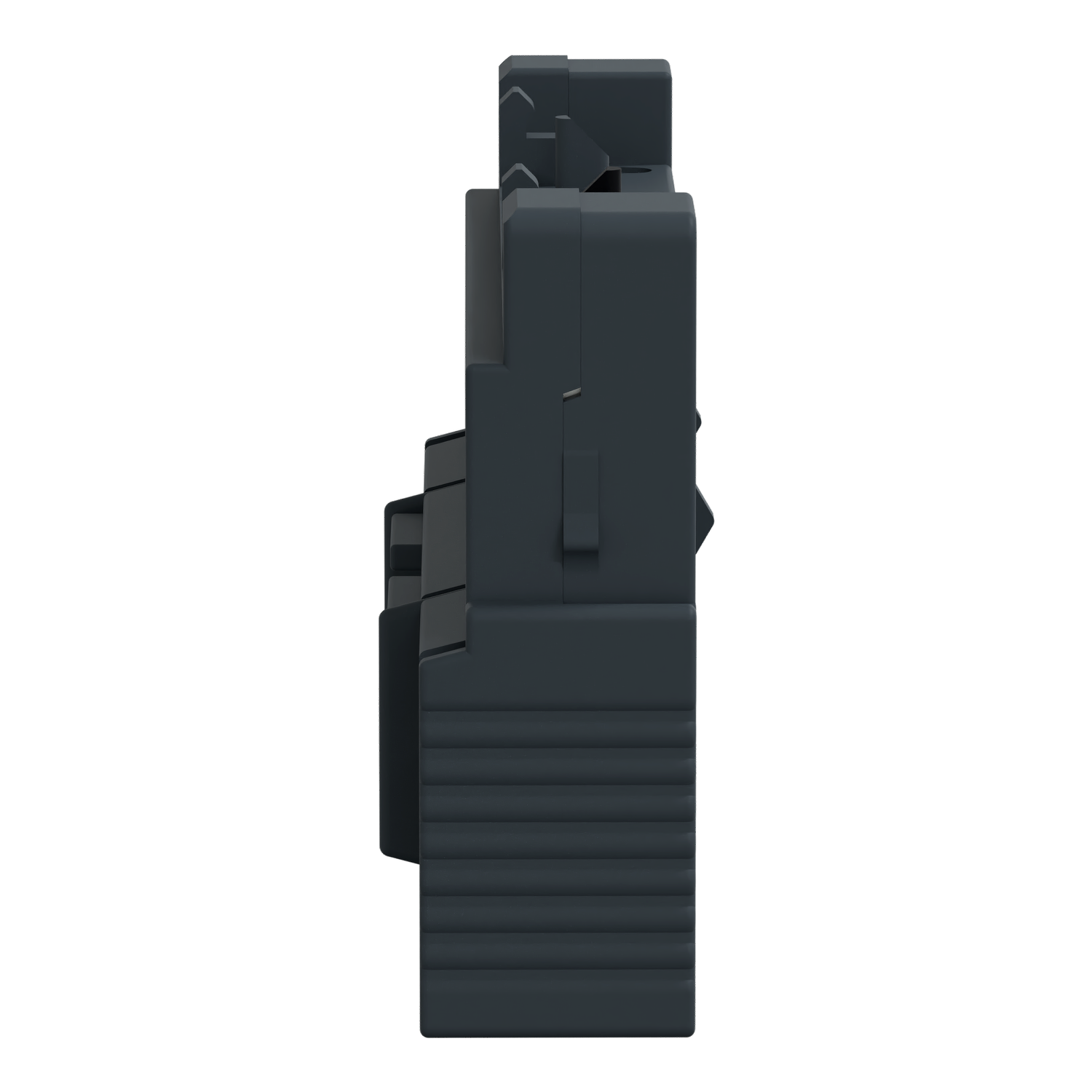

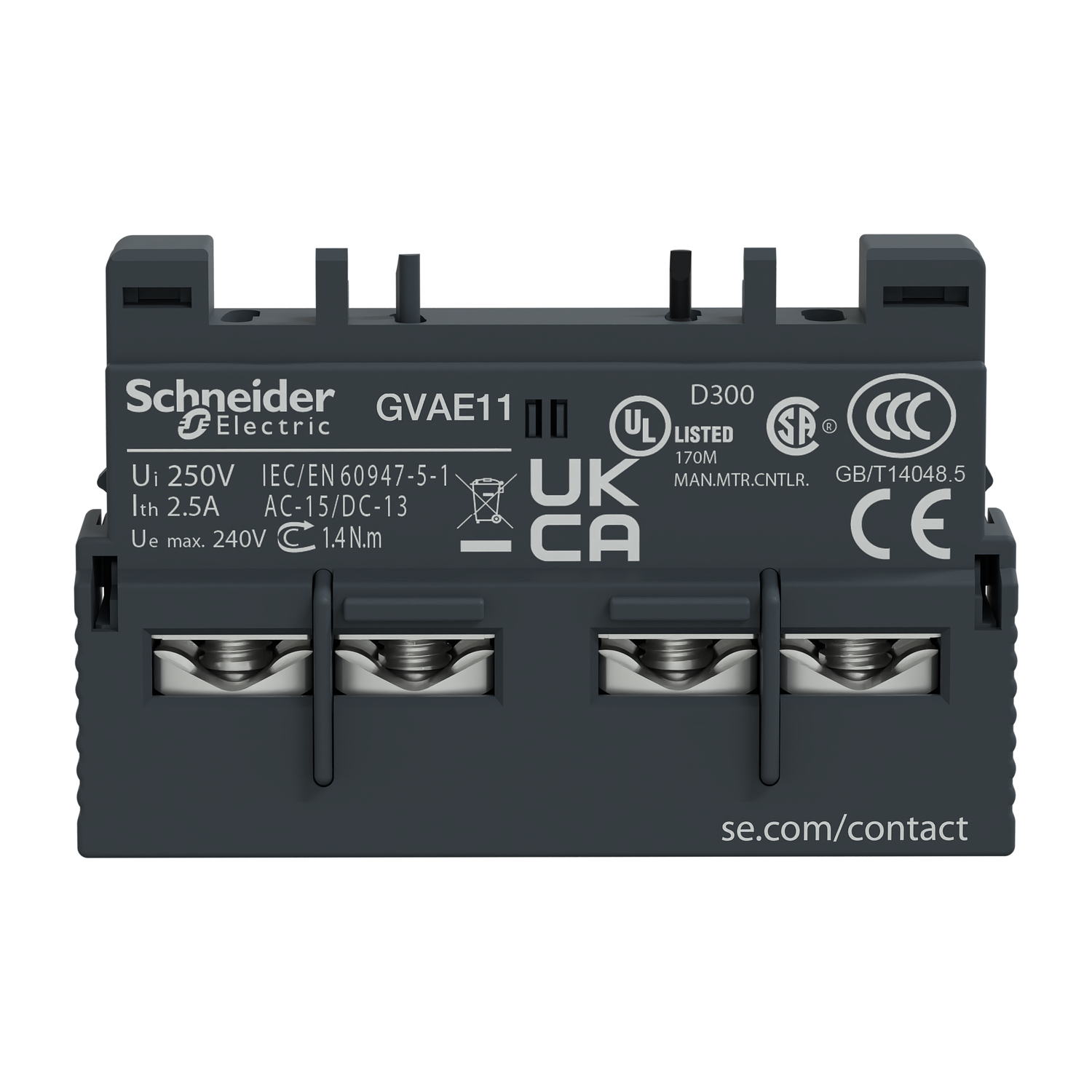

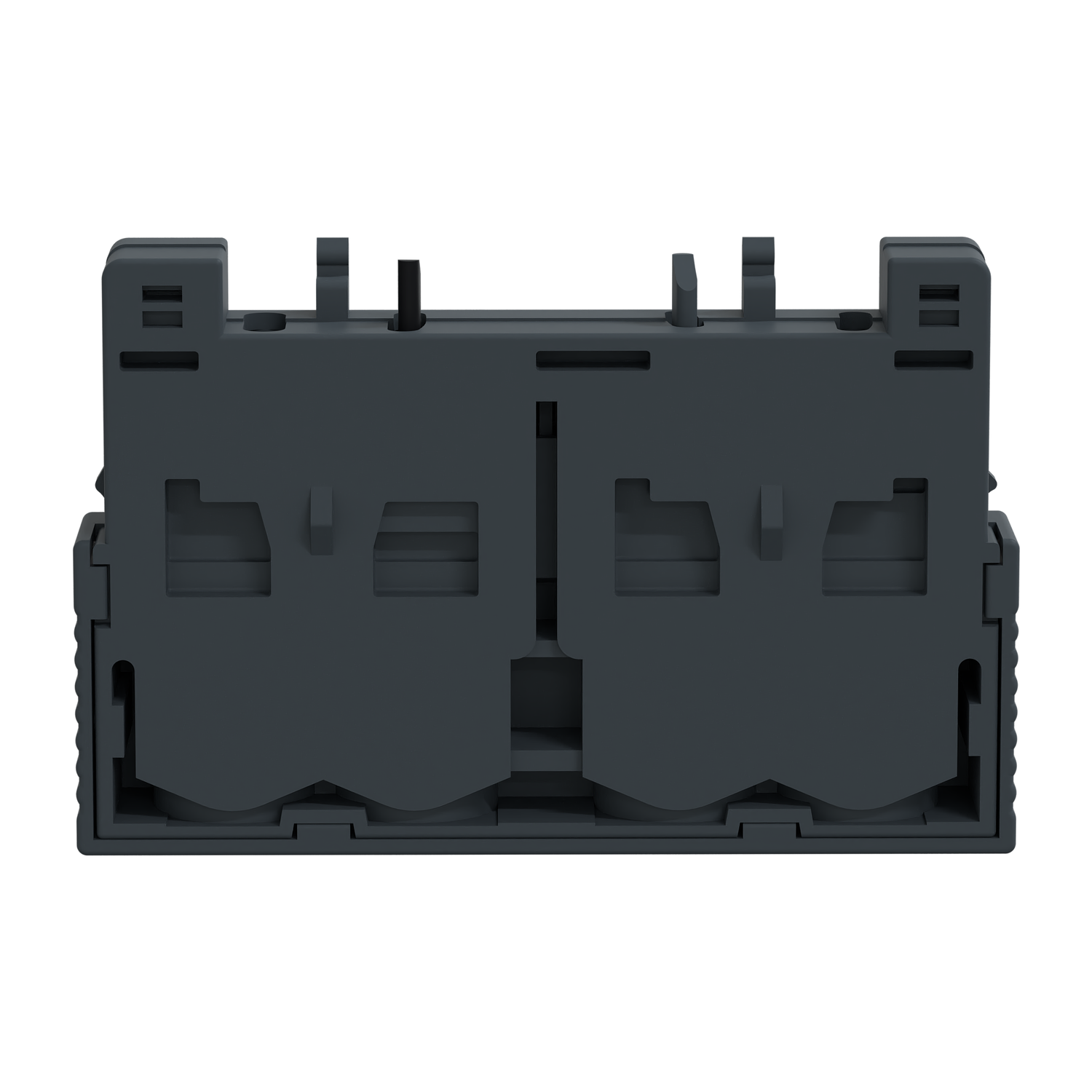

TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp

Range

TeSys
TeSys Deca

Device short name

GVAE

Product or Component Type

Auxiliary contact block

Product Compatibility

GV2P
GV2RT
GV2ME
GV3L
GV2LE
GV3P
GV2L

mounting location

Front side

Pole contact composition

1 NO + 1 NC

Quantity per Set

Set of 10

[Ui] rated insulation voltage

300 V UL 508
300 V CSA C22.2 No 14
250 V IEC 60947-1

[Ue] rated operational voltage

24...240 V AC
24...60 V DC

[Ith] conventional free air thermal current

2.5 A

Mechanical durability

100000 cycles

Minimum switching current

5 mA

Minimum switching voltage

17 V

Protection type

GG fuse 10 A
GB2CB06 circuit breaker 10 A

Rated operational power in VA

120 VA 110…120 V AC-15 100000 cycles
120 VA 230…240 V AC-15 100000 cycles
48 VA 24 V AC-15 100000 cycles
60 VA 48 V AC-15 100000 cycles

Rated operational power in W

15 W 48 V DC-13 100000 cycles
24 W 24 V DC-13 100000 cycles
9 W 60 V DC-13 100000 cycles

Tightening torque

12.4 lbf.in (1.4 N.m) screw clamp terminals

Height

0.4 in (11 mm)

Width

1.8 in (45 mm)

Depth

1.1 in (29 mm)

Net Weight

0.04 lb(US) (0.02 kg)

Environmental characteristic

Normal environment

Product Certifications

UKCA

Category

US10I1122367

Discount Schedule

0I11

GTIN

3389110343434

Returnability

Yes

Country of origin

CZ

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.472 in (1.200 cm)

Package 1 Width

2.362 in (6.000 cm)

Package 1 Length

2.756 in (7.000 cm)

Package 1 Weight

0.600 oz (17.000 g)

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

2.441 in (6.200 cm)

Package 2 Width

4.724 in (12.000 cm)

Package 2 Length

2.913 in (7.400 cm)

Package 2 Weight

6.138 oz (174.000 g)

Unit Type of Package 3

S02

Number of Units in Package 3

220

Package 3 Height

5.906 in (15.000 cm)

Package 3 Width

11.811 in (30.000 cm)

Package 3 Length

15.748 in (40.000 cm)

Package 3 Weight

9.090 lb(US) (4.123 kg)

Warranty

18 months
