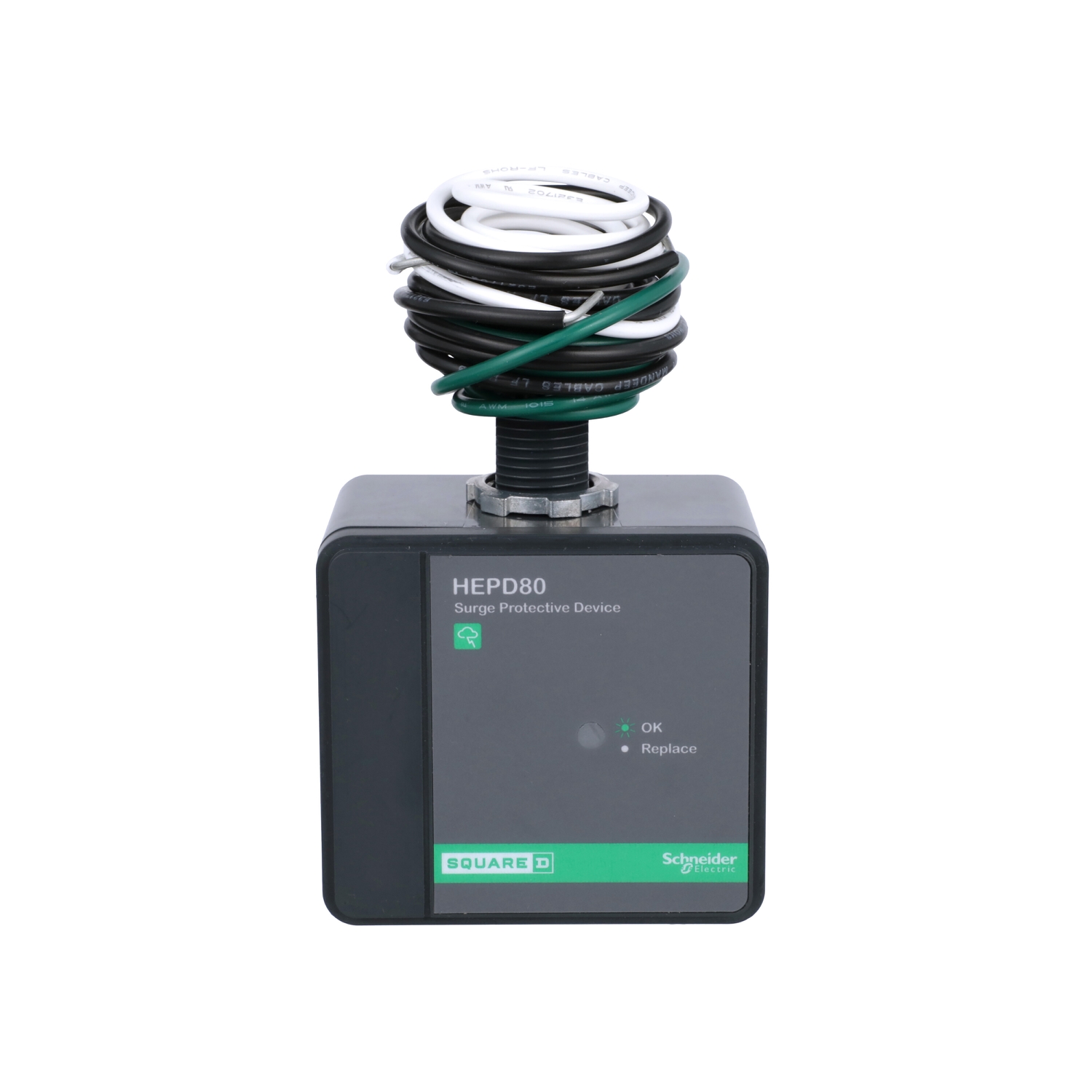

Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1

Product

Surge protection device

Range

Square D

Device Short Name

HEPD

Surge Arrester Type

Electrical distribution network

Voltage Rating

120/240 V AC

MCOV

150 V

SCCR

25 kA

Surge Current

80 kA per phase

Voltage Protection Rating

600 V L-N
600 V L - G
1000 V L - L
900 V N - G

Nominal Discharge Current

10 kA

Rated Current

10 kA

Number of Phases

1 phase

Wiring Configuration

3-wire (isolated ground)

Connection

Wire AWG 14

Local Signalling

1 LED green normal operation
1 LED green off

Product destination

Load center

Cable length

34 in (863.6 mm)

Height

3.23 in (82.04 mm)

Width

3.72 in (94.49 mm)

Depth

2.10 in (53.34 mm)

Ambient Operating

-40…149 °F (-40…65 °C)

Enclosure Rating

NEMA 4X

Enclosure Material

non-metallic

Standards

UL 1449
CUL
UL 1449:ed. 4: type I

Category

US1DE1B08461

Discount Schedule

DE1B

GTIN

785901008729

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.2 in (8.2 cm)

Package 1 Width

6.02 in (15.3 cm)

Package 1 Length

8.03 in (20.4 cm)

Package 1 Weight

17.1 oz (486 g)

Unit Type of Package 2

CAR

Number of Units in Package 2

3

Package 2 Height

8.70 in (22.098 cm)

Package 2 Width

11.00 in (27.94 cm)

Package 2 Length

6.70 in (17.018 cm)

Package 2 Weight

5.450 lb(US) (2.472 kg)

Warranty

18 months
