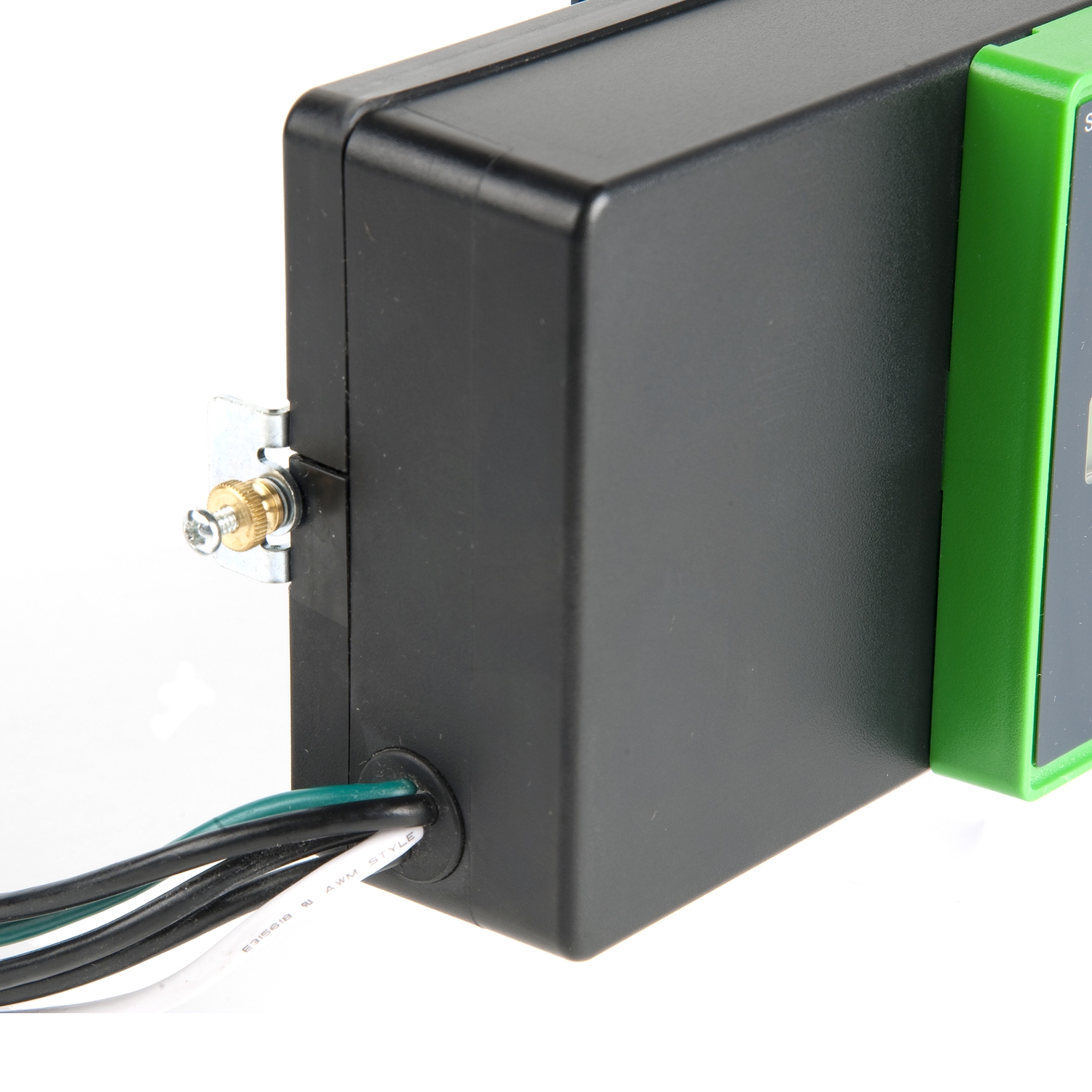

SPD, Surgelogic, 120kA, 208Y/120VAC, 3 phase, 4 wire, SPD type 1

Product

Surge protection device

Range

Surgelogic

Voltage Rating

208Y/120 V AC

MCOV

150 V

SCCR

200 kA

Surge Current

120 kA per phase

Voltage Protection Rating

600 V N - G
700 V L-N
700 V L - G
1000 V L - L

Number of Phases

3 phase

Wiring Configuration

4-wire

Type of Packing

Box

Height

4.40 in (111.76 mm)

Width

17.90 in (454.66 mm)

Depth

6.90 in (175.26 mm)

Weight

8.09 lb(US) (3.67 kg)

Enclosure Rating

NEMA 1

Category

US1DE1B08470

Discount Schedule

DE1B

GTIN

785901775294

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.40 in (11.18 cm)

Package 1 Width

6.90 in (17.53 cm)

Package 1 Length

17.90 in (45.47 cm)

Package 1 Weight

7.5 lb(US) (3.4 kg)
