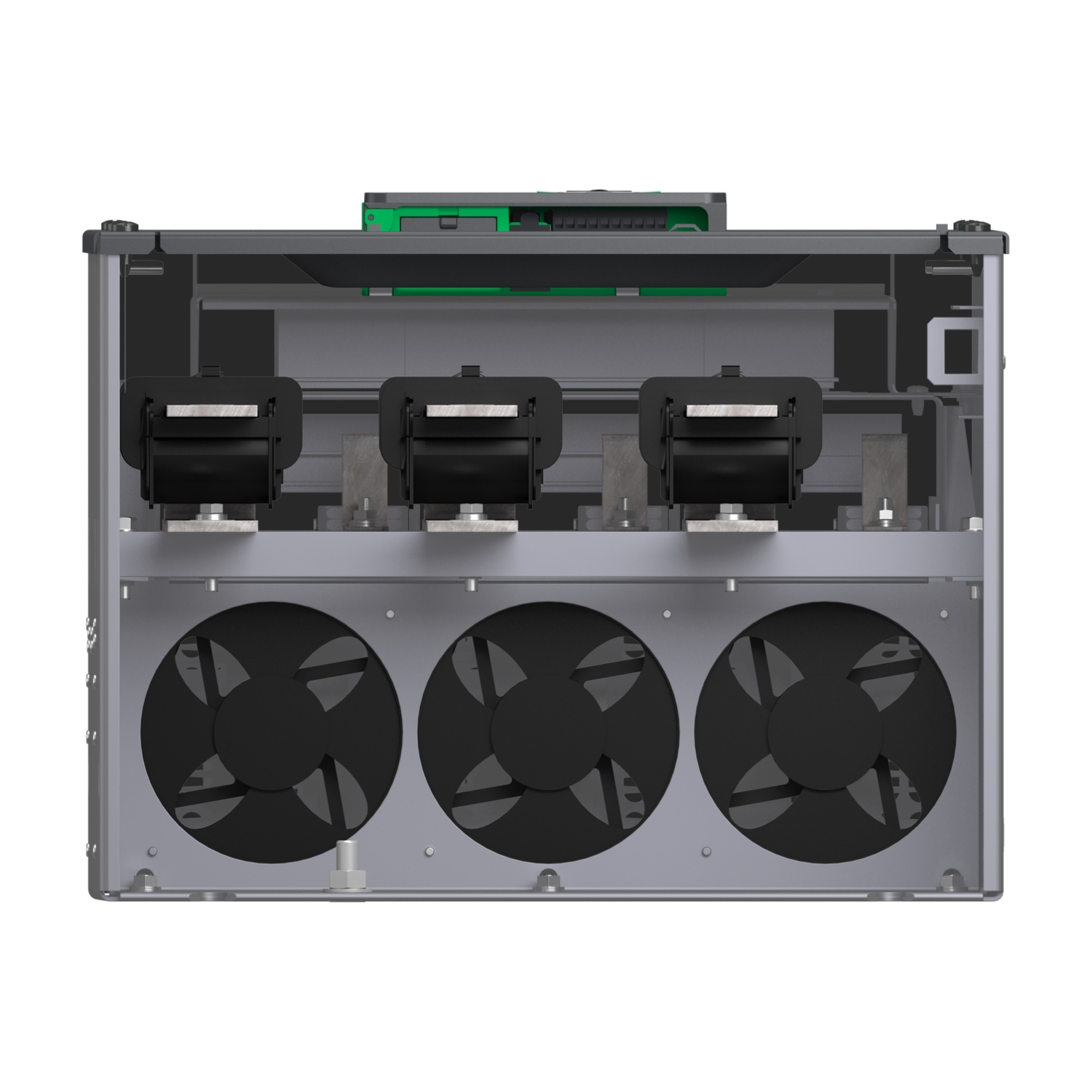

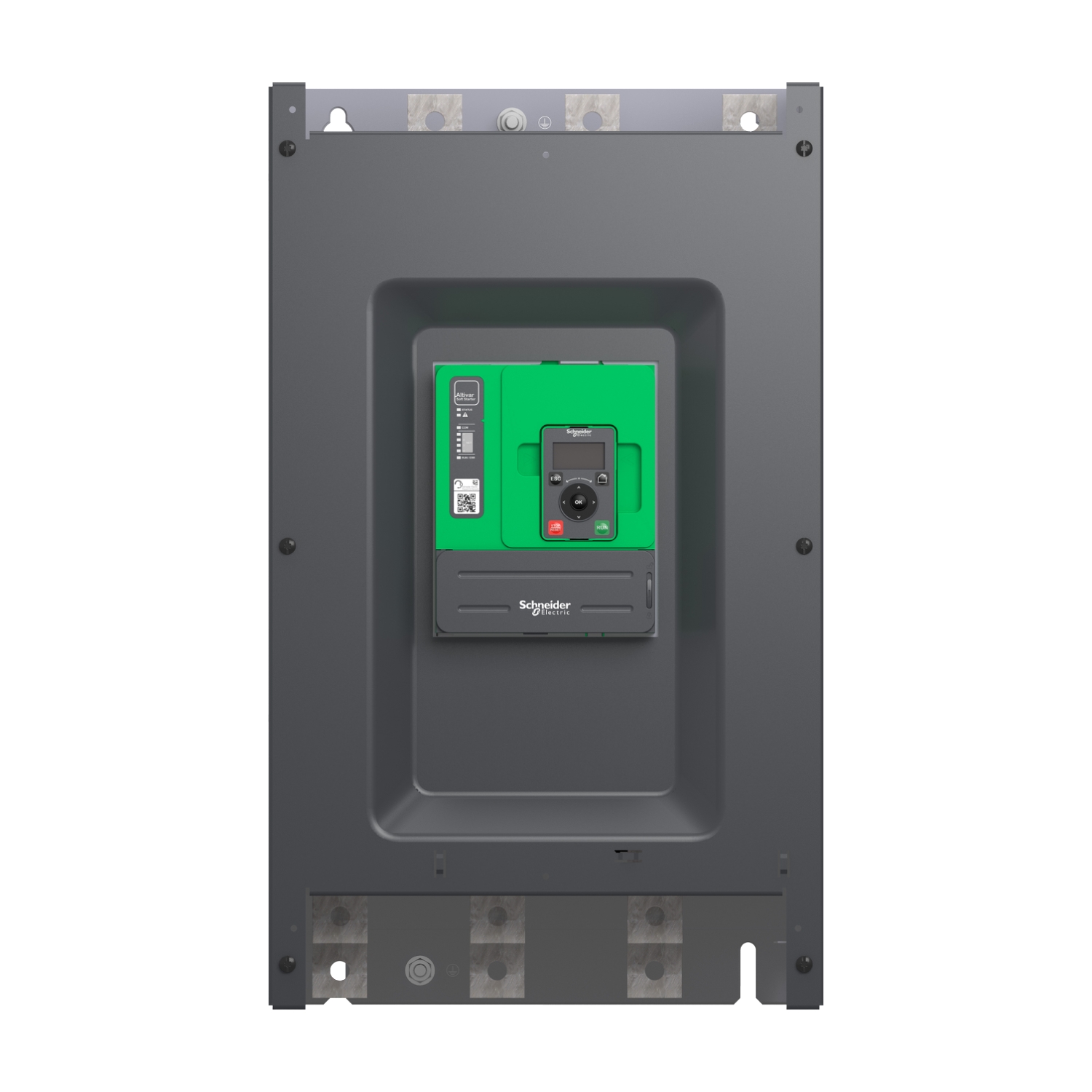

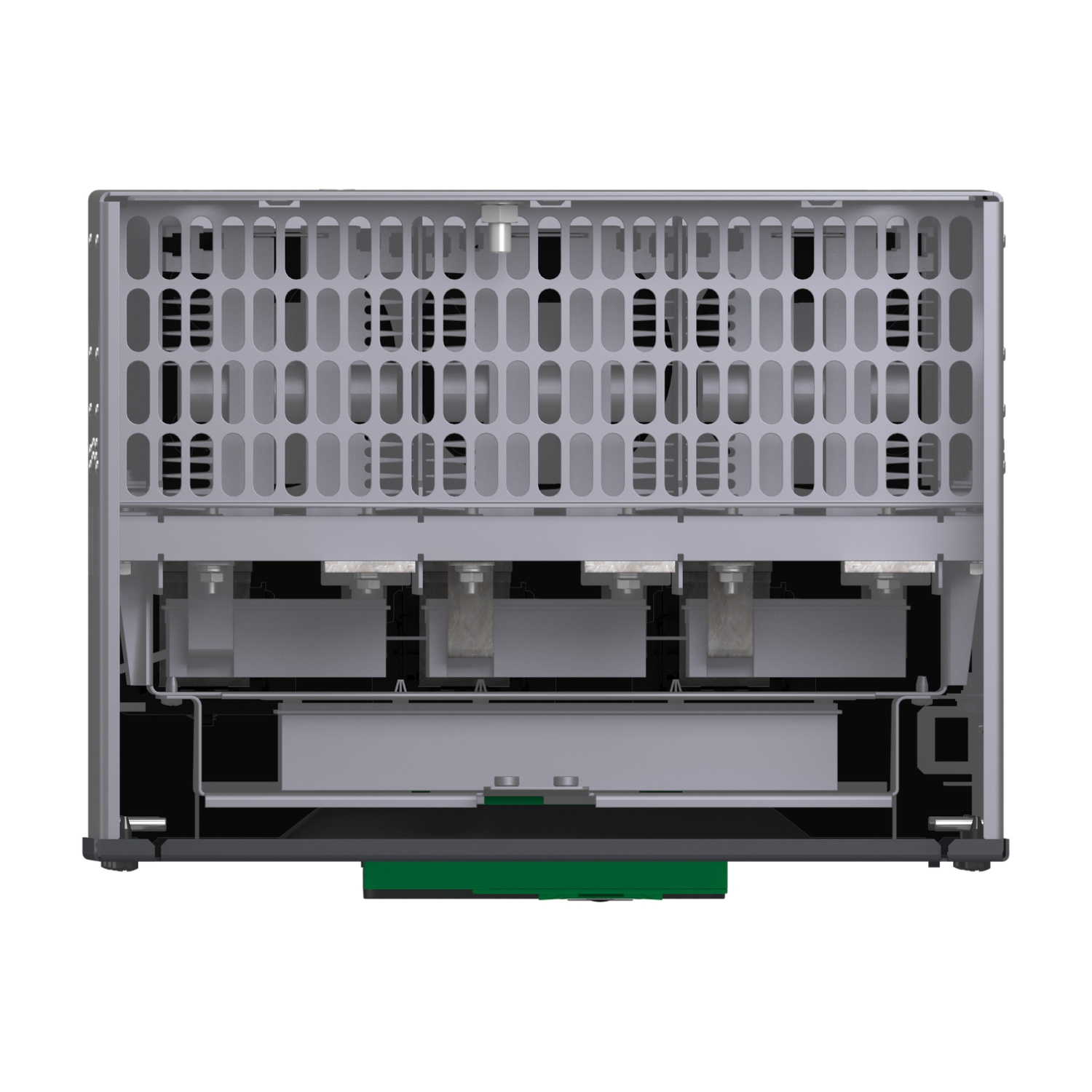

Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC

SKU: ATS480C66Y

About Product

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 660A in normal duty, it supplies motor from 160kW to 630kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 400mm (width) x 314mm (depth) x 670mm (height) and it weighs 51,4kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.

Main

Range of Product

Altivar Soft Starter ATS480

Product or Component Type

Soft starter

product destination

Asynchronous motors

Product Specific Application

Process and infrastructures

Device short name

ATS480

Phase

3 phase

Utilisation category

AC-3A
AC-53A

Ue power supply voltage

208...690 V - 15...10 %

power supply frequency

50...60 Hz - 20...20 %

[Ie] rated operational current

Normal duty 660.0 A 104 °F (40 °C))

rated current in heavy duty

590.0 A at 104 °F (40 °C) heavy duty

Torque control

True

IP Degree of Protection

IP00

Motor power kW

160.0 kW 230 V in the motor supply line heavy duty
355.0 kW 400 V in the motor supply line normal duty
315.0 kW 400 V in the motor supply line heavy duty
400.0 kW 440 V in the motor supply line normal duty
355.0 kW 440 V in the motor supply line heavy duty
400.0 kW 500 V in the motor supply line heavy duty
400.0 kW 525 V in the motor supply line heavy duty
630.0 kW 660 V in the motor supply line normal duty
560.0 kW 660 V in the motor supply line heavy duty
630.0 kW 690 V in the motor supply line normal duty
560.0 kW 690 V in the motor supply line heavy duty
315.0 kW 230 V to the motor delta terminals normal duty
500.0 kW 400 V to the motor delta terminals normal duty
400.0 kW 400 V to the motor delta terminals heavy duty

Maximum Horse Power Rating

200.0 hp 208 V normal duty
250.0 hp 230 V normal duty
200.0 hp 230 V heavy duty
500.0 hp 460 V normal duty
400.0 hp 460 V heavy duty
600.0 hp 575 V normal duty
500.0 hp 575 V heavy duty

Option card

Communication module Profibus DP V1
Communication module PROFINET
Communication module Modbus TCP/EtherNet/IP
Communication module CANopen daisy chain
Communication module CANopen Sub-D
Communication module CANopen open style

Complementary

Device connection

In the motor supply line
To the motor delta terminals

[Us] control circuit voltage

110...230 V AC 50/60 Hz - 15...10 %

Apparent power

0.125 kVA

Integrated motor overload protection

True

motor thermal protection class

Class 10E

Protection type

Phase failure line
Integrated thermal protection motor
Thermal protection starter
Current overload motor
Underload motor
Excessive starting time, locked rotor motor
Motor phase loss motor
Line supply phase loss line
Line supply phase loss motor
Thermal protection motor

current limiting %In (5 x Ie maximum)

150…700 %

[In] Rated current pwr loss specifctn

660.0 A

Power loss static current independent

25.0 W

Power loss per device current dependent

1938.0 W

Standards

IEC 60947-4-2
UL 60947-4-2
IEC 60664-1

Product Certifications

CE
cULus
CCC
UKCA
RCM
EAC
DNV
ABS
BV
CCS

marking

CE
CCC
UKCA
EAC
RCM
CULus

[Uc] control circuit voltage

24 V DC

Discrete input number

Discrete input type

STOP) logic inputs, 3500 Ohm
RUN) logic inputs, 3500 Ohm
DI3) programmable as logic input, 3500 Ohm
DI4) programmable as logic input, 3500 Ohm

Input compatibility

STOP discrete input level 1 PLC IEC 61131-2
RUN discrete input level 1 PLC IEC 61131-2
DI3 discrete input level 1 PLC IEC 61131-2
DI4 discrete input level 1 PLC IEC 61131-2

Discrete input logic

Programmable digital input < 5 V

Relay output number

Relay output type

Relay outputs R1A 1 NO
Relay outputs R1B 1 NO
Relay outputs RIC NO/NC programmable

Minimum switching current

100 mA 12 V DC relay outputs

Maximum switching current

Relay outputs 2 A 250 V AC
Relay outputs 2 A 30 V DC
Relay outputs

Discrete output number

Discrete output type

DQ1) programmable digital output <= 30 V
DQ2) programmable digital output <= 30 V

Output compatibility

Open collector level 1 PLC IEC 65A-68

Analogue input number

Analogue input type

AI1/PTC PTC/Pt 100 temperature probe
PTC2 PTC/Pt 100 temperature probe
PTC3 PTC/Pt 100 temperature probe

Analogue output number

Analogue output type

Current output AQ1 0...20 mA or 0...10 V 500 Ohm

Communication Port Protocol

Modbus serial

Connector Type

1 RJ45

Communication data link

Serial

Physical interface

2-wire RS 485

Transmission Rate

1200...256000 bit/s

Transmission frame

RTU

Data format

8 bits, configurable odd, even or no parity

Type of polarization

No impedance Modbus serial

Number of addresses

0…227 Modbus serial

Method of access

Slave Modbus serial

Function Available

External bypass control
Pre-heating
Smoke extraction
Multi-motor cascade
Second motor set
User management
Ports and services hardening
Security event logging
Cybersecure firmware update
Single direction

Display screen available

True

Operating position

Vertical +/- 10 degree

Height

26.4 in (670.0 mm)

Width

15.7 in (400.0 mm)

Depth

12.4 in (314.0 mm)

Product Weight

113.3 lb(US) (51.4 kg)

Environment

Electromagnetic compatibility

Conducted and radiated emissions level A IEC 60947-4-2
Conducted and radiated emissions with bypass level B IEC 60947-4-2
Damped oscillating waves level 3 IEC 61000-4-12
Electrostatic discharge level 3 IEC 61000-4-11
Immunity to electrical transients level 4 IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3
Voltage/current impulse level 3 IEC 61000-4-5

Pollution degree

Level 3

[Uimp] rated impulse withstand voltage

6 kV

[Ui] Rated Insulation Voltage

690 V

Environmental class (during operation)

Class 3C3 according to IEC 60721-3-3
Class 3S2 according to IEC 60721-3-3

Relative humidity

0…95 % without condensation or dripping water IEC 60068-2-3

Ambient air temperature for operation

104…140 °F (40…60 °C) with current derating of 2 % per °C)
5…104 °F (-15…40 °C) without derating)
