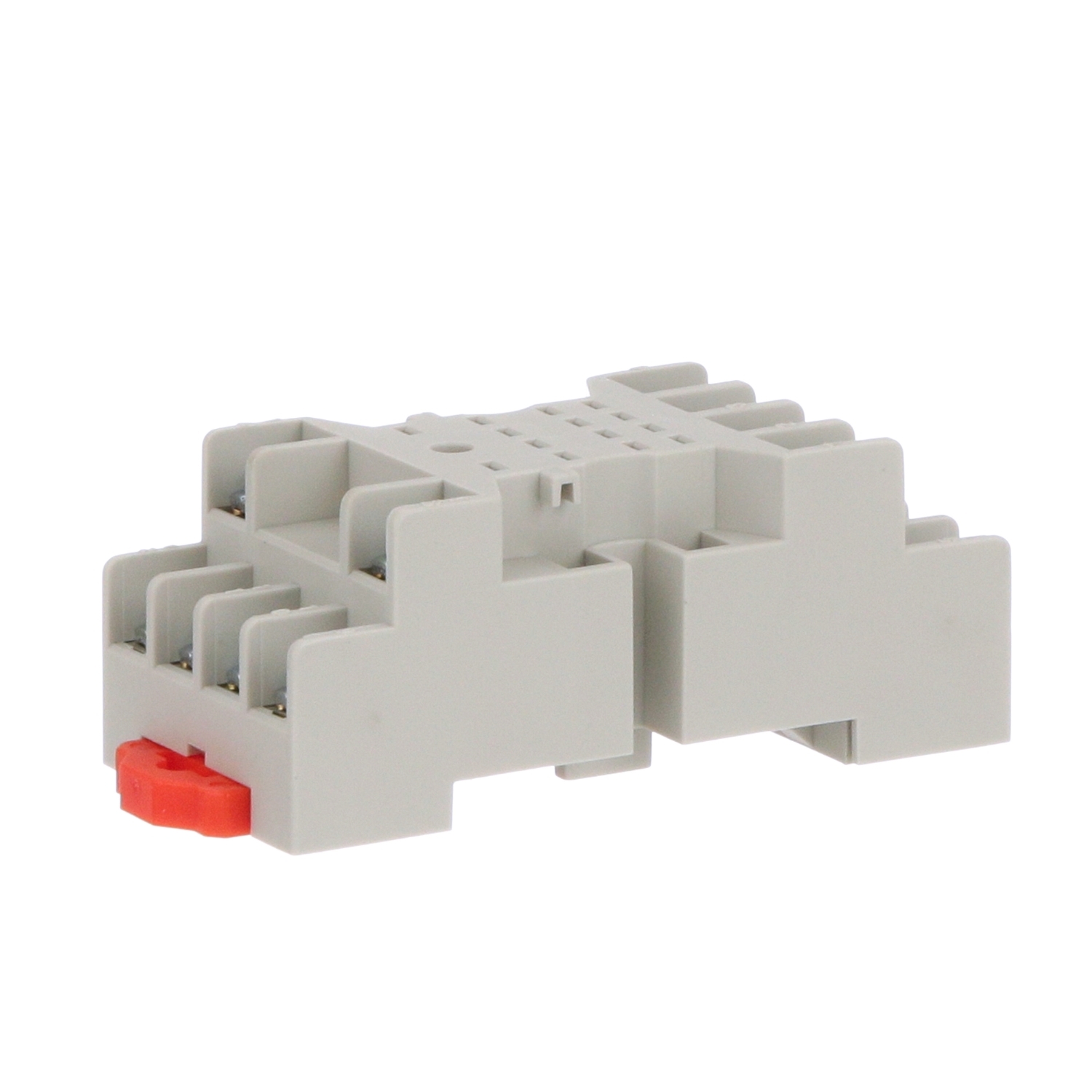

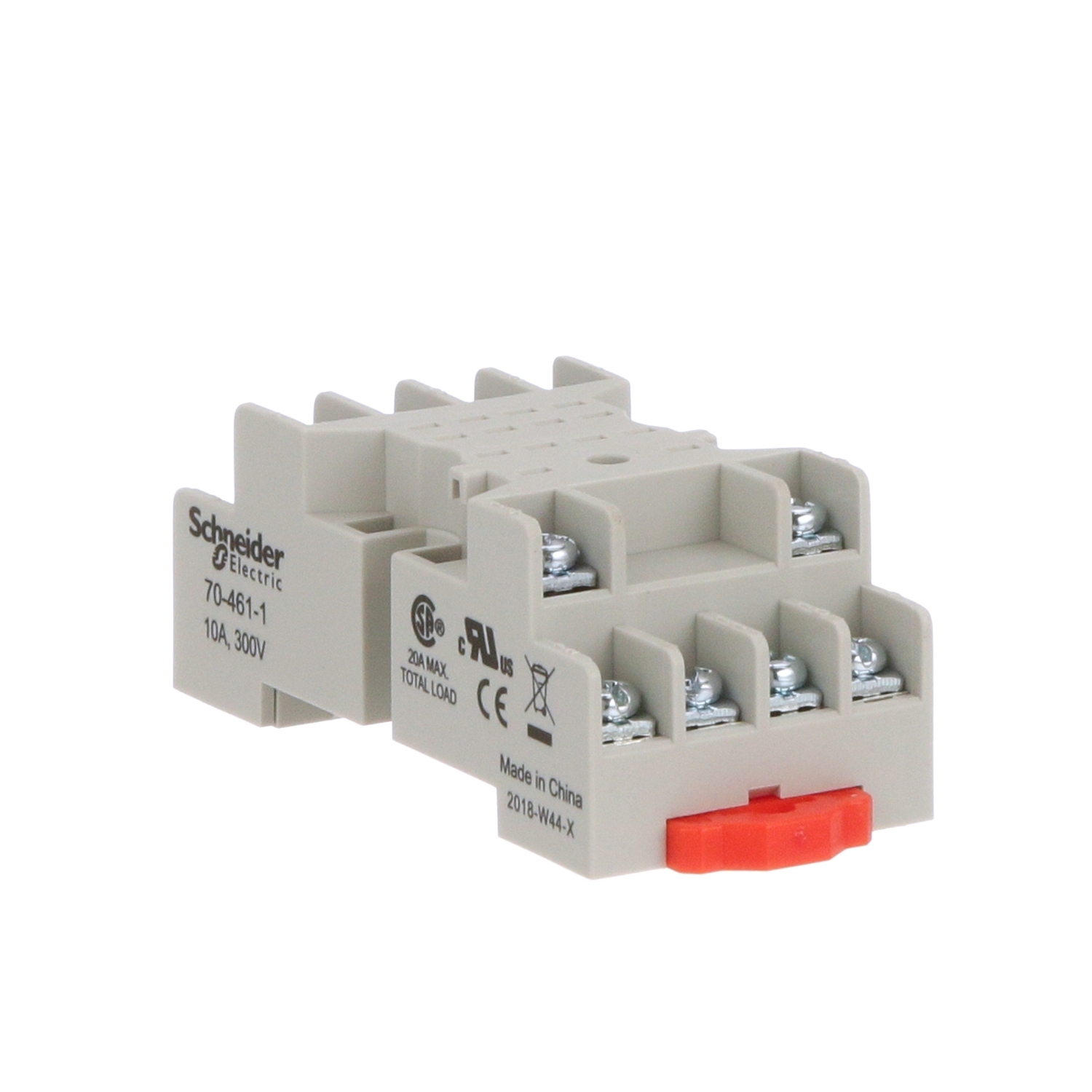

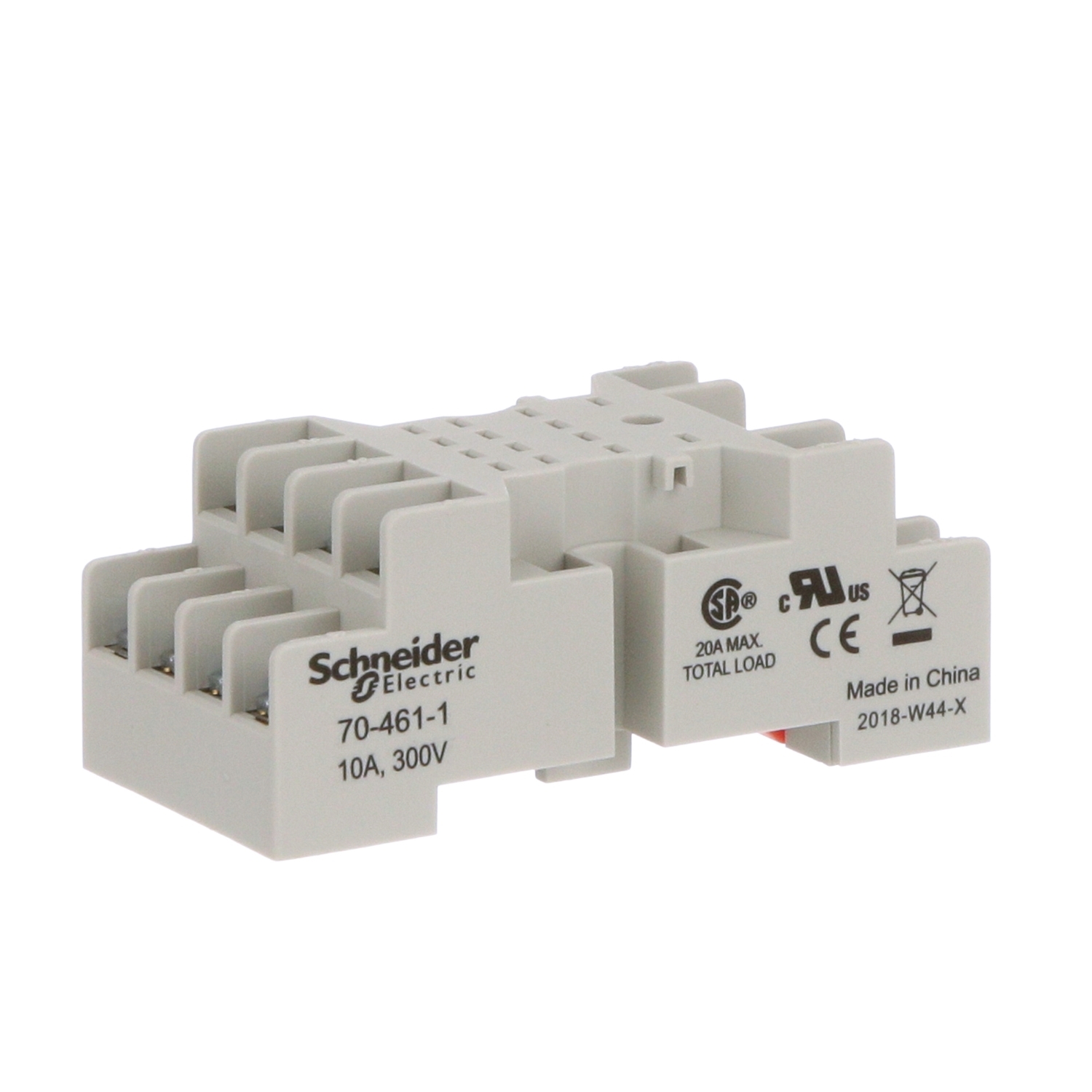

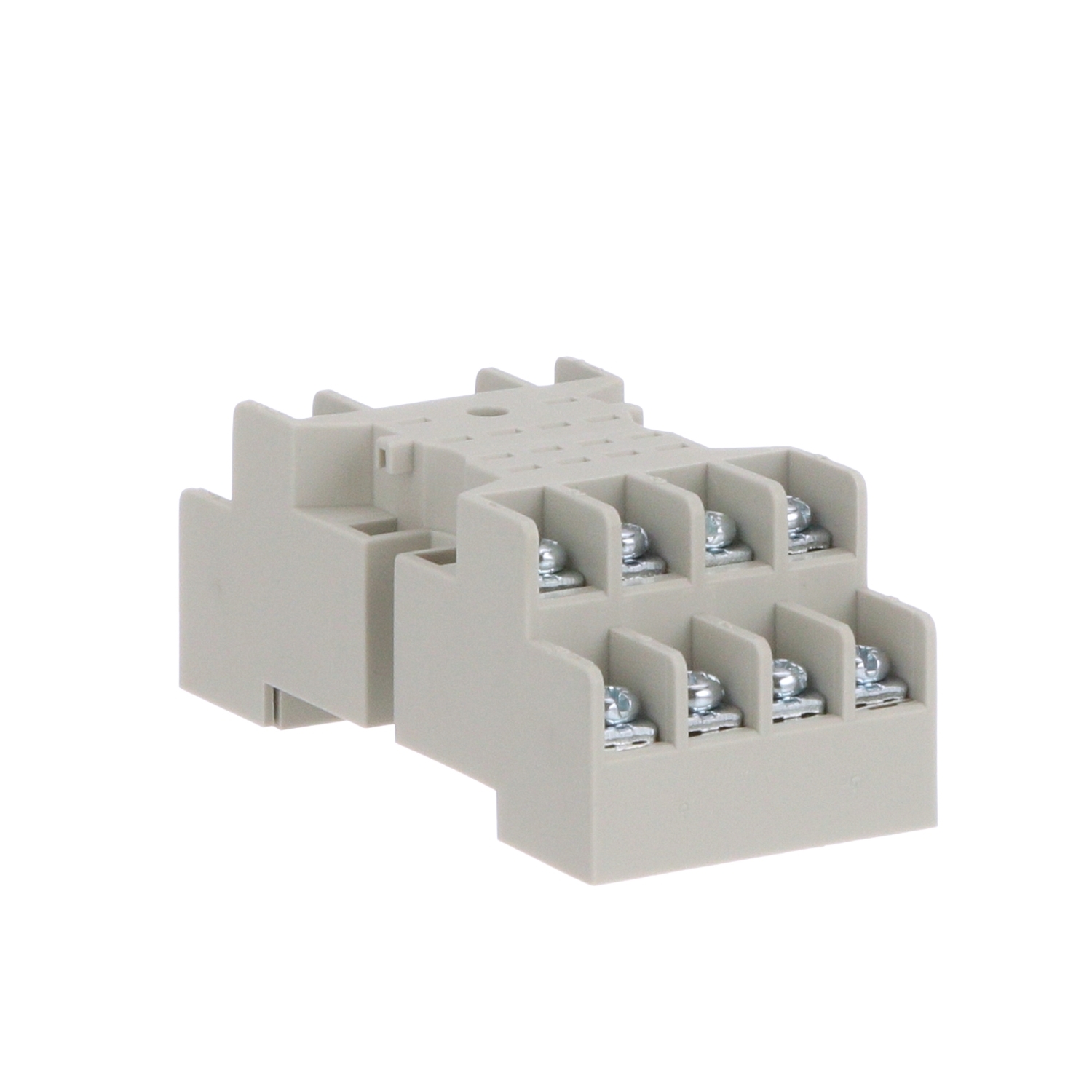

Socket, SE Relays, 10A, 14 pins, screw clamp terminals, mixed contact, for 782H / 792 relays

Product Range

Harmony Electromechanical Relays

Product Type

Socket

Product Compatibility

relay 792XDX
relay 782XDXH

Number of Terminals

14

Switch Function

4PDT

Contact Composition

4 C/O

Rated Current

10 A

[Ue] rated operational voltage

300 V

Contact Terminal Arrangement

Mixed

Connections Terminals

Panel screw clamp terminals, clamping connection capacity:2 x 1.5...2 x 2.5 mm², AWG 16...AWG 14 solid for output
Panel screw clamp terminals, clamping connection capacity:2 x 1.5...2 x 2.5 mm², AWG 16...AWG 14 stranded for output

Tightening Torque

Chassis 0.8 N.m, AWG 16...AWG 14, copper
Screw < 0.8 N.m

Fixing Mode

By screws, M3 panel

Shape of Screw Head

Combination roundhead

Product Weight

1.8 oz (50 g)

Width

1.2 in (30.7 mm)

Depth

2.5 in (64 mm)

Ambient Air Temperature for Storage

-40…221 °F (-40…105 °C)

Ambient Air Temperature for Operation

-40…158 °F (-40…70 °C)

Flame Retardance

UL94-V0

Product Certifications

UL
CSA
CE

Category

US10CP221127

Discount Schedule

0CP2

GTIN

3606480277948

Returnability

Yes

Country of origin

CN

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.7 in (6.9 cm)

Package 1 Width

1.21 in (3.07 cm)

Package 1 Length

1.00 in (2.54 cm)

Package 1 Weight

1.8 oz (50 g)
