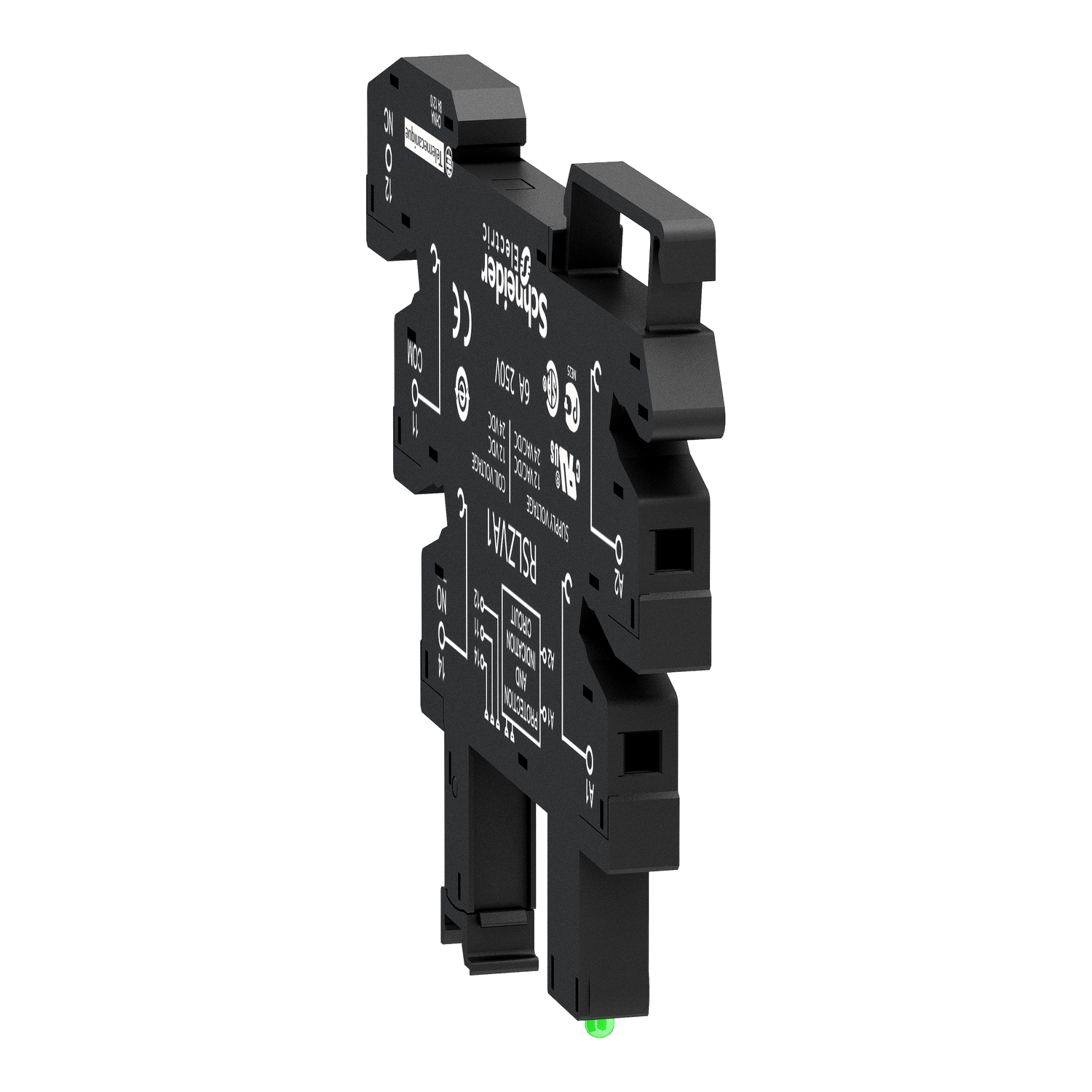

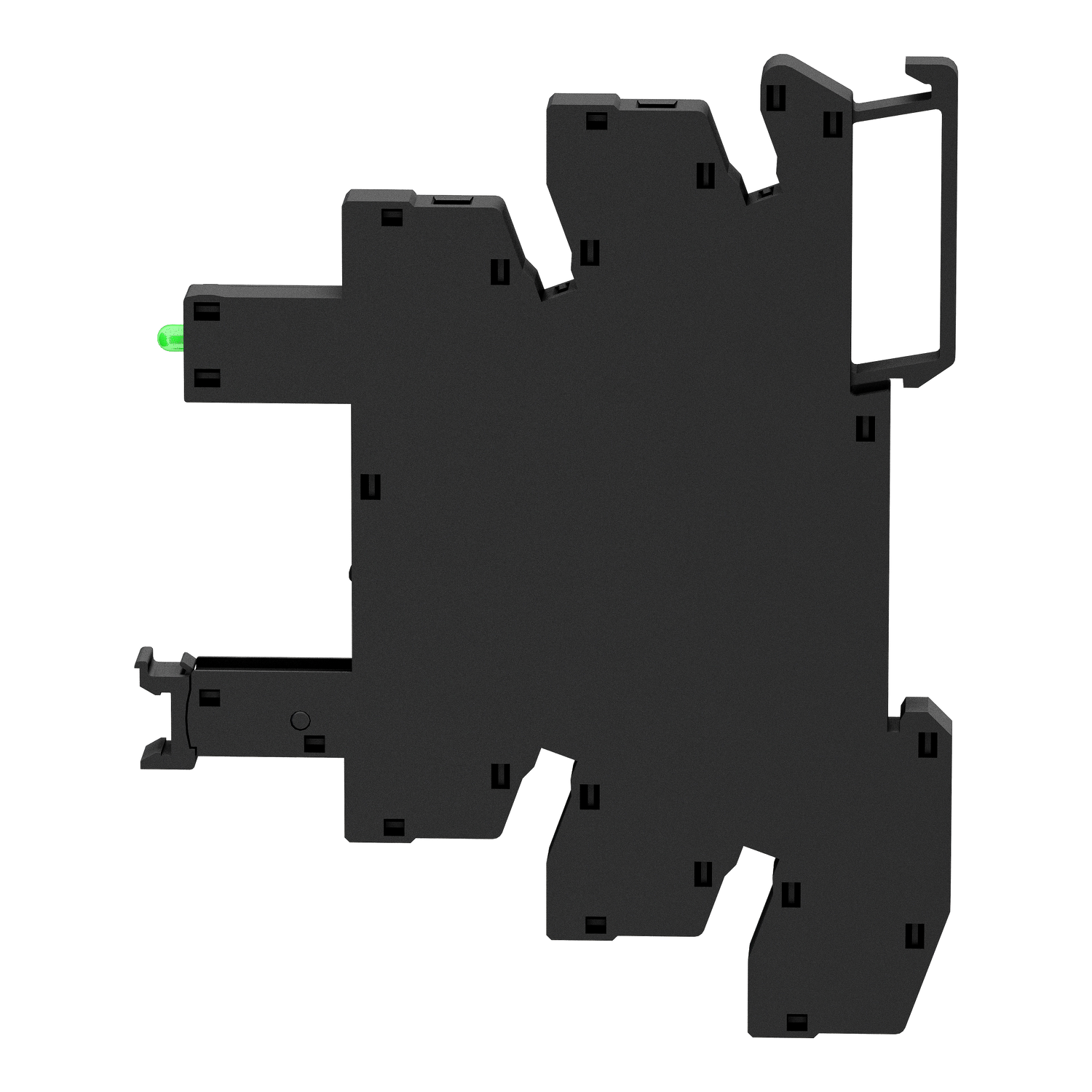

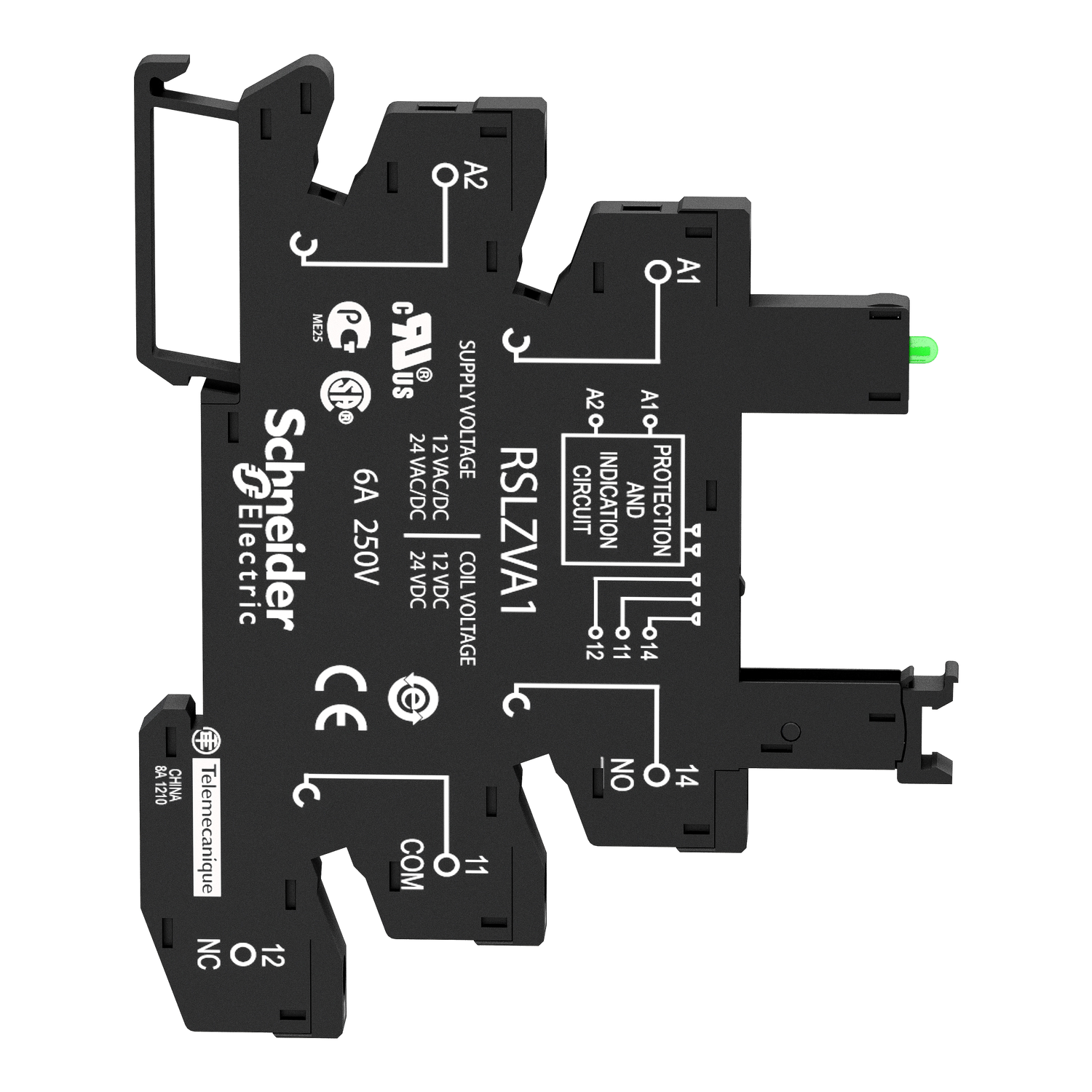

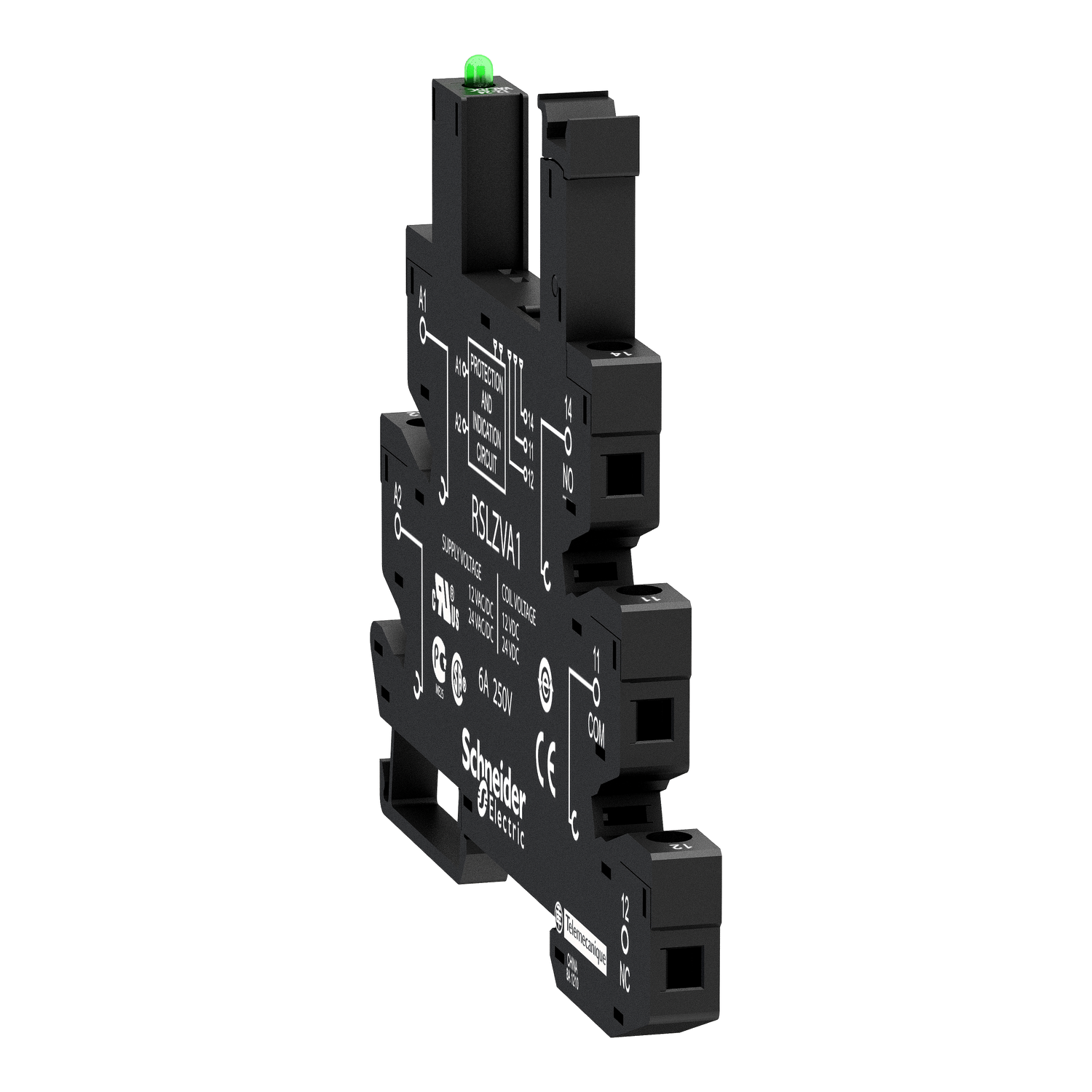

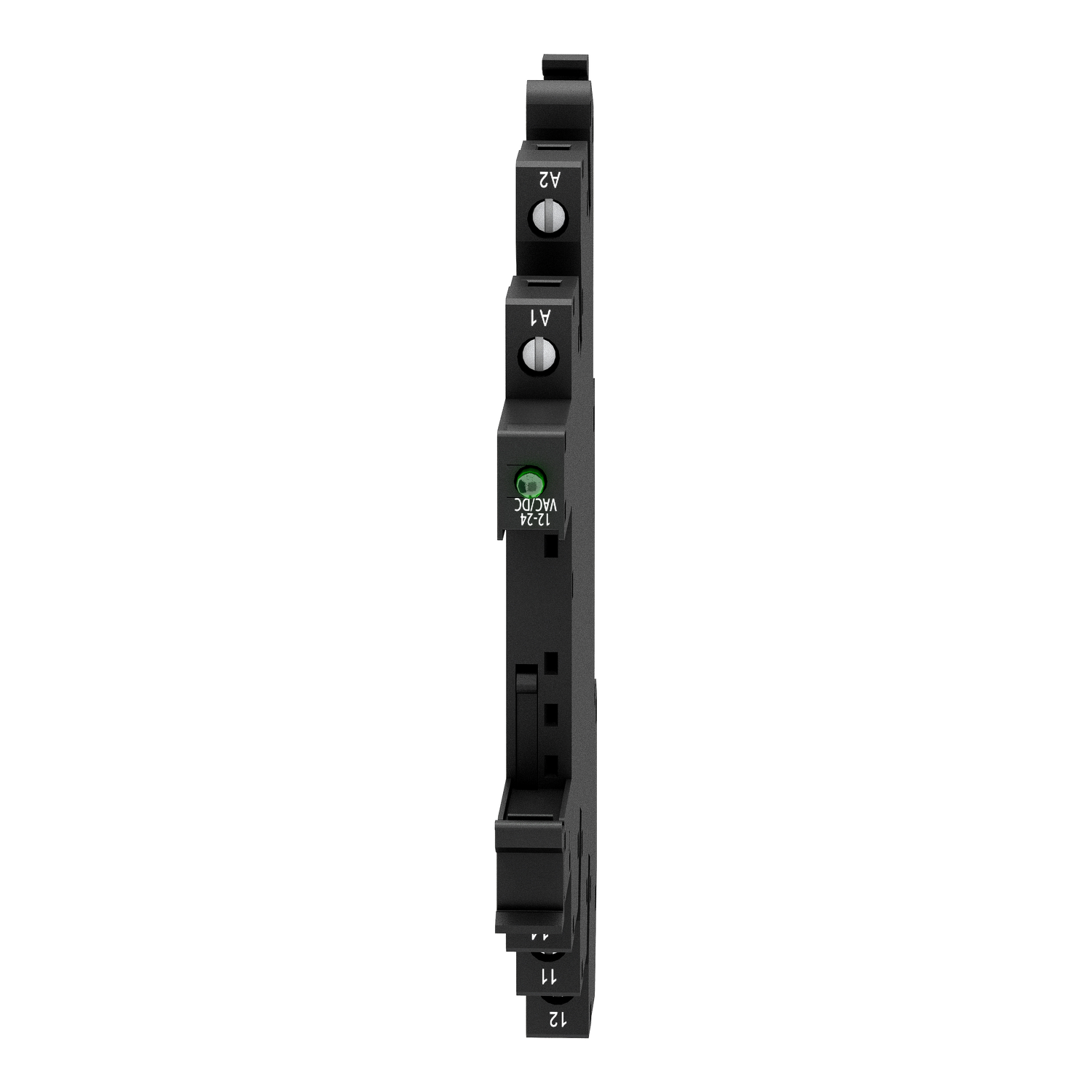

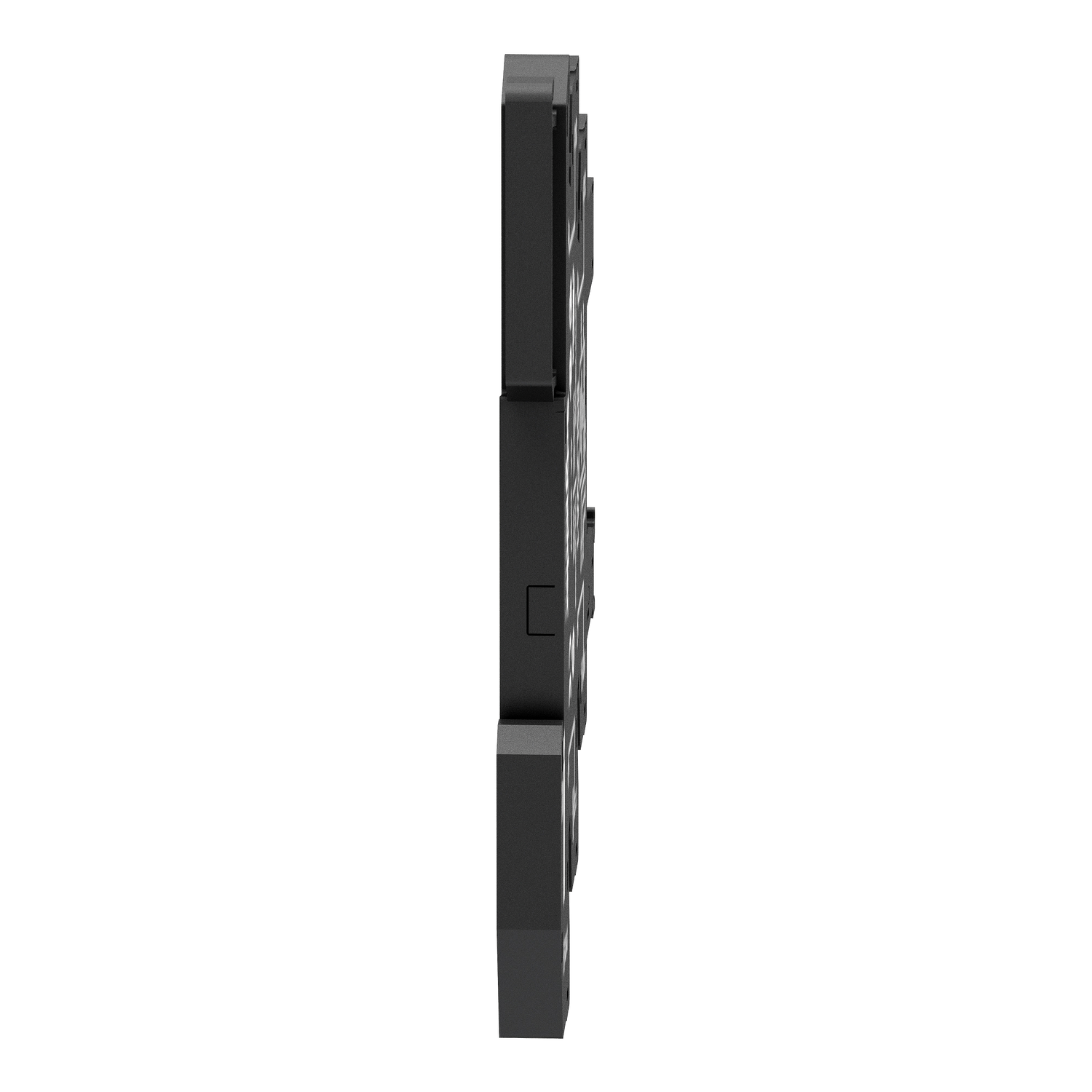

socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC

Range of Product

Harmony Electromechanical Relays

Device short name

RSLZ

Product or Component Type

Socket

device presentation

Basic element

Product compatibility

Plug-in relay RSL 1 C/O 12 V DC
Plug-in relay RSL 1 C/O 24 V DC

Contacts type and composition

1 C/O

[Ith] conventional free air thermal current

6 A

Switching voltage

12 V AC/DC
24 V AC/DC

Rated operational voltage limits

11.4...14.4 V
21.6...28.8 V

[Ue] rated operational voltage

< 300 V AC

Group of product

RSL_CON_12-24

Shape of pin

Flat

Contact terminal arrangement

Separate

Connections - terminals

Connector, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
Connector, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end

Compatibility code

RSLZ

Tightening torque

< 0.4 N.m M2.5

Fixing mode

Plastic compression spring (35 mm symmetrical DIN rail)

[Uimp] rated impulse withstand voltage

3.6 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

CAD overall width

0.2 in (6.2 mm)

CAD overall height

3.09 in (78.6 mm)

CAD overall depth

3.7 in (95 mm)

Net Weight

0.051 lb(US) (0.023 kg)

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 61984
UL 508

Product Certifications

CSA
GOST

marking

CE

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Ambient Air Temperature for Operation

-40…158 °F (-40…70 °C)

Category

US10CP221127

Discount Schedule

0CP2

GTIN

3606480078026

Returnability

Yes

Country of origin

CN

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.346 in (8.500 cm)

Package 1 Width

2.835 in (7.200 cm)

Package 1 Length

4.252 in (10.800 cm)

Package 1 Weight

0.811 oz (23.000 g)

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

3.346 in (8.500 cm)

Package 2 Width

2.835 in (7.200 cm)

Package 2 Length

4.252 in (10.800 cm)

Package 2 Weight

9.242 oz (262.000 g)

Unit Type of Package 3

S03

Number of Units in Package 3

300

Package 3 Height

11.811 in (30.000 cm)

Package 3 Width

11.811 in (30.000 cm)

Package 3 Length

15.748 in (40.000 cm)

Package 3 Weight

18.508 lb(US) (8.395 kg)

Warranty

18 months
