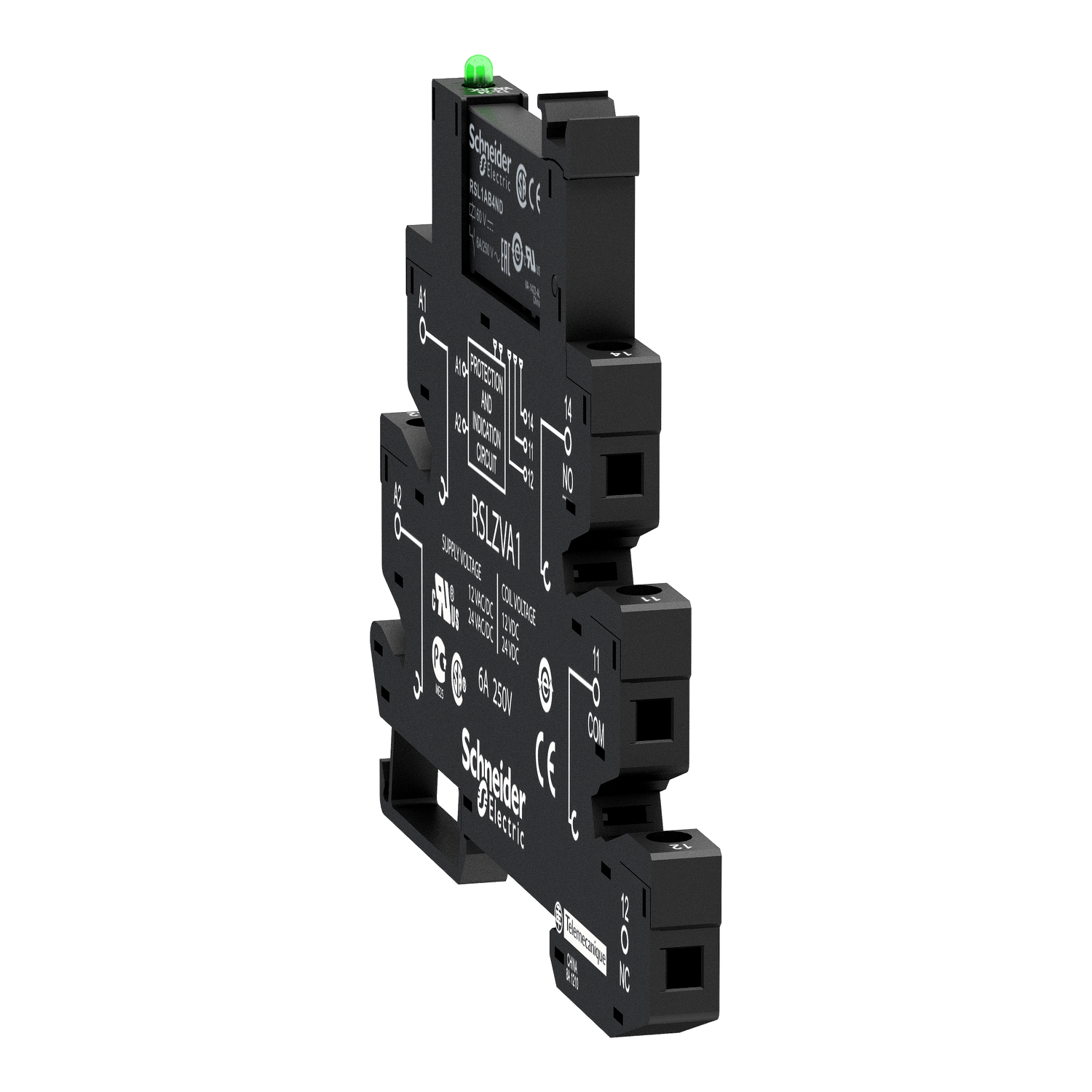

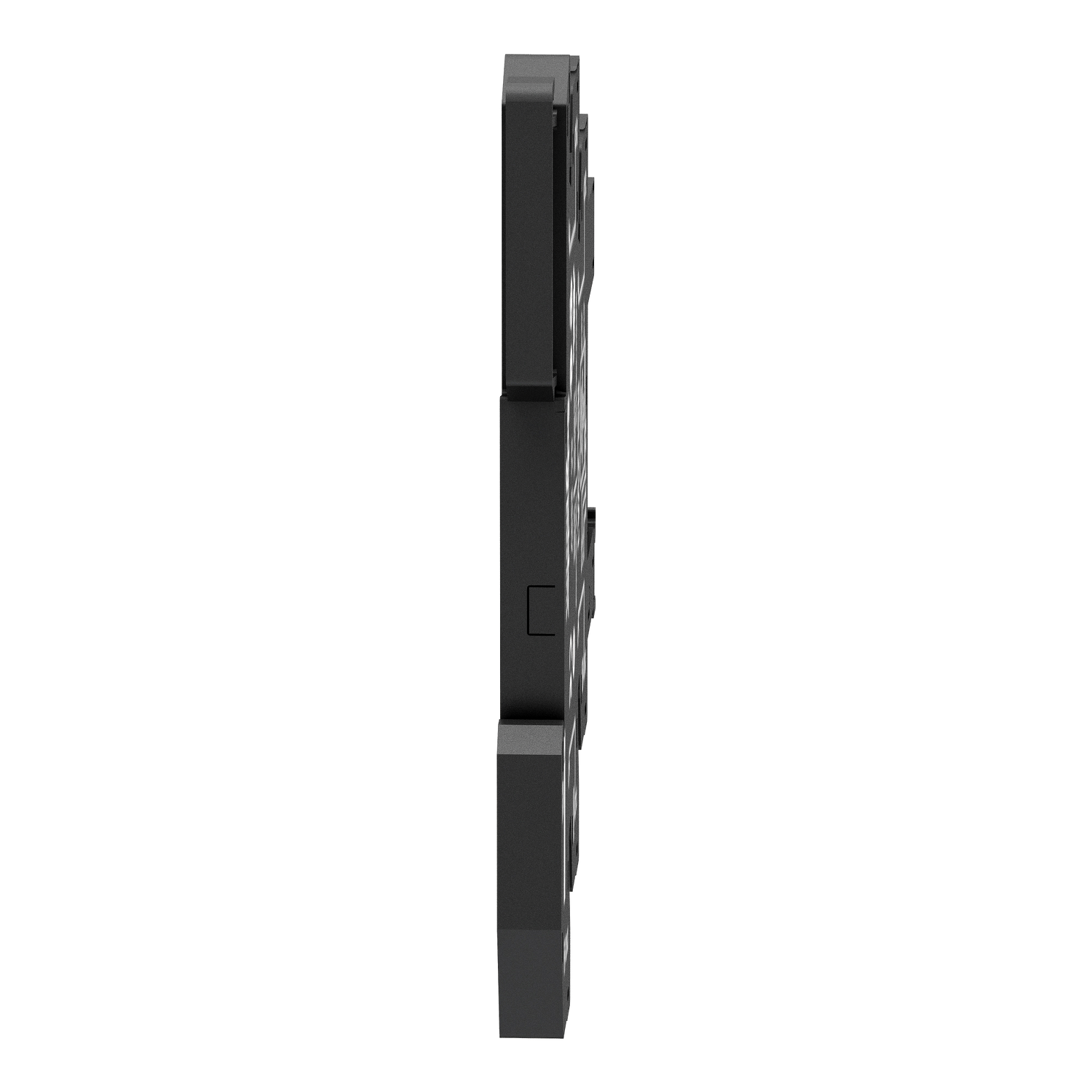

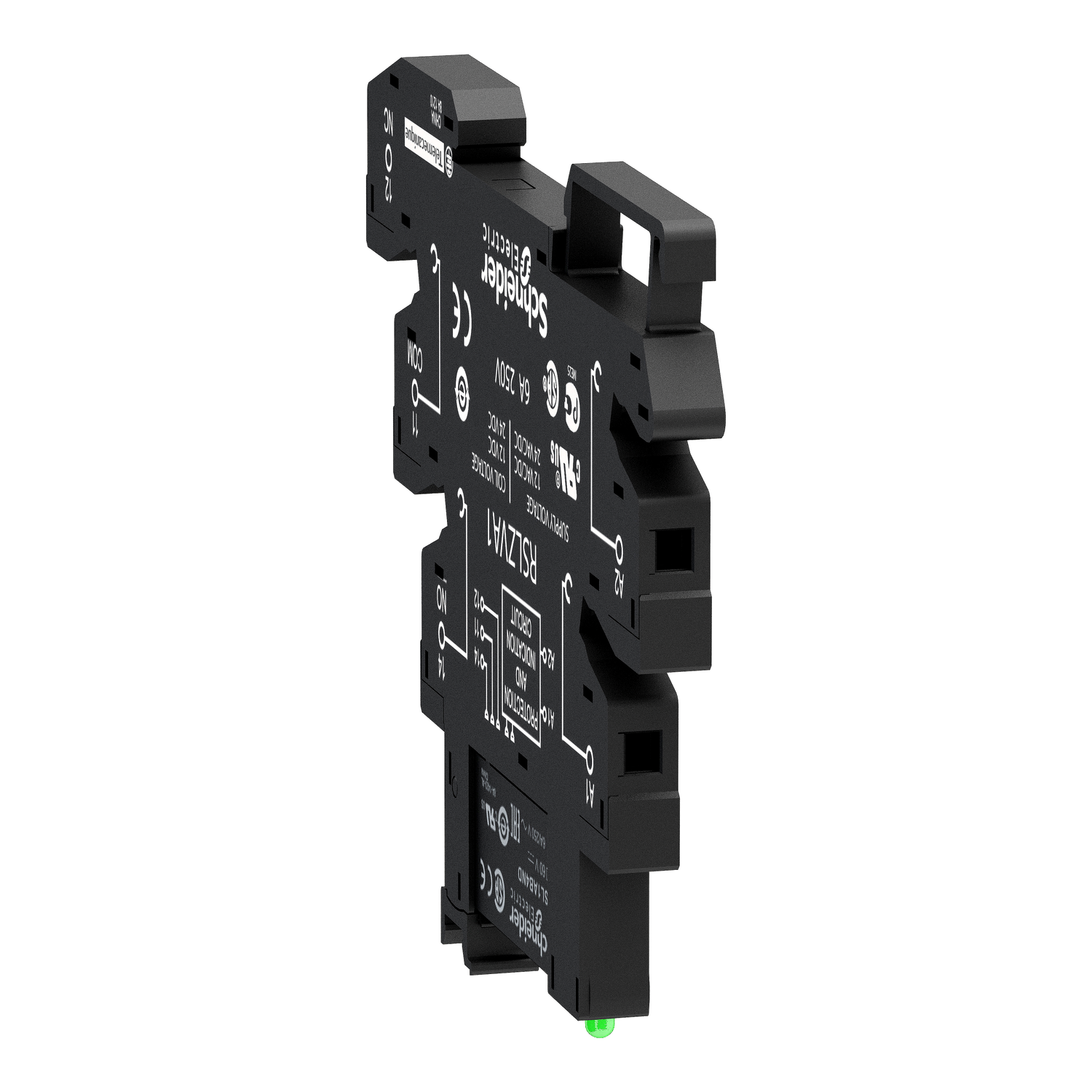

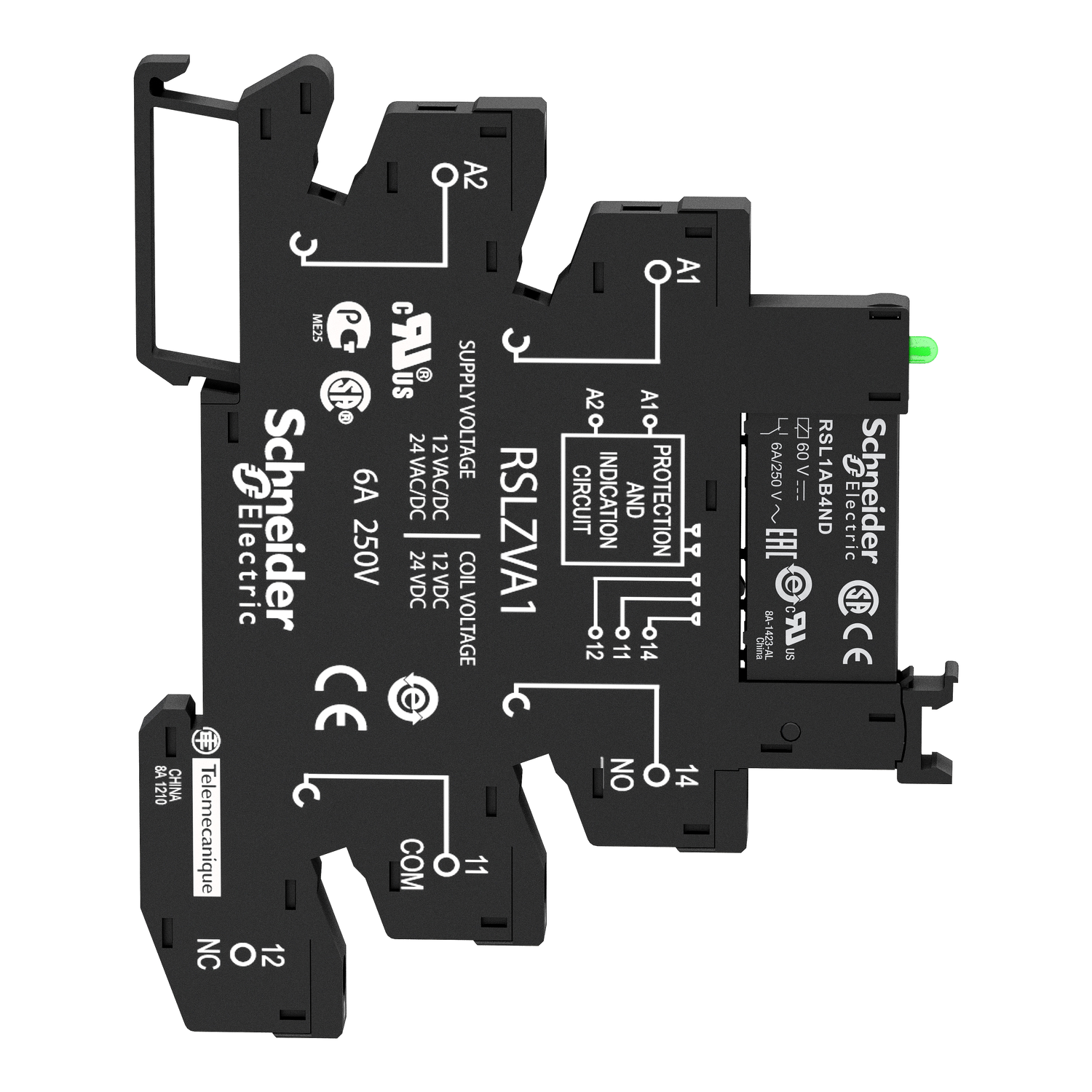

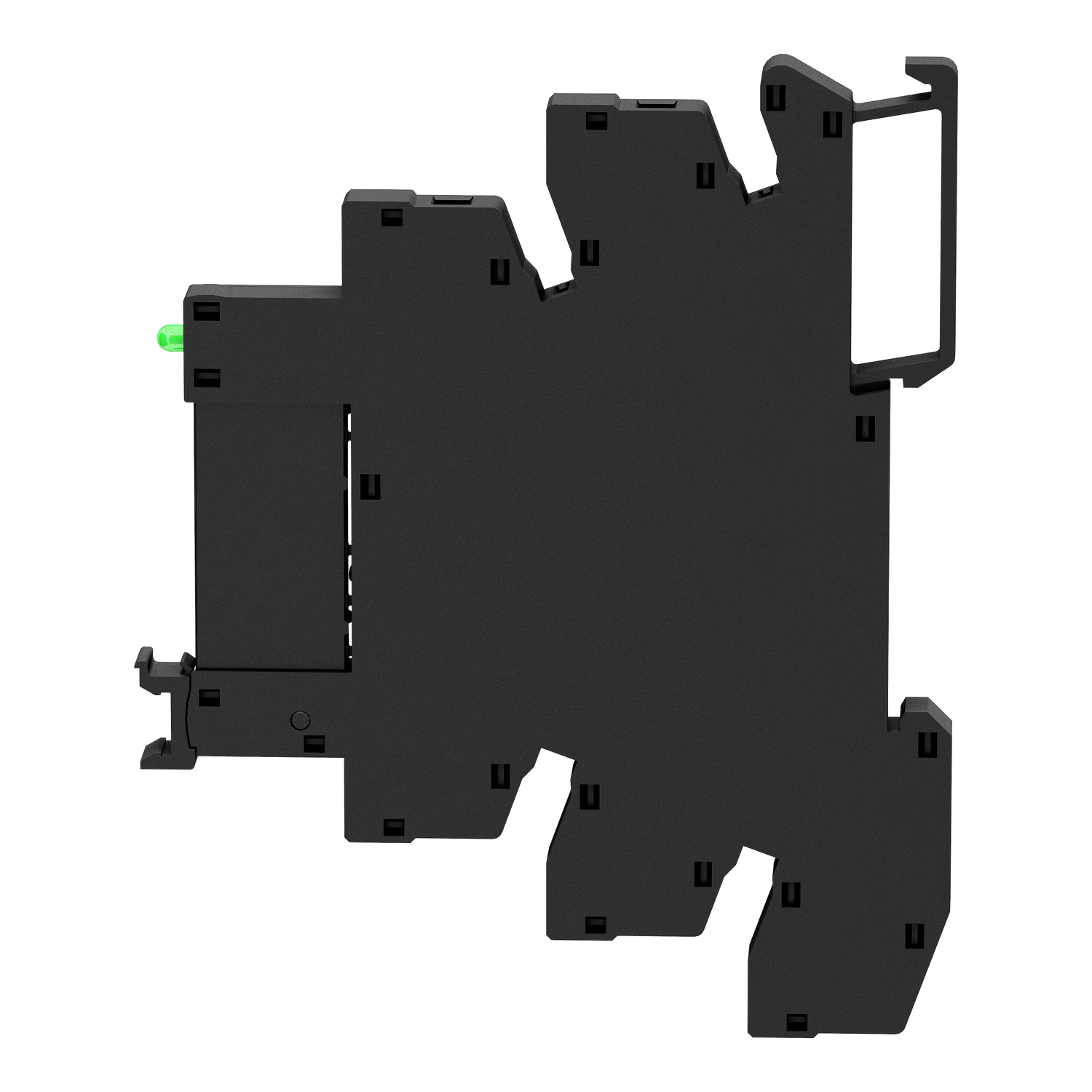

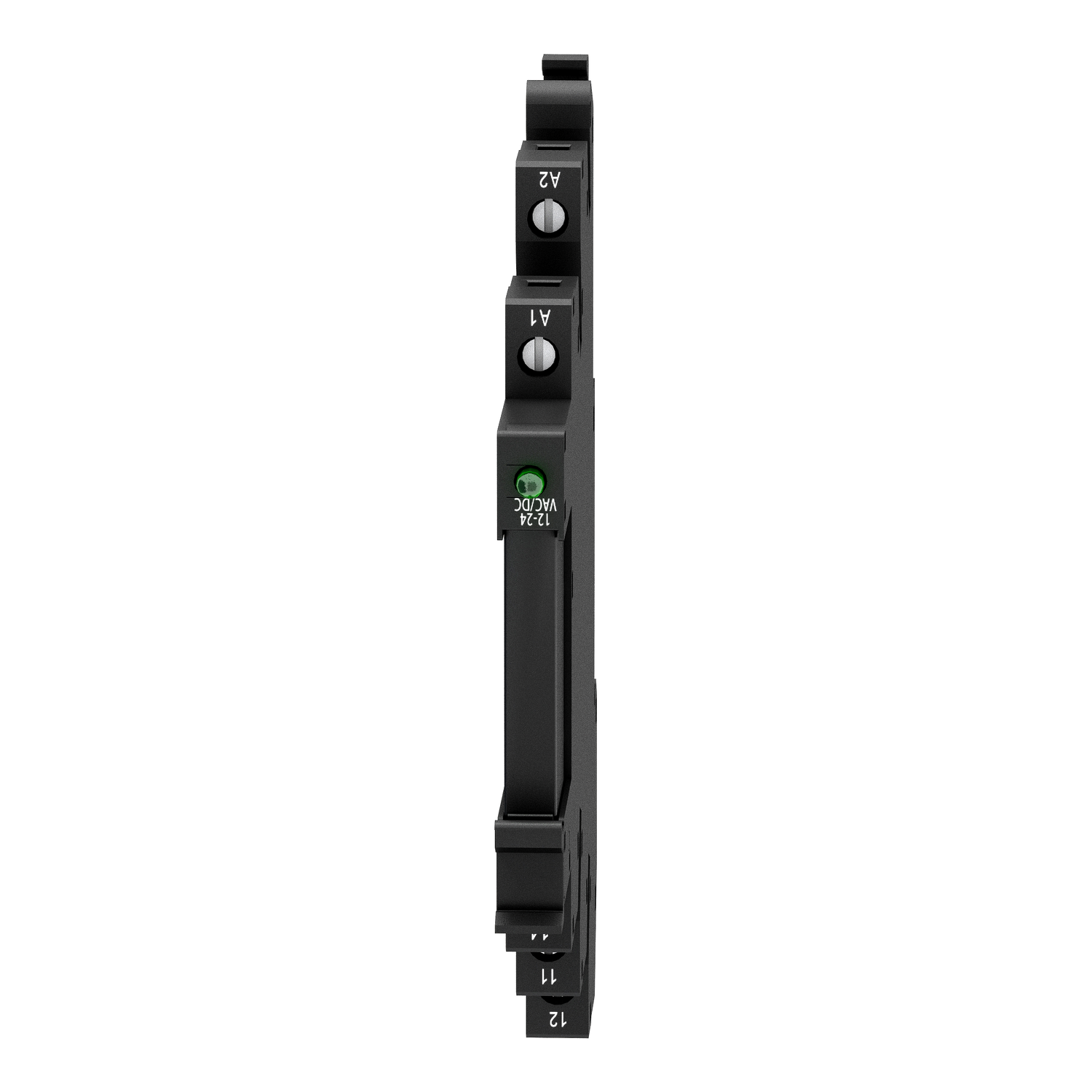

slim interface relay, Harmony Electromechanical Relays, pre assembled, 6A, 1CO, with LED, screw connec to rs, 110V AC/DC

Range of Product

Harmony Electromechanical Relays

Series name

Interface relay

Product or Component Type

Pre-assembled plug-in relay with socket

Device short name

RSL

Contacts type and composition

1 C/O

Contact operation

Standard

[Uc] control circuit voltage

110 V AC/DC

[Ithe] conventional enclosed thermal current

6 A -40…131 °F (-40…55 °C)

Status LED

With

Shape of pin

Flat (PCB type)

Fixing Mode

Plastic compression spring

Average resistance

20500 Ohm DC 23 °C +/- 10 %

[Ui] rated insulation voltage

250 V IEC
277 V cUL

[Uimp] rated impulse withstand voltage

6 kV IEC

Contacts material

Silver alloy (AgSnO2)

[Ie] rated operational current

6 A 1 C/O AC-1/DC-1)IEC/UL

minimum switching current

100 mA

Maximum switching voltage

277 V

Minimum switching voltage

12 V

Maximum switching capacity

1500 VA
150 W

Minimum switching capacity

120 mW

Operating rate

<= 72000 cycles/hour no-load
<= 360 cycles/hour under load

Mechanical durability

10000000 cycles

Electrical durability

60000 cycles resistive, 6 A 250 V, AC-1

Operating time

5 ms reset
12 ms

reset time

20 ms

marking

CE

Protection category

RT III

Test levels

Level A group mounting

Operating position

Any position

Height

3.09 in (78.6 mm)

Width

0.2 in (6.2 mm)

Depth

3.7 in (95 mm)

Terminals description ISO n°1

(A1-A2)CO
(11-12-14)OC

Sale per indivisible quantity

10

Net Weight

0.064 lb(US) (0.029 kg)

Load current

6 A 250 V AC 0.5 mm mounting distance

Average coil consumption

0.17 W, DC

Drop-out voltage threshold

>= 0.05 Uc

Contact terminal arrangement

Separate

Connections - terminals

Screw connectors, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
Screw connectors, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end

Tightening torque

< 0.5 N.m M2.5

Safety reliability data

B10d = 60000

Control Type

Without push-button

Mounting Support

35 mm symmetrical DIN rail

device presentation

Complete product

Input voltage

110 V AC/DC 88...126.5 V)

Dielectric strength

1000 V AC between contacts
4000 V AC between coil and contact

Standards

CSA C22.2 No 14
IEC 61810-1
UL 508

Product Certifications

CSA
UL
GOST

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Vibration resistance

10 gn +/- 1 mm 10…150 Hz)10 cycles not operating IEC 60068-2-6
5 gn +/- 1 mm 10…150 Hz)10 cycles in operation IEC 60068-2-6

IP degree of protection

IP40 conforming to IEC 60529

Shock resistance

10 gn 11 ms) in operation IEC 60068-2-27
5 gn 11 ms) not operating IEC 60068-2-27

Ambient air temperature for operation

-40…158 °F (-40…70 °C)

Category

US10CP221127

Discount Schedule

0CP2

GTIN

3606480077852

Returnability

Yes

Country of origin

CN

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.756 in (7.000 cm)

Package 1 Width

3.386 in (8.600 cm)

Package 1 Length

4.055 in (10.300 cm)

Package 1 Weight

0.988 oz (28.000 g)

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

2.756 in (7.000 cm)

Package 2 Width

3.386 in (8.600 cm)

Package 2 Length

4.055 in (10.300 cm)

Package 2 Weight

11.005 oz (312.000 g)

Unit Type of Package 3

S03

Number of Units in Package 3

300

Package 3 Height

11.811 in (30.000 cm)

Package 3 Width

11.811 in (30.000 cm)

Package 3 Length

15.748 in (40.000 cm)

Package 3 Weight

21.881 lb(US) (9.925 kg)

Warranty

18 months
