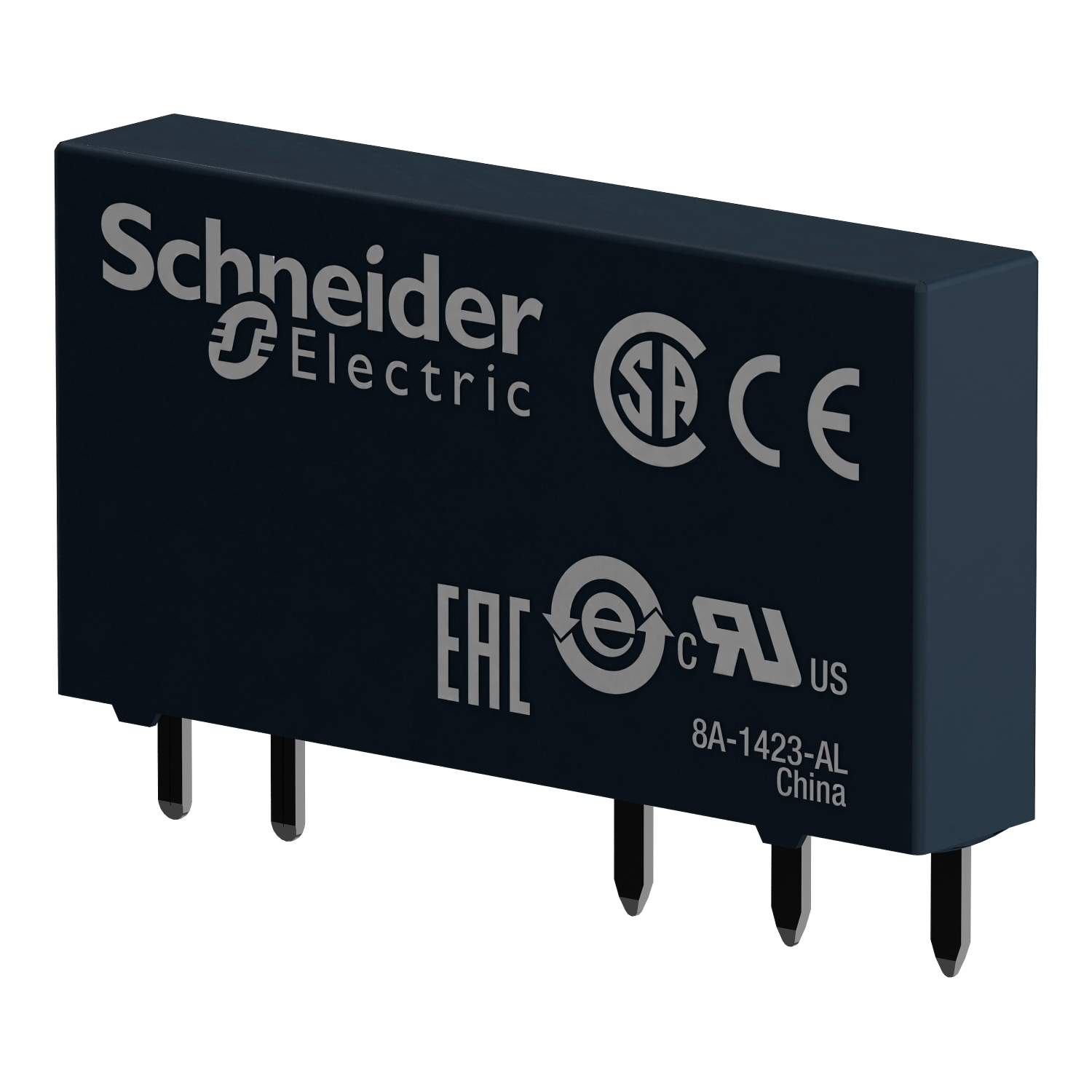

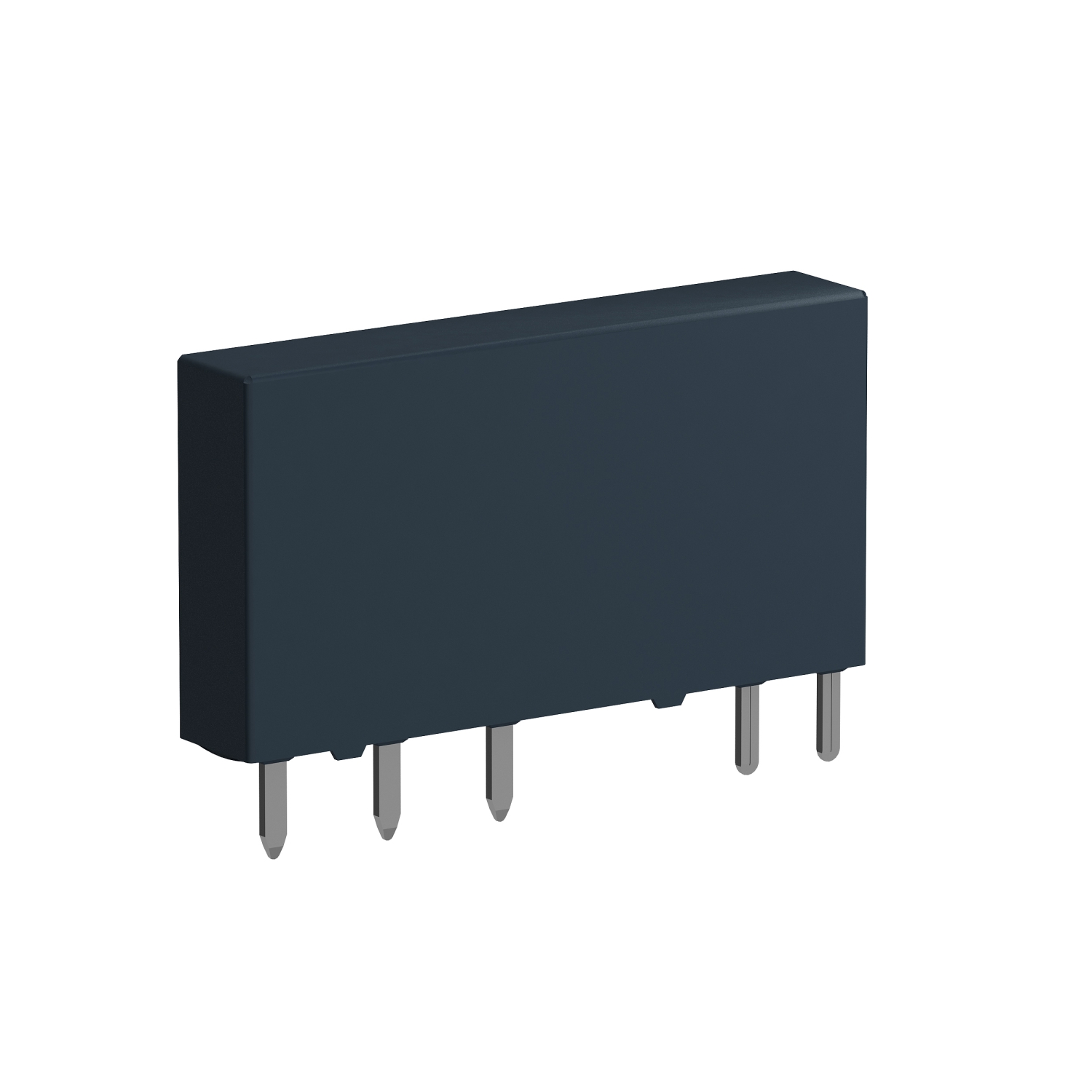

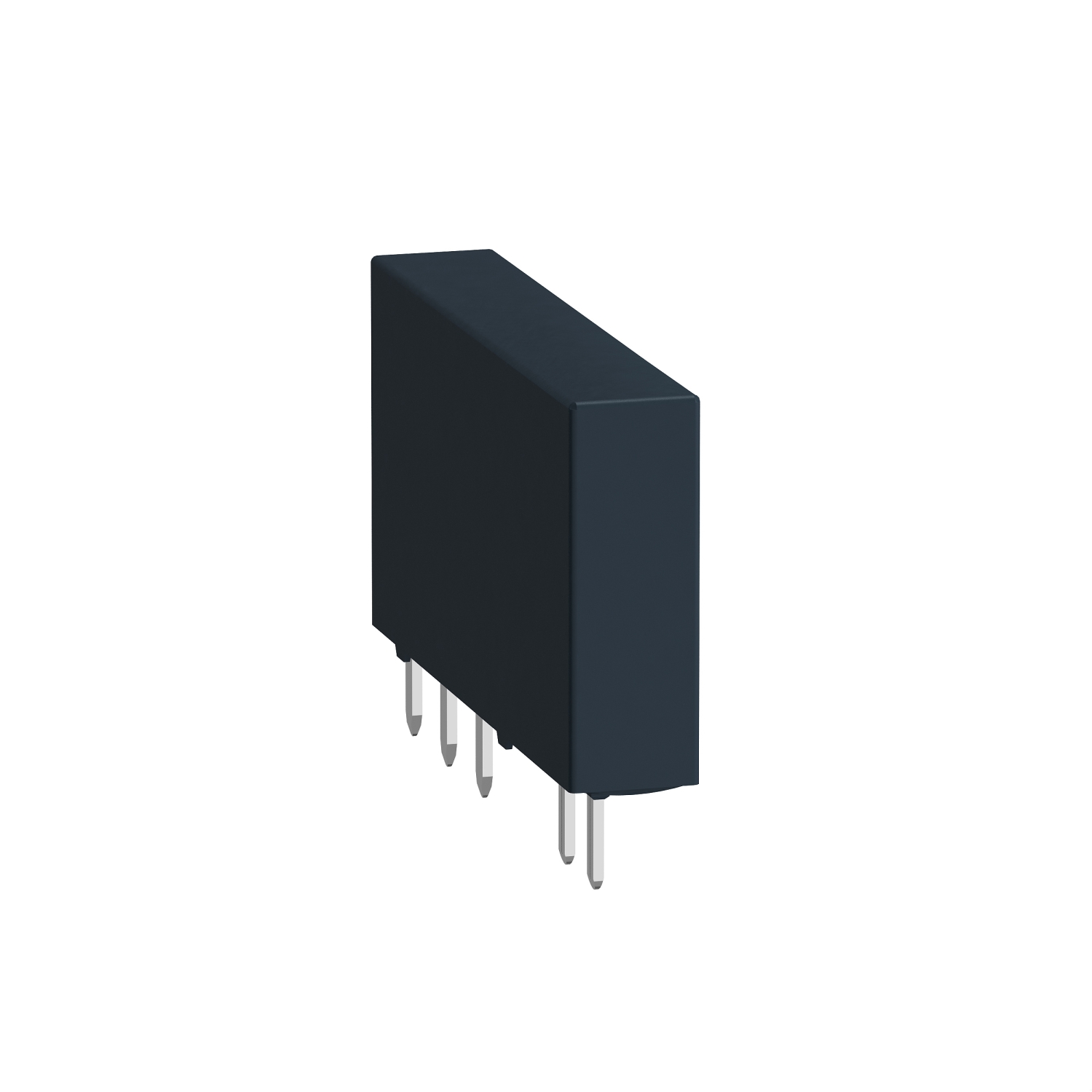

slim interface plug in relay, Harmony Electromechanical Relays, 6A, 1CO, standard, 60V DC

Range of Product

Harmony Electromechanical Relays

Series name

Slim interface relay

Product or Component Type

Plug-in relay

Device short name

RSL

Contacts type and composition

1 C/O

Contact operation

Standard

[Uc] control circuit voltage

60 V DC

[Ithe] conventional enclosed thermal current

6 A -40…131 °F (-40…55 °C)

Status LED

Without

Control Type

Without push-button

Shape of pin

Flat (PCB type)

Average resistance

16600 Ohm at 73 °F (23 °C) +/- 15 %

Rated operational voltage limits

45...84 V DC

[Ui] rated insulation voltage

250 V IEC
277 V cUL

[Uimp] rated impulse withstand voltage

6 kV IEC

Contacts material

Silver alloy (AgSnO2)

[Ie] rated operational current

6 A AC-1/DC-1)IEC/UL

minimum switching current

10 mA

Maximum switching voltage

277 V

Minimum switching voltage

12 V

Maximum switching capacity

1500 VA
50 W

Minimum switching capacity

120 mW

Operating rate

<= 360 cycles/hour under load
<= 18000 cycles/hour no-load

Mechanical durability

10000000 cycles

Electrical durability

60000 cycles, 6 A at 250 V, AC-1 C/O

Operating time

5 ms reset
12 ms

Protection category

RT III

Test levels

Level A group mounting

Operating position

Any position

Width

0.2 in (5 mm)

Height

1.1 in (28 mm)

Depth

0.7 in (18.5 mm)

Terminals description ISO n°1

(11-12-14)OC
(A1-A2)CO

Net Weight

0.0119 lb(US) (0.0054 kg)

Load current

6 A 250 V AC 0.5 mm mounting distance

Average coil consumption

0.21 W

Drop-out voltage threshold

>= 0.05 Uc

Safety reliability data

B10d = 60000

Mounting Support

Socket or PCB

device presentation

Complete product

Dielectric strength

1000 V AC between contacts
4000 V AC between coil and contact

Standards

CSA C22.2 No 14
UL 508
IEC 61810-1

Product Certifications

CSA
UL
EAC

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Vibration resistance

+/- 1 mm 10…55 Hz)IEC 60068-2-6

IP degree of protection

IP40 conforming to IEC 60529

Shock resistance

5 gn 11 ms) not operating IEC 60068-2-27
5 gn 11 ms) in operation IEC 60068-2-27

Ambient air temperature for operation

-40…131 °F (-40…55 °C)

Category

US10CP221127

Discount Schedule

0CP2

GTIN

3606480078019

Returnability

Yes

Country of origin

CN

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.2 in (0.5 cm)

Package 1 Width

0.6 in (1.5 cm)

Package 1 Length

1.1 in (2.8 cm)

Package 1 Weight

0.2 oz (5 g)

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

0.3 in (0.7 cm)

Package 2 Width

0.9 in (2.4 cm)

Package 2 Length

12.008 in (30.5 cm)

Package 2 Weight

2.4 oz (69 g)

Unit Type of Package 3

S01

Number of Units in Package 3

500

Package 3 Height

5.9 in (15 cm)

Package 3 Width

5.9 in (15 cm)

Package 3 Length

15.7 in (40 cm)

Package 3 Weight

8.455 lb(US) (3.835 kg)

Warranty

18 months
