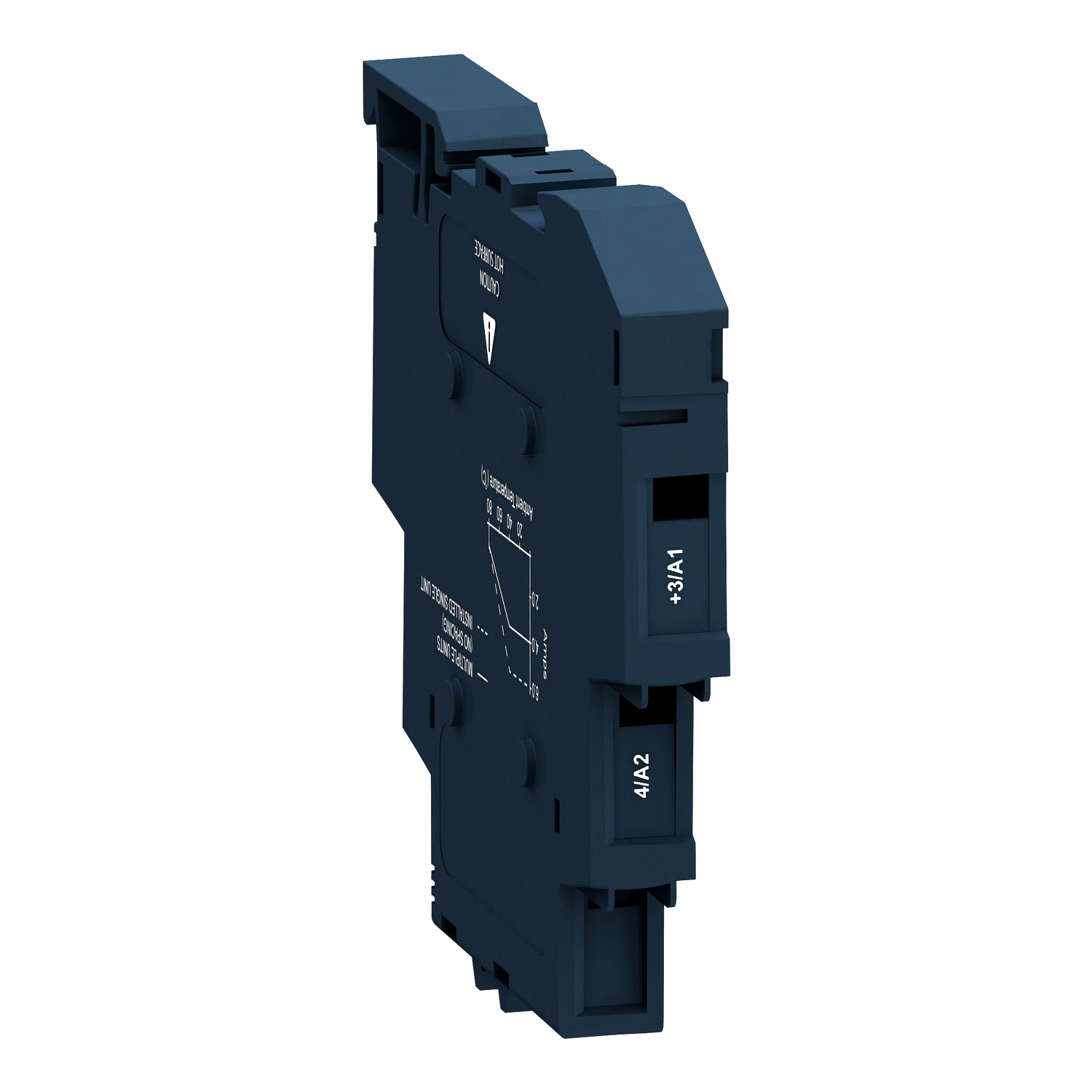

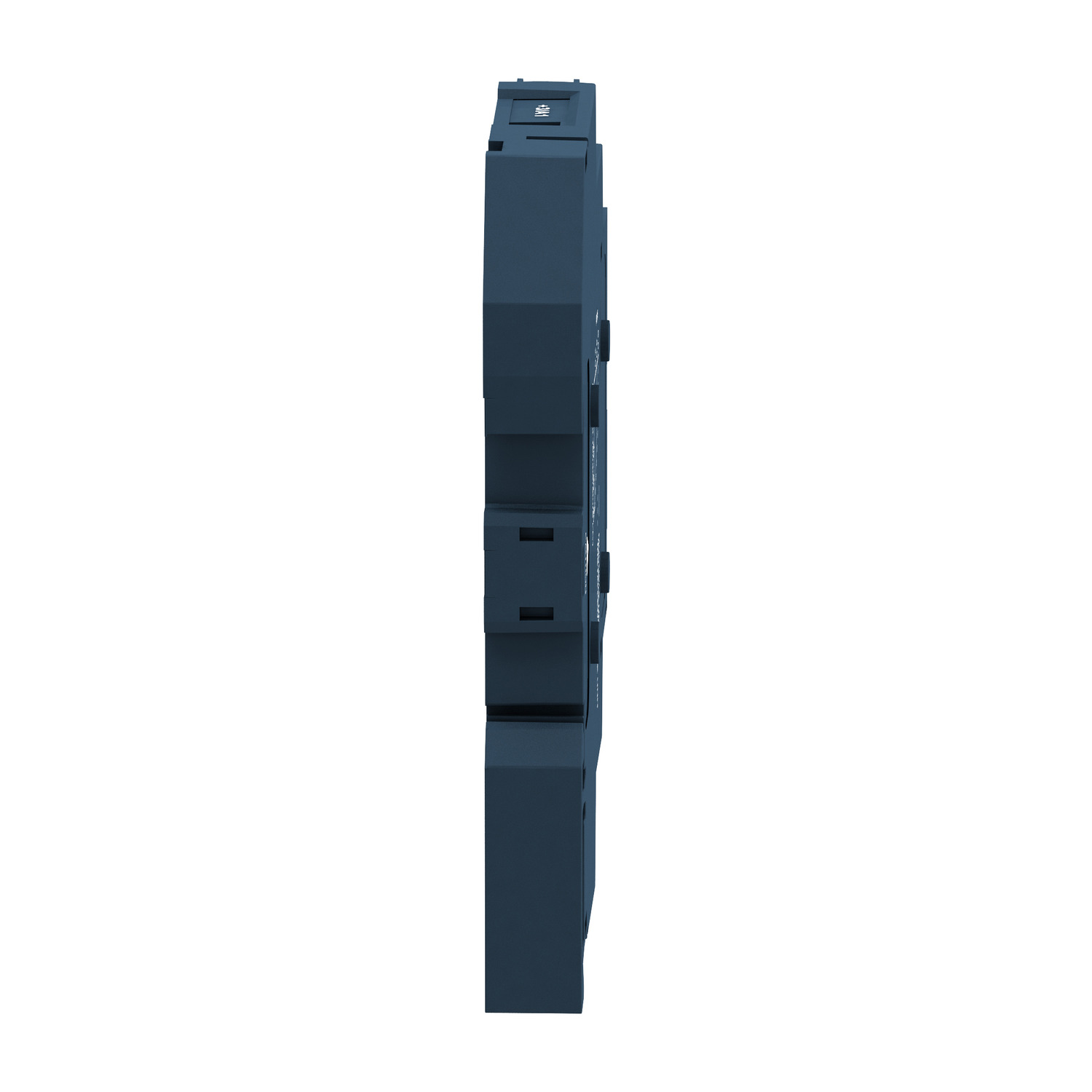

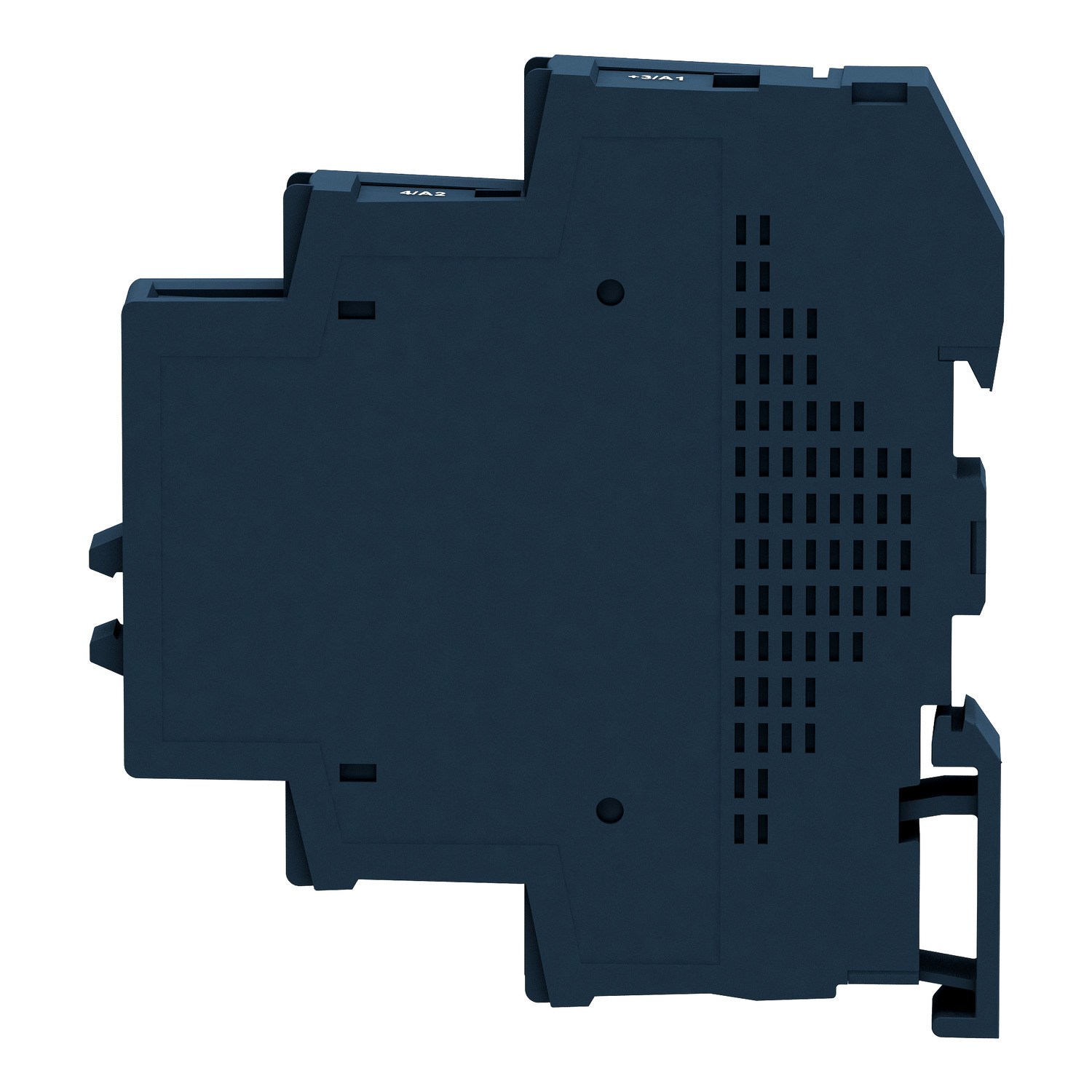

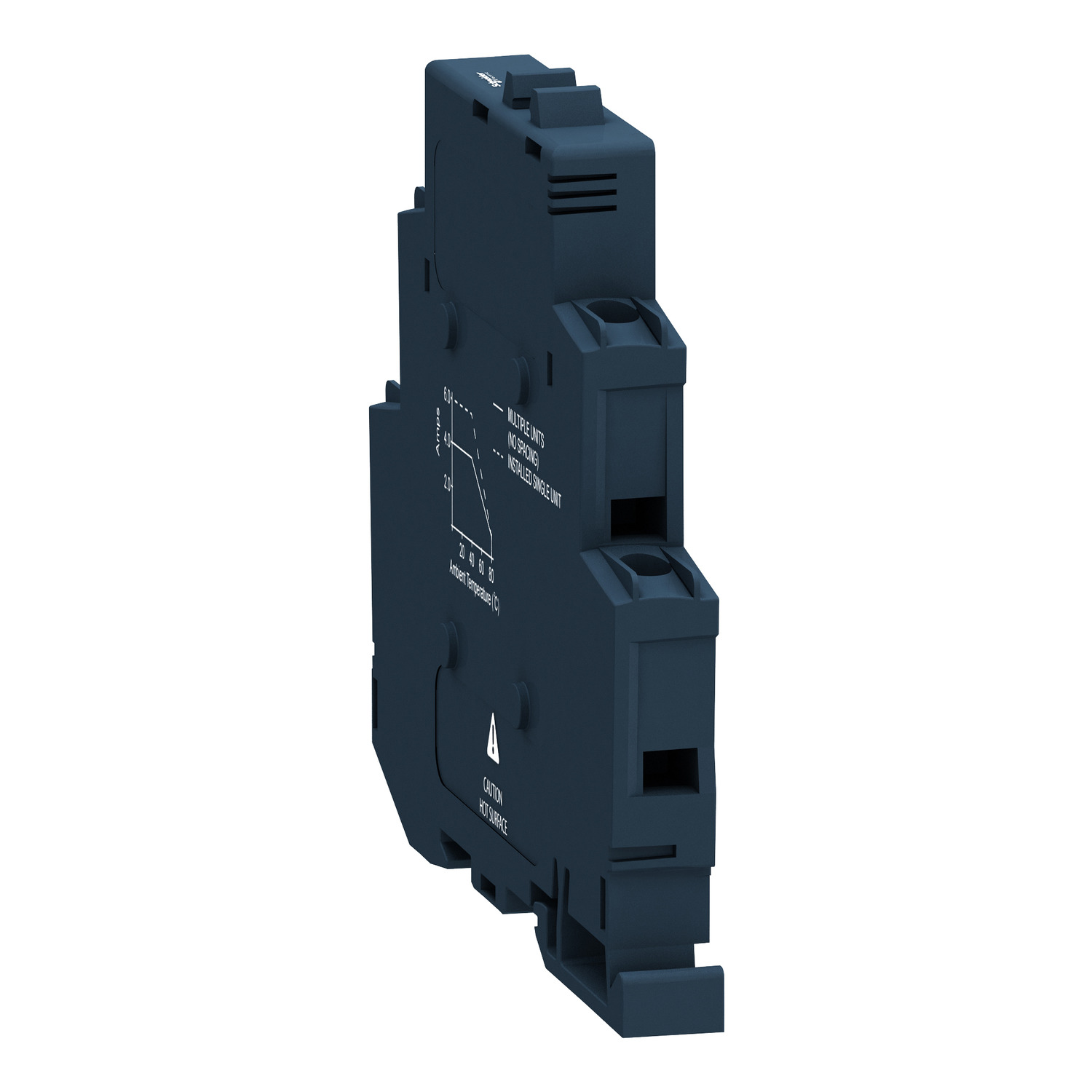

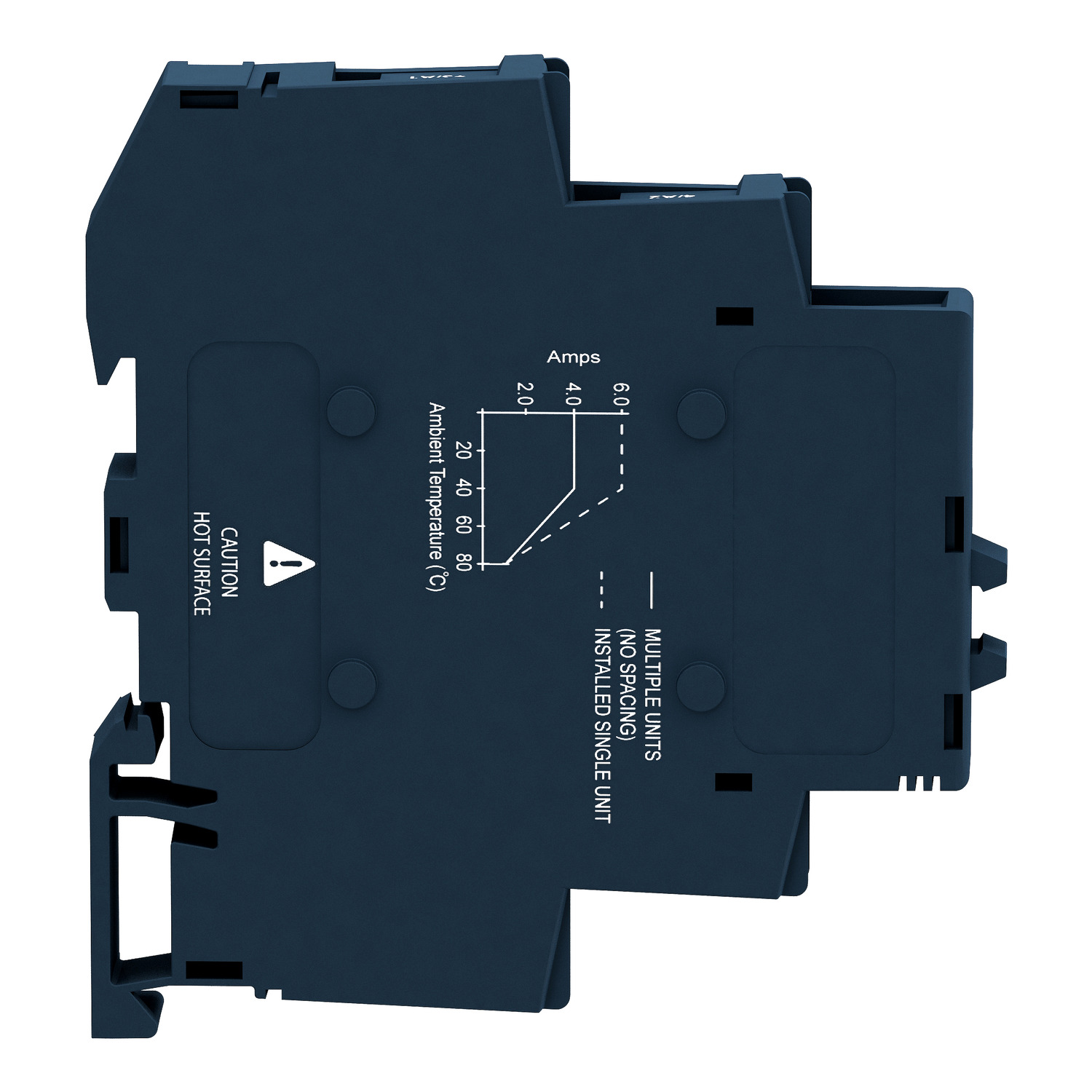

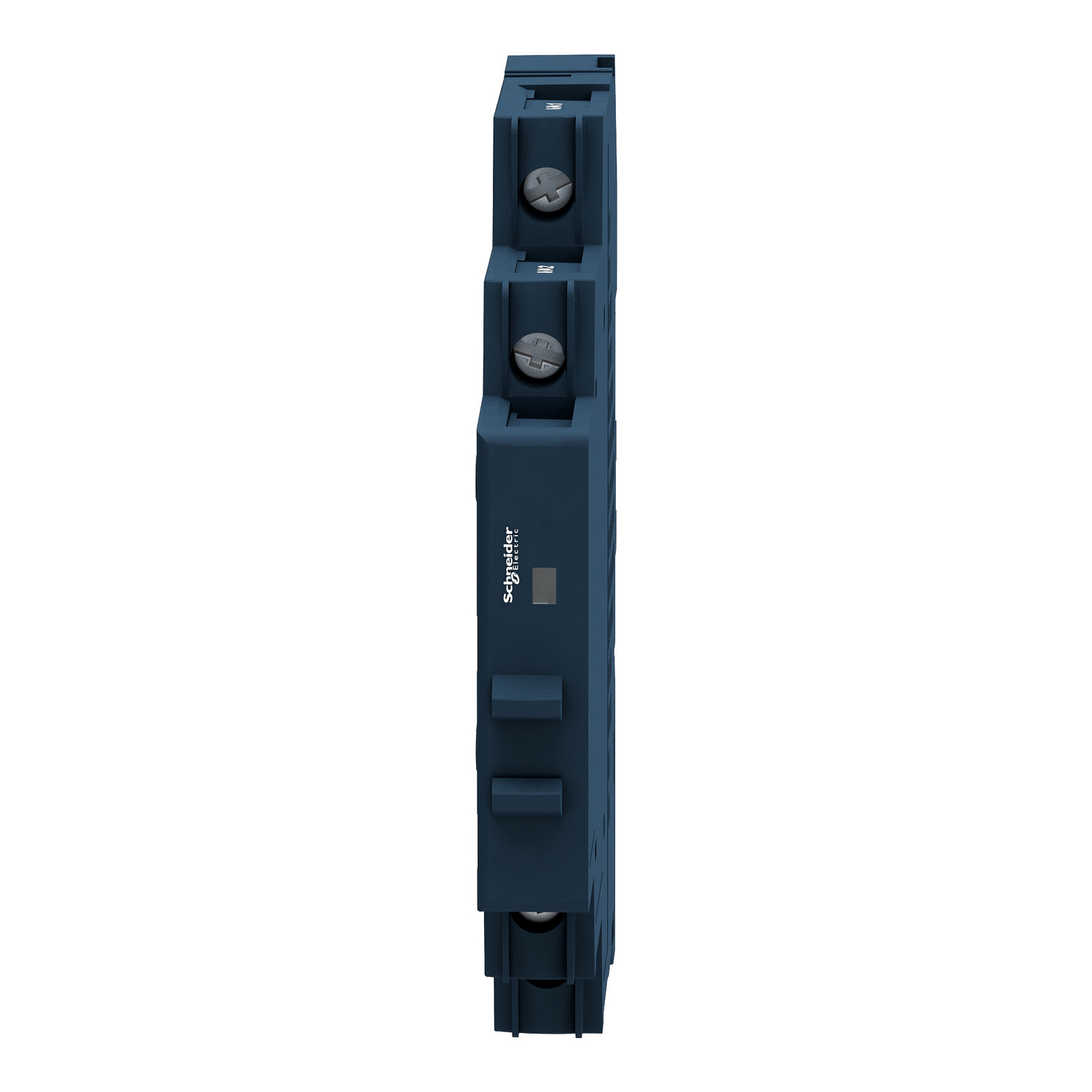

single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 48 to 600V AC

Range of Product

Harmony Solid State Relays

Product or Component Type

Solid state relay up to 10 A

Device short name

SSM

Number of channels

1

Number of phases

1 phase

Output switching mode

Zero voltage switching

Mounting Support

Symmetrical DIN rail

Line Rated Current

6 A

Output voltage

48...600 V AC

[Uc] control circuit voltage

4...32 V DC

Tightening torque

0.5...0.8 N.m for input
0.5...0.8 N.m for output

Connections - terminals

Screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input
Screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output

maximum capacitance

10 pF for input/output

Insulation resistance

1000 MOhm at 500 V DC

Local signalling

for input status LED (green)

Minimum switching voltage

4 V DC turn-on

Maximum switching voltage

1 V DC turn-off

input current

8…11 mA

solid state output type

Zero voltage switching
SCR output

Load current

0.15…6 A

transient overvoltage

1200 V

Surge current

285 A 16.6 ms
300 A 20 ms

Maximum voltage drop

<1.3 V on-state

Maximum Horse Power Rating

0.16 hp 104 °F (40 °C) 240 V AC

Maximum I²t for fusing

410 A².s for 10 ms at 50 Hz
375 A².s for 8.33 ms at 60 Hz

Maximum leakage current

0.1 mA off-state

DV/dt

500 V/µs off-state at maximum voltage

Response time

0.5 cycle (turn-on)
0.5 cycle (turn-off)

power factor

0.5 (with maximum load)

Overvoltage category

III

Width

0.4 in (11 mm)

Height

3.6 in (90.3 mm)

Depth

3.3 in (83.7 mm)

Net Weight

0.11 lb(US) (0.05 kg)

Flame retardance

V0 conforming to UL 94

Dielectric strength

4 kV AC for input/output
4 kV AC for input or output to case

Pollution degree

2

Standards

IEC 62314
IEC 61000
IEC 60950-1

Product Certifications

UL
CSA

marking

CE

IP degree of protection

IP20

Ambient Air Temperature for Operation

-22…176 °F (-30…80 °C)

Ambient Air Temperature for Storage

-22…212 °F (-30…100 °C)
