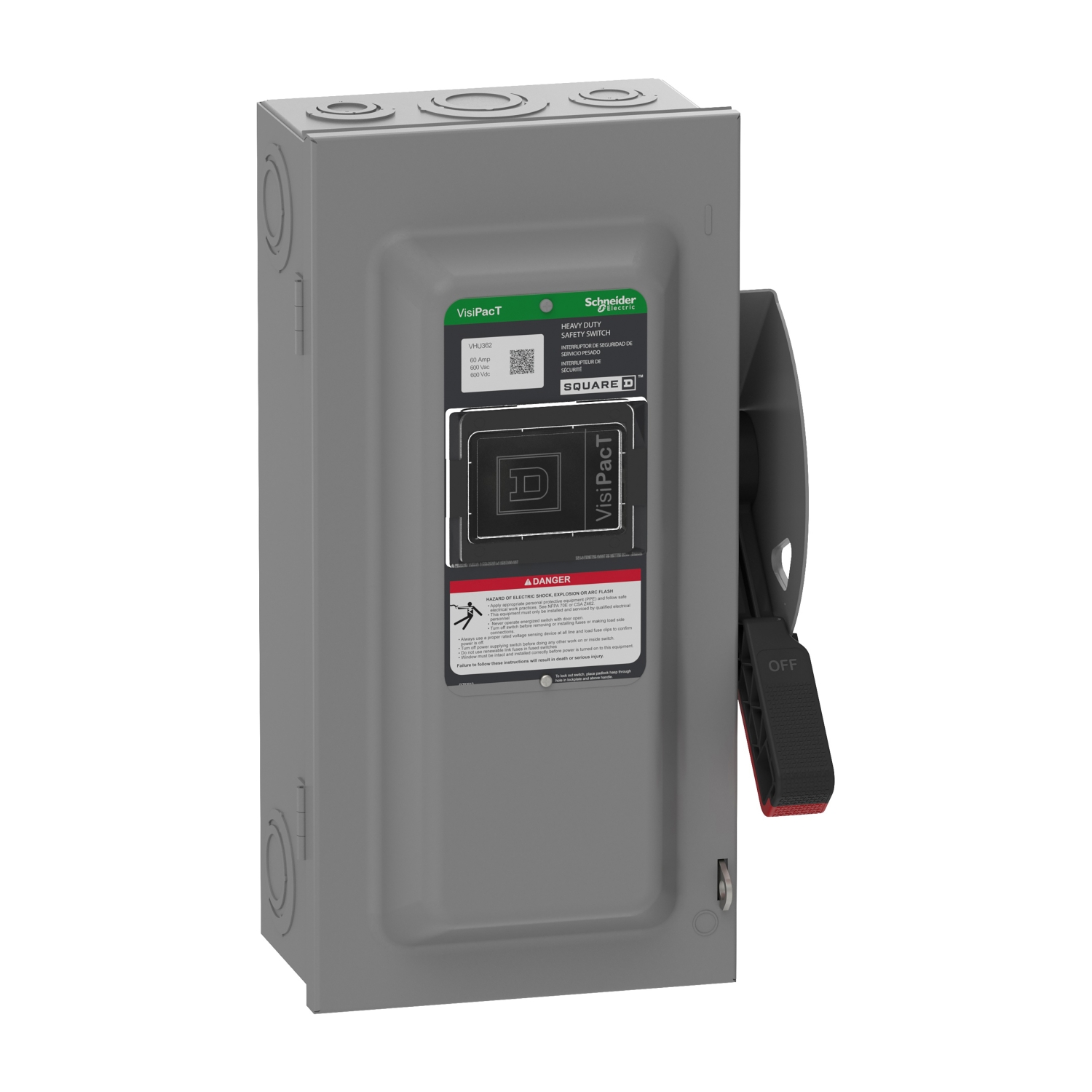

Safety switch, heavy duty, unfused, viewing window, NEMA 1, 600V, 60A, 3 pole

Product

Single Throw Safety Switch

Duty Rating

Heavy duty

Device Application

Heavy application

Disconnect Type

Non-fusible disconnect

Factory Installed Neutral

Field installed kit available

Number of Poles

3

Current Rating

60 A

Voltage Rating

600 V AC/DC

Enclosure Rating

NEMA 1 steel

Motor power hp

10 hp at 240 V AC 50/60 Hz for 1 phase motors
20 hp at 240 V AC 50/60 Hz for 3 phase motors
25 hp at 480 V AC 50/60 Hz for 1 phase motors
50 hp at 480 V AC 50/60 Hz for 3 phase motors
30 hp at 600 V AC 50/60 Hz for 1 phase motors
60 hp at 600 V AC 50/60 Hz for 3 phase motors
10 hp at 250 V DC
30 hp at 600 V DC

Mounting Type

Surface

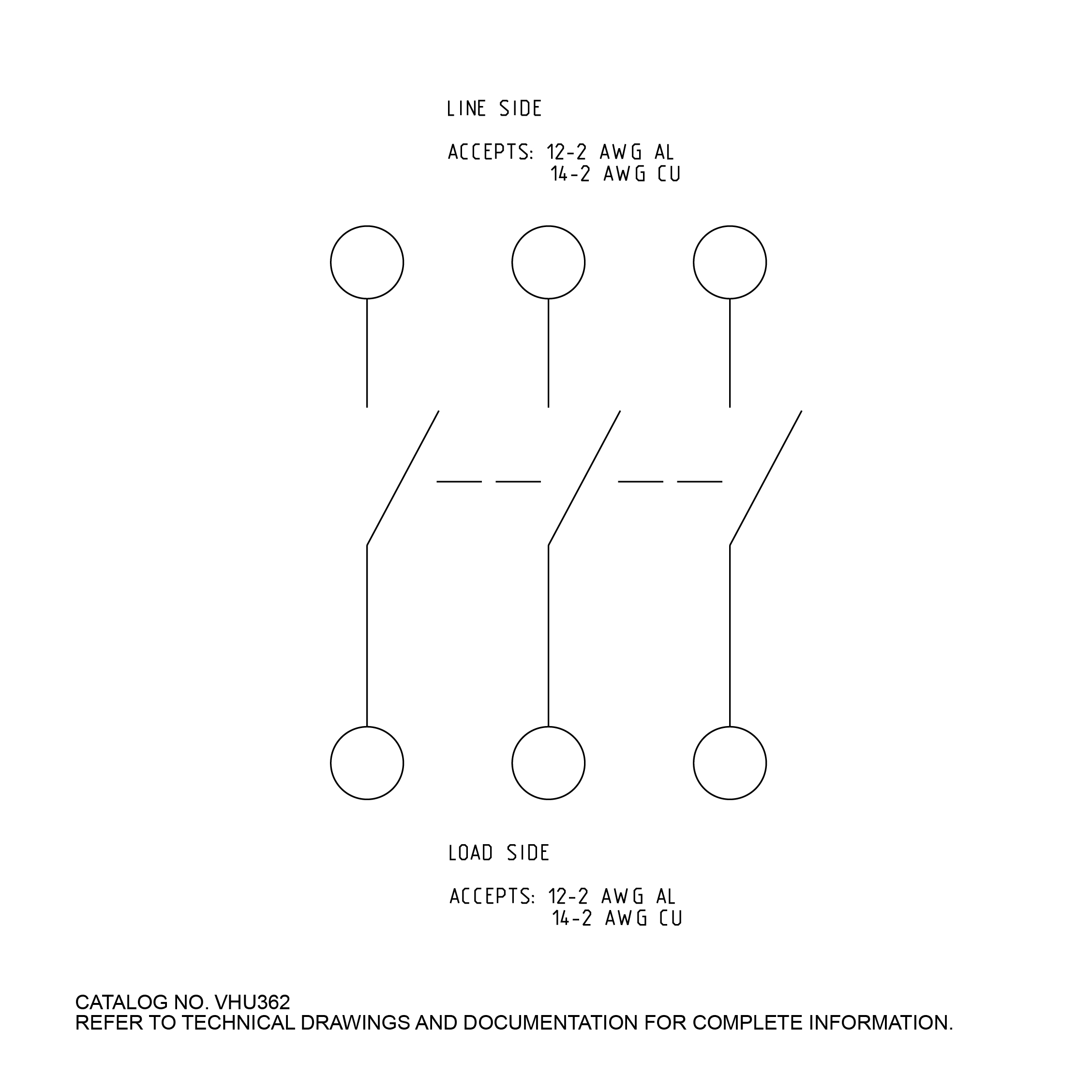

Electrical Connection

Lugs

Wiring configuration

3-wire

Wire Size

AWG 14...AWG 3 copper
AWG 12...AWG 3 aluminium

Tightening torque

50 lbf.in (5.6 N.m) (AWG 3)
45 lbf.in (5.08 N.m) (AWG 6...AWG 4)
40 lbf.in (4.5 N.m) 0.013 in² (8.367 mm²) (AWG 8)
50 lbf.in (5.6 N.m) 0.003…0.008 in² (2.06…5.261 mm²) (AWG 14...AWG 10)

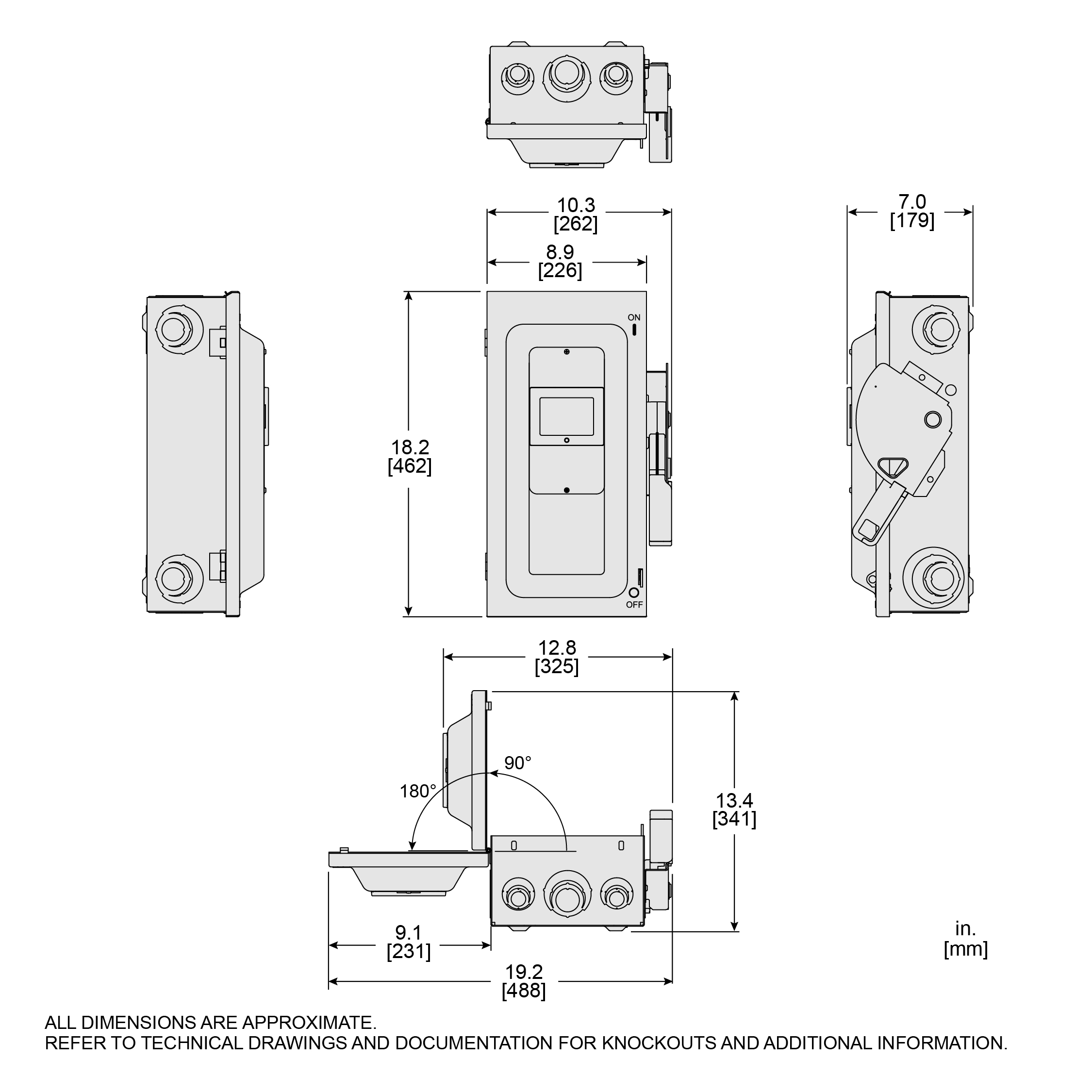

Depth

7.04 in (178.82 mm)

Width

8.91 in (226.31 mm)

Height

18.184 in (461.874 mm)

Net Weight

15.4 lb(US) (7 kg)

Grounding Kit

Field installed kit available

Service Entrance

Suitable service entrance for USA
Suitable service entrance for Mexico

Certifications

UL listed file E2875

Category

US10DE100008

Discount Schedule

0DE1

GTIN

3606485894652

Returnability

Yes

Country of origin

US

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.2 in (18.3 cm)

Package 1 Width

10.8 in (27.5 cm)

Package 1 Length

19.8 in (50.3 cm)

Package 1 Weight

14.800 lb(US) (6.713 kg)
