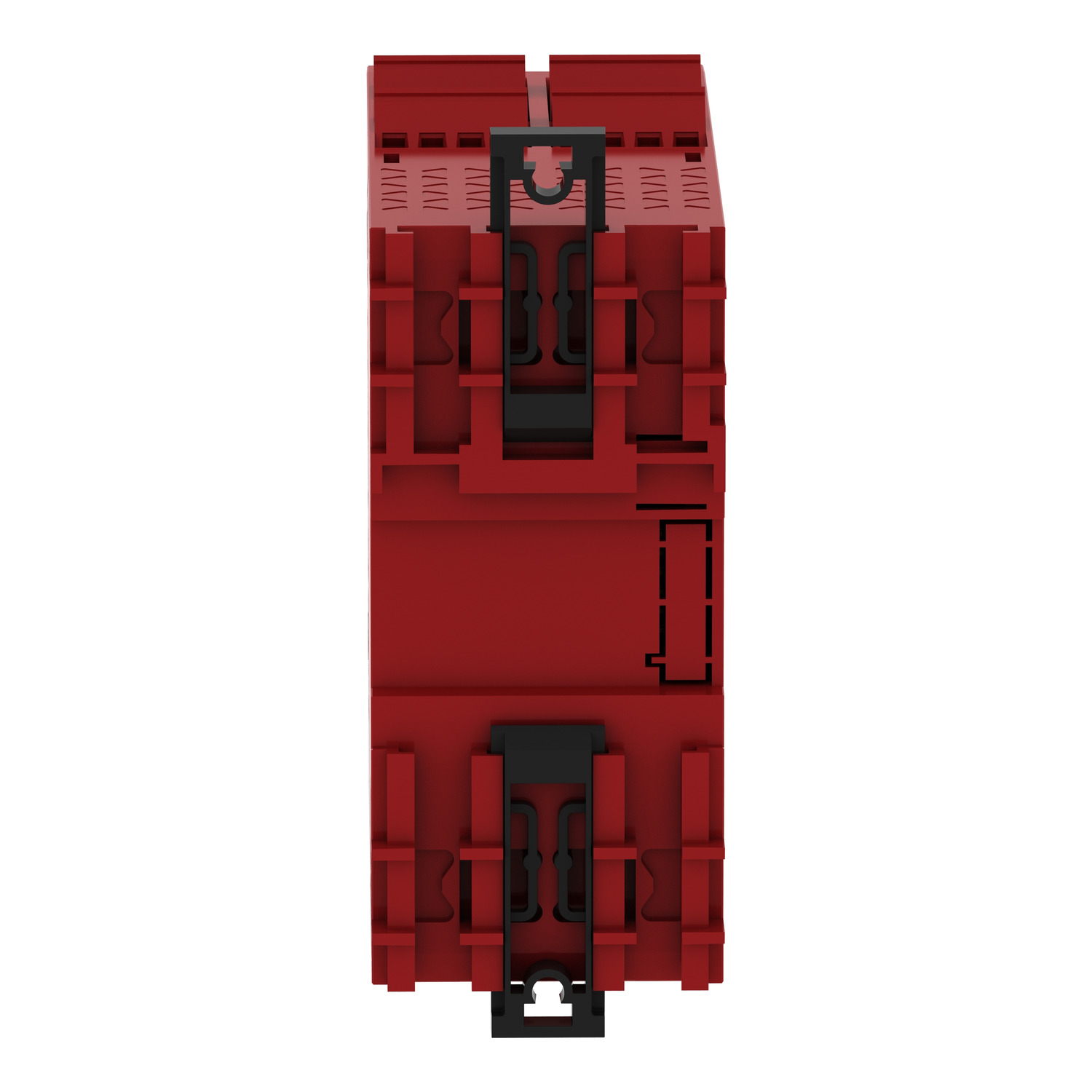

safety module, Harmony XPSU, Cat 4, features 6 x XPSUAF, 24V AC or DC, screw

Range of Product

Harmony Safety Automation

Product or Component Type

Safety module

safety module name

XPSUDN

safety module application

Monitoring antivalent contacts
For emergency stop, guard and light curtain monitoring

function of module

Emergency stop button with 2 NC contacts
Guard monitoring with 1 or 2 limit switches
Monitoring 2 PNP sensors
Magnetic switch monitoring
Light curtain monitoring
RFID switch
Monitoring of electro-sensitive protection equipment (ESPE)
Proximity sensor monitoring

Safety level

Can reach PL e/category 4 for normally open relay contact ISO 13849-1
Can reach SILCL 3 for normally open relay contact IEC 62061
Can reach SIL 3 for normally open relay contact IEC 61508
Can reach PL c/category 1 for normally closed relay contact ISO 13849-1
Can reach SILCL 1 for normally closed relay contact IEC 62061
Can reach SIL 1 for normally closed relay contact IEC 61508

Safety reliability data

MTTFd > 30 years ISO 13849-1
Dcavg >= 99 % ISO 13849-1
PFHd = 0.88E-09 ISO 13849-1
HFT = 1 IEC 62061
PFHd = 0.88E-09 IEC 62061
SFF > 99% IEC 62061
HFT = 1 IEC 61508-1
PFHd = 0.88E-09 IEC 61508-1
SFF > 99% IEC 61508-1
Type = B IEC 61508-1

Electrical circuit type

NC pair
PNP pair
Antivalent pair
OSSD pair

Connections - terminals

Removable screw terminal block, 0.2...2.5 mm² solid or flexible
Removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor
Removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor
Removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel
Removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel

[Us] Rated Supply Voltage

24 V AC - 15...10 %
24 V DC - 20...20 %

Synchronisation time between inputs

0.5 s
2 s
2.2 s
4 s

Type of start

Automatic/manual/monitored

Power consumption in W

4.5 W 24 V DC

Power consumption in VA

10.5 VA 24 V AC 50/60 Hz

Input protection type

Internal, electronic

safety outputs

3 NO + 1 NC

safety inputs

6 safety input 24 V DC 5 mA

maximum wire resistance

500 Ohm

Input compatibility

Normally closed circuit ISO 14119
XC limit switch ISO 14119
Mechanical contact ISO 14119
Normally closed circuit ISO 13850
Antivalent pair ISO 14119
OSSD pair IEC 61496-1-2
3-wire proximity sensors PNP

[Ie] rated operational current

5 A AC-1 for normally open relay contact
3 A AC-15 for normally open relay contact
5 A DC-1 for normally open relay contact
3 A DC-13 for normally open relay contact
3 A AC-1 for normally closed relay contact
1 A AC-15 for normally closed relay contact
3 A DC-1 for normally closed relay contact
1 A DC-13 for normally closed relay contact

control outputs

7 on/off configurable pulsed output

Input/output type

Semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related

[Ith] conventional free air thermal current

16 A

Associated fuse rating

10 A gG NO relay output circuit IEC 60947-1
4 A gG NC relay output circuit IEC 60947-1

Minimum output current

10 mA relay output

Minimum output voltage

12 V relay output

Maximum response time on input open

20 ms

[Ui] rated insulation voltage

250 V 2)IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV II IEC 60947-1

Local signalling

for power ON LED (green)
for error LED (red)
for start LED (yellow)
for safety status LED (yellow)
for safety input S12 LED (yellow)
for safety input S13 LED (yellow)
for safety input S22 LED (yellow)
for safety input S23 LED (yellow)
for safety input S32 LED (yellow)
for safety input S33 LED (yellow)
for safety input S42 LED (yellow)
for safety input S43 LED (yellow)
for safety input S52 LED (yellow)
for safety input S53 LED (yellow)
for safety input S62 LED (yellow)
for safety input S73 LED (yellow)

Mounting Support

35 mm symmetrical DIN rail

Depth

4.7 in (120 mm)

Height

3.9 in (100 mm)

Width

1.8 in (45 mm)

Net Weight

0.772 lb(US) (0.350 kg)

Standards

IEC 60947-5-1
IEC 61508-1 functional safety standard
IEC 61508-2 functional safety standard
IEC 61508-3 functional safety standard
IEC 61508-4 functional safety standard
IEC 61508-5 functional safety standard
IEC 61508-6 functional safety standard
IEC 61508-7 functional safety standard
ISO 13849-1 functional safety standard
IEC 62061 functional safety standard

Product Certifications

TÜV
cULus

IP degree of protection

IP20 terminals)IEC 60947-1
IP40 housing)IEC 60947-1
IP54 mounting area)IEC 60947-1

Ambient air temperature for operation

-13…122 °F (-25…50 °C) at 24 V AC
-13…131 °F (-25…55 °C) at 24 V DC

Ambient Air Temperature for Storage

-13…185 °F (-25…85 °C)

Relative Humidity

5…95 % non-condensing

Category

US1SAF222477

Discount Schedule

SAF2

GTIN

3606489601737

Returnability

No

Country of origin

ID

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.3 in (13.5 cm)

Package 1 Width

5.3 in (13.5 cm)

Package 1 Length

5.3 in (13.5 cm)

Package 1 Weight

15.9 oz (450 g)

Unit Type of Package 2

S03

Number of Units in Package 2

16

Package 2 Height

11.8 in (30 cm)

Package 2 Width

11.8 in (30 cm)

Package 2 Length

15.7 in (40 cm)

Package 2 Weight

17.198 lb(US) (7.801 kg)
