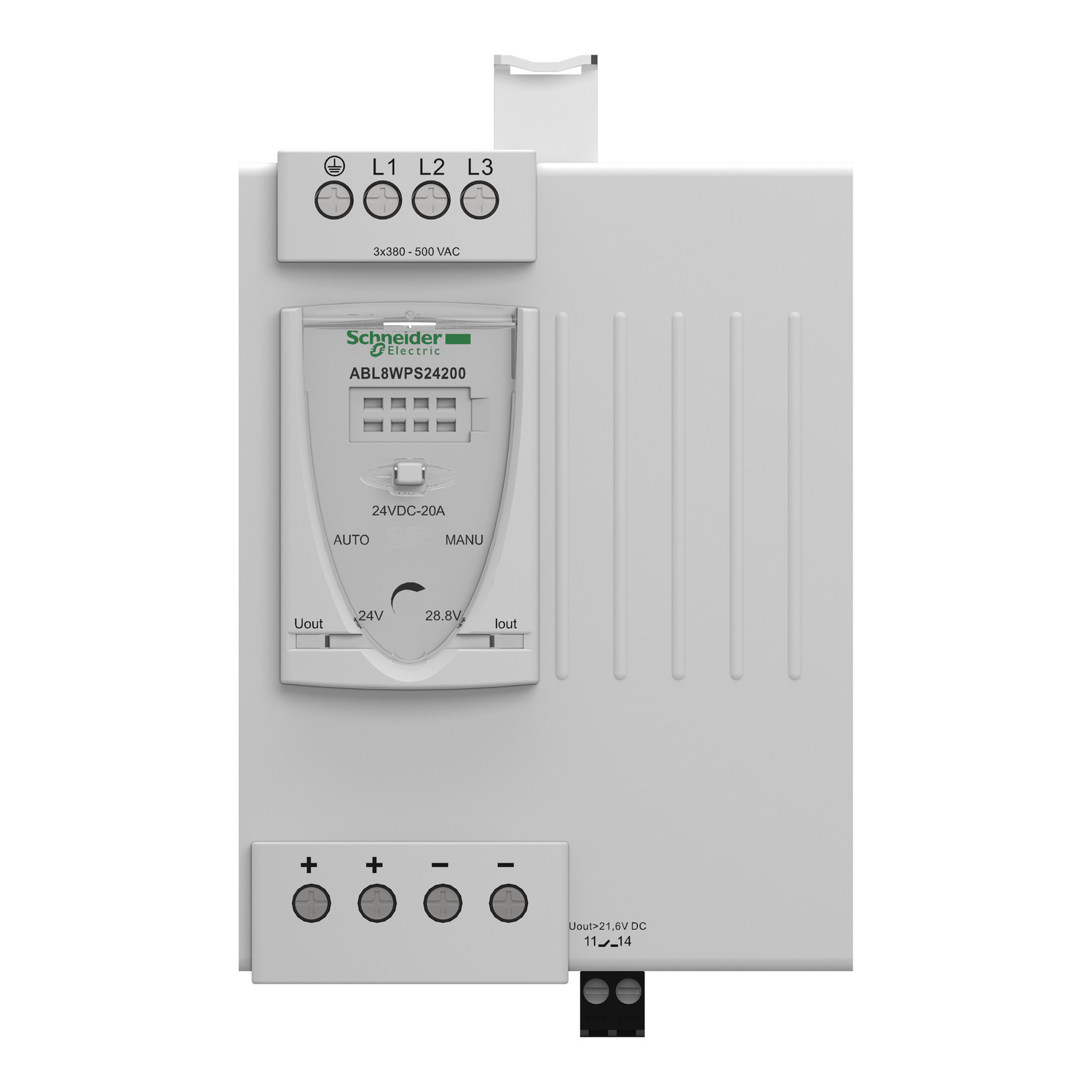

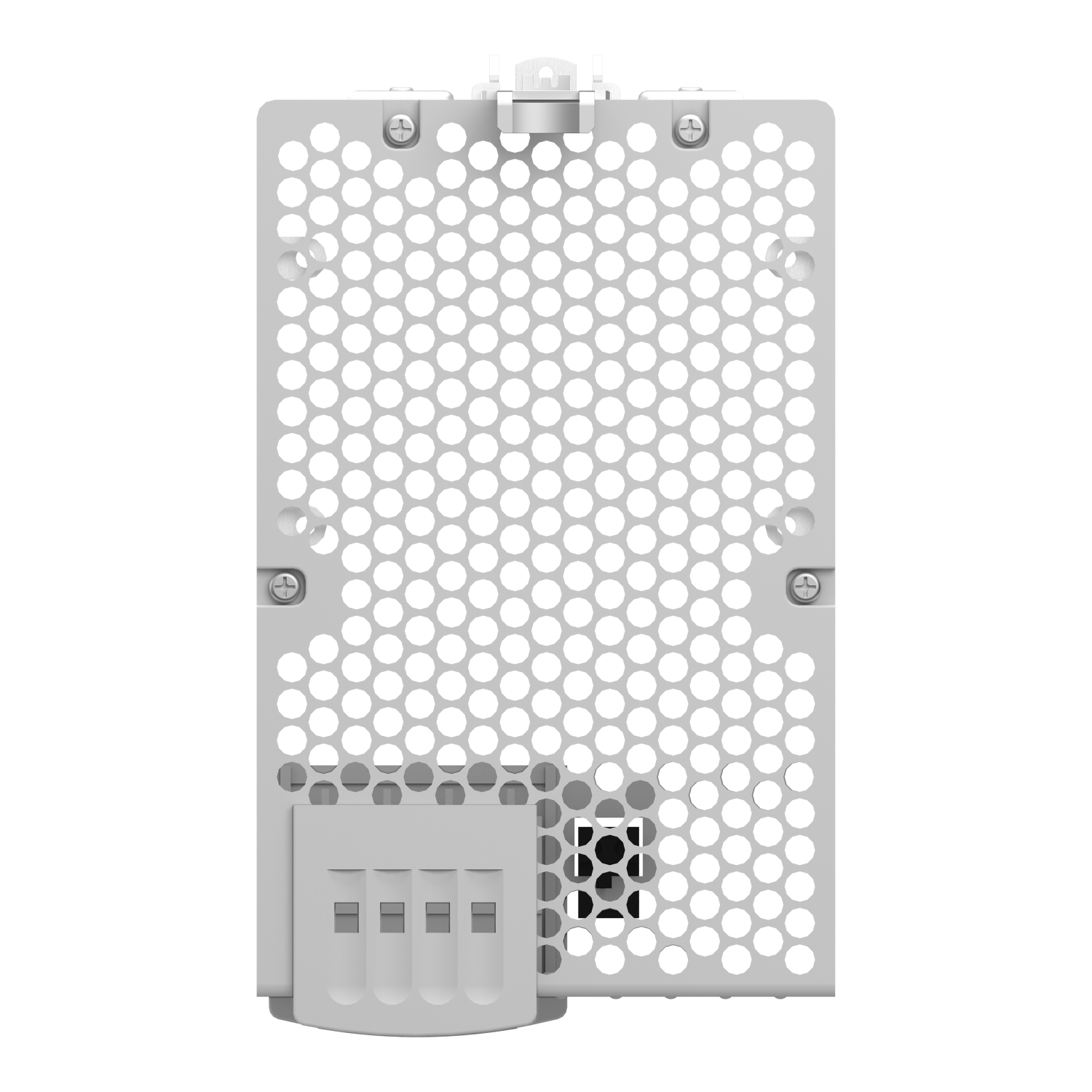

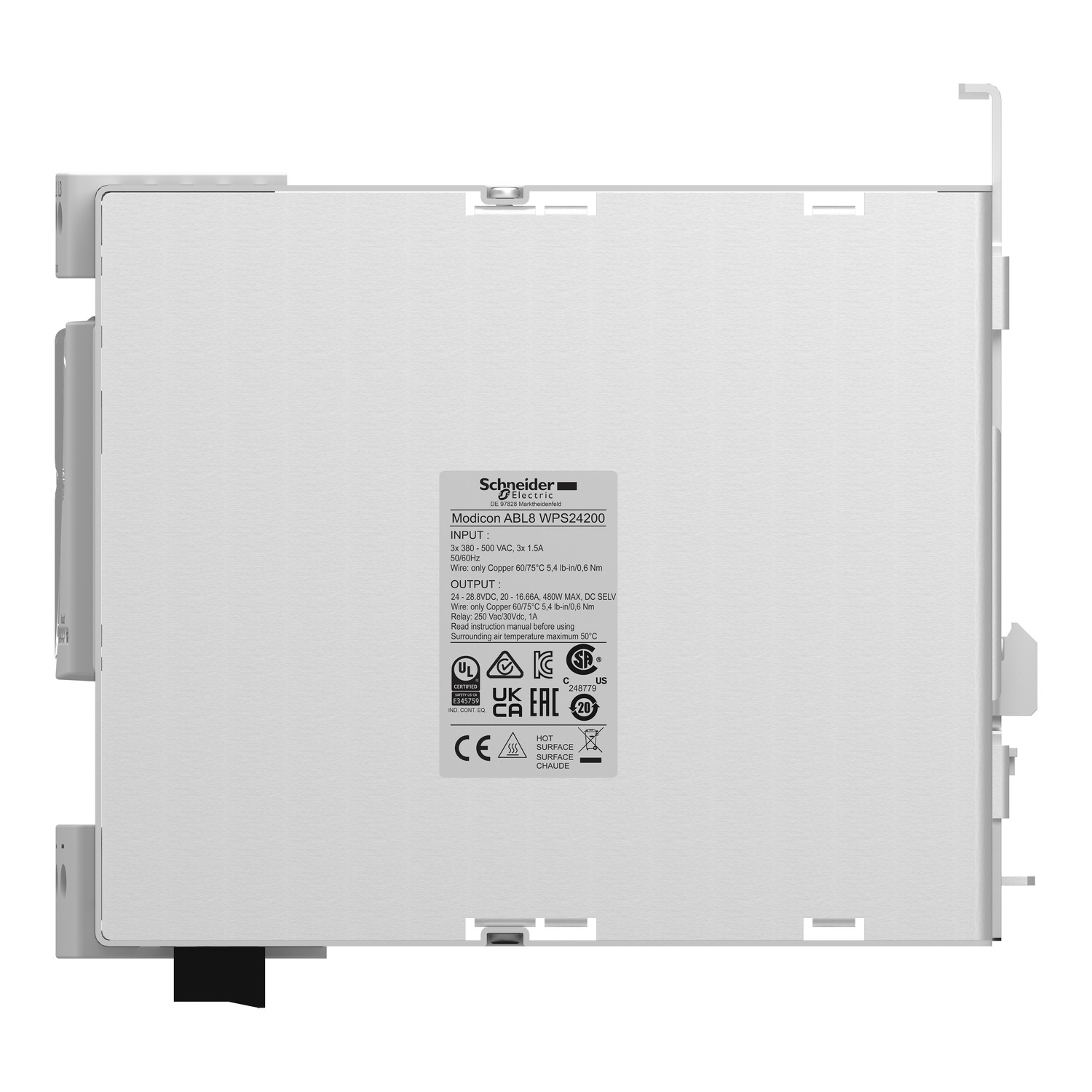

Regulated switch power supply, modicon power supply, 3 phases, 380 to 500V AC, 24V, 20A

Range of Product

Modicon Power Supply

Product or Component Type

Power supply

Power supply type

Regulated switch mode

Nominal input voltage

380...500 V AC three phase L1, L2, L3

Kw Rating

480 W

Output voltage

24 V DC

Power supply output current

20 A

Permissible temporary current boost

1.5 x In for 4 s)

Anti-harmonic filter

Low frequency harmonic currents

Efficiency at full load

320...550 V AC

Inrush current

25 A

Power factor

0.65 at 24 V DC

Efficiency

92 %

Output voltage adjustment

24...28.8 V adjustable

Power dissipation in W

38.4 W

Provided equipment

Power factor correction filter IEC 61000-3-2

Output protection type

Against overload manual or automatic reset
Against overvoltage 30...32 V, manual reset
Against short-circuits manual or automatic reset
Against undervoltage tripping if U < 21.6 V
Thermal automatic reset

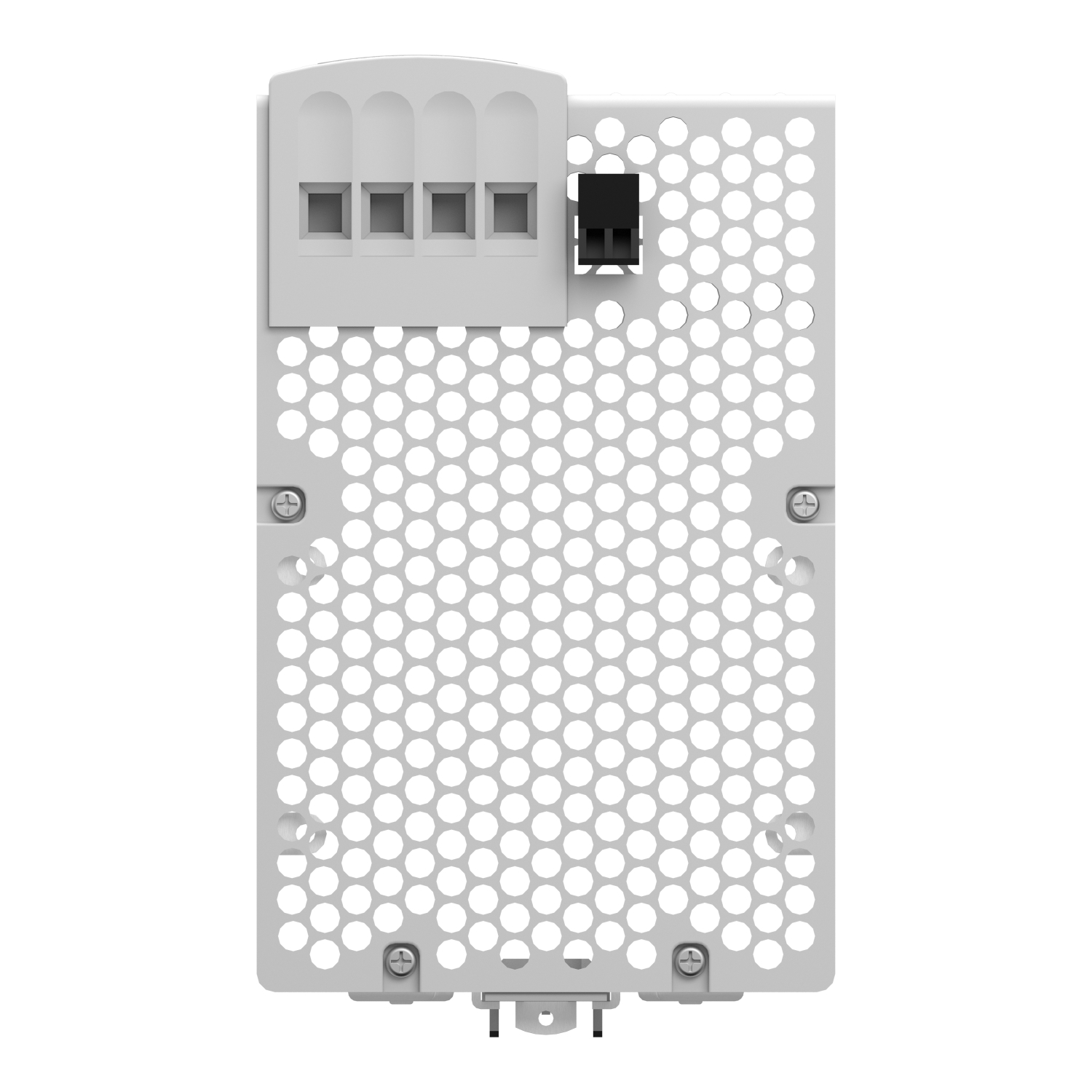

Connections - terminals

Removable screw terminal block 2 x 2.5 mm², diagnostic relay
Screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection
Screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection
Screw type terminals 4 x 0.5...4 x 10 mm², AWG 22...AWG 8) output connection

Status LED

1 LED (green and red) output voltage
1 LED (green, red and orange) output current

Depth

6.3 in (160 mm)

Height

5.6 in (143 mm)

Width

3.8 in (96 mm)

Product Weight

3.5 lb(US) (1.6 kg)

Output coupling

Series
Parallel

marking

CE

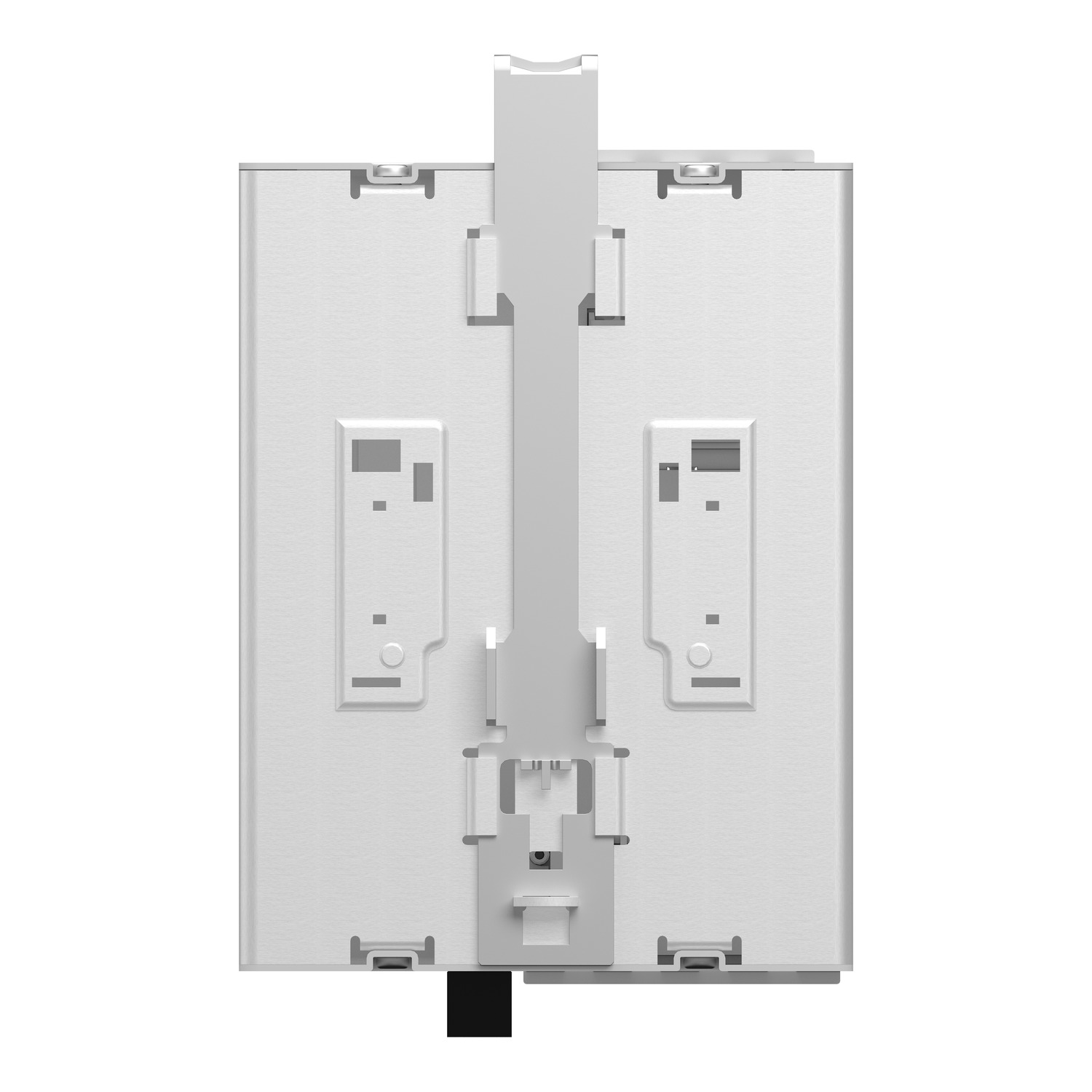

Mounting support

35 x 7.5 mm symmetrical DIN rail
35 x 15 mm symmetrical DIN rail

Operating position

Vertical

Supply

SELV IEC 60950-1
SELV IEC 60204-1
SELV IEC 60364-4-41

Dielectric strength

3500 V with between input and ground
4000 V with between input and output
500 V with between output and ground

Standards

CSA C22.2 No 60950-1
UL 508
EN/IEC 62368-1

Product certifications

CCSAus
EAC
UL
RCM

Environmental characteristic

EMC IEC 61000-6-1
EMC IEC 61000-6-3
EMC EN 55024
EMC IEC 61000-6-4
EMC EN/IEC 61204-3
Safety EN 61204-4
Safety IEC 60950-1

Operating altitude

6561.68 ft (2000 m)

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

122…140 °F (50…60 °C) with derating factor mounting position A < 6561.68 ft (2000 m)
-13…122 °F (-25…50 °C) without derating mounting position A < 6561.68 ft (2000 m)

Category

US1CP1222525

Discount Schedule

CP12

GTIN

3389119405645

Returnability

Yes

Country of origin

PH

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.07 in (12.882 cm)

Package 1 Width

6.27 in (15.928 cm)

Package 1 Length

7.26 in (18.442 cm)

Package 1 Weight

4.742 lb(US) (2.151 kg)

Unit Type of Package 2

S03

Number of Units in Package 2

3

Package 2 Height

11.8 in (30 cm)

Package 2 Width

11.8 in (30 cm)

Package 2 Length

15.7 in (40 cm)

Package 2 Weight

15.4 lb(US) (7 kg)

Unit Type of Package 3

P06

Number of Units in Package 3

45

Package 3 Height

28.9 in (73.5 cm)

Package 3 Width

23.6 in (60.0 cm)

Package 3 Length

31.5 in (80.0 cm)

Package 3 Weight

242.5 lb(US) (110.0 kg)

Warranty

18 months
