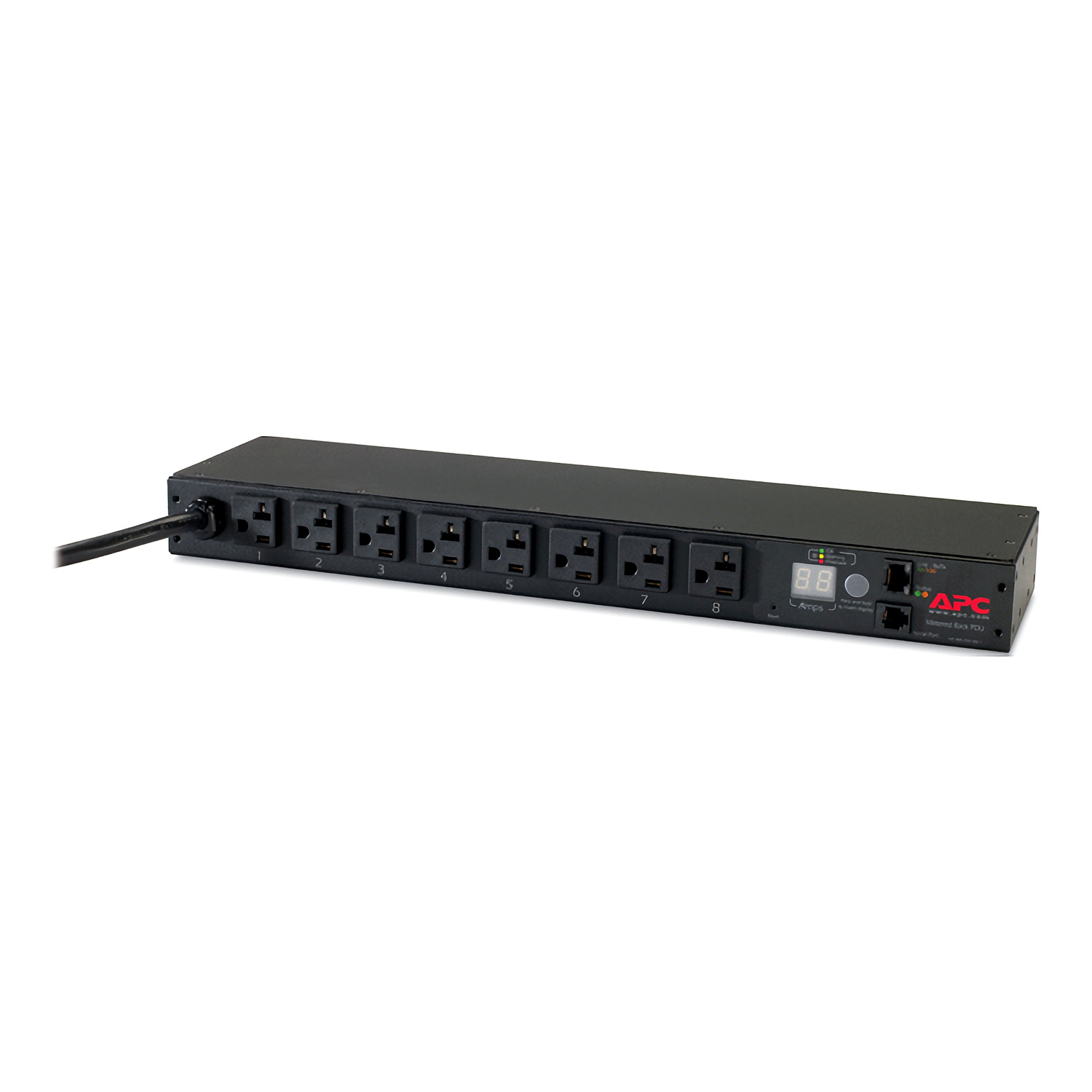

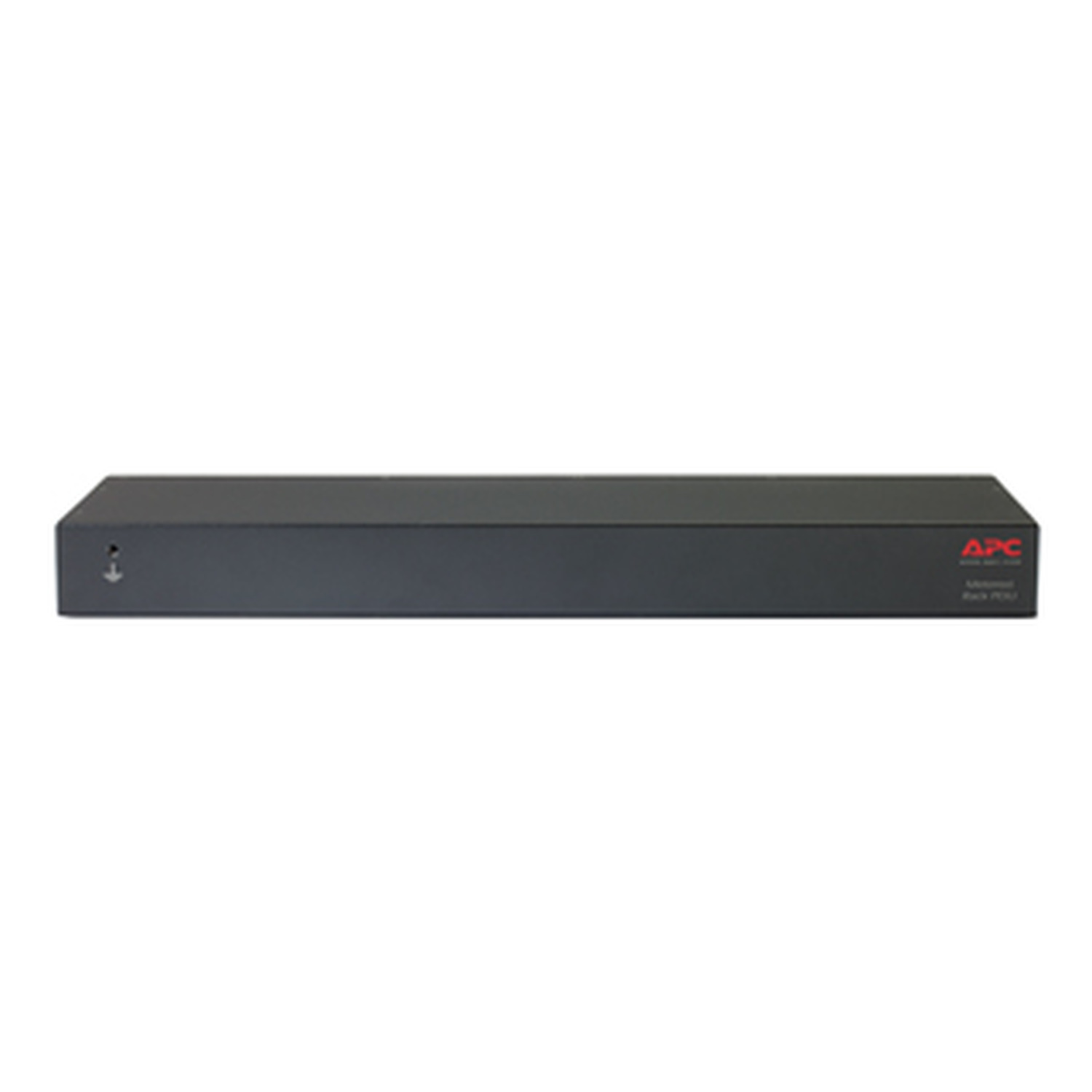

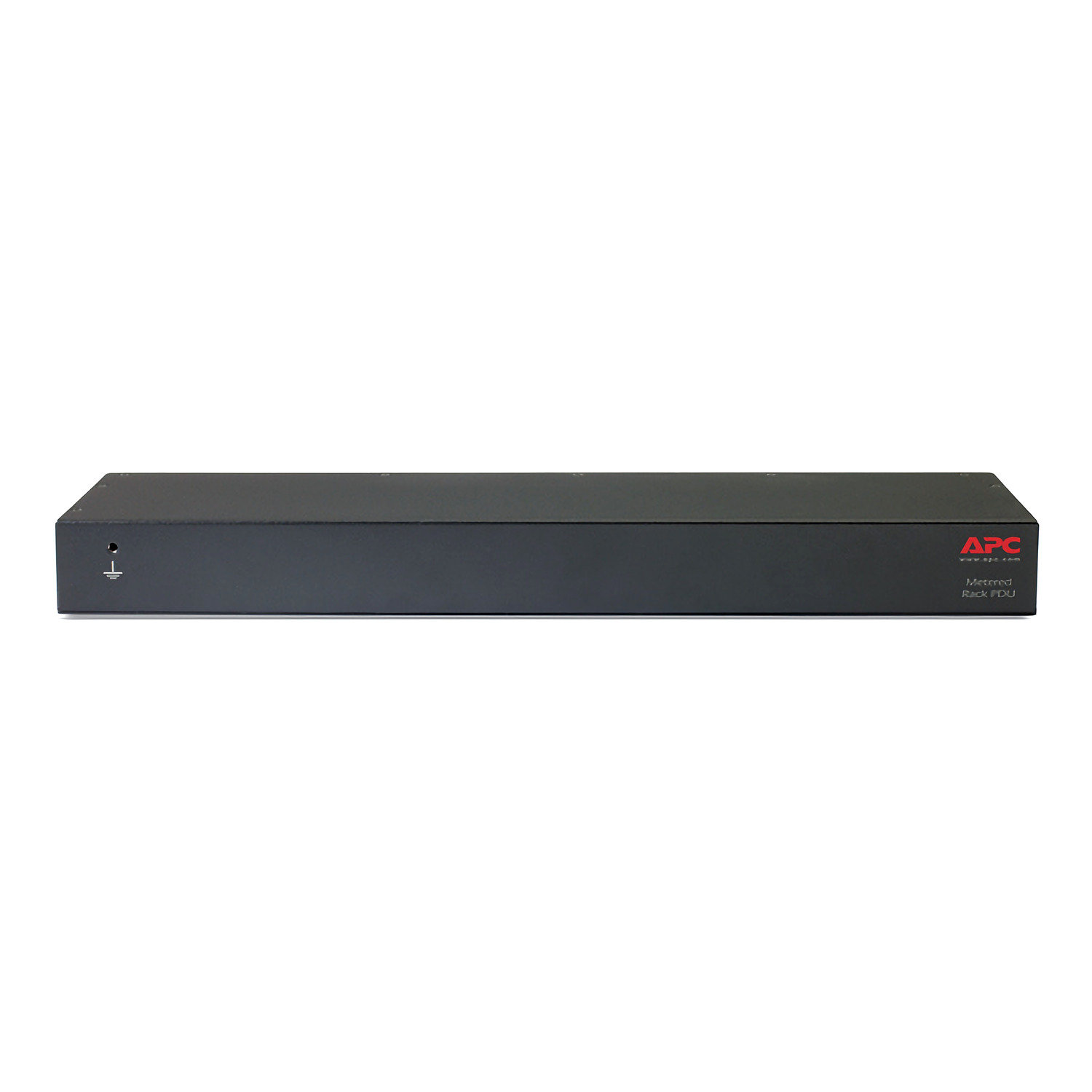

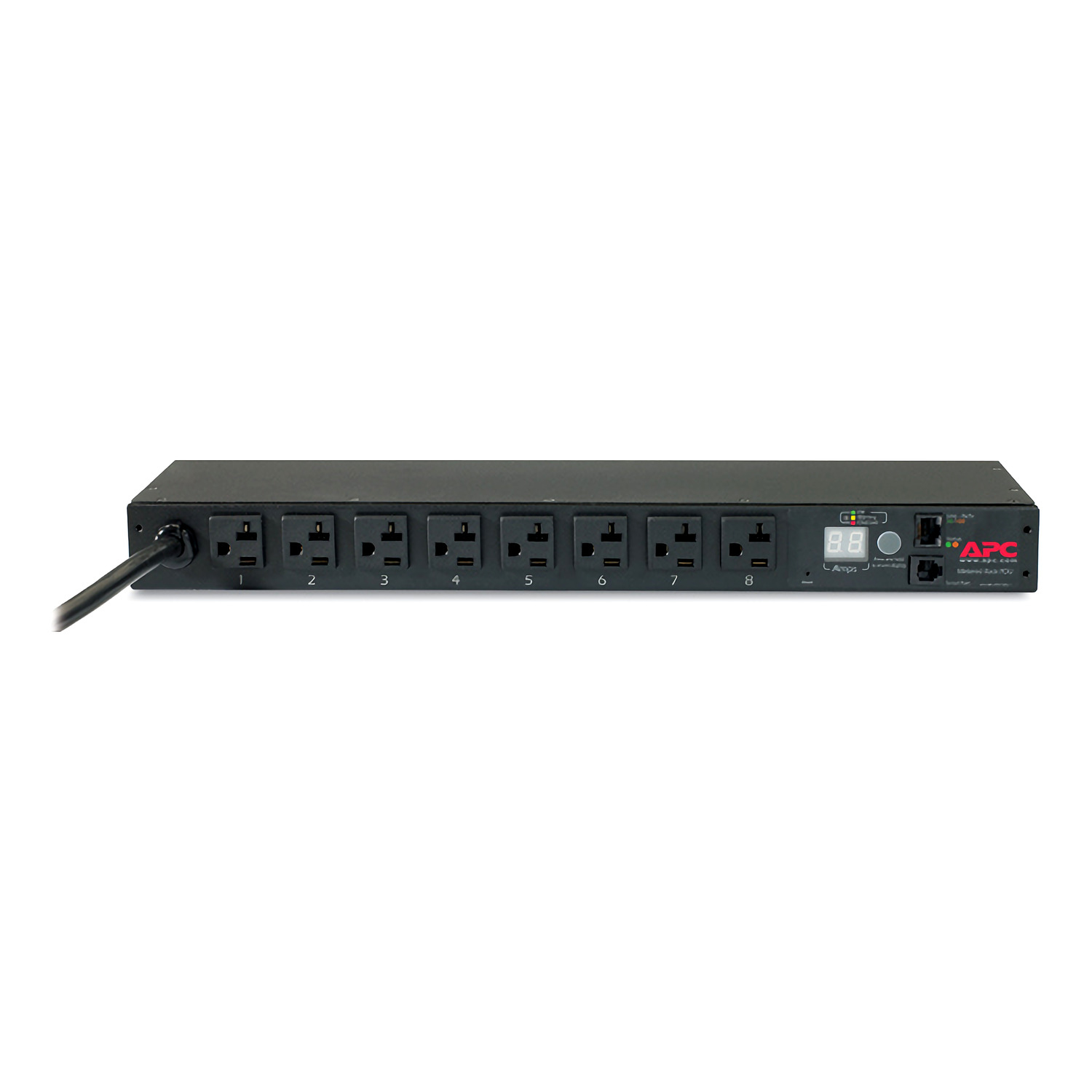

Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20

Lead time

Usually in Stock

Product or Component Type

PDU

PDU Type

Metered

Cord length

12 ft (3.7 m)

Number of cables

1

Provided Equipment

Cord retention bracket(s)
Installation guide
Rack Mounting brackets
User Manual

Input Voltage

100 V
120 V

Height

1.7 in (4.4 cm)

Width

17.5 in (44.4 cm)

Output Voltage

120 V

Depth

4.02 in (10.2 cm)

Net Weight

3.81 lb(US) (1.73 kg)

mounting location

Front
Rear

Mounting preference

No preference

Input Plug Type

NEMA L5-20P

Mounting Mode

Rack-mounted

Rack units

1U

Mounting position

Horizontal

Line Rated Current

16 A

Input current limits

20 A

Load Capacity

1920 VA

Input Frequency

50/60 Hz

Outlet type and quantity

8 NEMA 5-20R

Product Certifications

cUL Listed
CSA
UL Listed

Standards

FCC Part 15 class A
ICES-003
UL 60950

Ambient Air Temperature for Operation

23…113 °F (-5…45 °C)

Relative Humidity

5…95 %

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

-13…149 °F (-25…65 °C)

Storage Relative Humidity

5…95 %

Storage altitude

0…50000 ft (0…15240 m)

Category

80230-IG SEBA TO SEUSA

Discount Schedule

BMS1

GTIN

731304331469

Returnability

No

Country of origin

PH

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.5 in (6.4 cm)

Package 1 Width

13.3 in (33.7 cm)

Package 1 Length

18.5 in (47 cm)

Package 1 Weight

6.42 lb(US) (2.91 kg)

Warranty

2 years repair or replace
