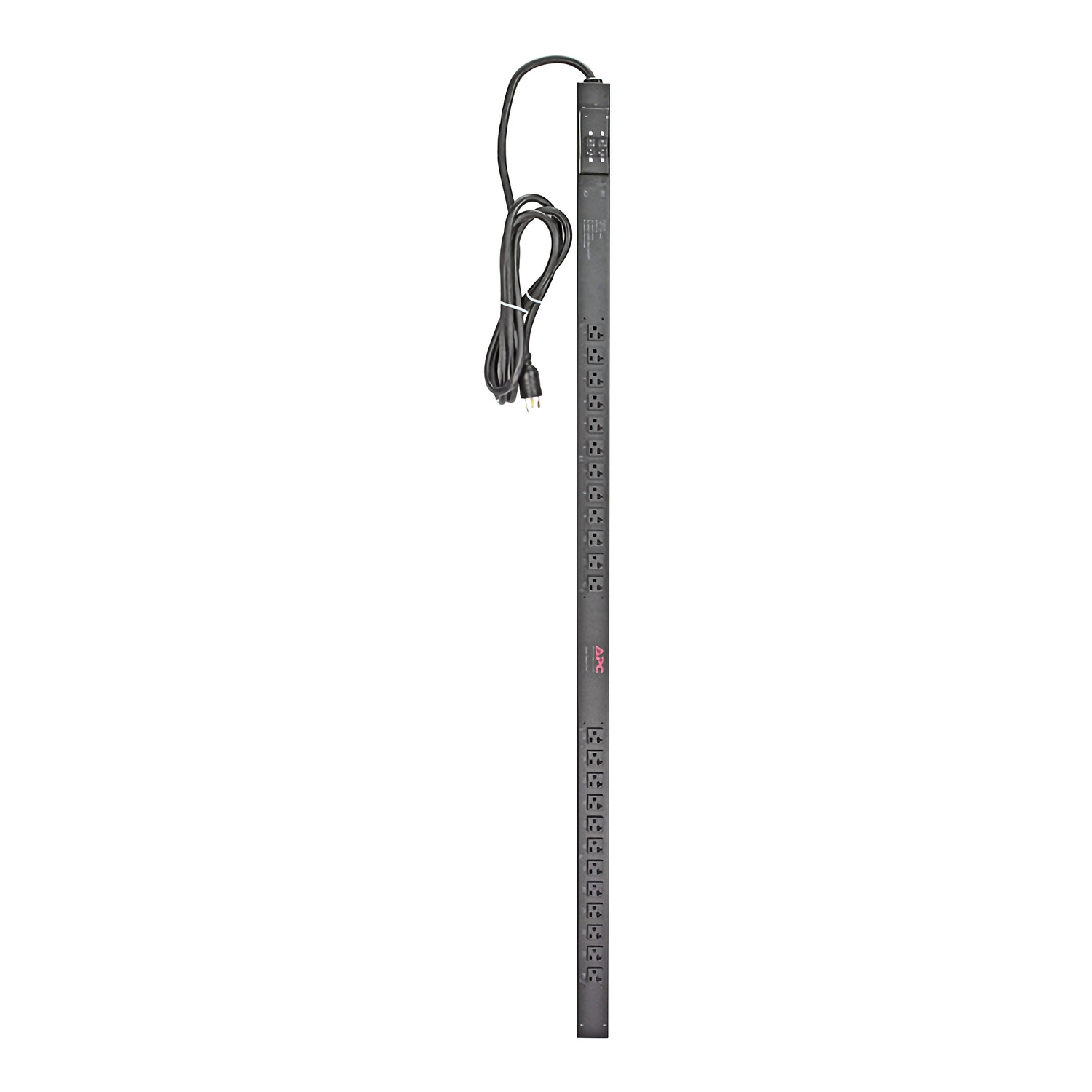

Rack PDU, Basic, Zero U, 30A, 120V, (24) 5-20

Lead time

Usually in Stock

Color

Black

Product or Component Type

PDU

PDU Type

Basic

Cord length

10 ft (3.05 m)

Number of cables

1

Provided Equipment

Installation guide
Rack Mounting brackets
Toolless Mounting Kit

Input Voltage

100 V
120 V

Height

63.7 in (161.9 cm)

Width

2.2 in (5.6 cm)

Output Voltage

120 V

Depth

1.7 in (4.4 cm)

Net Weight

12.28 lb(US) (5.57 kg)

mounting location

Side

Mounting preference

No preference

Input Plug Type

NEMA L5-30P

Mounting Mode

Rack-mounted

Rack units

0U

Mounting position

Vertical

Line Rated Current

24 A

Input current limits

30 A

Load Capacity

2880 VA

Input Frequency

50/60 Hz

Outlet type and quantity

24 NEMA 5-20R

Product Certifications

cUL Listed
UL Listed

Standards

CSA C22.2 No. 60950-1-03
UL 60950-1

Ambient Air Temperature for Operation

32…113 °F (0…45 °C)

Relative Humidity

0…95 %

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

-13…149 °F (-25…65 °C)

Storage Relative Humidity

0…95 %

Storage altitude

0…50000 ft (0…15240 m)

Category

80230-IG SEBA TO SEUSA

Discount Schedule

BMS1

GTIN

731304225522

Returnability

No

Country of origin

PH

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

84.02 in (213.4 cm)

Package 1 Width

5.0 in (12.7 cm)

Package 1 Length

6.0 in (15.2 cm)

Package 1 Weight

14.29 lb(US) (6.48 kg)

Warranty

2 years repair or replace
