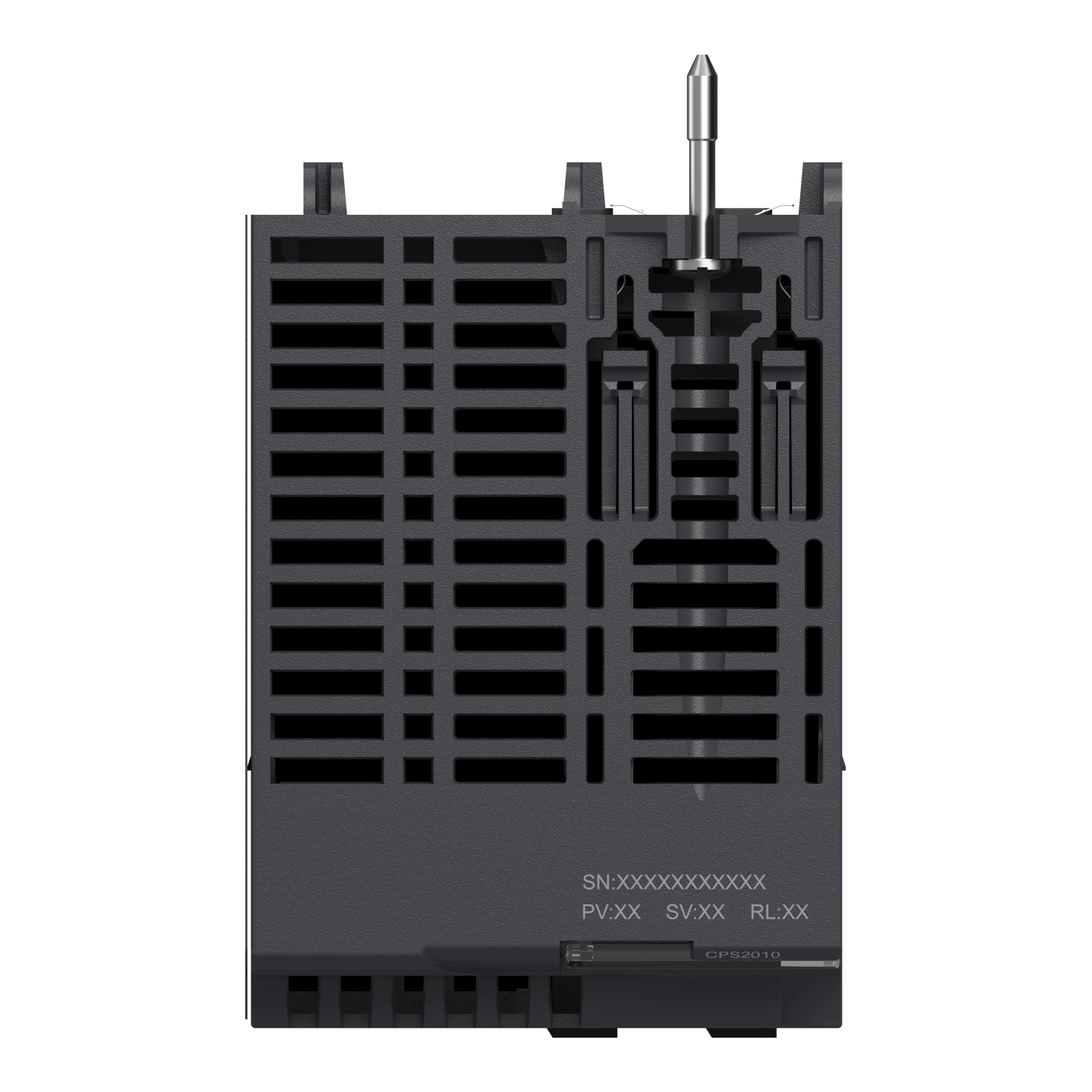

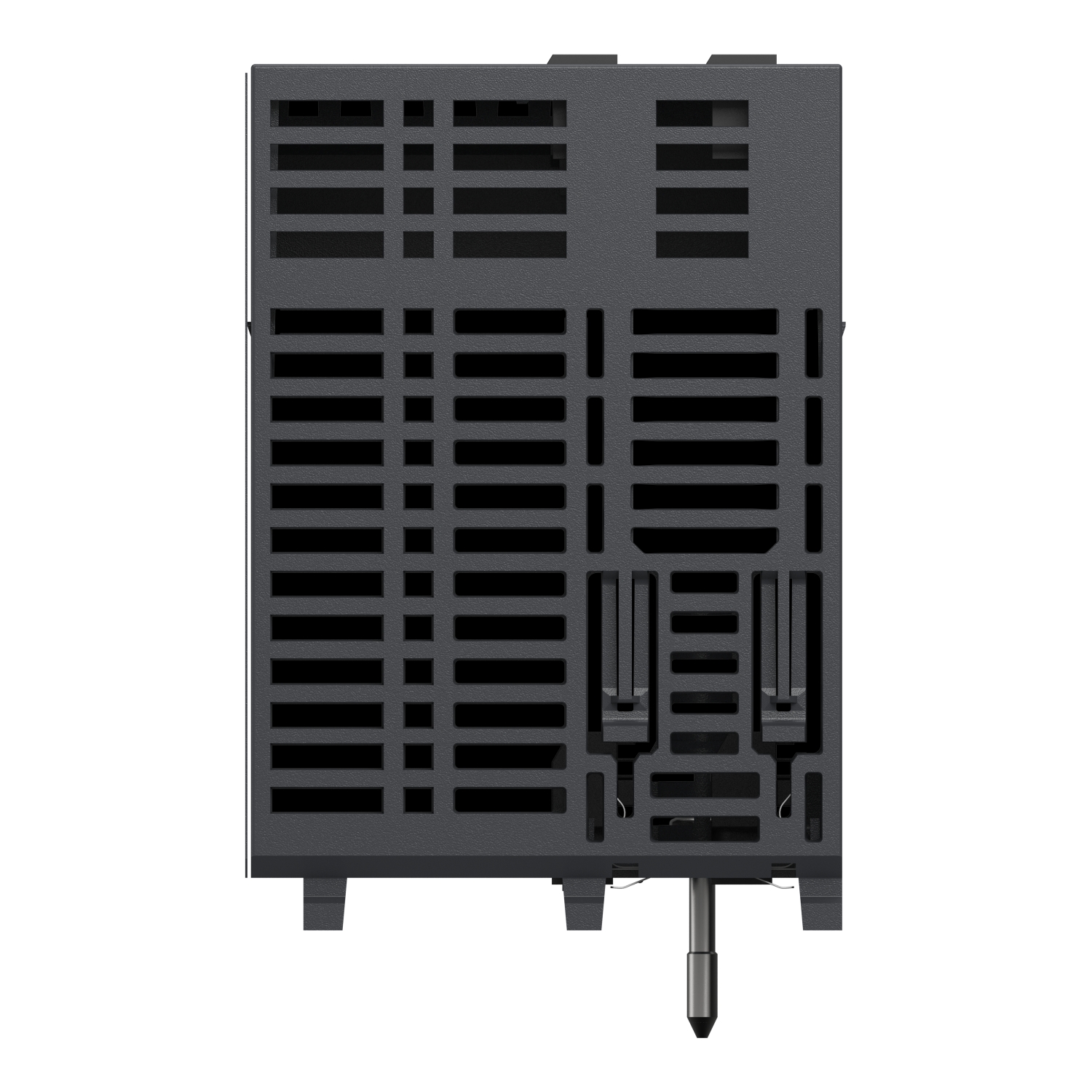

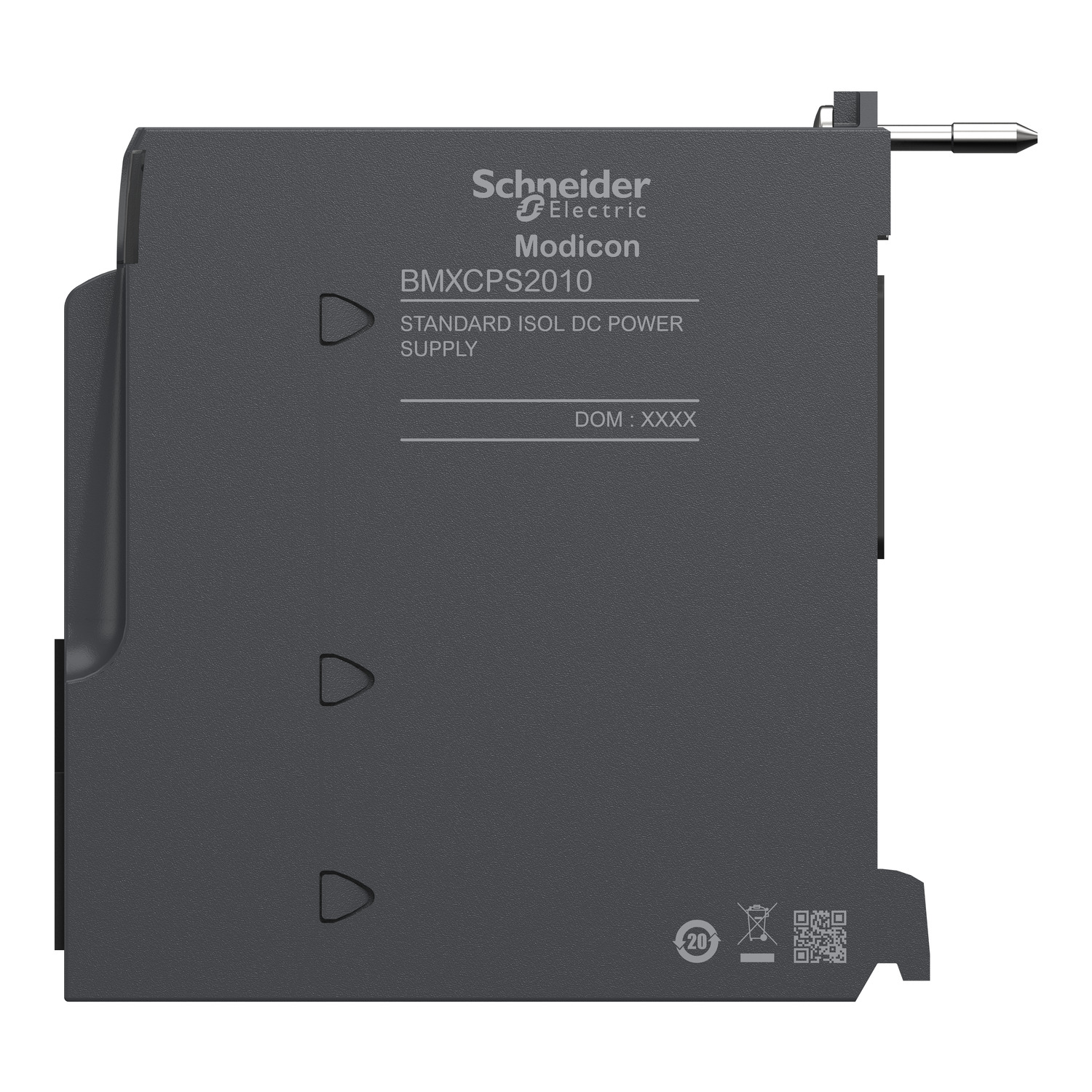

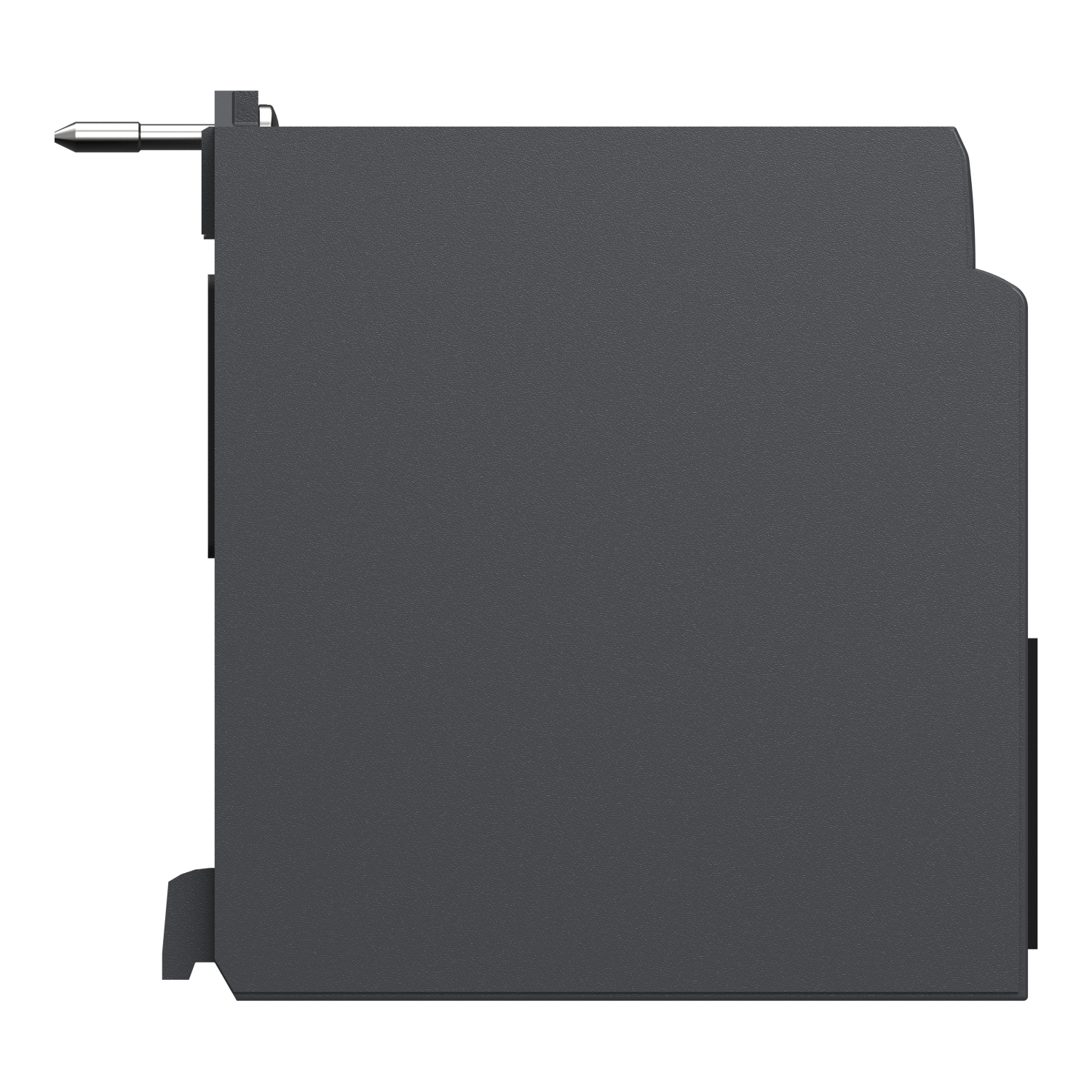

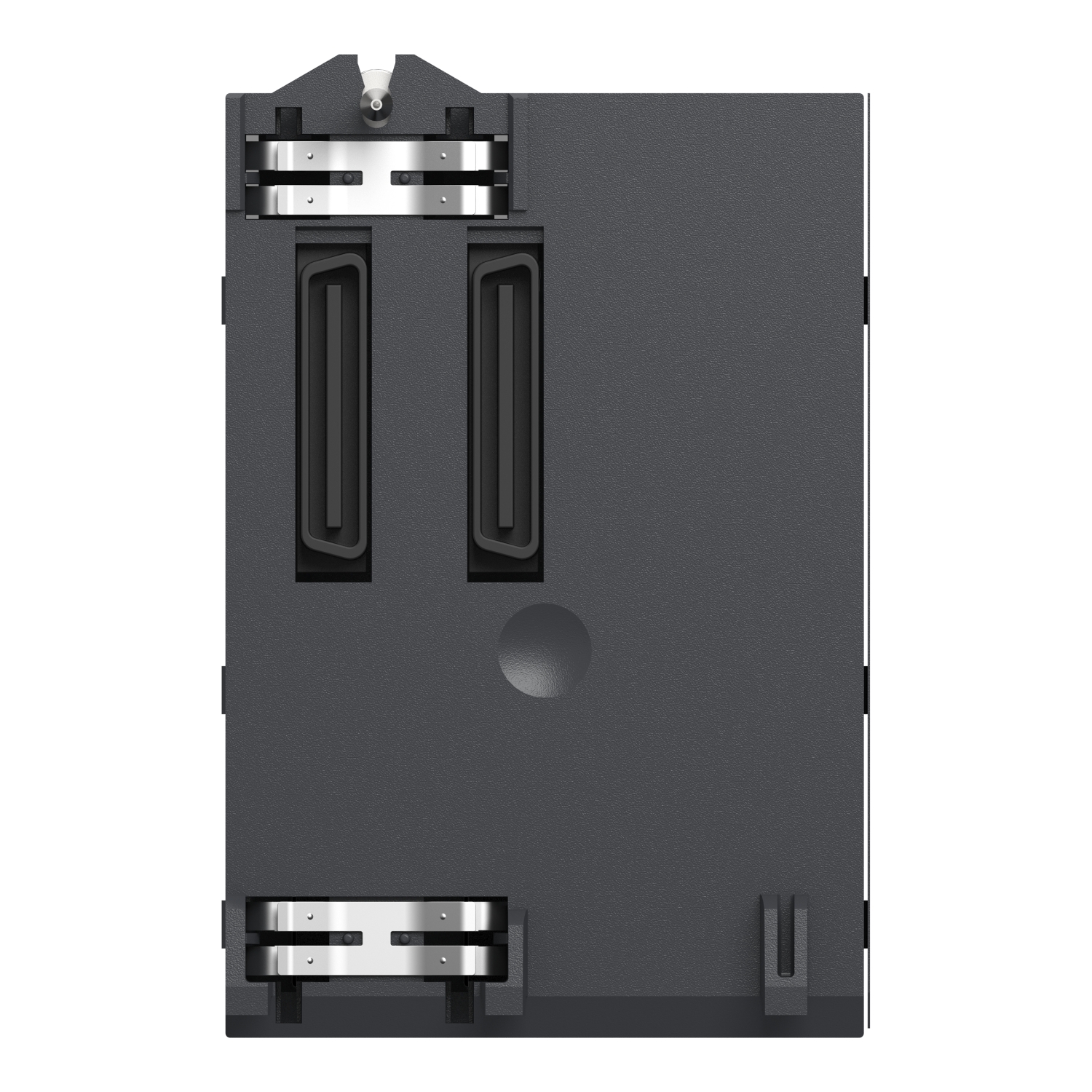

power supply module, Modicon X80, 24V DC, 16.8W

Range of Product

Modicon X80

Product or Component Type

Power supply module

backplane compatibility

Not compatible with BMEXBP..02

Primary Voltage

24 V isolated

Supply circuit type

DC

Secondary power

16.8 W 24 V DC I/O module power supply and processor
8.3 W 3.3 V DC I/O module logic power supply

Primary voltage limit

18...31.2 V

Input current

1 A 24 V

Inrush current

30 A 24 V

I²t on activation

0.6 A².s 24 V

It on activation

0.15 A.s 24 V

MTBF reliability

4886000 H

Protection type

Internal fuse not accessible primary circuit
Overload protection secondary circuit, 24 V sensor power supply
Overvoltage protection secondary circuit, 24 V sensor power supply
Short-circuit protection secondary circuit, 24 V sensor power supply

Current at secondary voltage

0.7 A 24 V DC I/O module power supply and processor
2.5 A 3.3 V DC I/O module logic power supply

Maximum power dissipation in W

8.5 W

Status LED

1 LED (Green) rack voltage OK

Control Type

RESET push-button cold restart

Electrical connection

1 connector 2 alarm relay
1 connector 5 line supply, protective earth, 24 V DC input sensor

Maximum cable distance between devices

65.6 ft (20 m) power supply cable copper 0.002 in² (1.5 mm²)
98.4 ft (30 m) power supply cable copper 0.004 in² (2.5 mm²)

Insulation resistance

>= 10 MOhm primary/ground
>= 10 MOhm primary/secondary

Net Weight

0.64 lb(US) (0.29 kg)

Immunity to microbreaks

1 ms

Dielectric strength

1500 V primary/ground
1500 V primary/secondary

Vibration resistance

3 gn

Shock resistance

30 gn

IP Degree of Protection

IP20

Directives

2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Ambient Air Temperature for Operation

32…140 °F (0…60 °C)

Relative humidity

5…95 % 131 °F (55 °C) without condensation

protective treatment

TC

Operating altitude

0...6561.68 ft (0...2000 m)
2000...5000 m with derating factor

Category

US1PC3418160

Discount Schedule

PC34

GTIN

3595863909005

Returnability

Yes

Country of origin

ID

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.212 in (13.238 cm)

Package 1 Width

6.083 in (15.451 cm)

Package 1 Length

6.141 in (15.597 cm)

Package 1 Weight

14.8 oz (420.0 g)

Unit Type of Package 2

S04

Number of Units in Package 2

12

Package 2 Height

11.8 in (30 cm)

Package 2 Width

15.7 in (40 cm)

Package 2 Length

23.6 in (60 cm)

Package 2 Weight

13.91 lb(US) (6.31 kg)

Unit Type of Package 3

P06

Number of Units in Package 3

48

Package 3 Height

29.5 in (75 cm)

Package 3 Width

23.6 in (60 cm)

Package 3 Length

31.5 in (80 cm)

Package 3 Weight

70.5 lb(US) (32 kg)

Warranty

18 months
