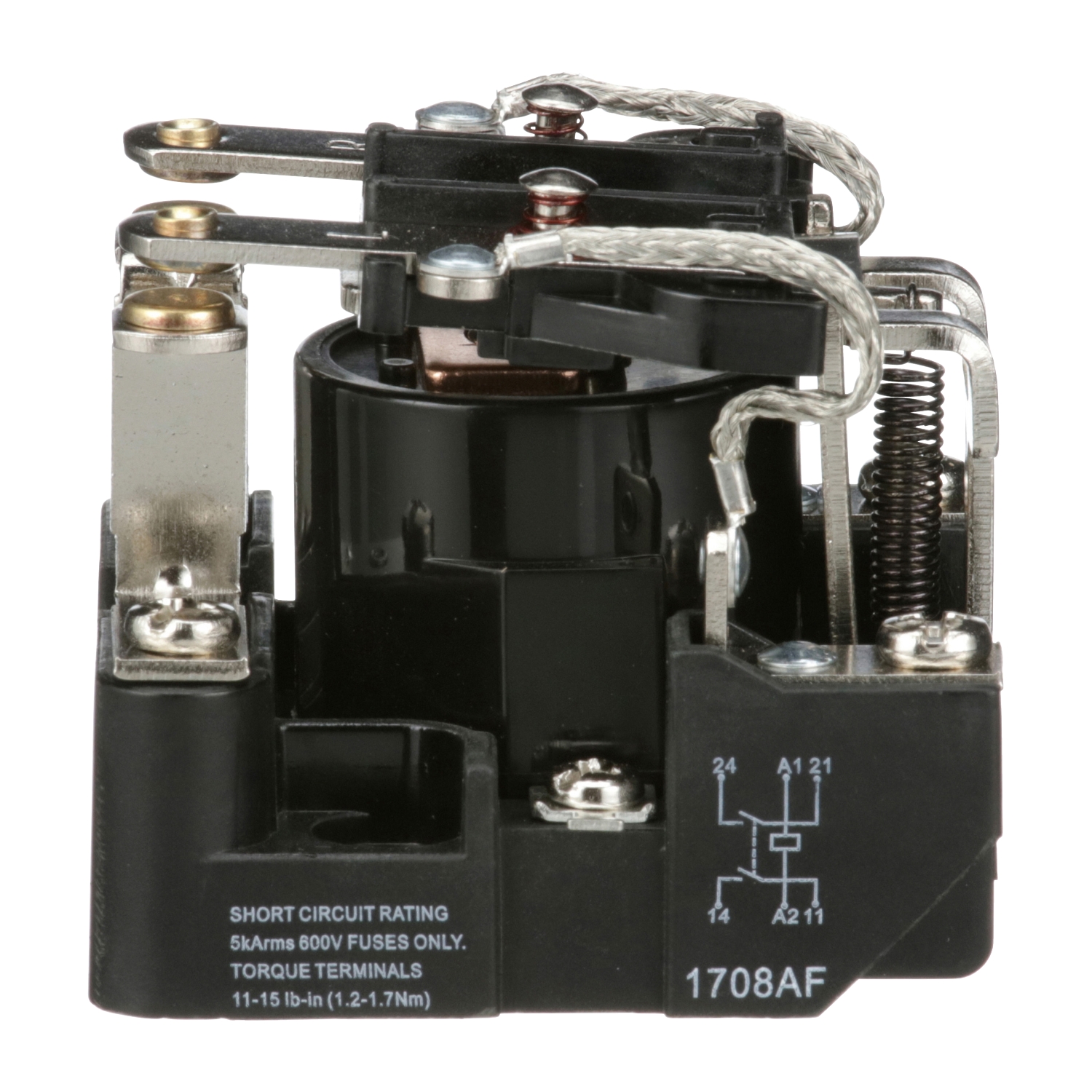

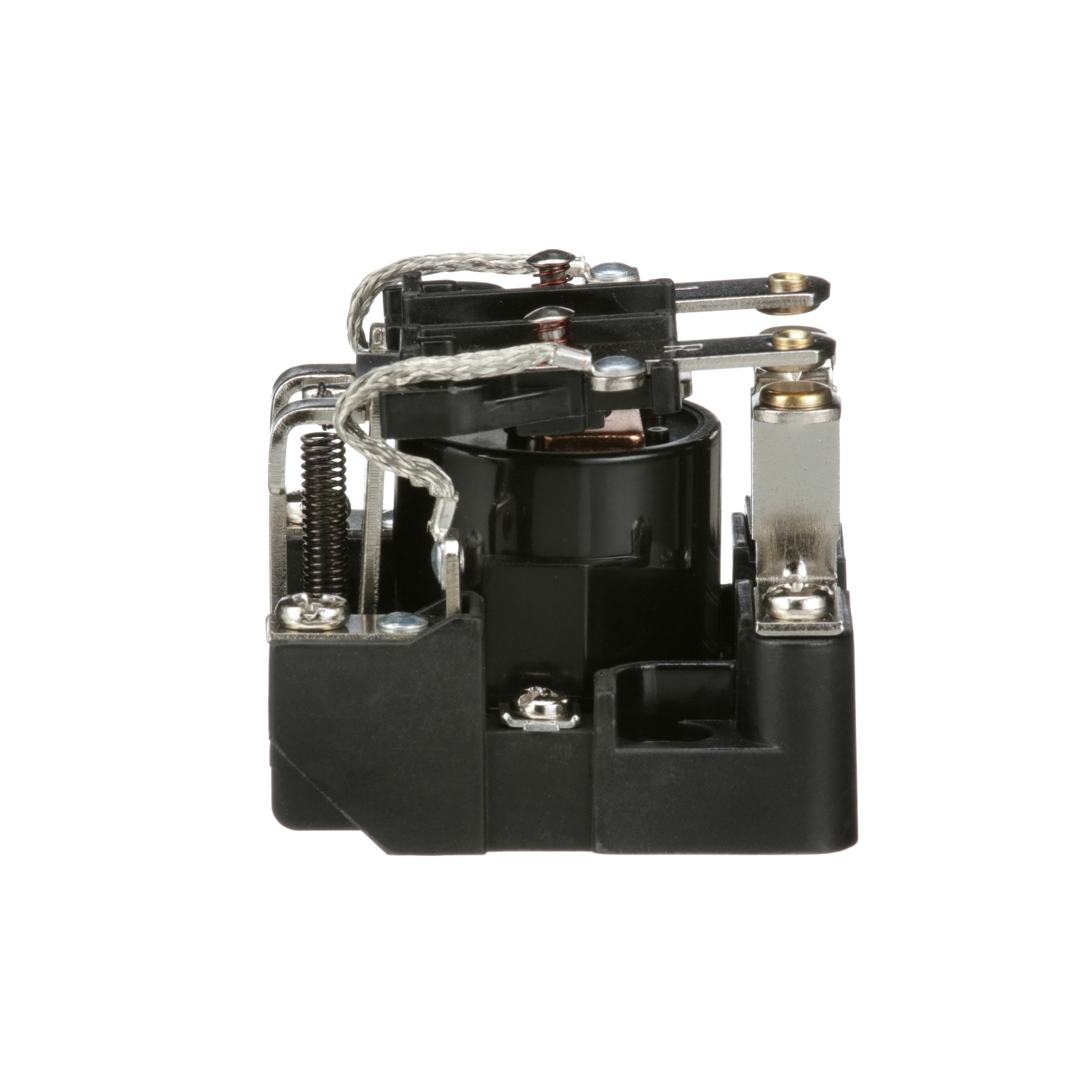

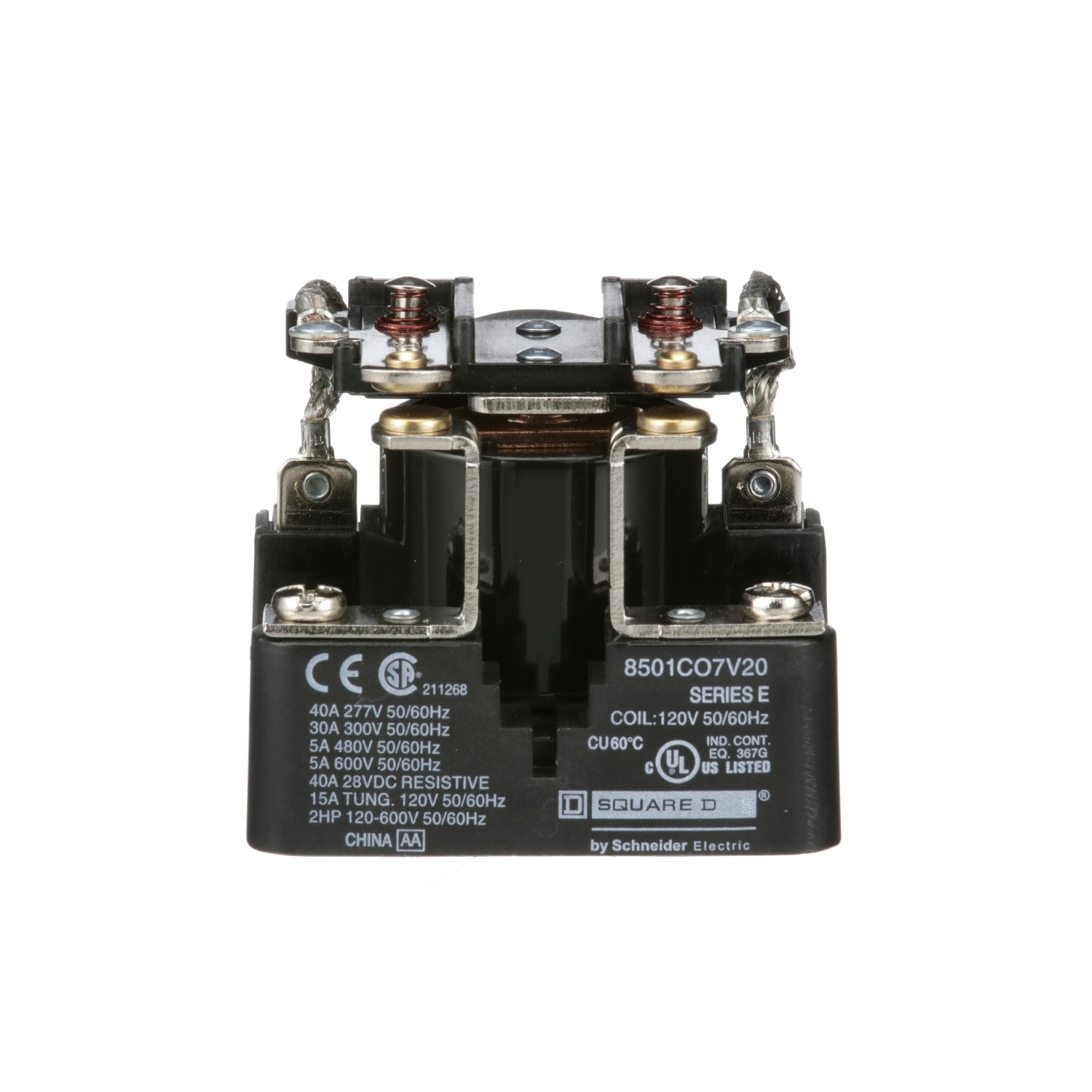

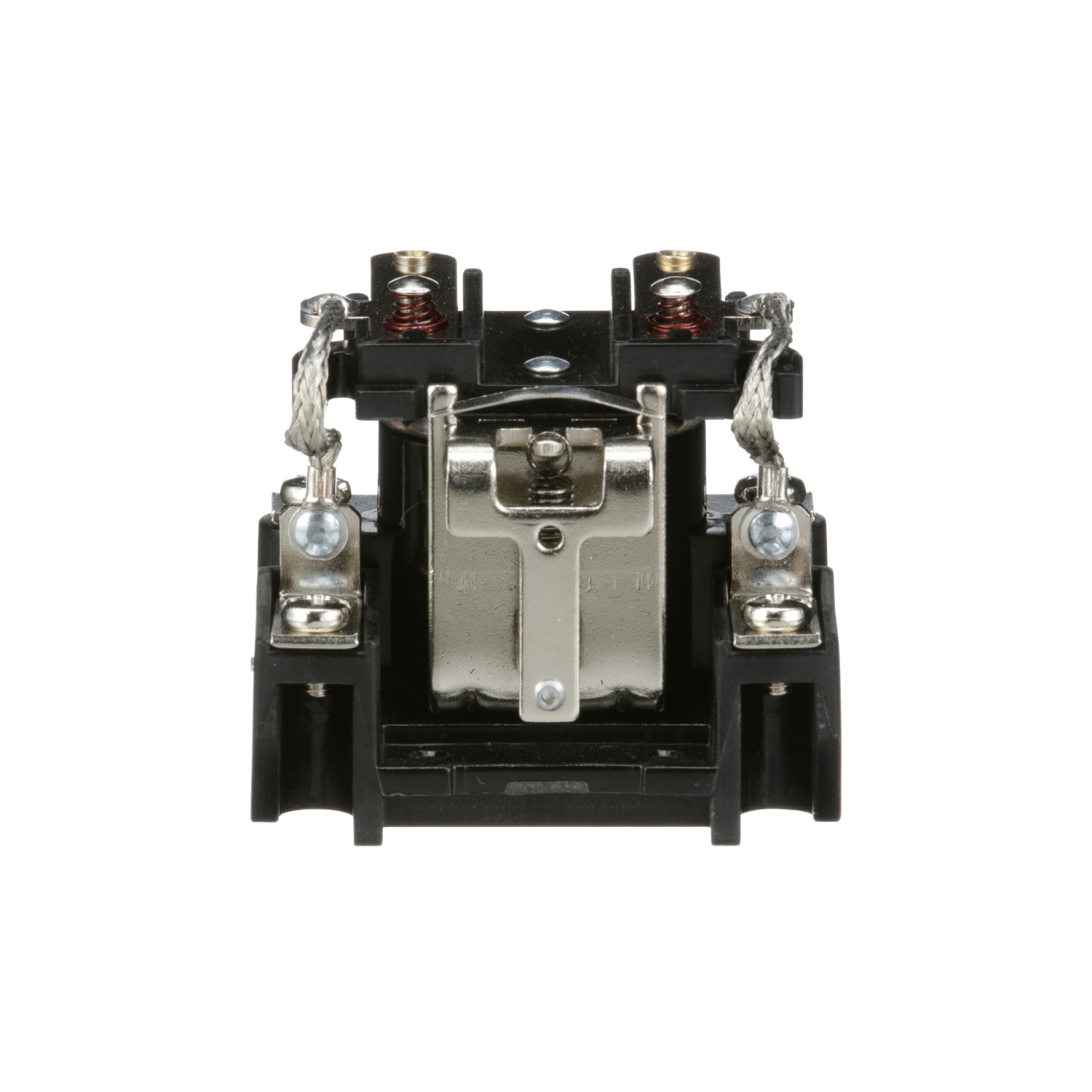

Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 120 VAC coil

product range

Power Relay 8501C

product type

Power relay

short name

type C

[In] rated line current

30 A

device application

Suited for controlling small single phase motors and other light loads

switch function

DPST

contact composition

2 NO

[Uc] control circuit voltage

120 V AC 50/60 Hz

horsepower rating

2.0 hp

maximum switching voltage

600 V AC

class number

8501

phase

1 phase

terminal connects

Screw clamp terminal

wire range

AWG 10 copper

terminal tightening torque

11…15 lbf.in (1.2…1.7 N.m)

coil burden

10 VA

mounting

Panel mounting

ambient temperature range - operational

-22…122 °F (-30…50 °C)

product certifications

UL listed file E78351 CCN NLDX
CSA
CE

height

2.43 in (61.72 mm)

width

2.5 in (63.5 mm)

depth

2.25 in (57.15 mm)

Category

US10CP221131

Discount Schedule

0CP2

GTIN

785901052258

Returnability

Yes

Country of origin

CN

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.00 in (7.62 cm)

Package 1 Width

2.50 in (6.35 cm)

Package 1 Length

3.300 in (8.382 cm)

Package 1 Weight

10.240 oz (290.299 g)

Unit Type of Package 2

CAR

Number of Units in Package 2

25

Package 2 Height

4.00 in (10.16 cm)

Package 2 Width

15.800 in (40.132 cm)

Package 2 Length

16.700 in (42.418 cm)

Package 2 Weight

16.771 lb(US) (7.607 kg)

Warranty

18 months
