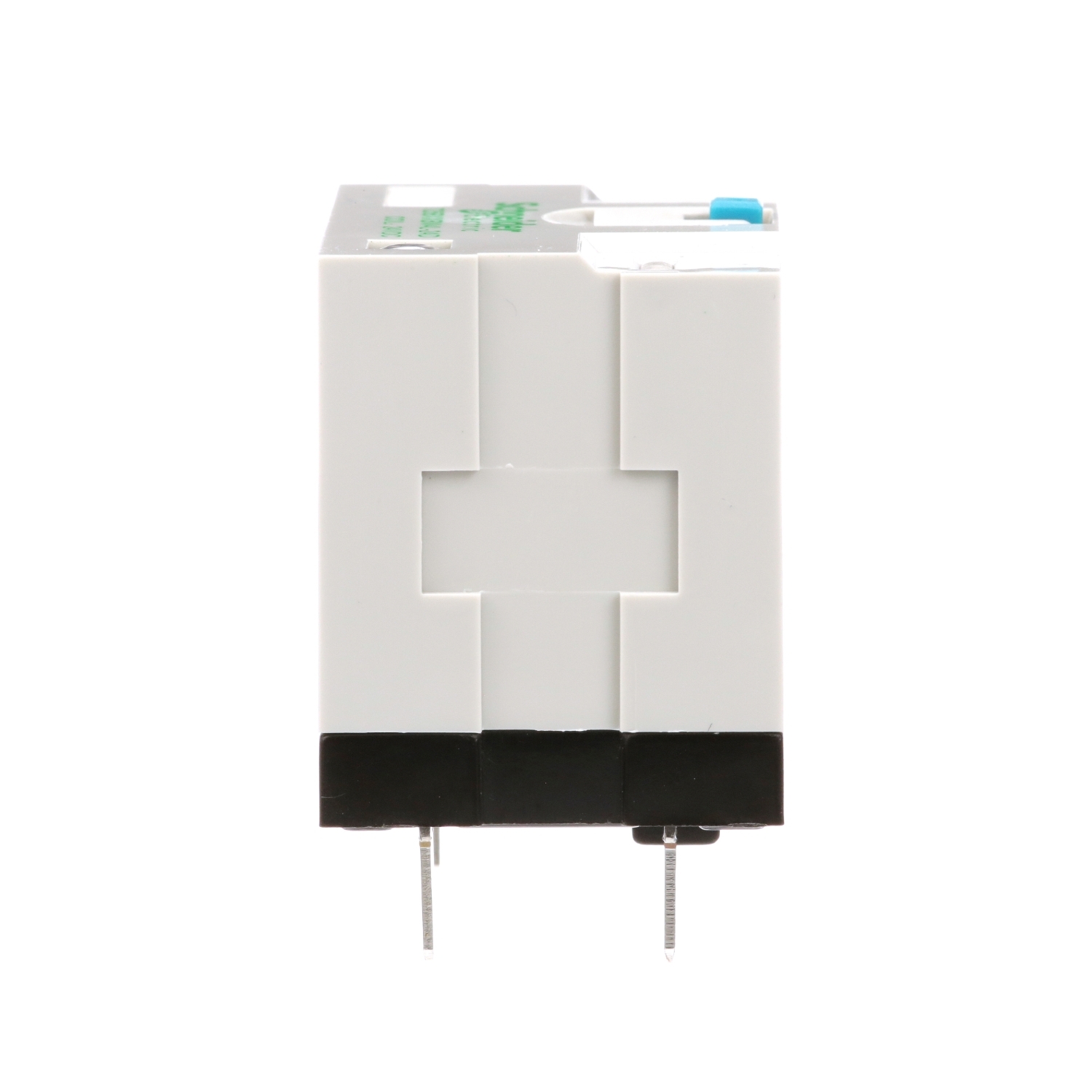

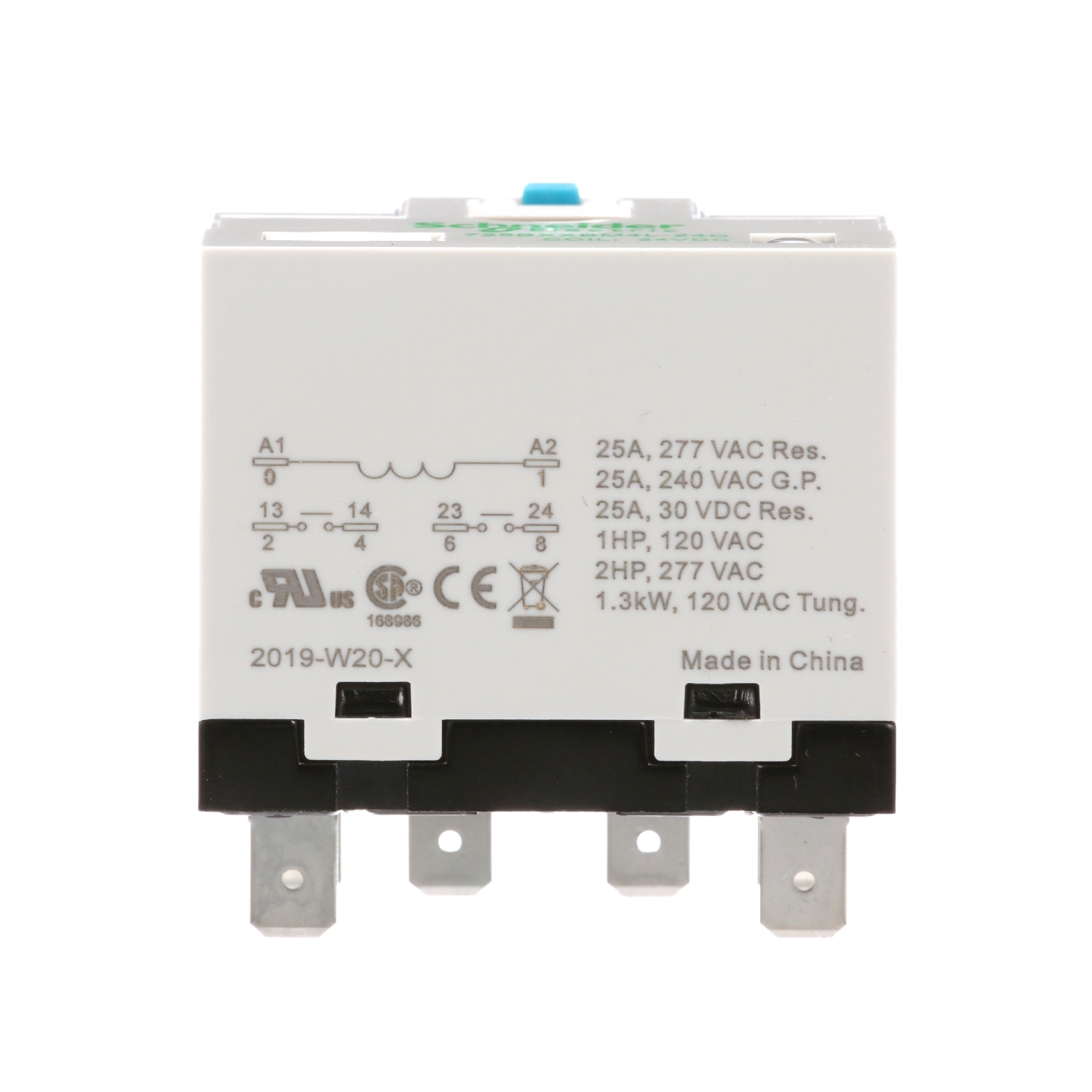

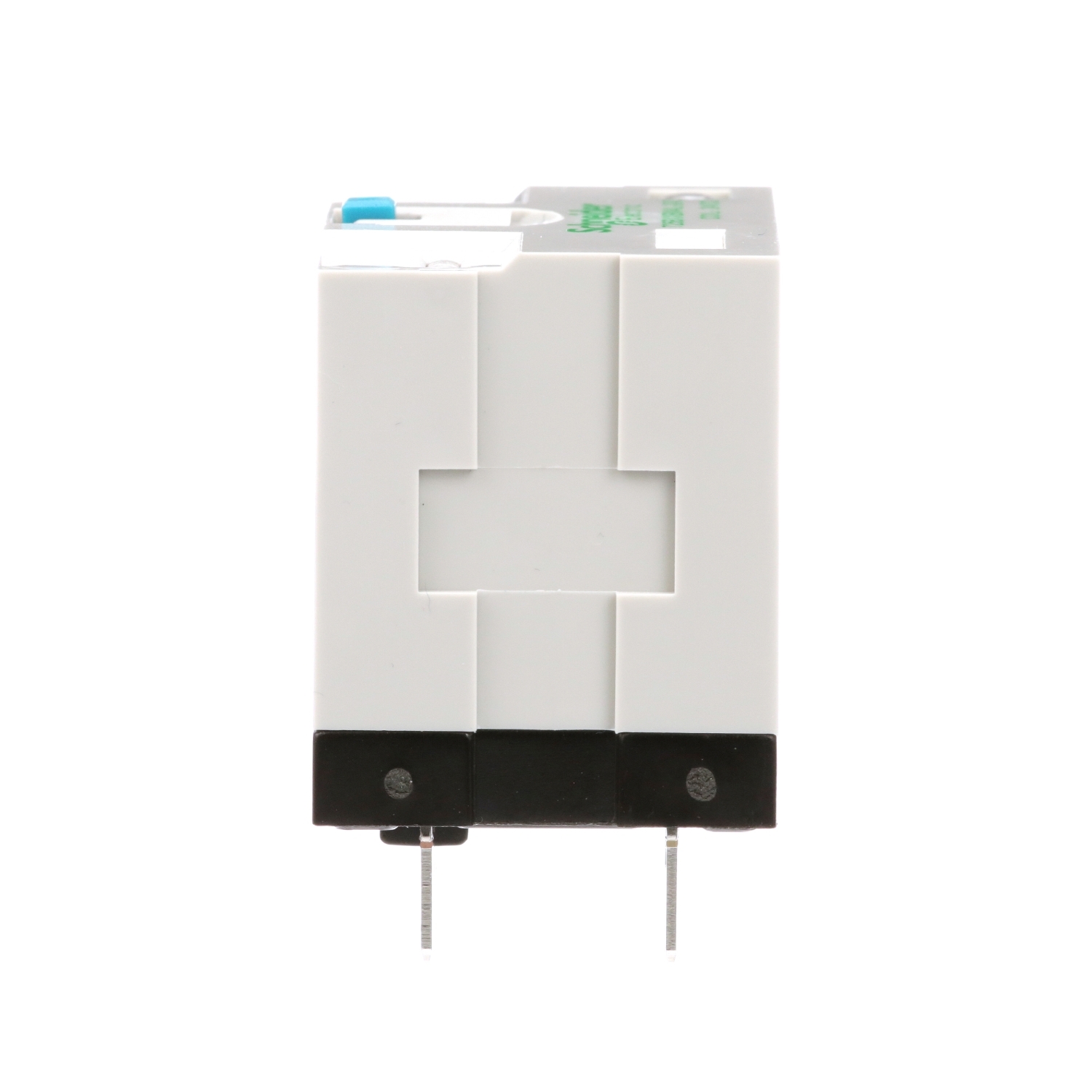

Power relay, SE Relays, 25A, 2NO, 24VDC, LED, flag indicator, locking push button, blade terminal, plug-in socket mount

Range of Product

Harmony Electromechanical Relays

Series name

Power

Product or Component Type

Plug-in relay

Contacts type and composition

2 NO

[In] rated line current

25 A

Local signalling

LED indicator
Flag

Network Frequency

50/60 Hz

class number

725

Minimum switching current

100 mA 5 V DC

Maximum switching voltage

240 V CE
277 V UL

Drop-out voltage threshold

DC

Rated power in W

1.3 kW 120 V tungsten

Nominal input voltage

19.2...26.4 V DC

Rated power in hp

1 hp 120 V AC
2 hp 277 V AC

[Ie] rated operational current

25 A at 277 V AC (on resistive load) conforming to UL
25 A at 240 V AC (general purpose) conforming to UL
25 A at 30 V DC (on resistive load) conforming to UL
25 A at 240 V AC (on resistive load) conforming to IEC
25 A at 28 V DC (on resistive load) conforming to IEC

Mechanical durability

5000000 cycles

Mounting Support

Plug-in

Contacts material

Silver alloy contacts

Control Type

Lockable test button

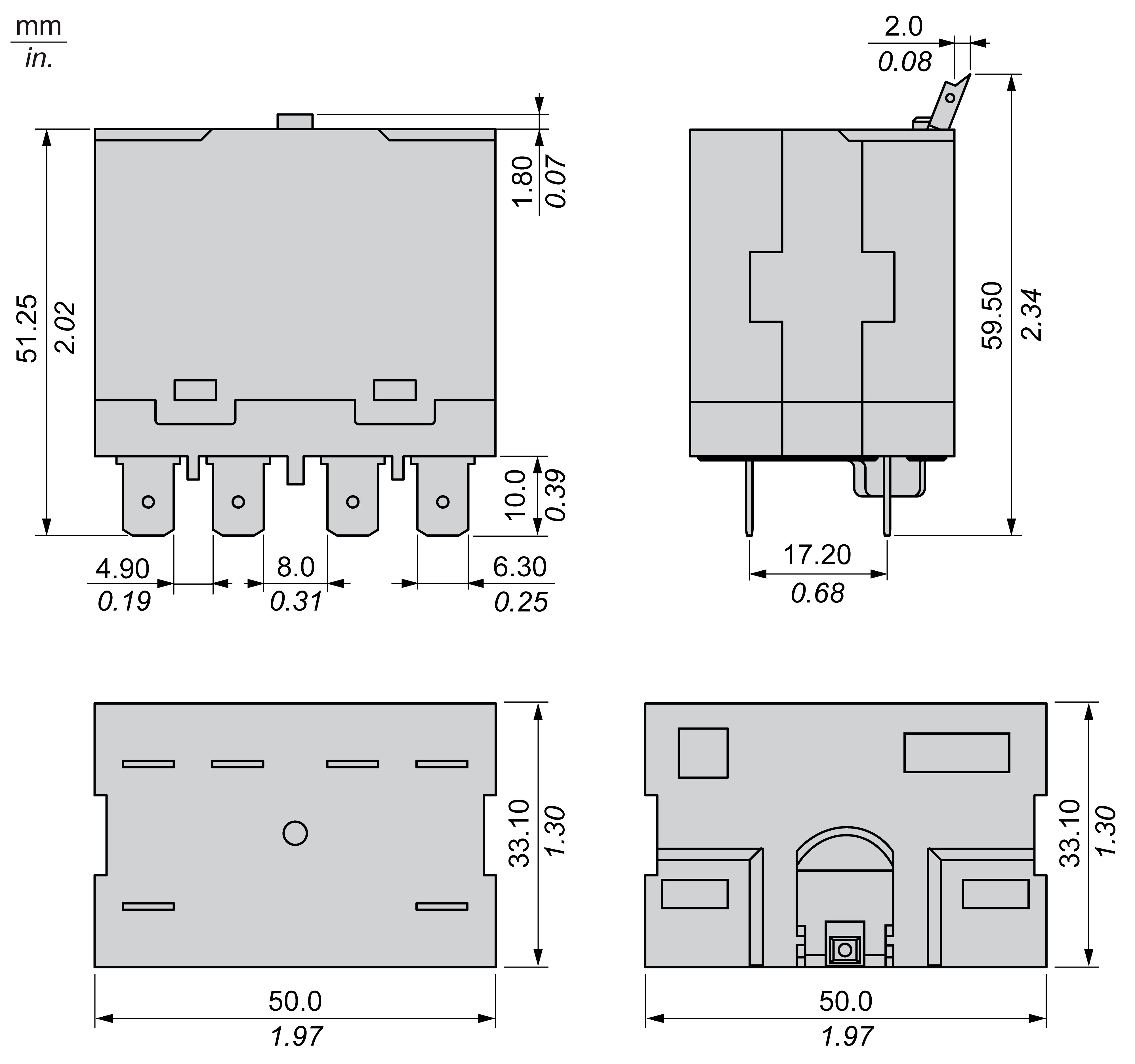

Width

1.3 in (33.1 mm)

Height

2.0 in (50 mm)

Depth

2.09 in (53.05 mm)

Net Weight

4.2 oz (120 g)

Coil resistance

300 Ohm

Average coil consumption

1.90 W

Wire stripping length

0.3 in (8 mm)

Response Time

30 ms

Associated fuse rating

32 A gG at 400 V coordination type 2 for power circuit

Short-circuit current

3 kA

Average pole impedence

2 mOhm

Standards

IEC 60947-1
UL 60947-4-1A

Product Certifications

UL
CSA
CE

Ambient Air Temperature for Storage

-67…212 °F (-55…100 °C)

Ambient Air Temperature for Operation

-4…131 °F (-20…55 °C)
