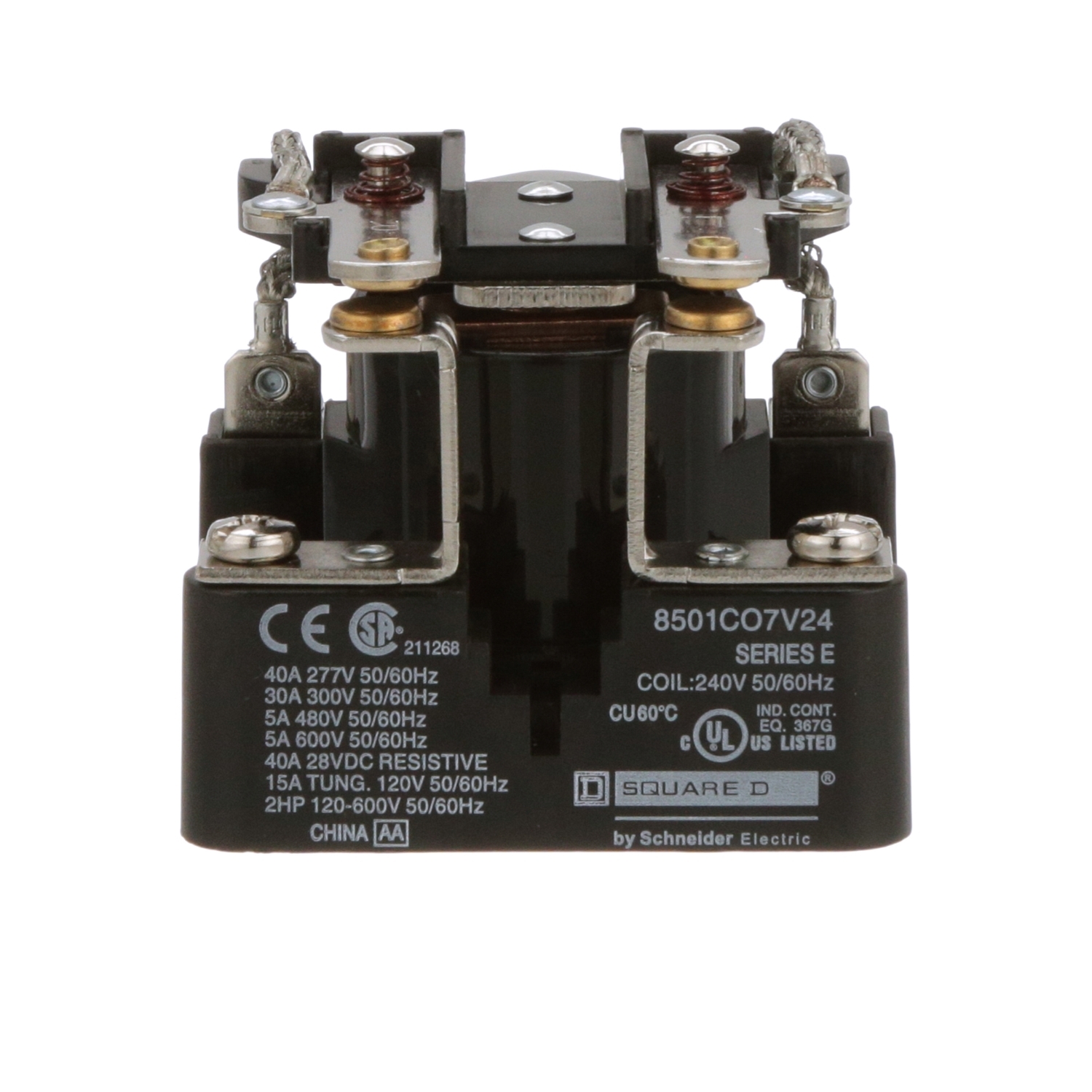

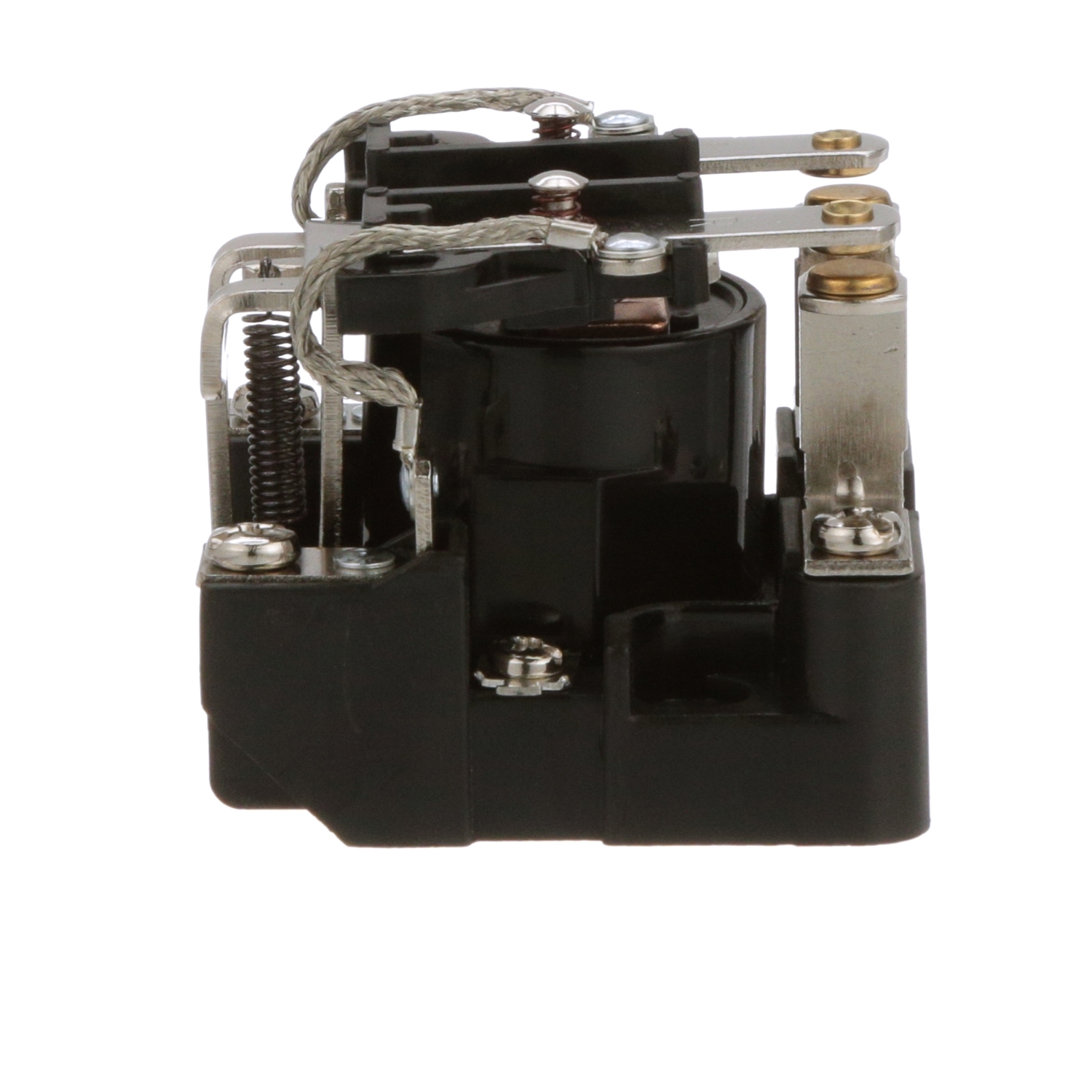

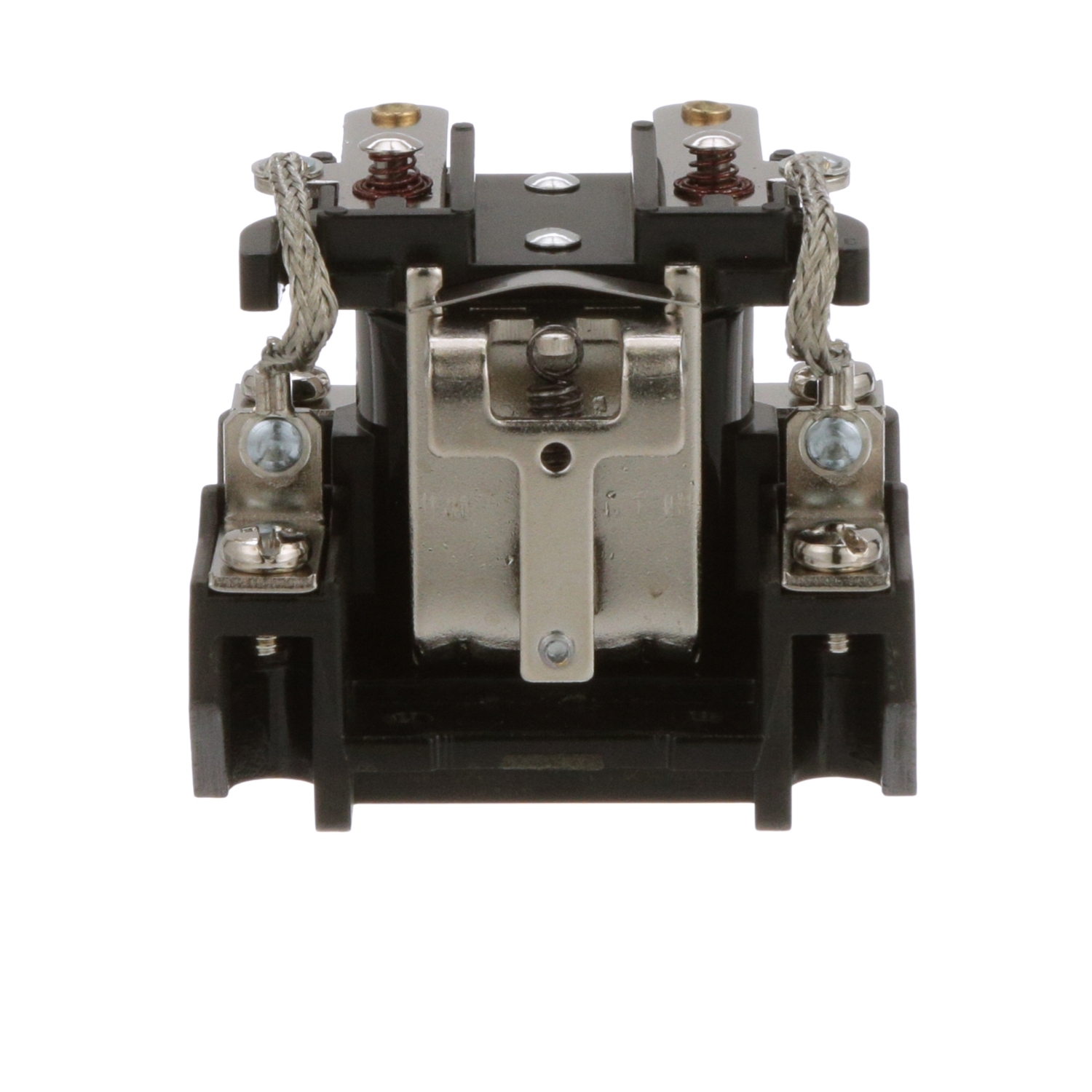

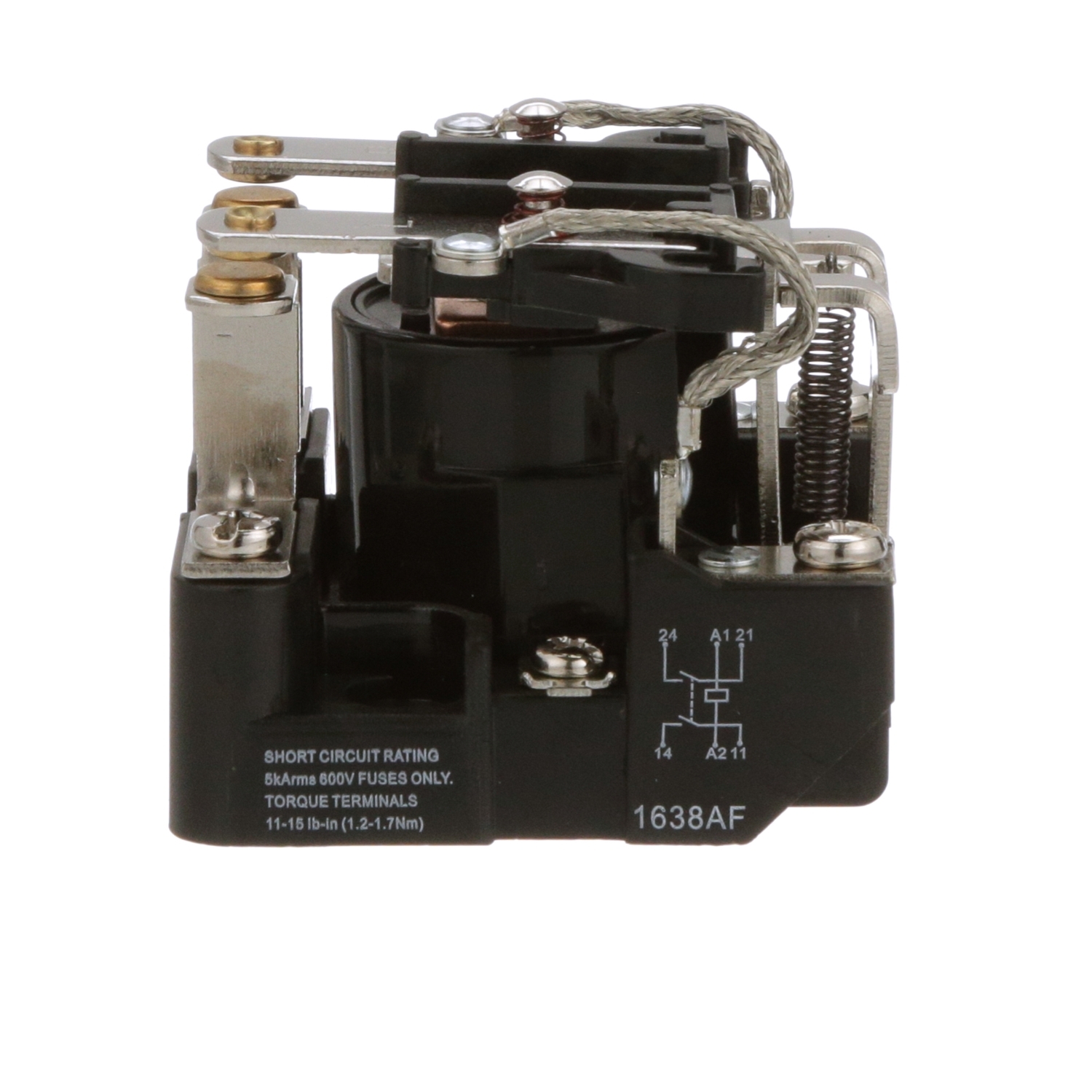

Power Relay, Harmony 8501C, DPST, coil, screw clamp terminal, 30A, 240V AC, 2NO

product range

Power Relay 8501C

product type

Power relay

short name

type C

[In] rated line current

30 A

device application

Suited for controlling small single phase motors and other light loads

switch function

DPST

contact composition

2 NO

[Uc] control circuit voltage

240 V AC 50/60 Hz

horsepower rating

2.0 hp

maximum switching voltage

600 V AC

class number

8501

phase

1 phase

terminal connects

Screw clamp terminal

wire range

AWG 10 copper

terminal tightening torque

11…15 lbf.in (1.2…1.7 N.m)

coil burden

10 VA

mounting

Panel mounting

ambient temperature range - operational

-22…122 °F (-30…50 °C)

product certifications

UL listed file E78351 CCN NLDX
CSA
CE

height

2.43 in (61.72 mm)

width

2.5 in (63.5 mm)

depth

2.25 in (57.15 mm)

Category

US10CP221131

Discount Schedule

0CP2

GTIN

785901052074

Returnability

Yes

Country of origin

CN

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.300 in (5.842 cm)

Package 1 Width

2.600 in (6.604 cm)

Package 1 Length

2.50 in (6.35 cm)

Package 1 Weight

9.600 oz (272.155 g)

Warranty

18 months
