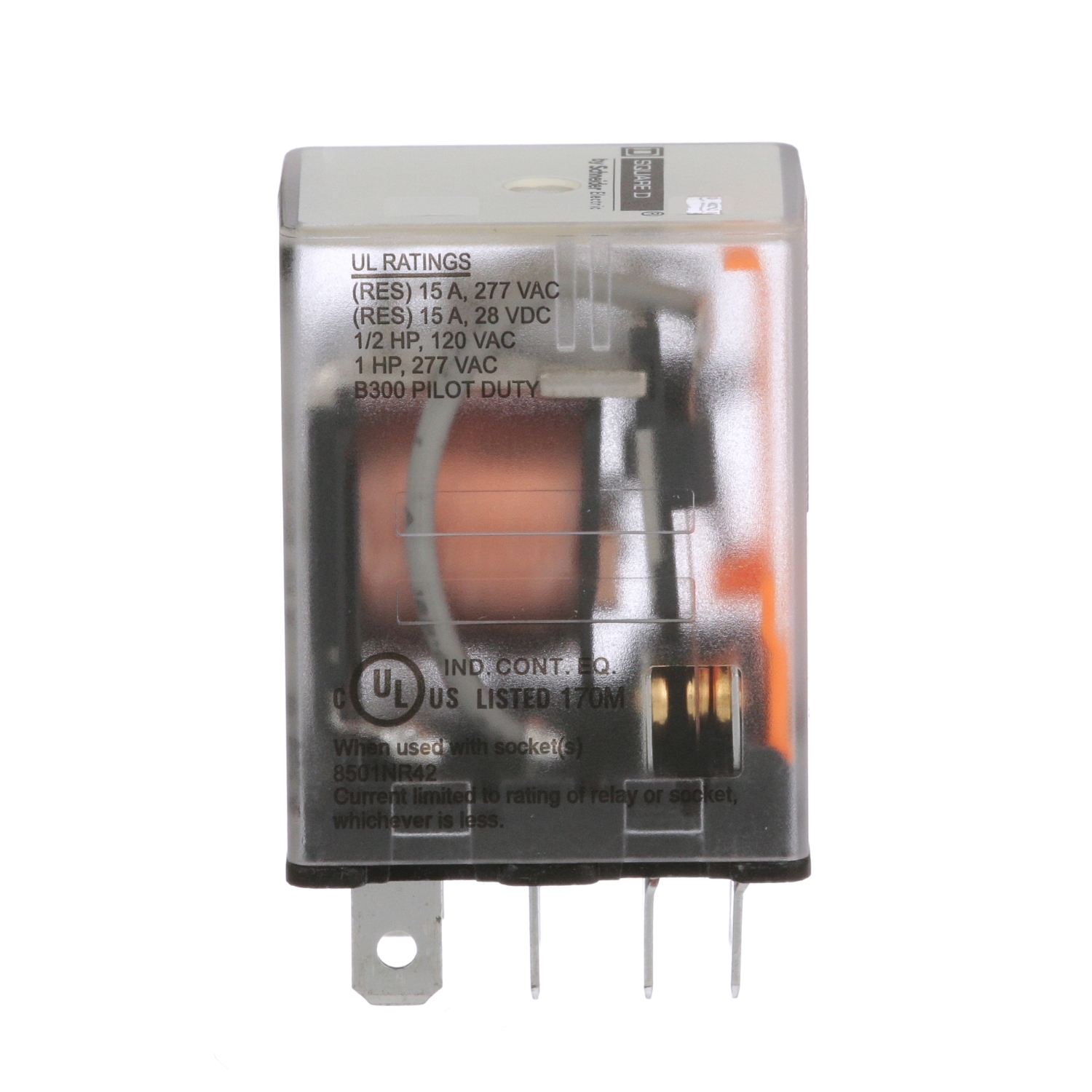

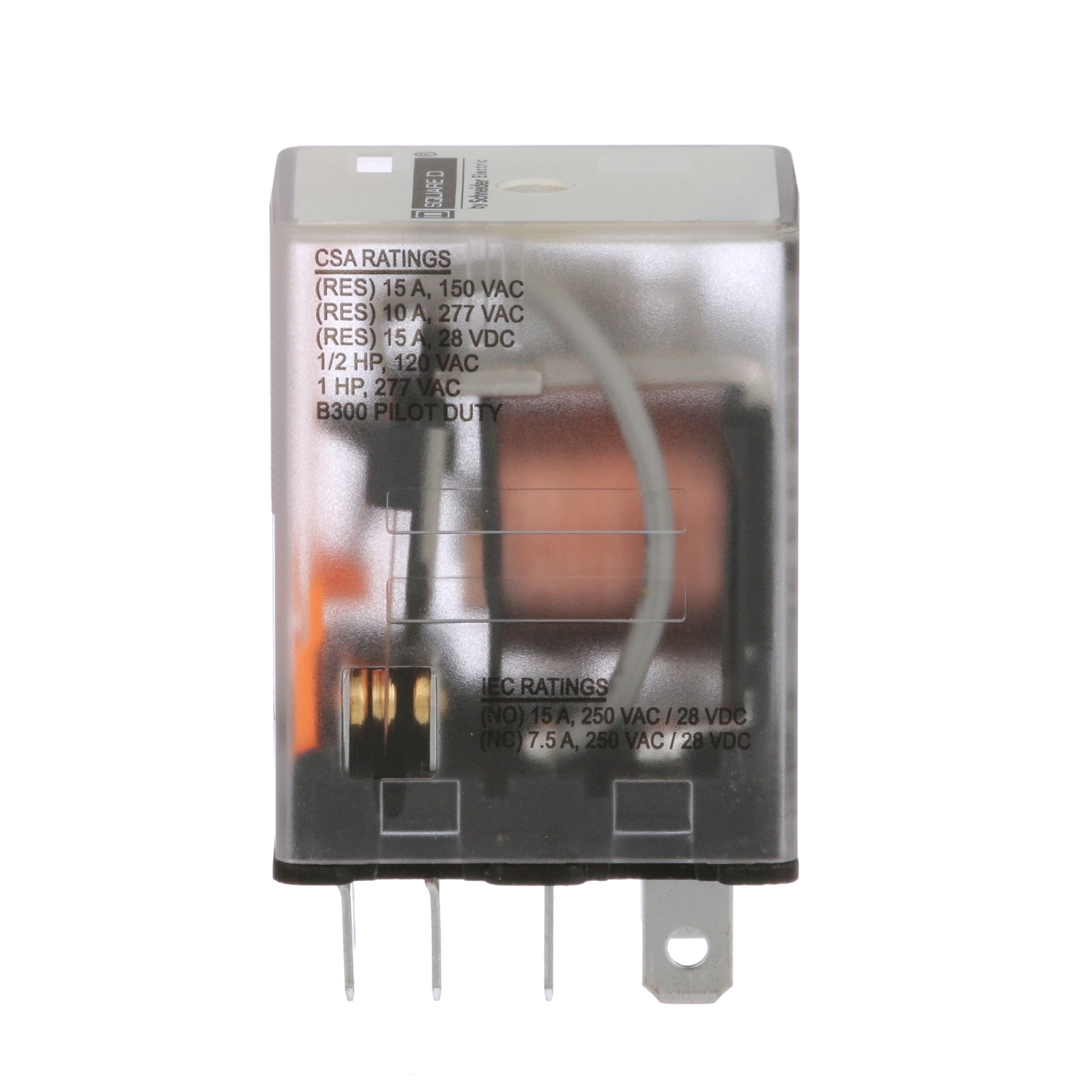

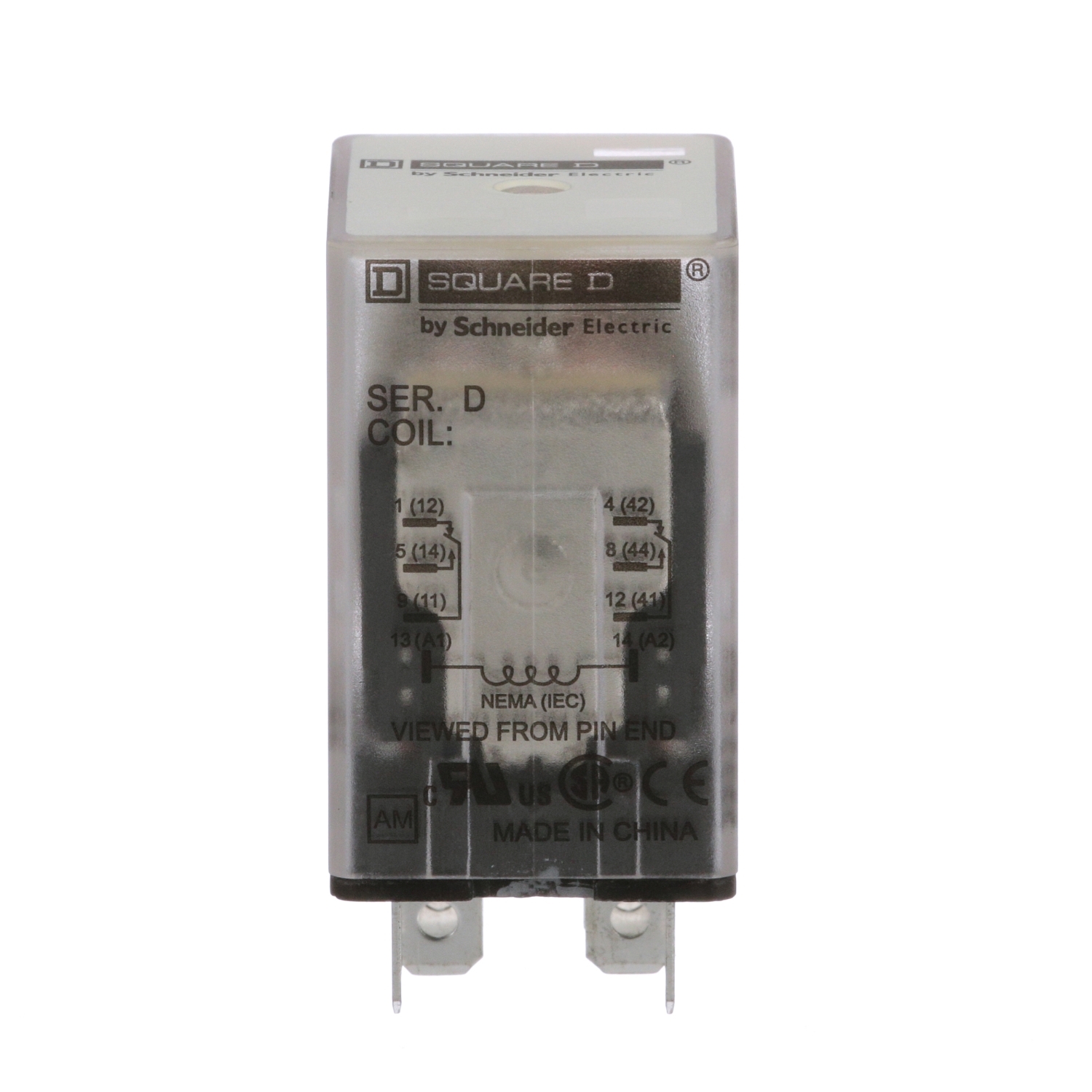

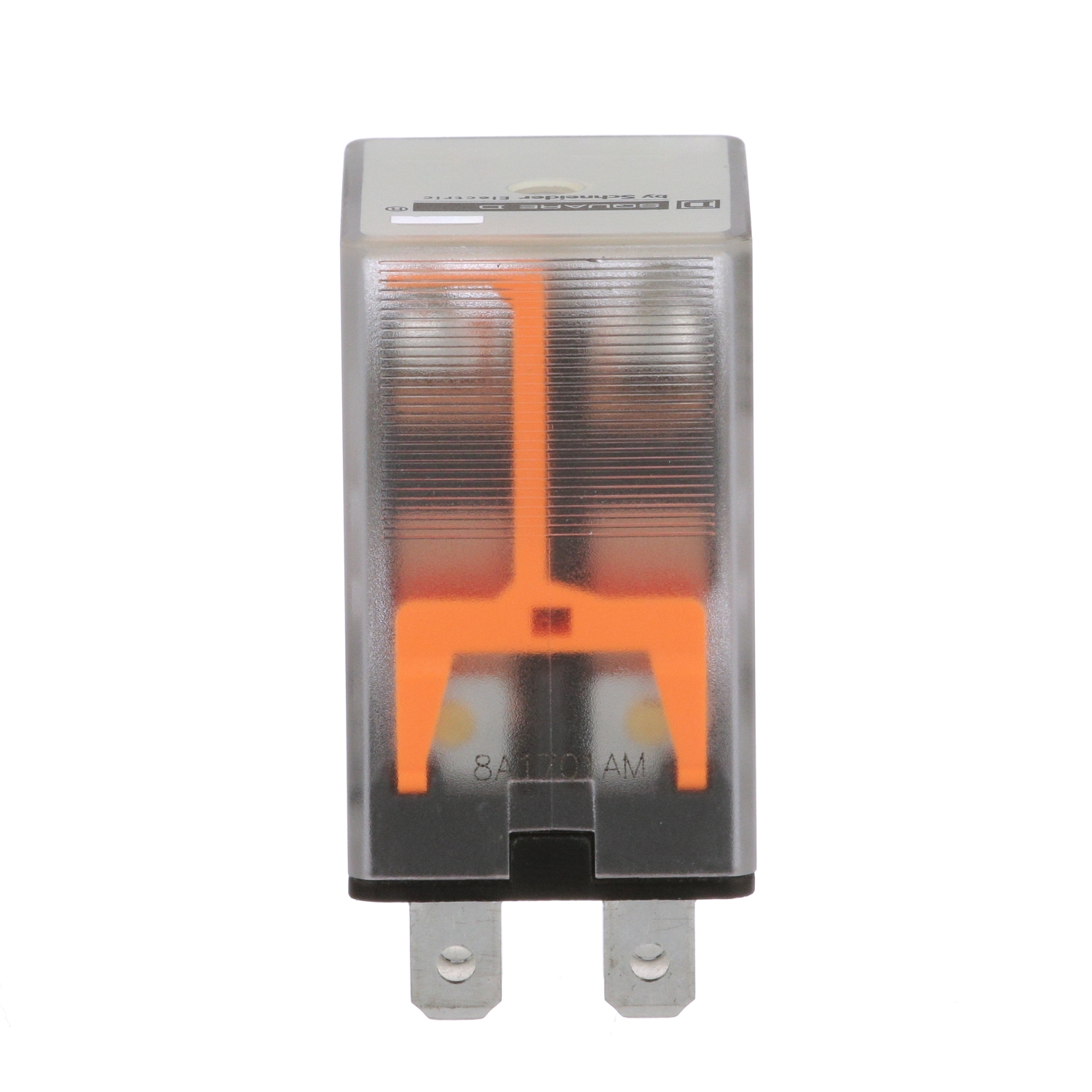

Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 24 VDC coil

SKU: 8501RSD42V53

About Product

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Main

product range

8501R

product type

Miniature Relay

Relay Type

Standard

Complementary

mounting type

Socket

contact composition

DPDT

[Uc] control circuit voltage

24 V DC

pilot light

No indicator

manual operator

Without test button

horsepower rating

0.5 120 V AC
1 277 V AC

breaking capacity

3 A 120 V AC inductive control circuit UL 508
1.5 A 240 V AC inductive control circuit UL 508
15 A 120 V AC resistive control circuit UL 508
10 A 277 V AC resistive control circuit UL 508
15 A 28 V DC resistive control circuit UL 508

maximum switching voltage

300 V AC
30 V DC

contact material

Silver alloy, gold flashed

operating time

20 ms - pick-up
20 ms - drop-out

shape of pins

Spade

for use with

8501NR42

Height

1.07 in (27.3 mm)
