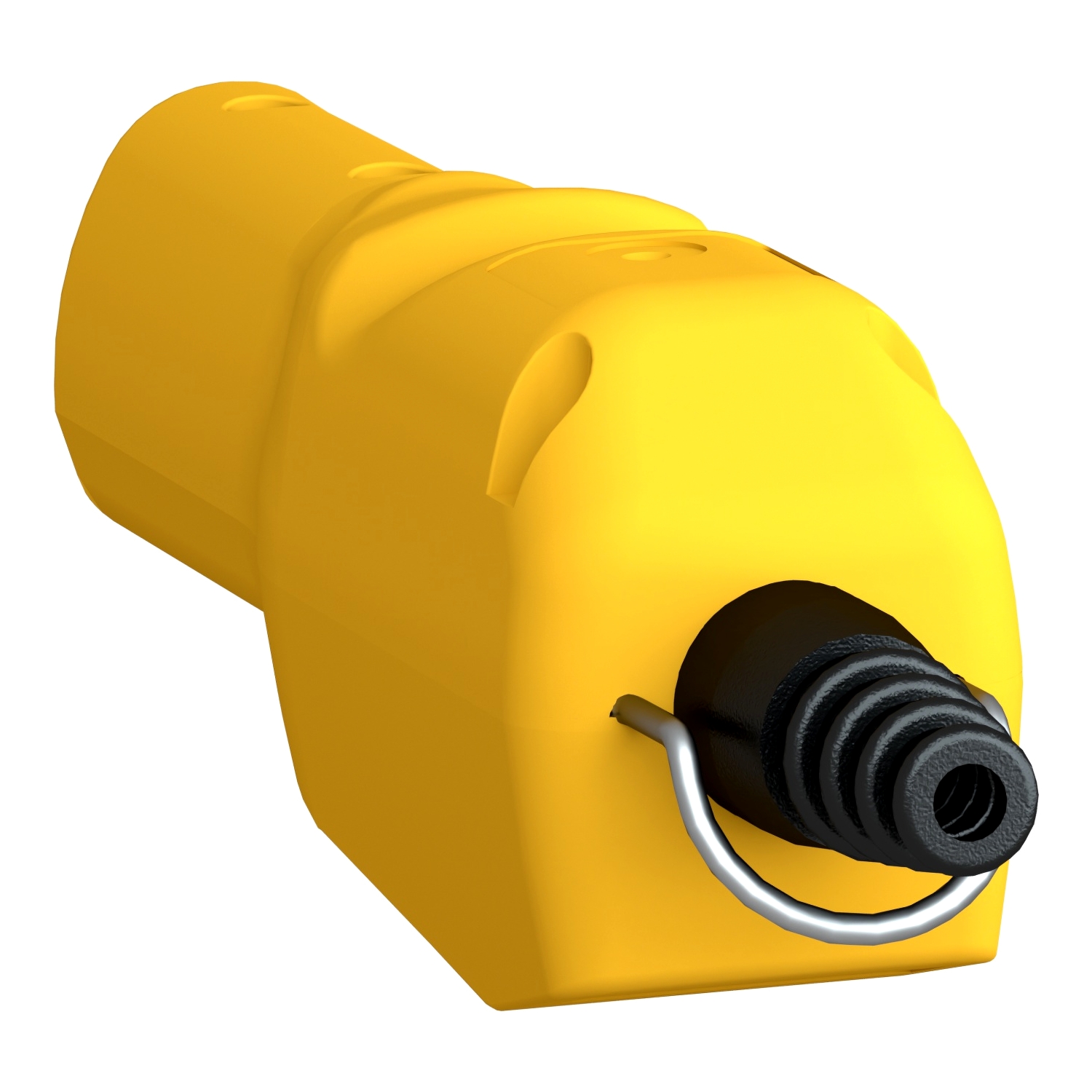

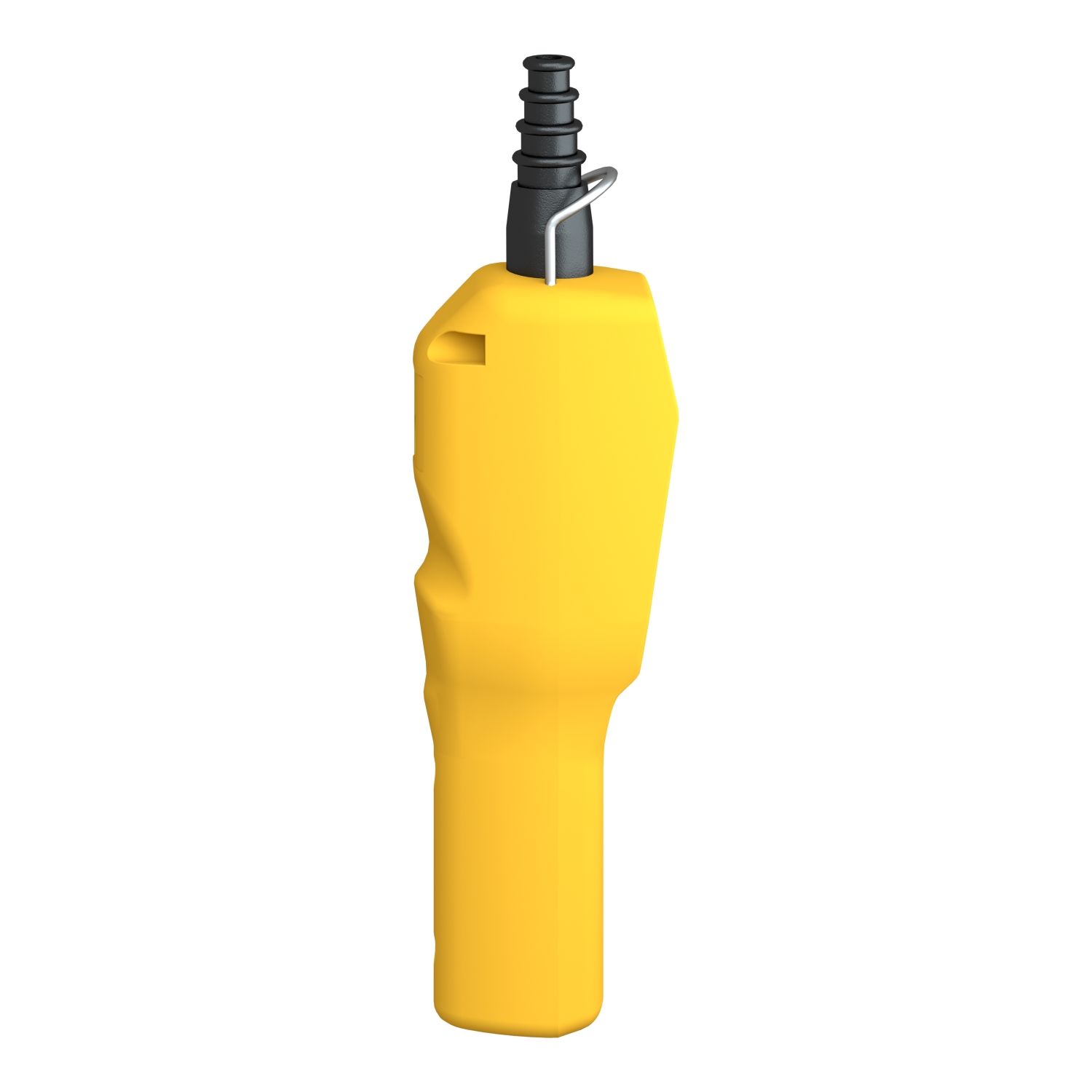

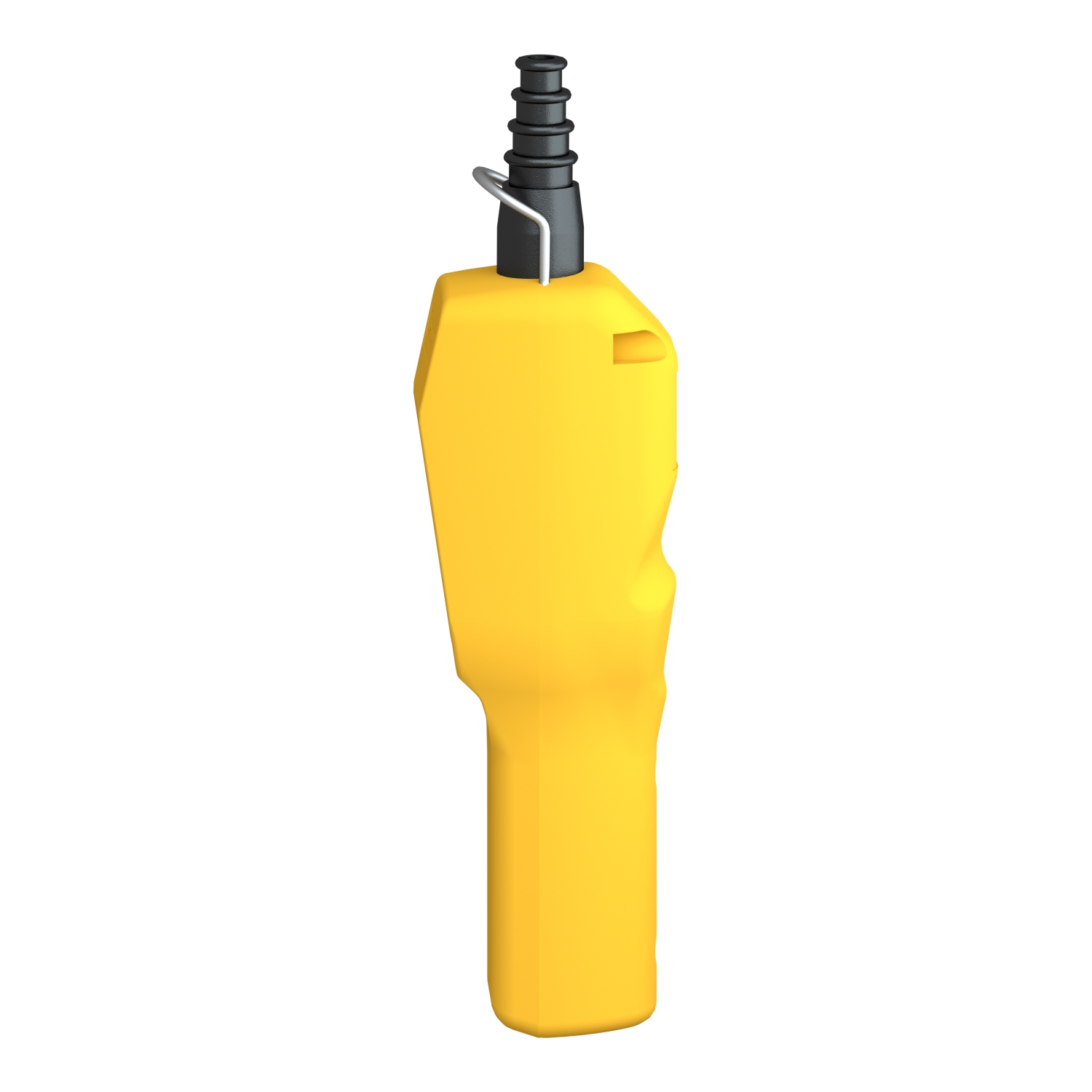

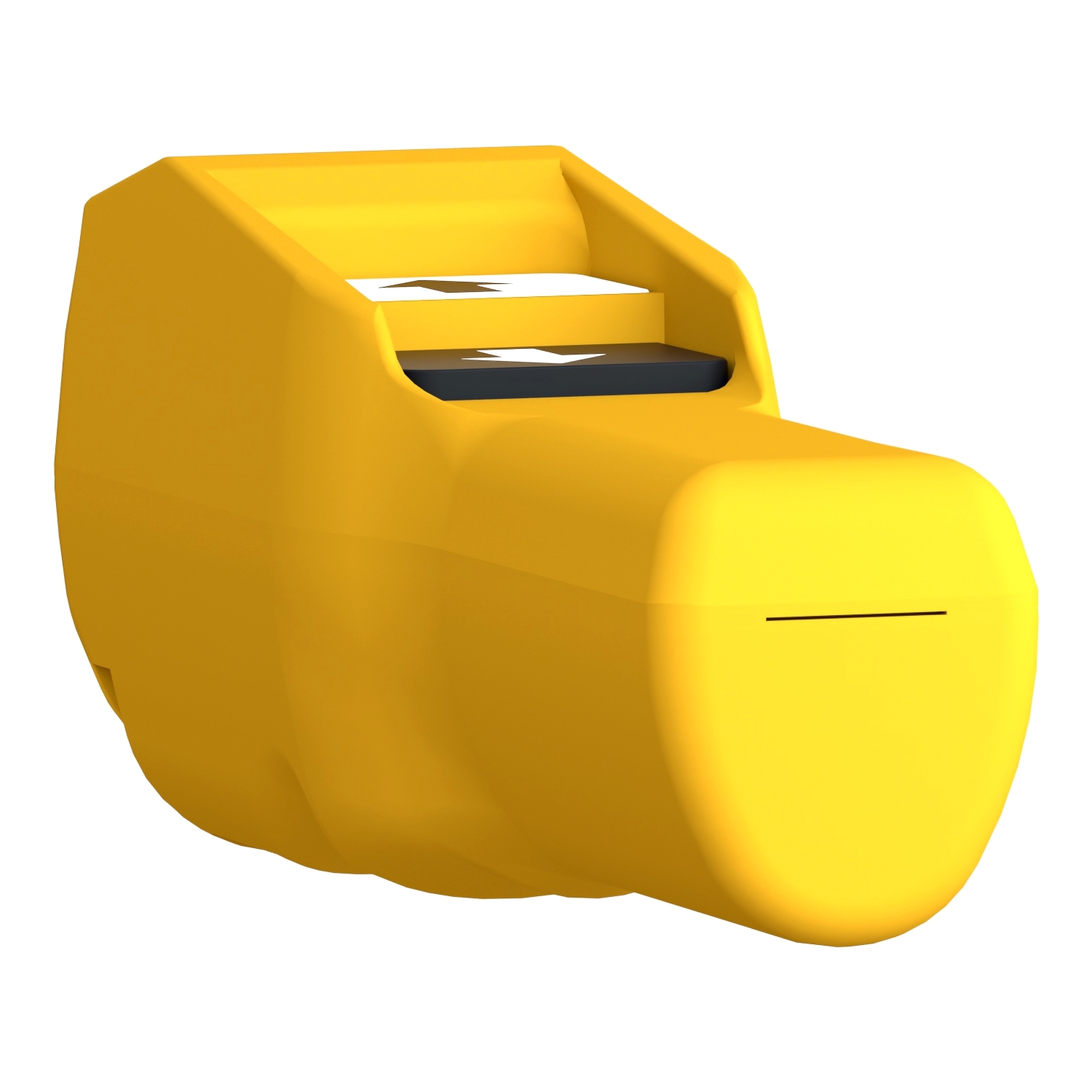

Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 push buttons with NO+NC

Range of Product

Harmony XAC

Product or Component Type

Pendant control station

Device short name

XACA pistol grip

Control station type

Double insulated

Enclosure Material

Polypropylene

Control Type

Intuitive

Electrical circuit type

Control circuit

Enclosure Type

Complete ready for use

Control station application

Control of single speed hoist motor

Control station composition

2 push-buttons

Control button type

First push-button 1 NC + 1 NO raise, slow
Second push-button 1 NC + 1 NO lower, slow

Product compatibility

ZB2BE102 + ZB2BE101 for each direction

Mechanical interlocking

With mechanical interlocking

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Standards

UL 508
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60204-32

Product Certifications

UL
CSA

protective treatment

TH

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Vibration resistance

15 gn 10…500 Hz)IEC 60068-2-6

Shock resistance

100 gn IEC 60068-2-27

Overvoltage category

Class II IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to EN 50102

Mechanical durability

1000000 cycles

Cable entry

Rubber sleeve with stepped entry 0.3…0.6 in (7…15 mm)

Contact code designation

A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A
A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

600 V 3)IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV IEC 60947-1

Contact operation

Slow-break

Maximum resistance across terminals

25 MOhm

Operating force

13…15 N

Short-circuit protection

10 A fuse protection cartridge gG

Rated operational power in W

40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C
48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C
65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Terminals description ISO n°1

(11-12)NC
(13-14)NO

Terminal identifier

(11-12)NC
(13-14)NO

Net Weight

0.7 lb(US) (0.3 kg)

Category

US10CS222473

Discount Schedule

0CS2

GTIN

3389110645026

Returnability

Yes

Country of origin

FR

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.480 in (6.300 cm)

Package 1 Width

3.780 in (9.600 cm)

Package 1 Length

11.457 in (29.100 cm)

Package 1 Weight

9.947 oz (282.000 g)

Unit Type of Package 2

S03

Number of Units in Package 2

15

Package 2 Height

11.811 in (30.000 cm)

Package 2 Width

11.811 in (30.000 cm)

Package 2 Length

15.748 in (40.000 cm)

Package 2 Weight

10.401 lb(US) (4.718 kg)

Unit Type of Package 3

P06

Number of Units in Package 3

120

Package 3 Height

29.528 in (75.000 cm)

Package 3 Width

23.622 in (60.000 cm)

Package 3 Length

31.496 in (80.000 cm)

Package 3 Weight

106.713 lb(US) (48.404 kg)

Warranty

18 months
