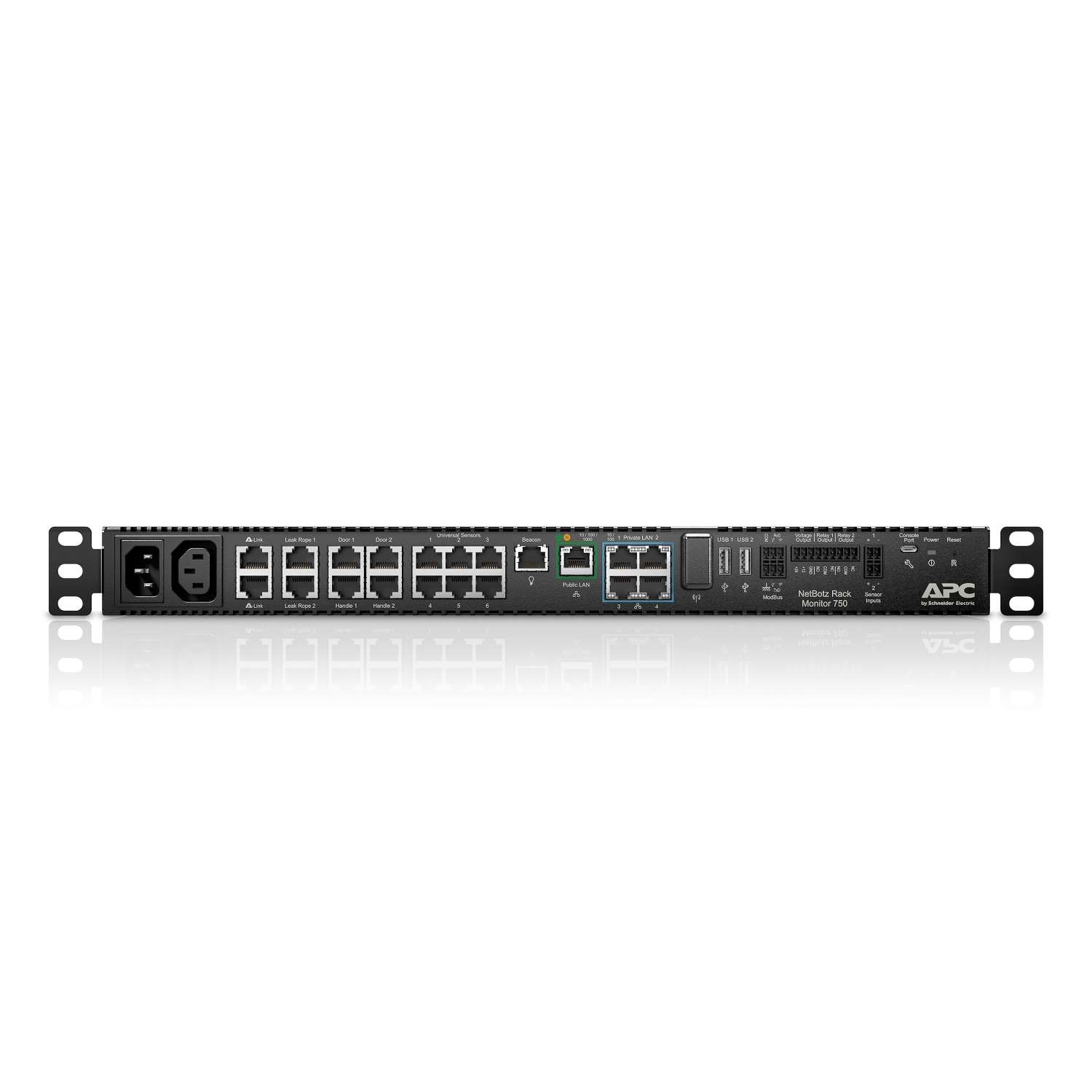

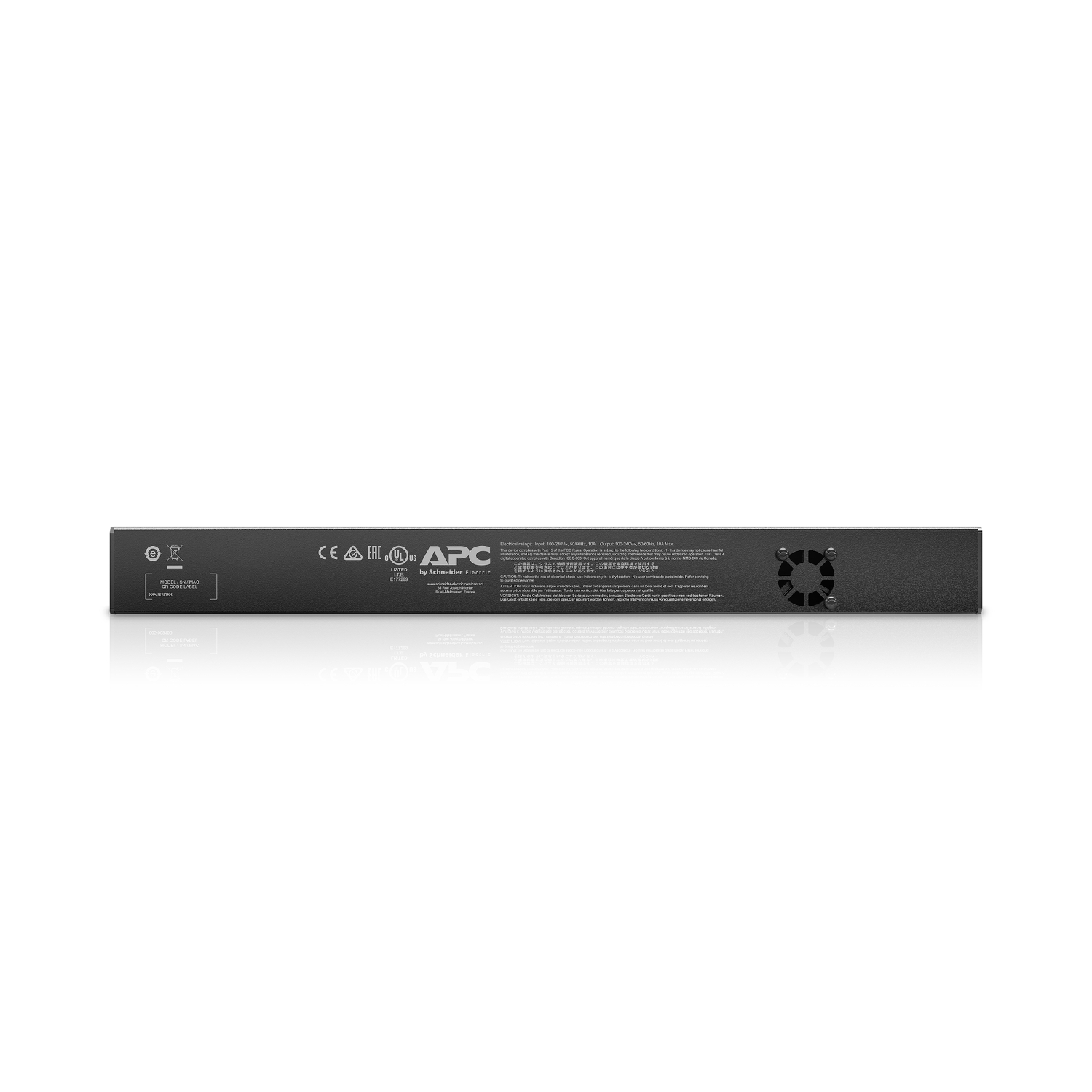

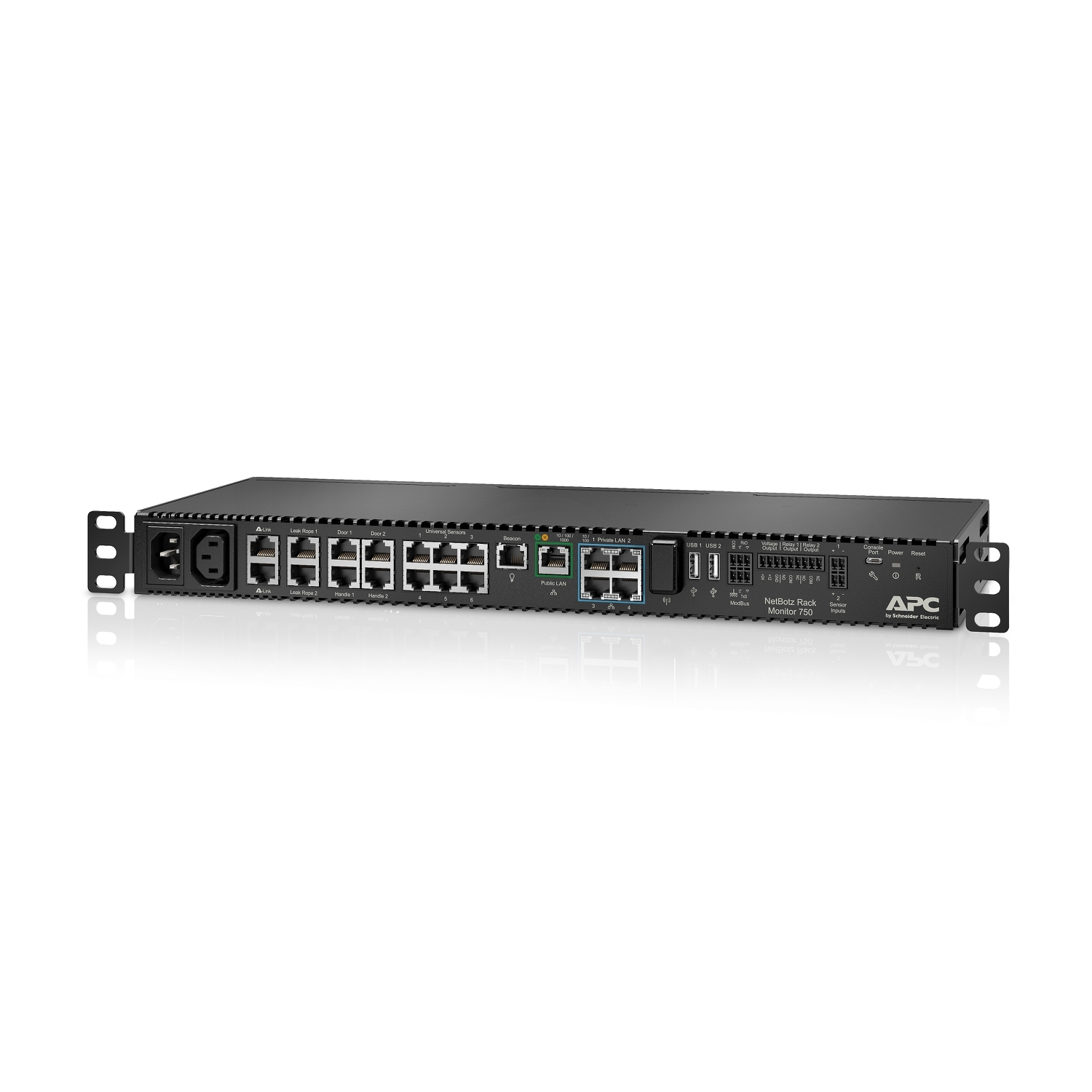

NetBotz Rack Monitor 750

Presentation

The NetBotz Rack Monitor 750 provides integrated surveillance,sensing, access control, and advanced alerting for IT environmentsof all sizes, from single-rack edge networks to large data centers.

Lead time

Usually in Stock

Product or Component Type

Industrial rack PC

Range of Product

Netbotz

Number of rack unit

1U

Communication Port Protocol

A-Link
DHCP
HTTPS
IPv4
SNMP v1
SNMP v3
SSH v2
TCP/IP

Provided Equipment

Rack Mounting brackets
Temperature/Humidity Sensor
USB cable

Product Compatibility

Rack Sensor Pod 150
Room Sensor Pod 155

Camera Frame Rate

Up to 30fps

display resolution

Up to 1280x1024

APC Universal Sensors Supported

0-5V
Door contact
Dry Contact
Humidity
Smoke
Fluid Spot Leak
Temperature
Vibration

Number of Universal Sensor Ports

6

Number of Sensor Pods Supported

12

Number of Universal Sensors Supported

78

Number of Cameras Supported

4

Color

Black

Height

1.7 in (4.3 cm)

Width

17.008 in (43.2 cm)

Depth

7.008 in (17.8 cm)

Net Weight

5.40 lb(US) (2.45 kg)

mounting location

Front
Rear

Mounting preference

No preference

Mounting Mode

Rack-mounted

Mounting position

Horizontal

Standards

CSA C22.2 No. 60950-1-03
FCC Part 15 class A
ICES-003
UL 60950-1

Product Certifications

2014/30/EU
AS/NZS 3548 (C-Tick) Class A
CE
EMC Directive 2004/108/EC
VCCI Class A

Ambient Air Temperature for Operation

32…104 °F (0…40 °C)

Operating altitude

0...10000 ft

Relative Humidity

0…95 %

Ambient Air Temperature for Storage

5…149 °F (-15…65 °C)

Storage altitude

0…50000 ft (0…15240 m)

Storage Relative Humidity

0…95 %

Communication Network Type

RJ-45 10/100/1000 Base-T

GTIN

731304344407

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.8 in (12.1 cm)

Package 1 Width

12.5 in (31.8 cm)

Package 1 Length

21.0 in (53.3 cm)

Package 1 Weight

9.19 lb(US) (4.17 kg)

Warranty

2 years
