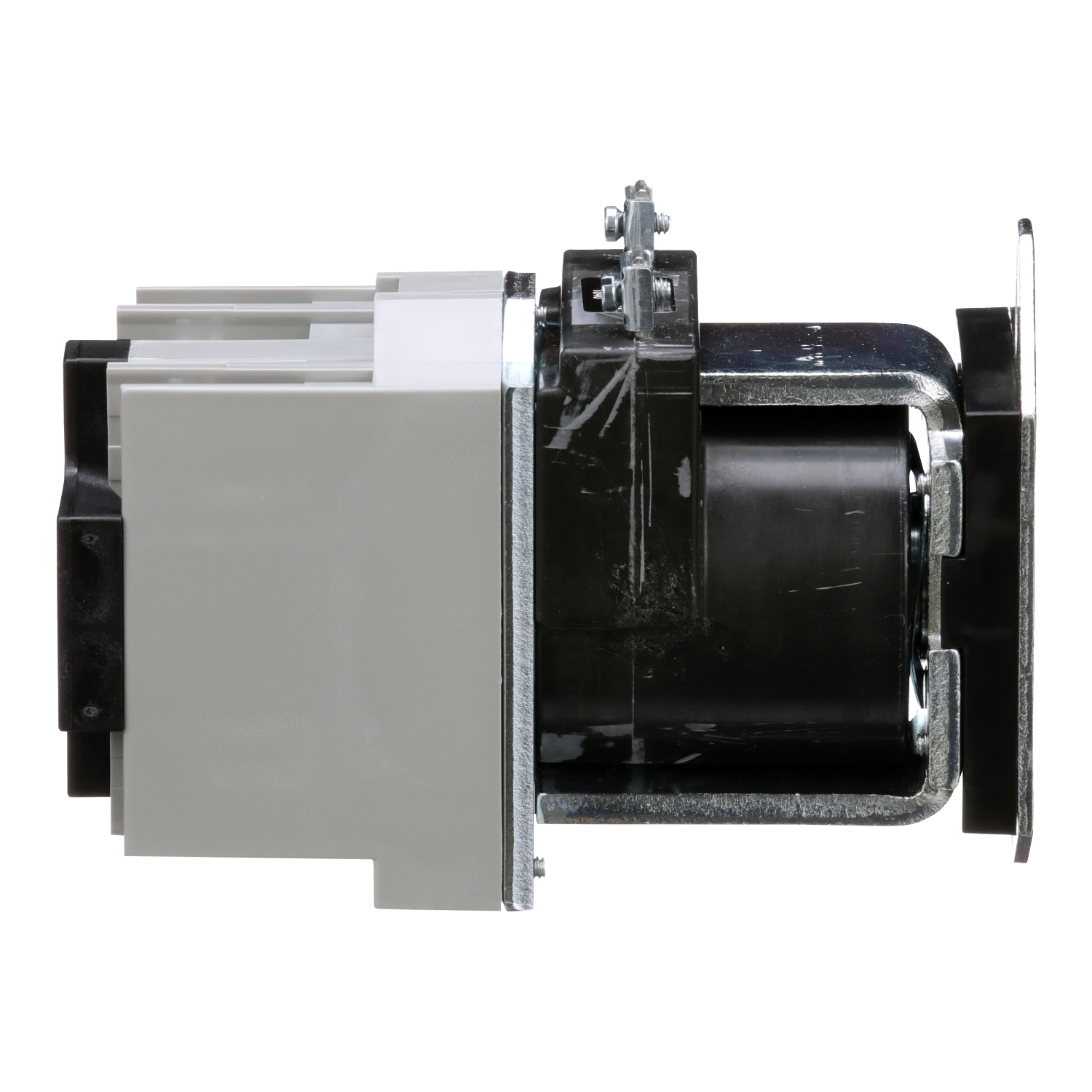

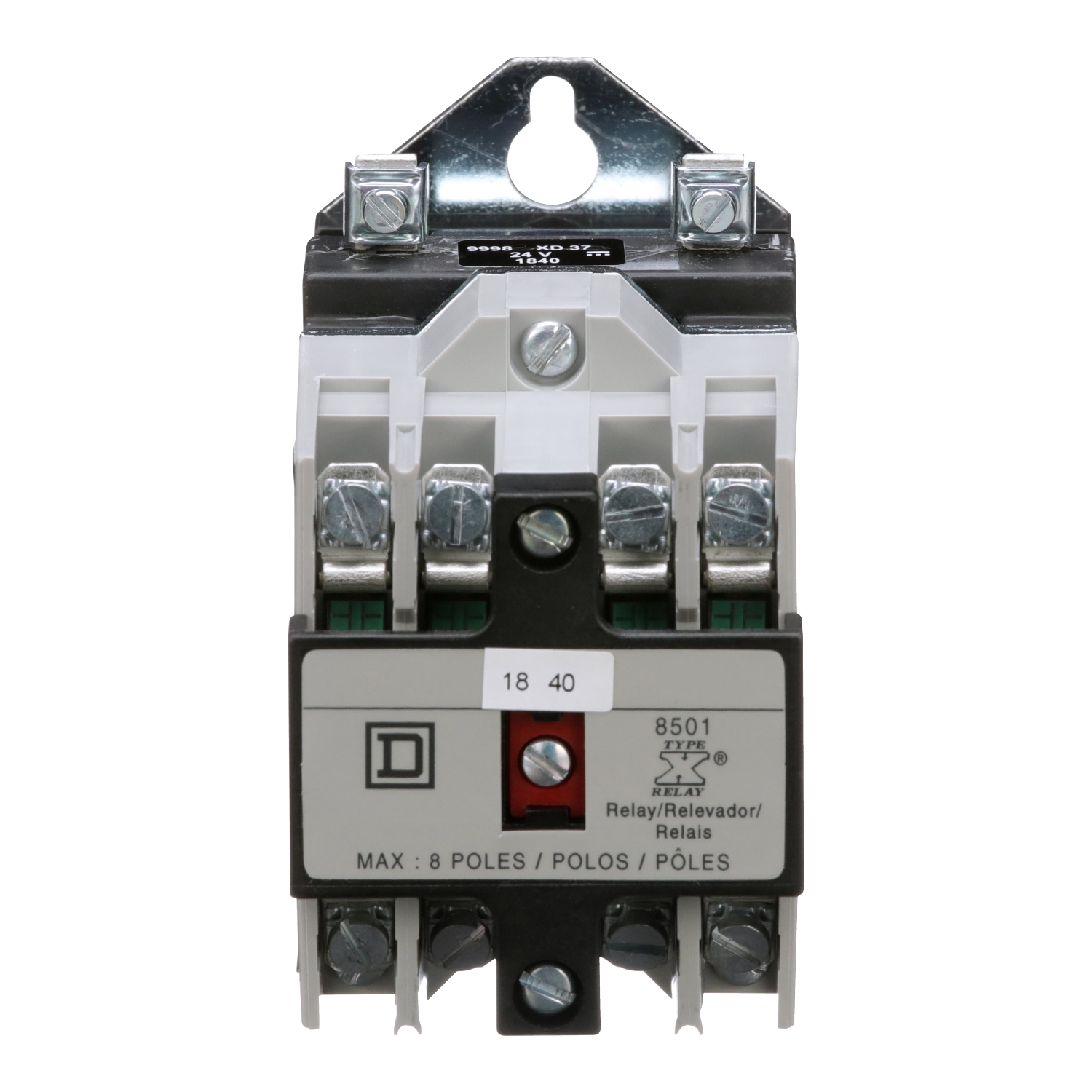

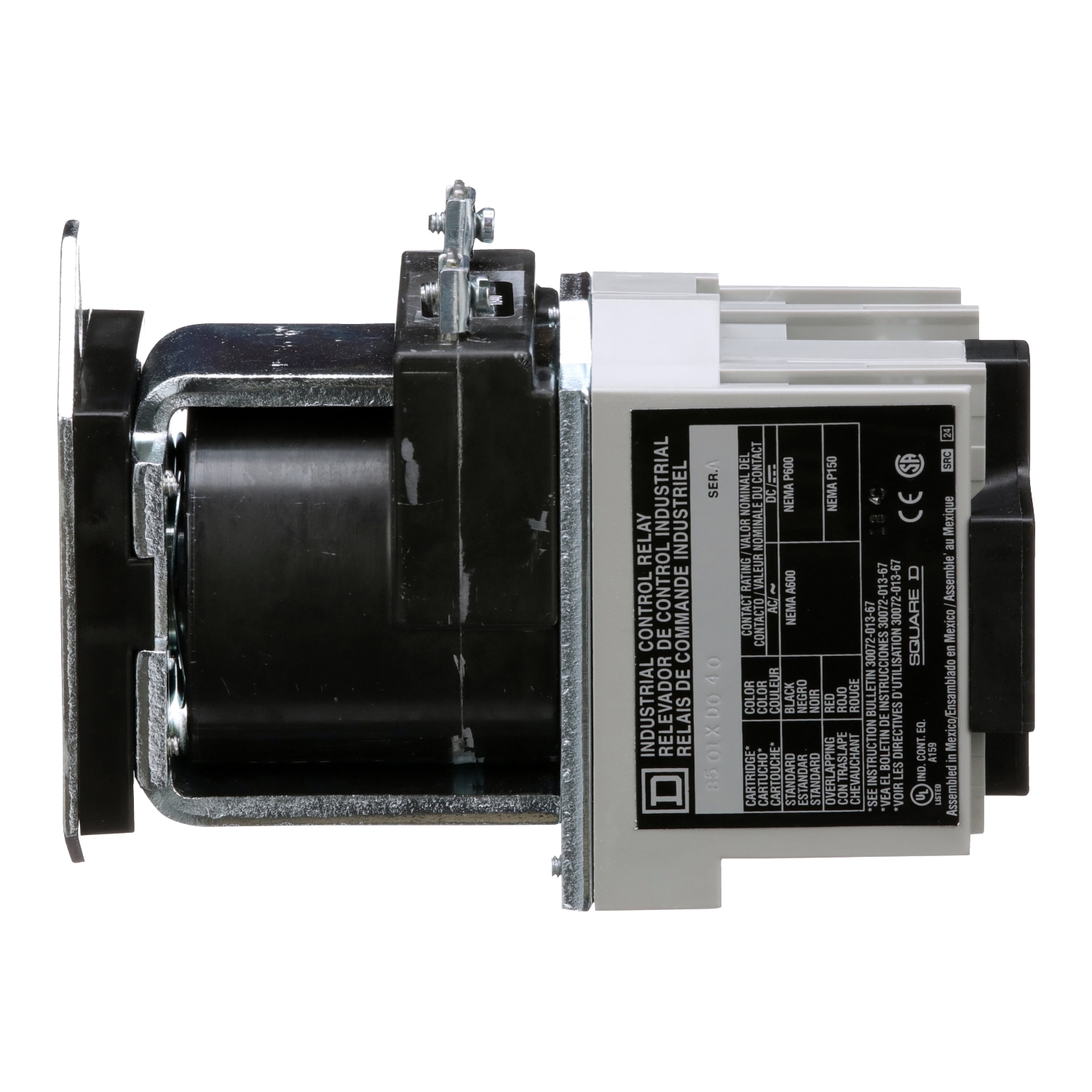

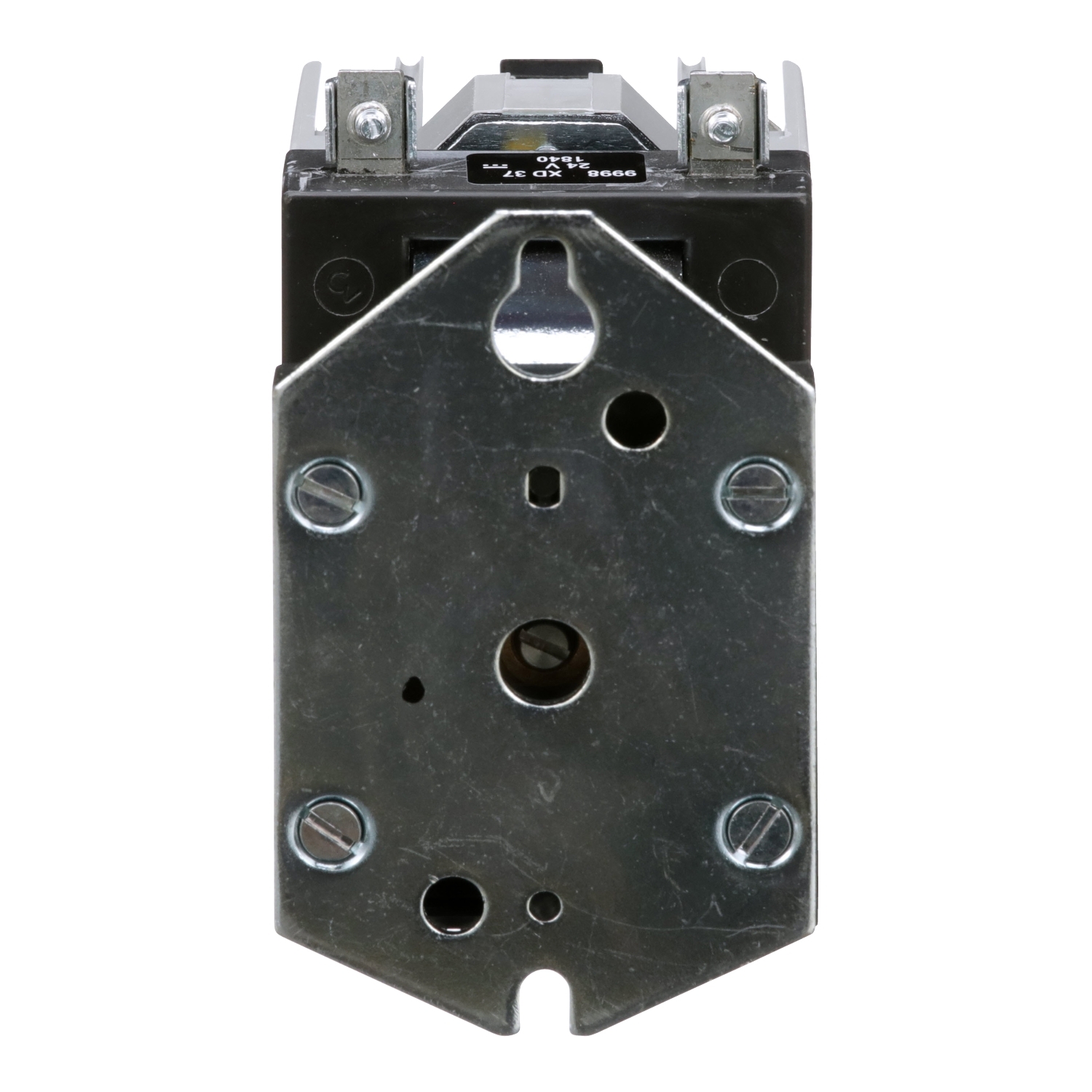

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 24 VDC coil

Range

8501X

Relay Type

Control

Product

Relay

Current Rating

10 A AC
5 A DC

Coil Voltage

24 V DC

Control circuit voltage limits

Operational 0.8...1.1 Uc DC

Rated breaking capacity

6 A 120 V AC inductive control circuit UL 508
3 A 240 V AC inductive control circuit UL 508
1.5 A 480 V AC inductive control circuit UL 508
1.2 A 600 V AC inductive control circuit UL 508
10 A <= 600 V AC resistive control circuit UL 508
1.1 A 125 V DC inductive control circuit UL 508
0.55 A 250 V DC inductive control circuit UL 508
0.2 A 301...600 V DC inductive control circuit UL 508
4 A 125 V DC resistive control circuit UL 508
0.8 A 250 V DC resistive control circuit UL 508

[Icm] rated short-circuit making capacity

60 A 120 V AC inductive control circuit UL 508
30 A 240 V AC inductive control circuit UL 508
15 A 480 V AC inductive control circuit UL 508
12 A 600 V AC inductive control circuit UL 508
10 A <= 600 V AC resistive control circuit UL 508
1.1 A 125 V DC inductive control circuit UL 508
0.55 A 250 V DC inductive control circuit UL 508
0.2 A 301...600 V DC inductive control circuit UL 508
4 A 125 V DC inductive control circuit UL 508
0.8 A 250 V DC resistive control circuit UL 508

Inrush power in W

18 W

Hold-in Power Consumption in W

18 W

Operating time

37 ms - pick-up
21 ms - drop-out

Contact Configuration

4 NO 4 standard contact cartridges

Electrical Connection

Screw clamp terminals

AWG gauge

AWG 18...AWG 12 copper

Tightening torque

Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals

Mounting Type

Panel

Height

3.56 in (90.42 mm)

Width

2.23 in (56.64 mm)

Depth

5.17 in (131.32 mm)

Operating Temperature

-40…160 °F (-40…71 °C)

Certifications

UL listed file E78403 CCN NKCR
CSA LR60905 class 3211 03

Category

US10CP221157

Discount Schedule

0CP2

GTIN

785901548720

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.2 in (8.1 cm)

Package 1 Width

4.7 in (11.9 cm)

Package 1 Length

9.2 in (23.4 cm)

Package 1 Weight

3.28 lb(US) (1.49 kg)

Unit Type of Package 2

PAL

Number of Units in Package 2

252

Package 2 Height

40.0 in (101.6 cm)

Package 2 Width

40.0 in (101.6 cm)

Package 2 Length

48.00 in (121.92 cm)

Package 2 Weight

852.00 lb(US) (386.46 kg)

Warranty

18 months
