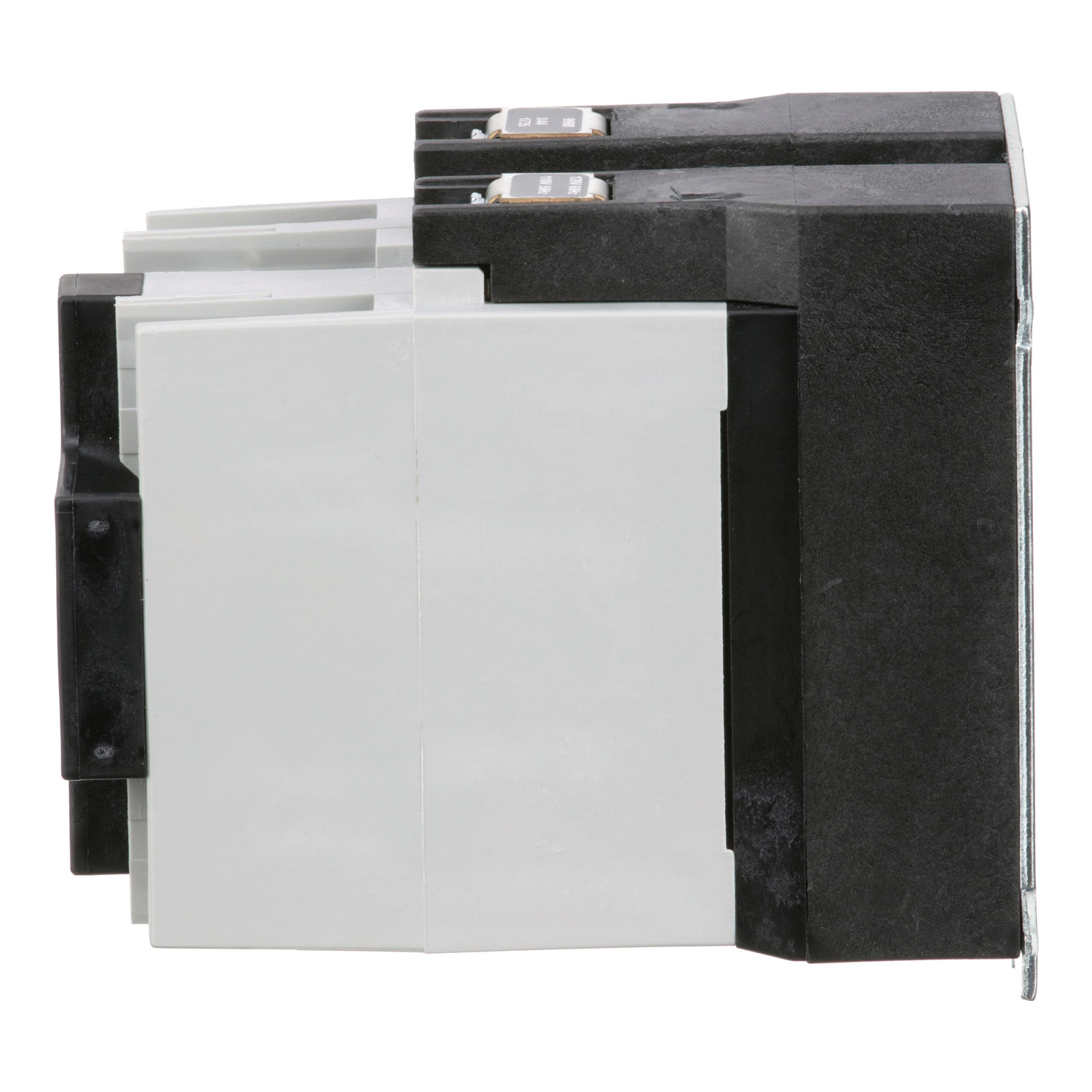

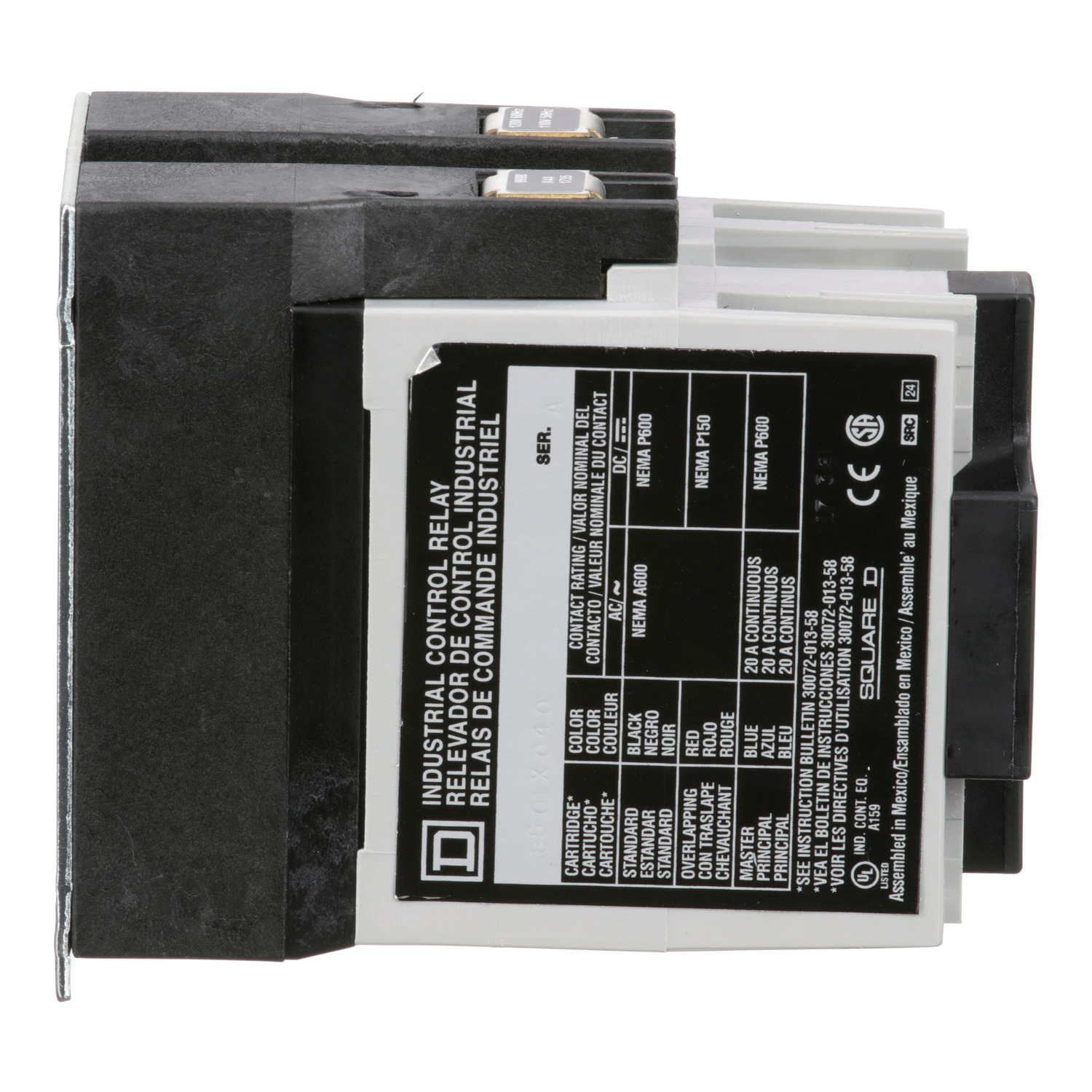

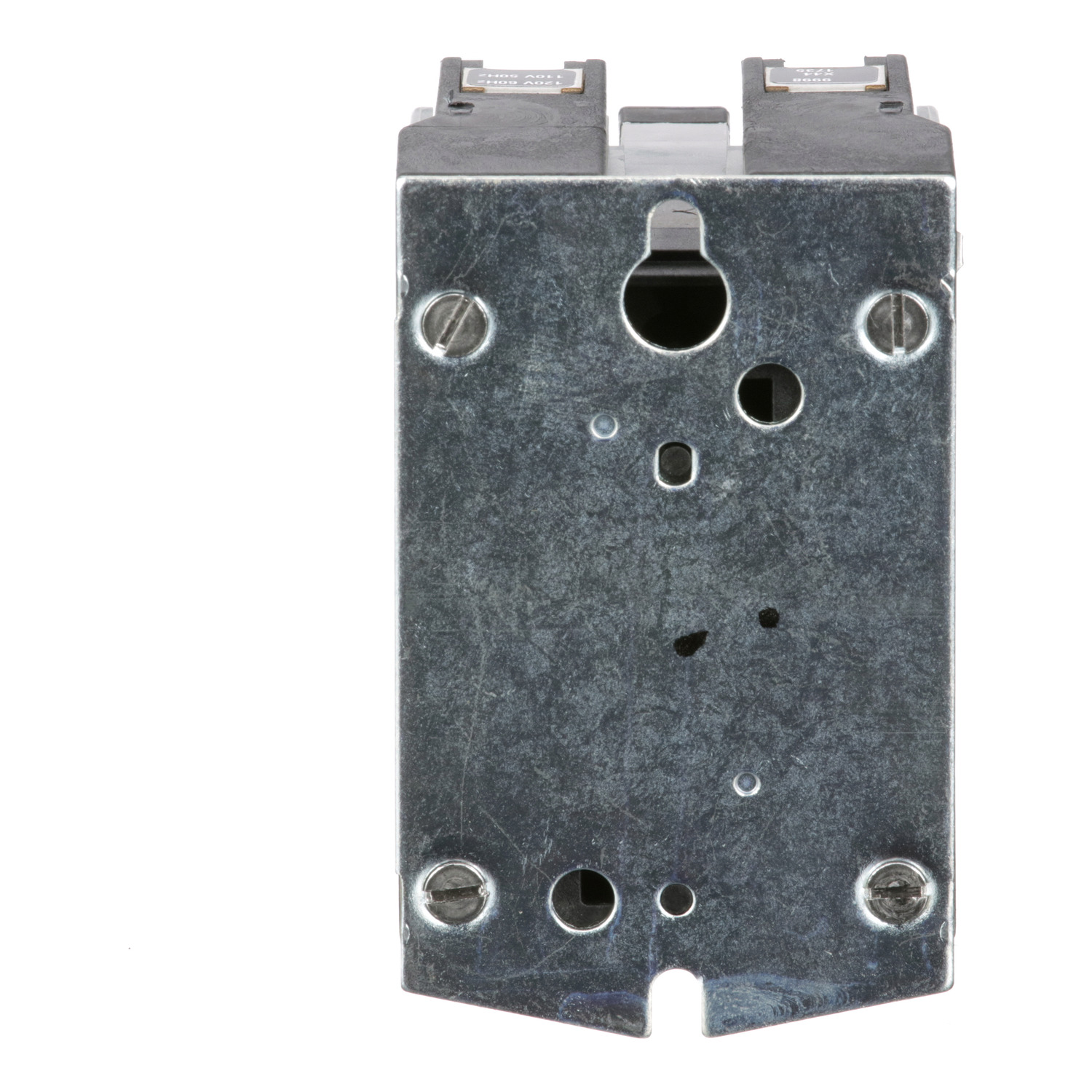

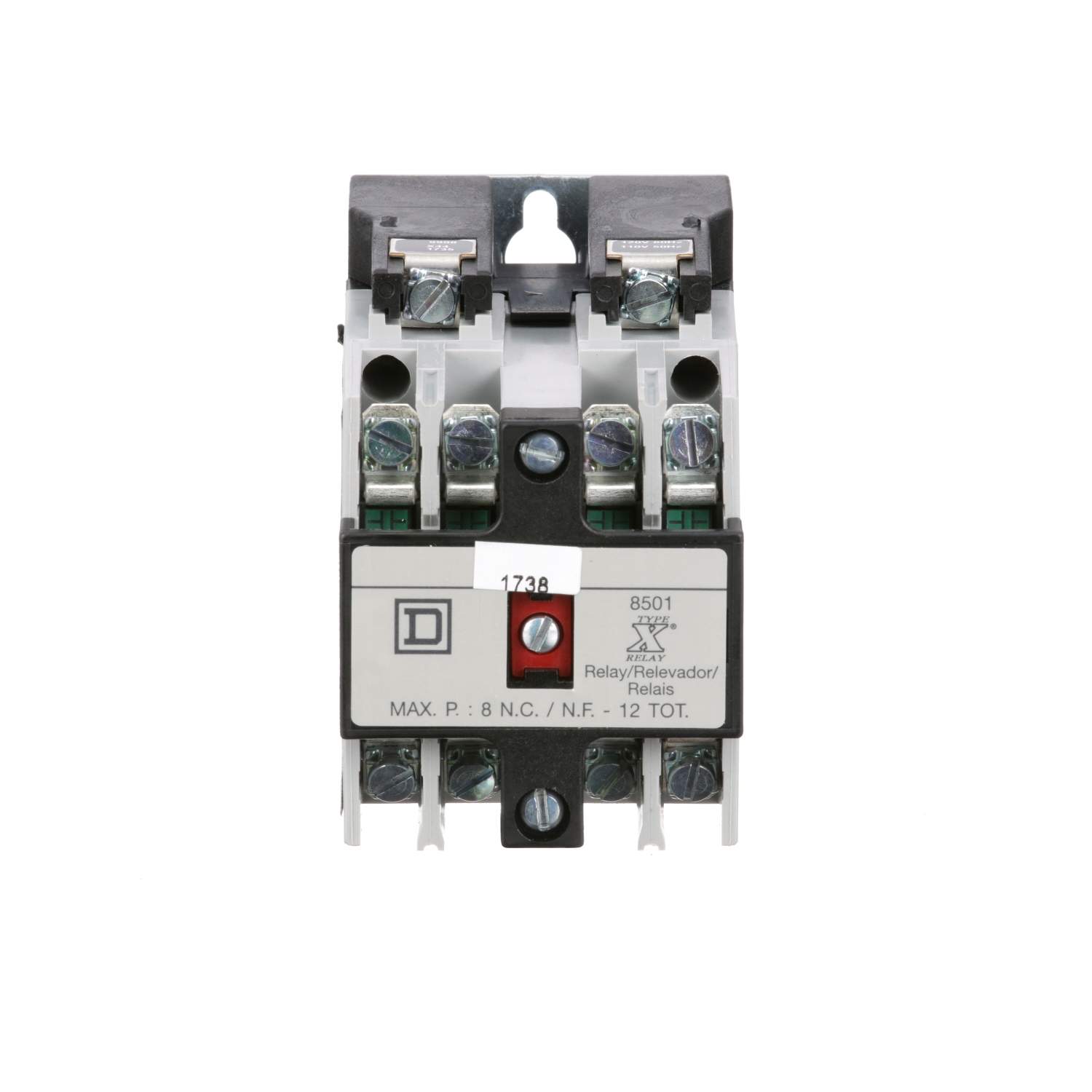

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil

SKU: 8501XO40V02

Resetting the Latching Mechanism on Square D 8501 Type X Relay

Reversing Contacts on Square D 8501 Type X NEMA Relay

About Product

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has four 8501XC1 contact cartridges. This relay has four normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.

Main

Range

8501X

Relay Type

Control

Product

Relay

Current Rating

10 A AC
5 A DC

Complementary

Coil Voltage

110 V AC 50 Hz
120 V AC 60 Hz

Control circuit voltage limits

Operational 0.85...1.1 Uc AC 50/60 Hz

Rated breaking capacity

6 A 120 V AC inductive control circuit UL 508
3 A 240 V AC inductive control circuit UL 508
1.5 A 480 V AC inductive control circuit UL 508
1.2 A 600 V AC inductive control circuit UL 508
10 A <= 600 V AC resistive control circuit UL 508
1.1 A 125 V DC inductive control circuit UL 508
0.55 A 250 V DC inductive control circuit UL 508
0.2 A 301...600 V DC inductive control circuit UL 508
4 A 125 V DC resistive control circuit UL 508
0.8 A 250 V DC resistive control circuit UL 508

[Icm] rated short-circuit making capacity

60 A 120 V AC inductive control circuit UL 508
30 A 240 V AC inductive control circuit UL 508
15 A 480 V AC inductive control circuit UL 508
12 A 600 V AC inductive control circuit UL 508
10 A <= 600 V AC resistive control circuit UL 508
1.1 A 125 V DC inductive control circuit UL 508
0.55 A 250 V DC inductive control circuit UL 508
0.2 A 301...600 V DC inductive control circuit UL 508
4 A 125 V DC inductive control circuit UL 508
0.8 A 250 V DC resistive control circuit UL 508

Inrush power in VA

148 VA 60 Hz
143 VA 50 Hz

Hold-in power consumption in VA

23 VA 60 Hz
25 VA 50 Hz

Operating time

15 ms - pick-up
16 ms - drop-out

Contact Configuration

4 NO 4 standard contact cartridges

Electrical Connection

Screw clamp terminals

AWG gauge

AWG 18...AWG 12 copper
