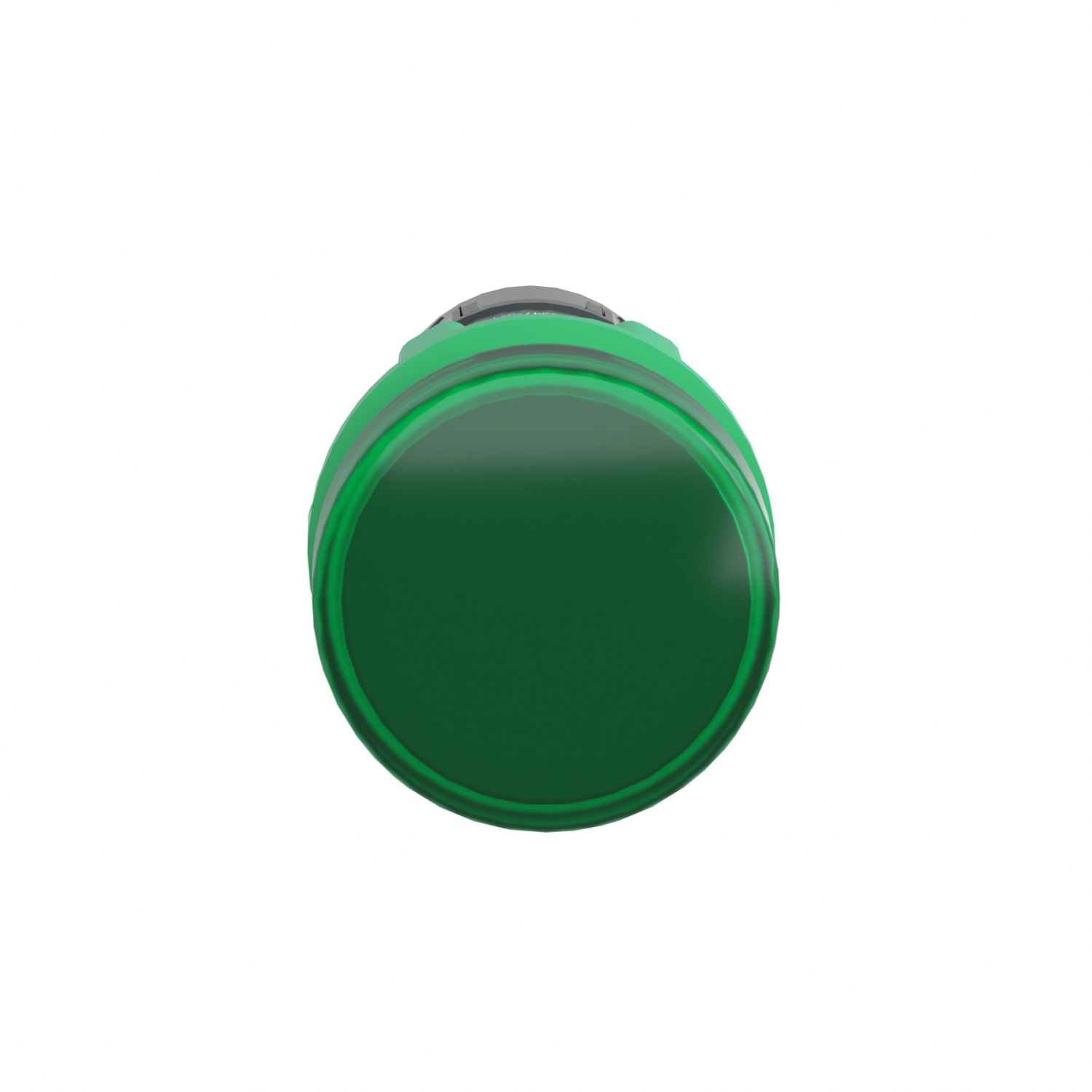

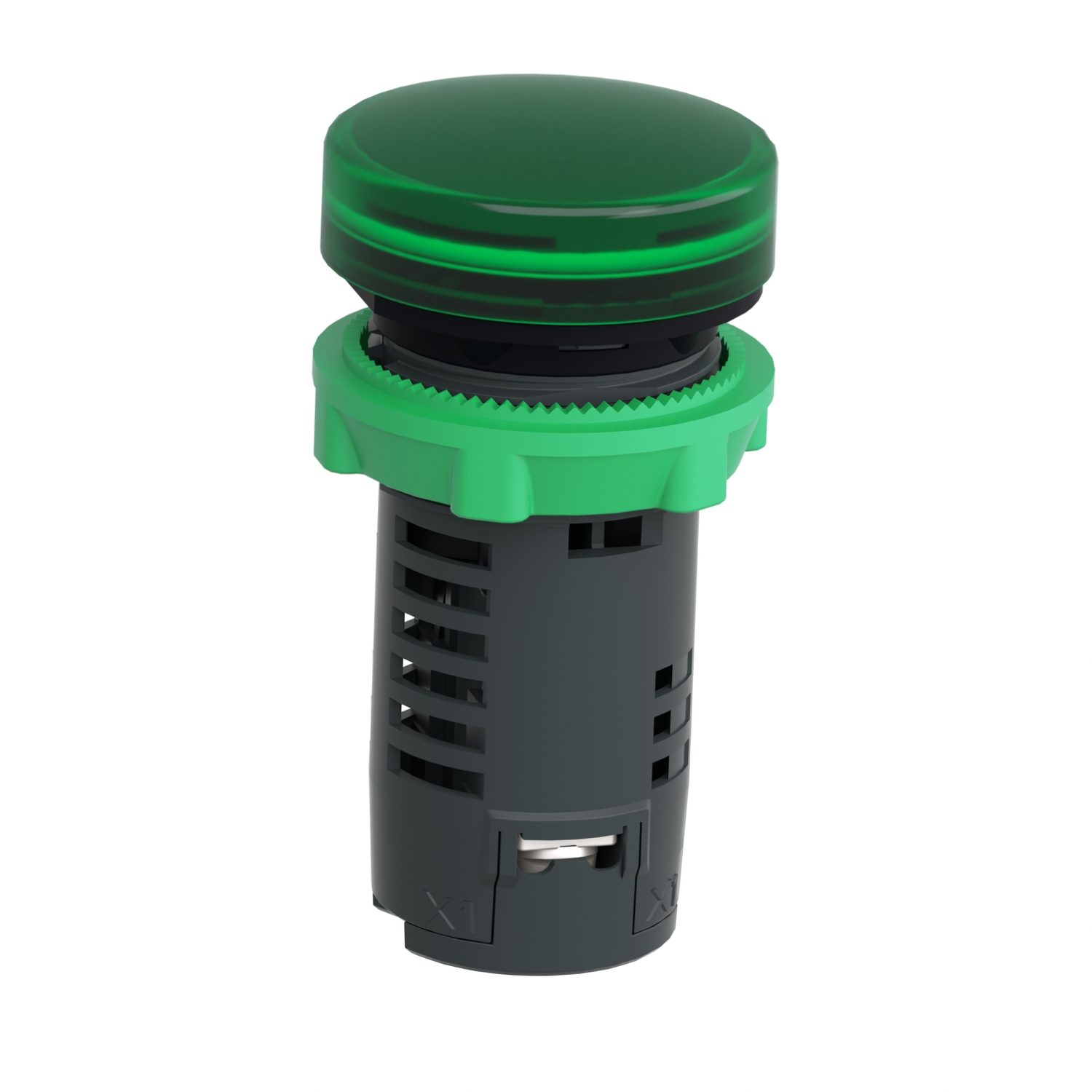

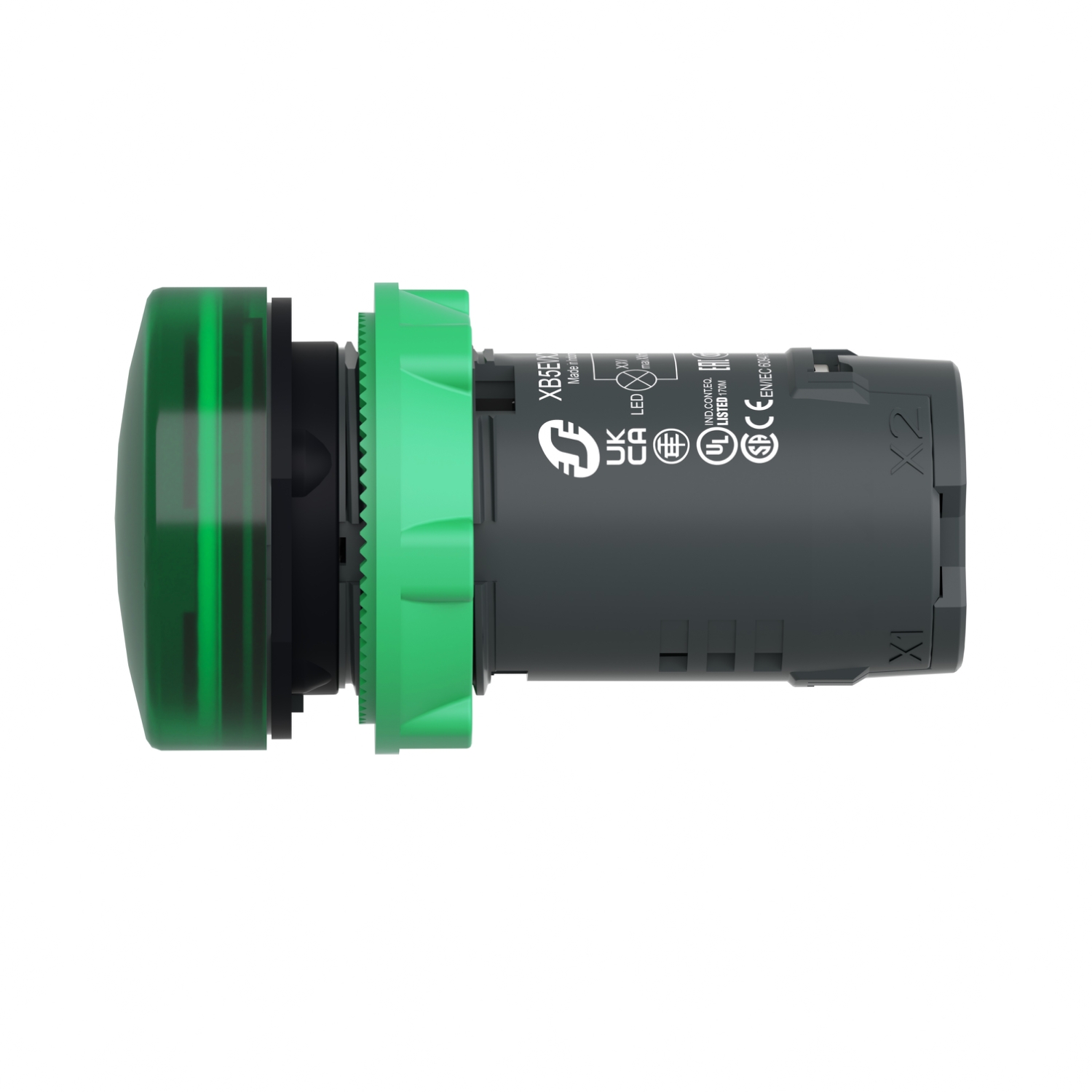

Monolithic pilot light, Harmony XB5, grey plastic, green, 22mm, universal LED, plain lens, 24V AC DC

Range of Product

Harmony XB5

Product or Component Type

Pilot light

Device short name

XB5

Bezel material

Dark grey plastic

Fixing collar material

Plastic

Head type

Standard

Mounting diamete

0.9 in (22.5 mm)

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Cap/operator or lens colour

Green

Operator additional information

With plain lens

Light source

Universal LED

Bulb base

Integral LED

Light source colour

Green

[Us] rated supply voltage

24 V AC/DC 50/60 Hz

device presentation

Monolithic product

Height

1.1 in (29 mm)

Width

1.1 in (29 mm)

Depth

2.1 in (54 mm)

Terminals description ISO n°1

(X1-X2)PL

Net Weight

0.084 lb(US) (0.038 kg)

Resistance to high pressure washer

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

[Ui] rated insulation voltage

250 V 3)IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV IEC 60947-1

Signalling type

Steady

Compatibility code

XB5

Supply voltage limits

19.2…30 V DC
21.6…26.4 V AC

Current Consumption

18 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV IEC 61000-4-5

protective treatment

TH

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

Overvoltage category

Class II IEC 60536

IP degree of protection

IP66 IEC 60529
IP67 IEC 60529
IP69 IEC 60529
IP69K ISO 20653

NEMA degree of protection

NEMA 13
NEMA 4X

IK degree of protection

IK05 conforming to IEC 50102

Standards

UL 508
JIS C8201-5-1
IEC 60947-1
IEC 60947-5-4
CSA C22.2 No 14
IEC 60947-5-1
JIS C8201-1

Product Certifications

CSA
UL Listed

Vibration resistance

5 gn 12…500 Hz)IEC 60068-2-6

Shock resistance

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27
30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance to fast transients

2 kV IEC 61000-4-4

Resistance to electromagnetic fields

9.1 V/m (10 V/m) IEC 61000-4-3

Electromagnetic compatibility

Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
Electromagnetic emission class B conforming to IEC 55011

Resistance to electrostatic discharge

6 kV on contact (on metal parts) IEC 61000-4-2
8 kV in free air (in insulating parts) IEC 61000-4-2

Electromagnetic emission

Class B IEC 55011

Category

US10CS222467

Discount Schedule

0CS2

GTIN

3389119041331

Returnability

Yes

Country of origin

ID

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.6 in (4.0 cm)

Package 1 Width

1.6 in (4.0 cm)

Package 1 Length

2.4 in (6.0 cm)

Package 1 Weight

0.8 oz (22.0 g)

Unit Type of Package 2

S01

Number of Units in Package 2

90

Package 2 Height

5.9 in (15 cm)

Package 2 Width

5.9 in (15 cm)

Package 2 Length

15.7 in (40 cm)

Package 2 Weight

5.05 lb(US) (2.29 kg)

Unit Type of Package 3

P06

Number of Units in Package 3

2880

Package 3 Height

31.5 in (80 cm)

Package 3 Width

15.7 in (40 cm)

Package 3 Length

29.5 in (75 cm)

Package 3 Weight

194.80 lb(US) (88.36 kg)

Warranty

18 months
